Description

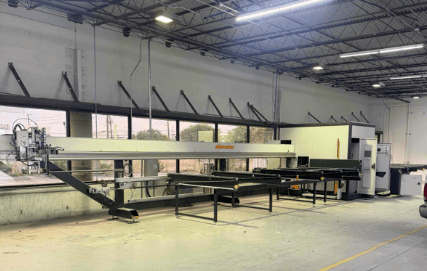

The 2024 Elumatec SBZ 628 S is a state-of-the-art, fully automated CNC profile machining center designed for the high-speed processing of aluminum, PVC, and thin-walled steel profiles. Engineered for ultra-efficient fabrication of window, door, and curtain wall components, this unit delivers exceptional throughput with unmatched precision.
With 8-axis control, dual independent processing zones, and integrated saw and tool stations, the SBZ 628 S provides end-to-end machining—including milling, drilling, notching, routing, and sawing—without manual repositioning.
Max. profile cross-section (WxH) 200 x 160 / 160 x 200 mm
Min. profile cross-section 30 x 10 mm
Blank bar length 7,600 mm
Finished part length 350-4,600 mm

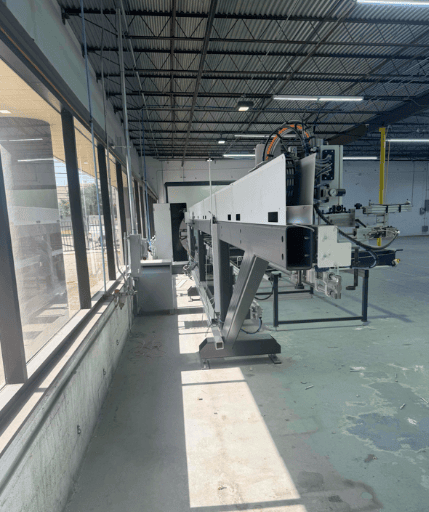

Feed magazine:
Shortest blank bar length 3,000 mm
Number of swing arms 5 (option for 9)
Mounting positions 10 (above 120 mm 5)

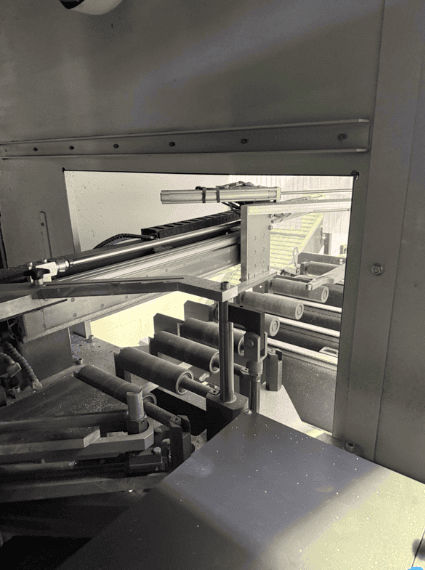

Infeed:
Servo drive linear
Motorized gripper adjustment Y/Z
Gripper rotation Optional
Residual piece measurement –
Residual piece processing manual feeding < 3,000
Machining station:
Axes 4
Router spindles 4 (servo-assisted)

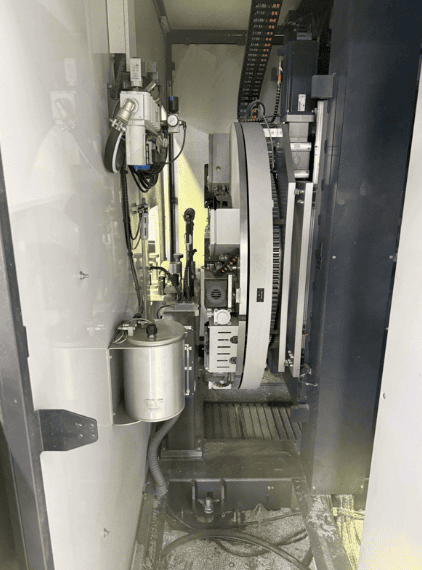

Saw:
Axes 2
Saw blades (diameter) 1 (650 mm)
Sawing angles 45° – 135° (pivoting)

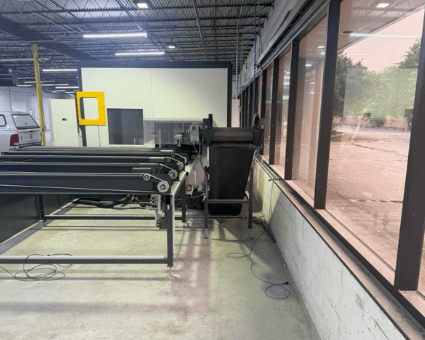

Outfeed conveyor:
Lifting station Yes
Number of swing arms 8
Outfeed conveyor width (options) 4,000 mm
