Description

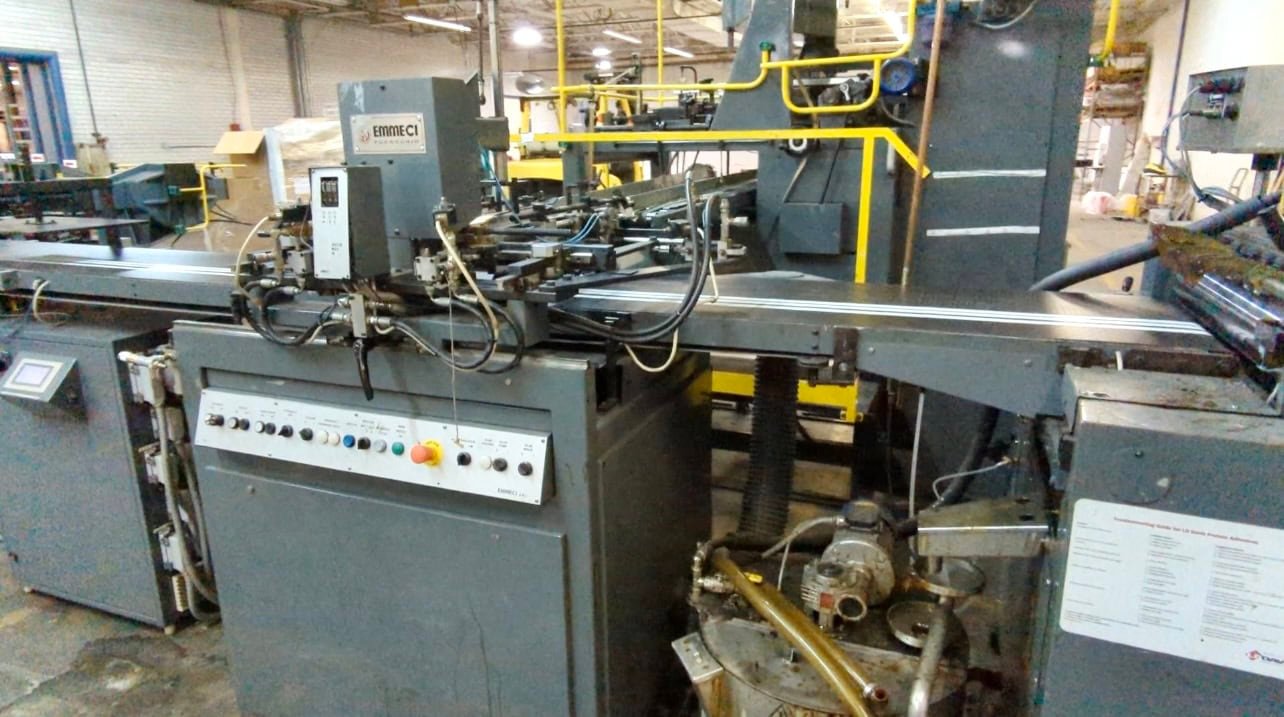

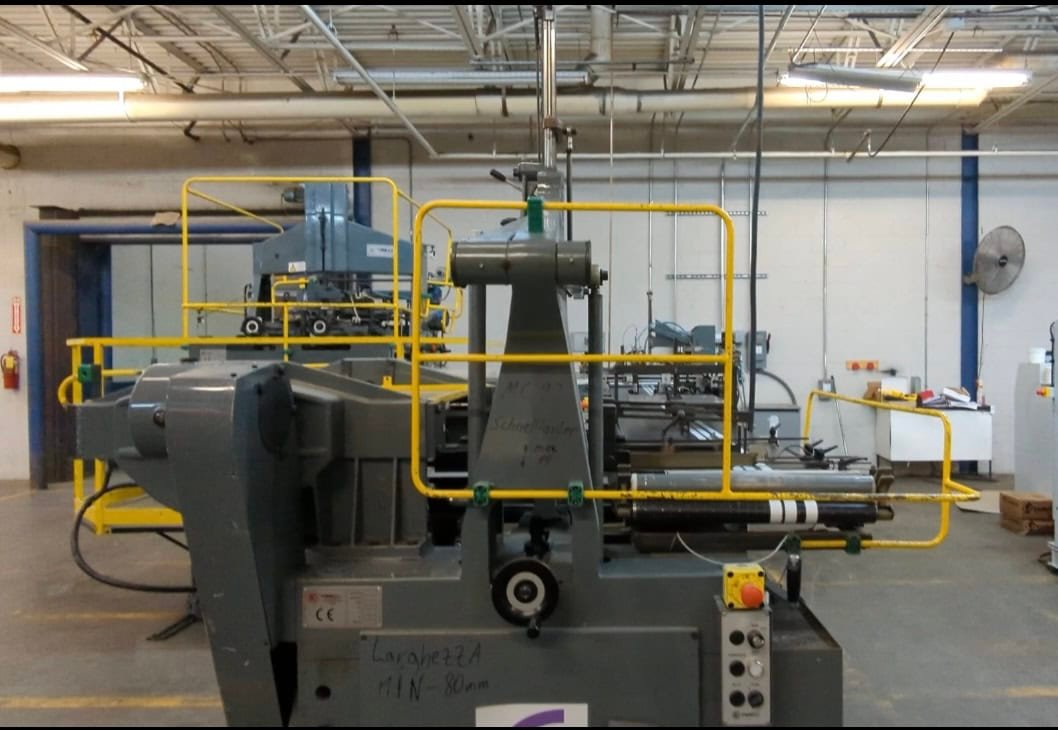

Fully Automatic Lines to Manufacture Rigid Boxes
-Maximum size of paper wraps L x W: 850 x 490 mm (33-15/32 X 19 19/64”)
-Minimum size of paper wraps L x W: 180 X 95 mm (7 1/8 X 3-3/4”)
-Finished box lengths: 125 to 450 mm (4 15/16 to 17 3/4”)
-Finished box widths: 35 to 305 mm (1 3/8 to 12 1/64”)
-Finished box height: 12 to 80 mm (½ to 3 5/32”)

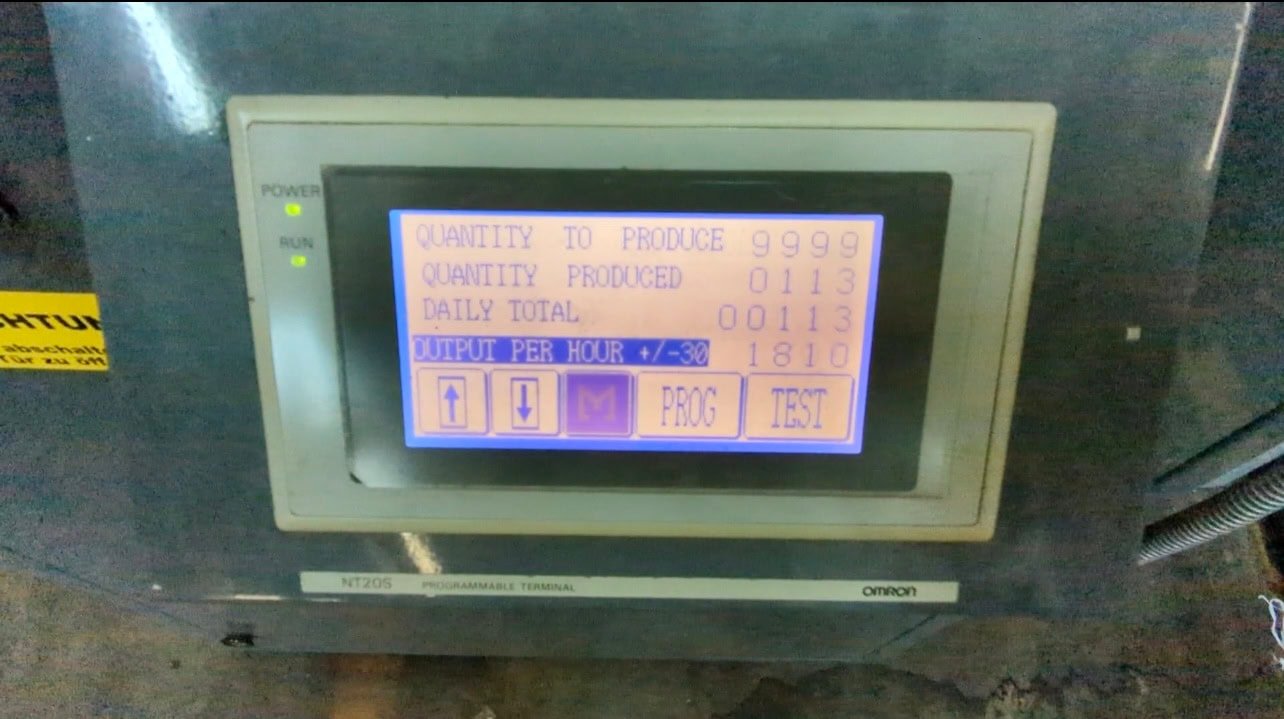

-Achievement of production speeds up to 3000 pieces per hour (50 pieces per minute)
dependent upon materials and finished box sizes
-Spotting accuracy of plus or minus 0.25 mm (1/100 of an inch)
-Sub-straight pile height in Quad Stayer up to 1,400 mm (approximately 55”) dependent
upon board thickness
-Maximum heat seal stay tape reel capacity: 400 mm (15 3/4 inches)
-Pile capacity on gluer label table: approximately 4000 wraps
-Glue mixer overall capacity: 65 liters (17 U.S. gallons)
-Set-up time of entire line with fully trained skilled operator: approximately one hour
-Overall complete line dimensions L x W: 6,900 x 4,000 mm (271 9/16 x 157 3/8 in.)
-Total electrical power: 16.63 Kw
-Air supply: 10 liter per hour, 5-8 bar, 0.35 CFM, 75-110 psi
**More Information Upon Request**
