Description
Table size: 5′ x 10′

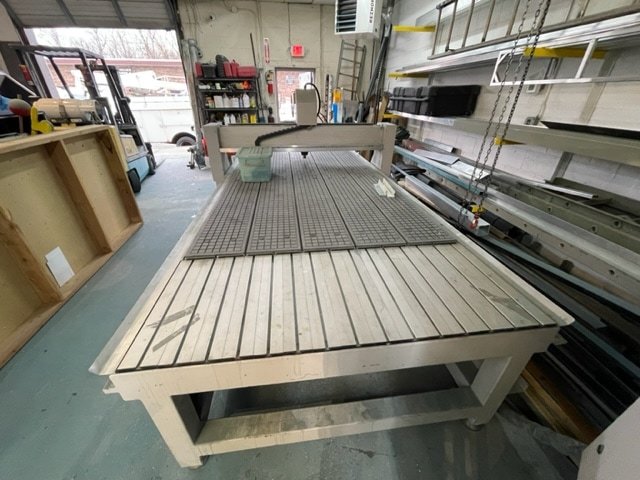

Table Surface: Vacuum System
Working Area:
X-Axis: 51″
Y-Axis: 96″
Z-Axis: 7″ Clearance
Traveling Positioning Accuracy:
0.05/300mm
Repositioning Positioning Accuracy: 0.05mm
X, Y Structure: Rack & Pinion Drive, Hiwin
Rail Linear Bearings
Z Structure: Ball Screw, Hiwin Rail Linear
Bearings
Max. Rapid Travel Rate: 1,260 in/min
Max. Working Speed: 787 in/min
Drive Motors – Stepper Motor: 5HP
Spindle Speed: 0 – 1800 RPM
Command Language: G Code
Operating System: DSP System
Interface: USB
Length: 144”
Width: 84”
Height: 64”
Power: 220V / 50Hz, 3PH
Weight: Approx. 3,000 lbs.
Equipped with:
Table style : Vacuum ready and ready for
connection (Vacuum not included)
Original Manual
