Description
Workpiece Max Diameter: 8.66″
Workpiece Max Length on Turret: 5.91″
X-axis Travel: 13.58″
Z-axis Travel: 8.46″
Total X-axis Travel: 32.28″
Rapid Traverse X: 3543 in/min (295 ft/min)
Rapid Traverse Z: 2362 in/min (197 ft/min)
Ball Screw Diameter: 1.57″

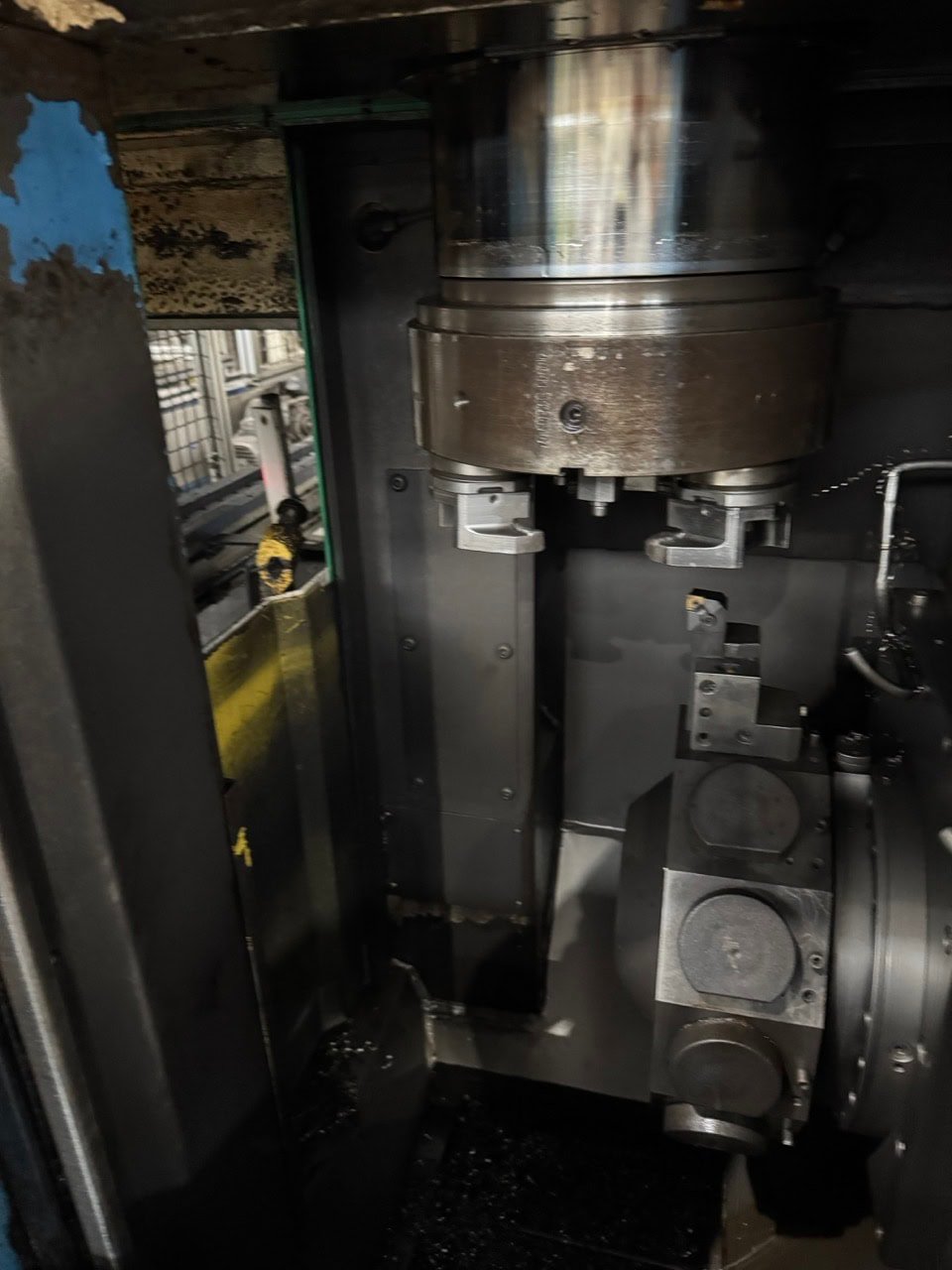

Spindle Nose: ASA 8″
Spindle Power: 64.4 hp
Spindle Speed: 0–5000 rpm
Torque (S6 40%): 310 lb-ft
Max Swing: 14.17″
Standard Chuck: 12.40″
Turret Tool Stations: 12 VDI 40
Motorized Tool Power: 13.4 hp
Motorized Tool Speed: 4000 rpm
Coolant Through Tools: 290 psi
Turret Indexing Time: 0.3 s
Chip-to-Chip Tool Change: 1.2 s
Machine Weight: 22,046 lbs
Equipped With:

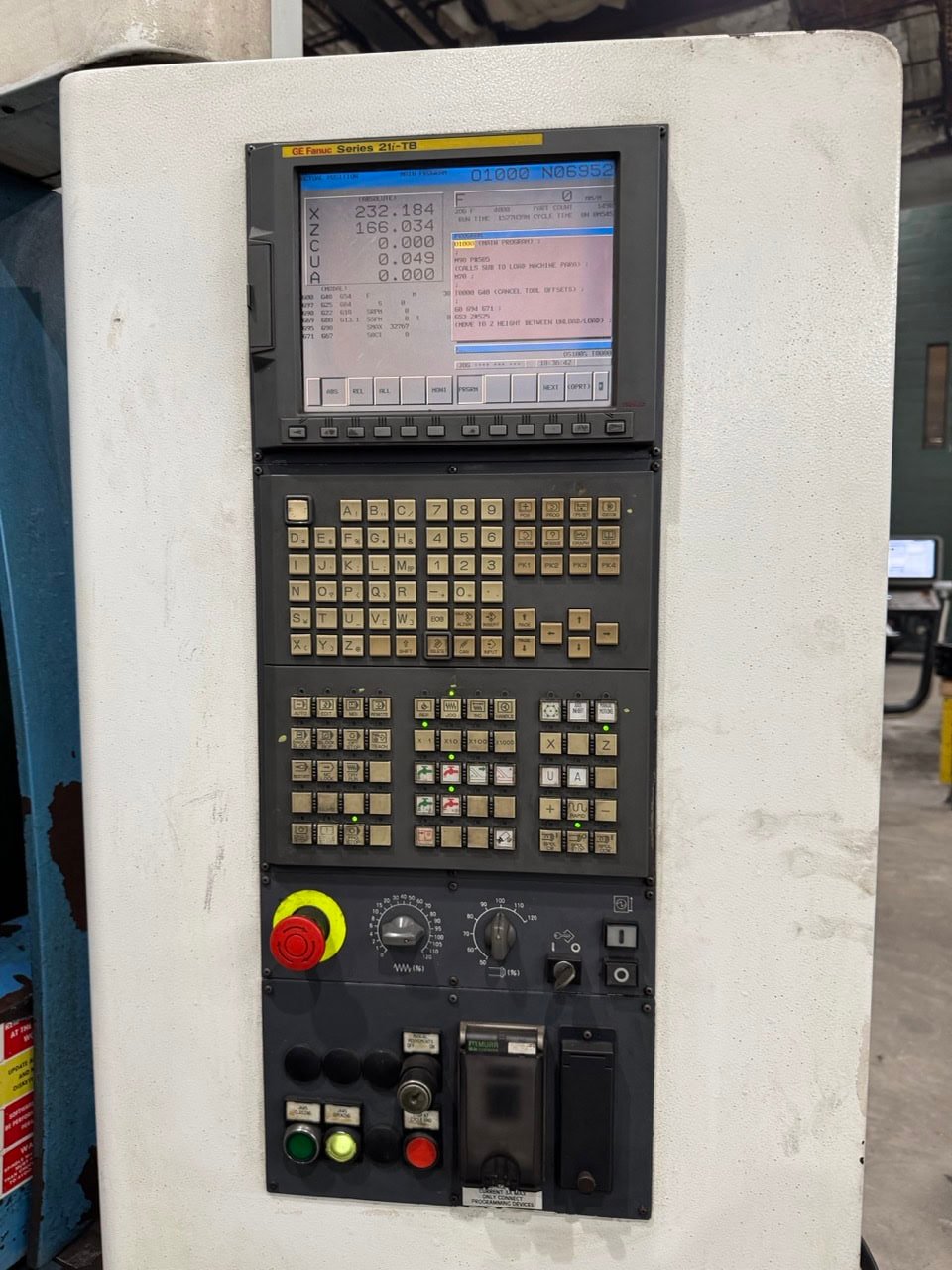

-FANUC 21 i TB control
-Transformer for 460V, 60Hz
-Coolant tank (400 l) with pump
-High-pressure pump 10 bar

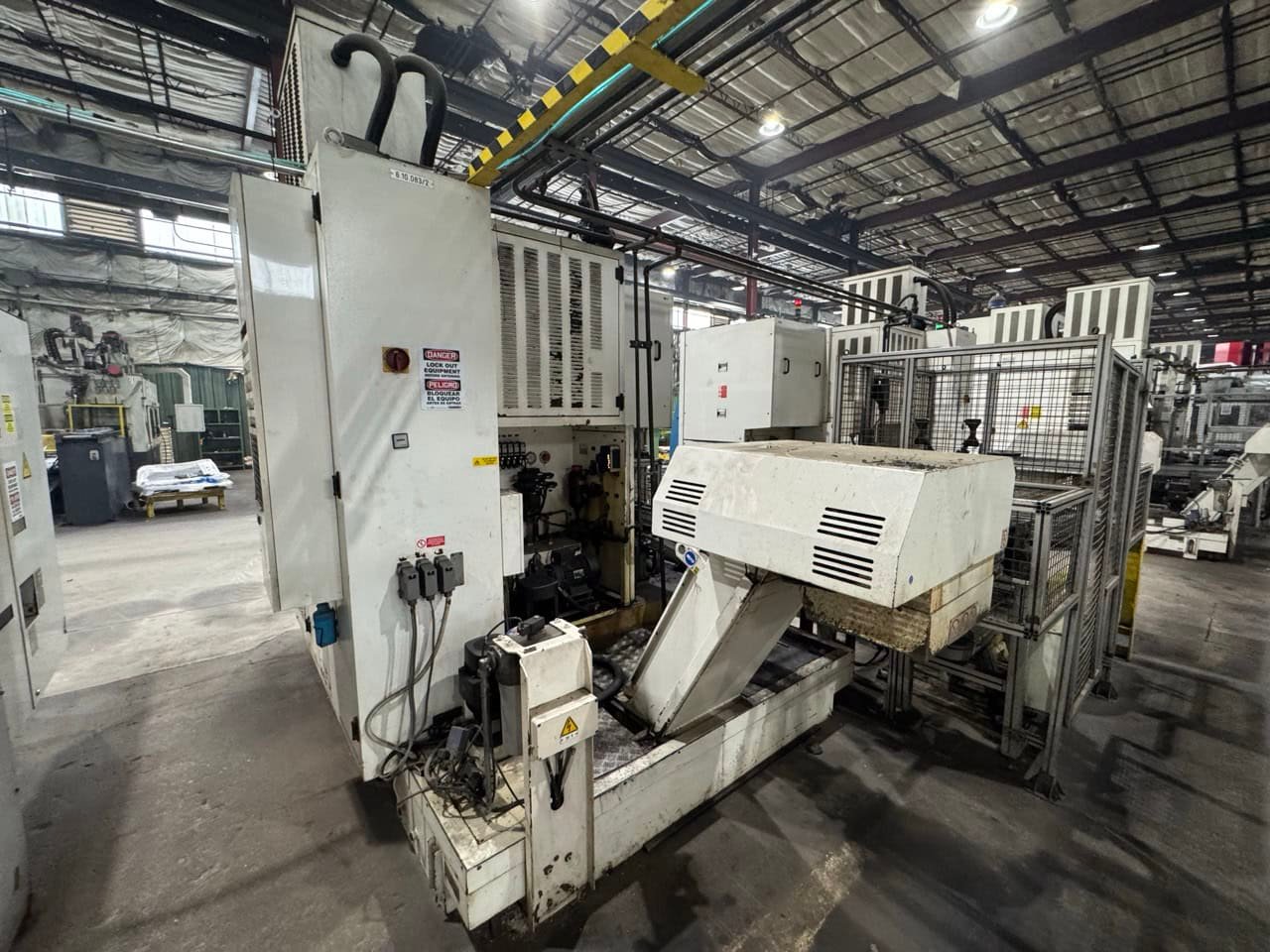

-Chip conveyor
-Motorized tool turret VDI 40

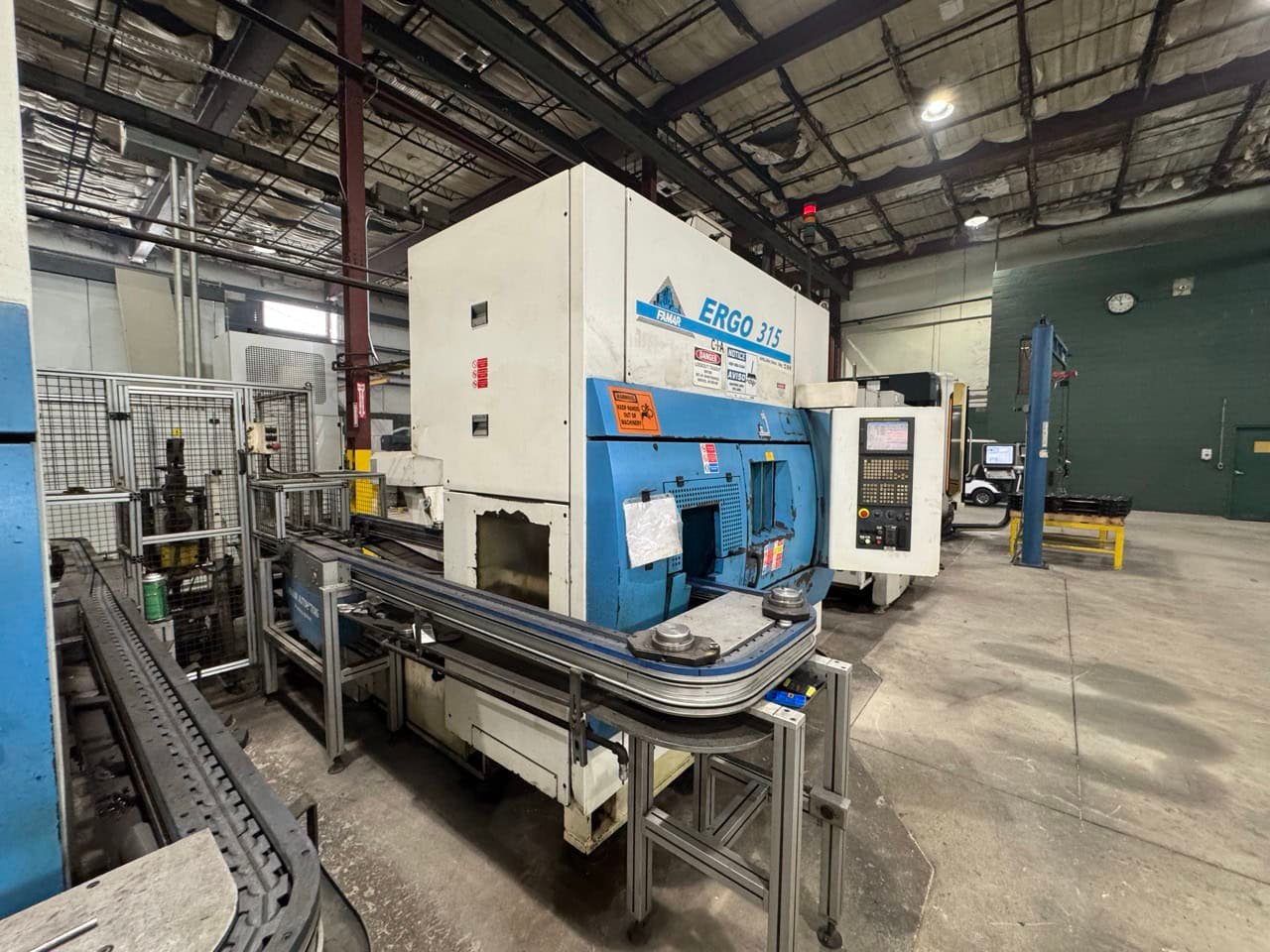

-Pallet loading/unloading system
-In-process measuring device
-C-axis application
