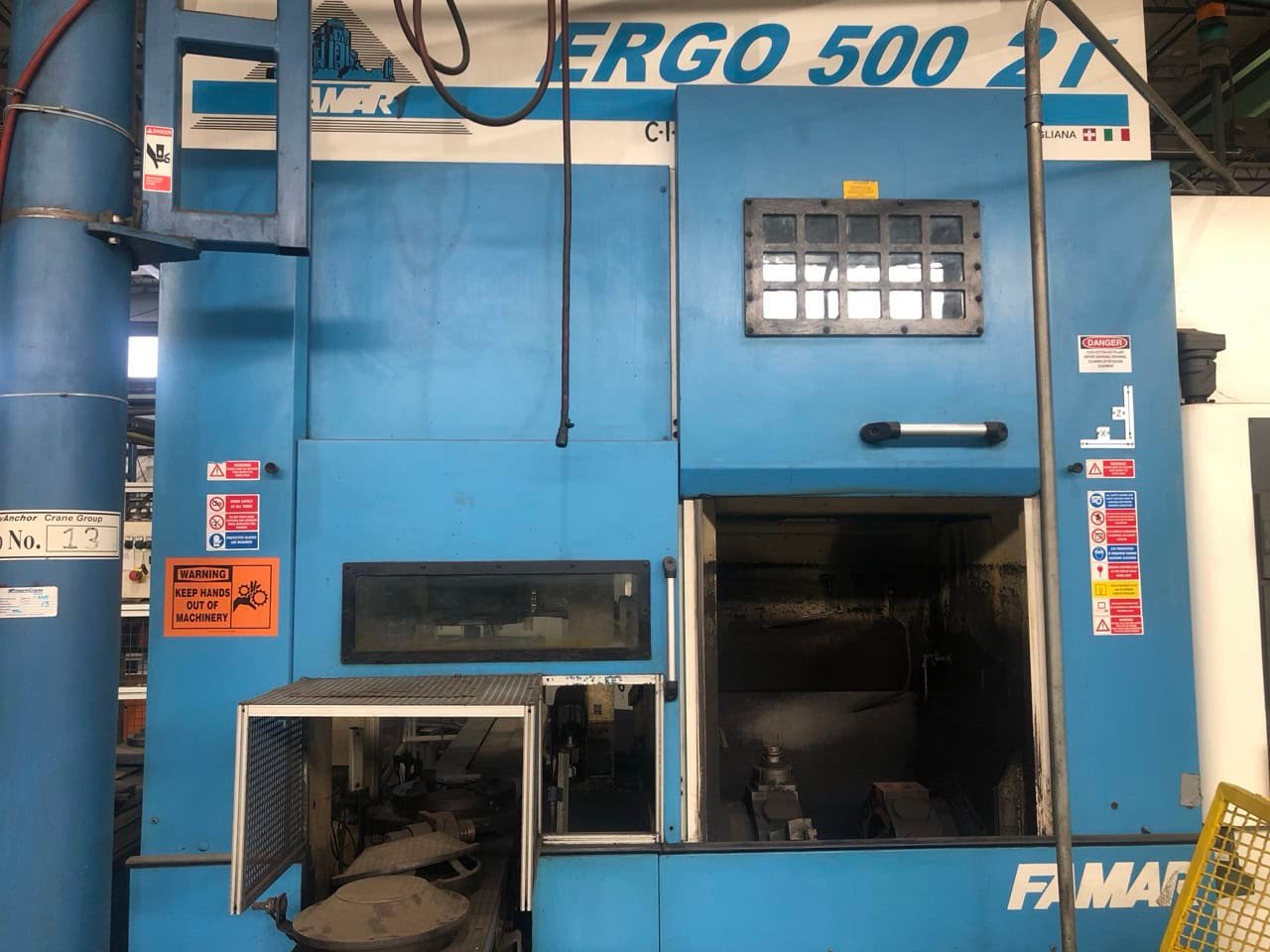

Description
Turning Capacity:
Nominal Diameter: 15.75″
Max Length on Turret: 13.78″
Axis Specifications:
X-Axis Working Stroke: 20.39″
Z-Axis Working Stroke: 13.39″
Z-Axis Total Stroke: 46.46″
X-Axis Rapid Speed: 1,574 in/min
Z-Axis Rapid Speed: 984 in/min
Ball Screw Diameter: 1.97″
X/Z Ball Screw Pitch: 0.79″ / 0.39″
Electro-Spindle:
Spindle Taper (ASA): 11″
Spindle Power: 107.3 HP
Spindle Speed: 0–3200 RPM
Max Torque: 1033.2 ft-lbf
S6 Torque (40%): 1254.2 ft-lbf
Swing Diameter: 24.8″
Self-Centering Chuck (Standard): 19.7″
Turret (Fixed Tools):

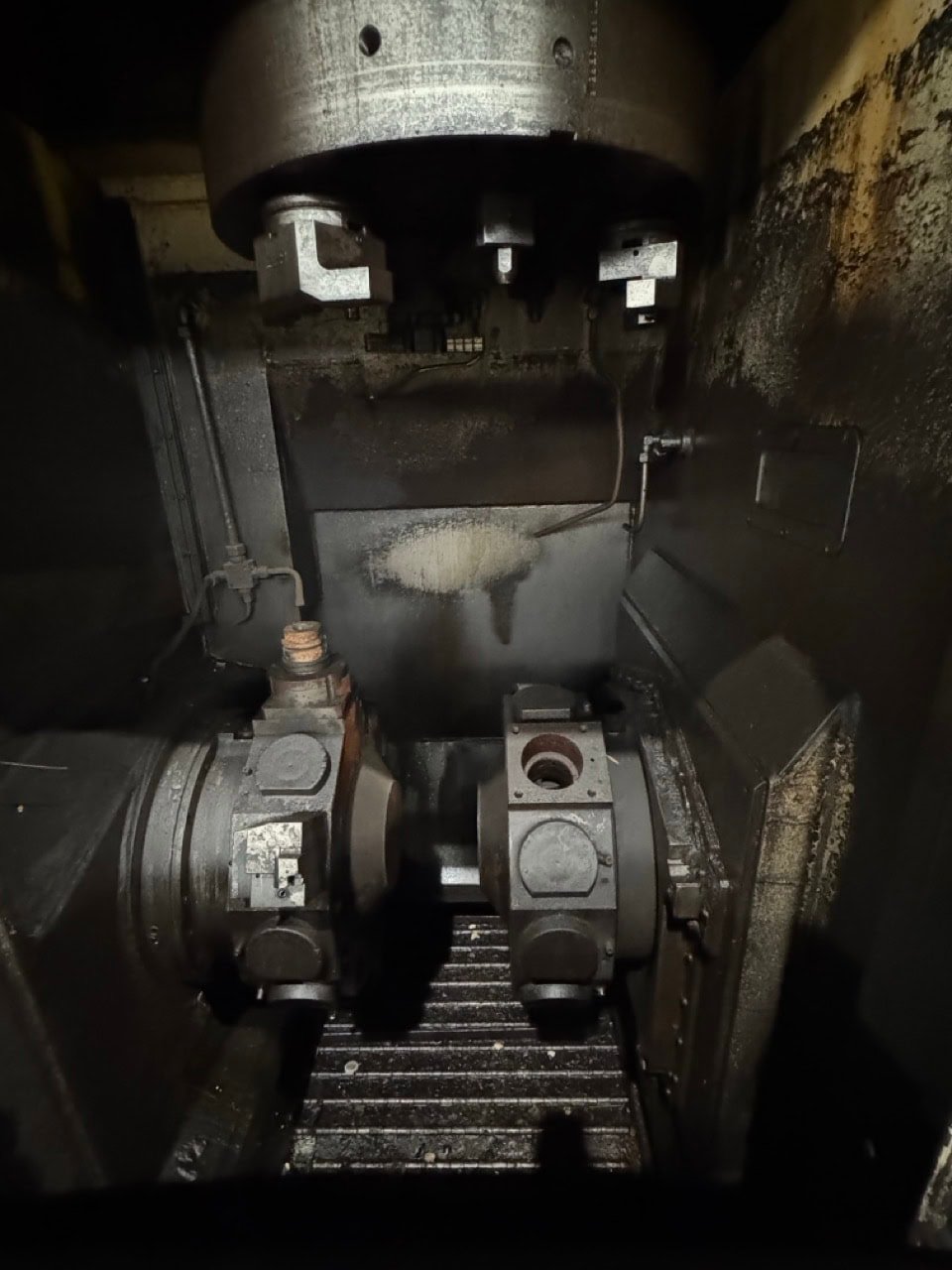

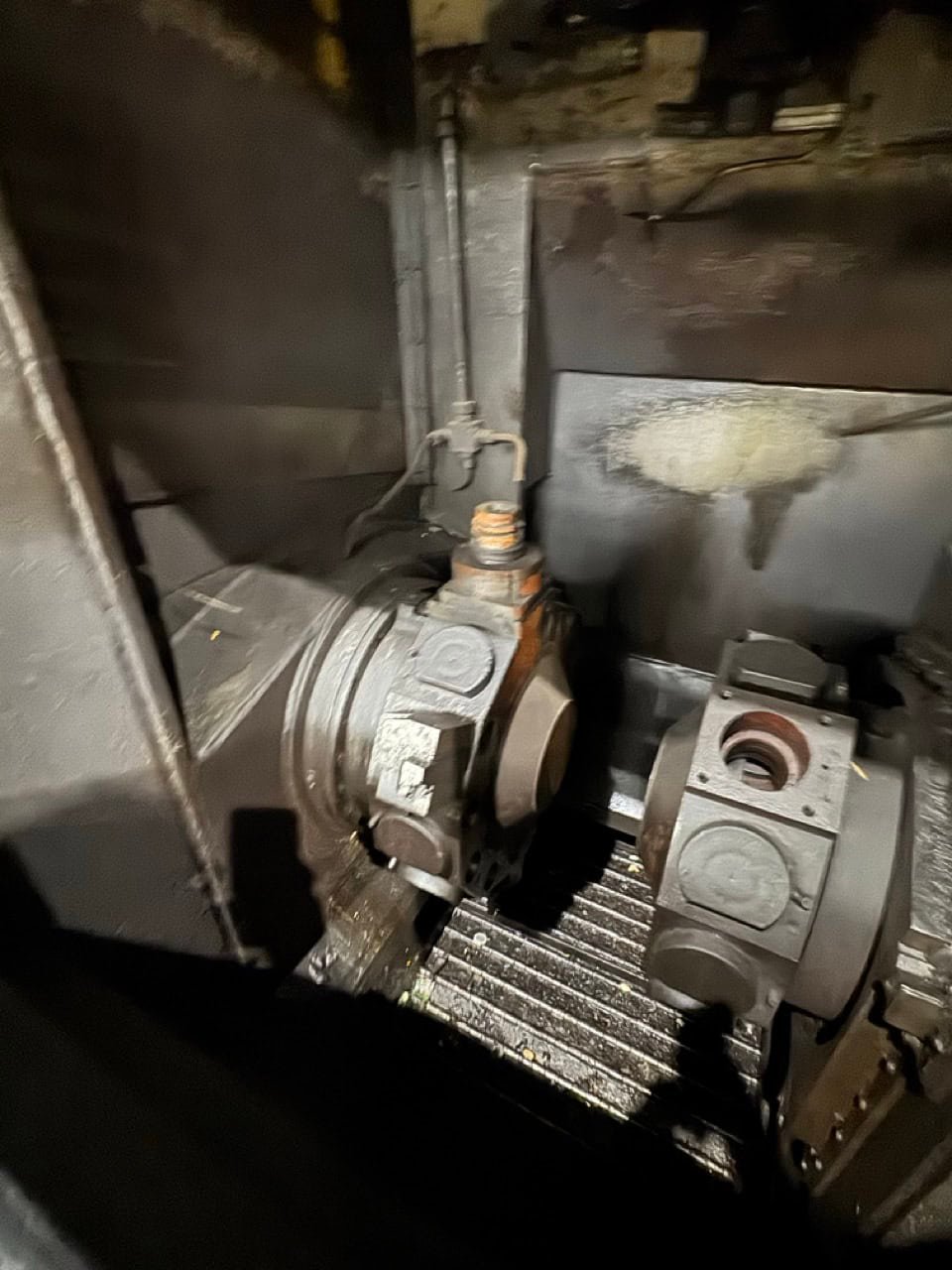

Tool Positions: 12
Tool Interface : VDI 50
Turret (Driven Tools):
Tool Positions: 12
Tool Interface : VDI 50
Turning Time: 0.35 sec
Chip-to-Chip Time: 1.4 sec
Loading / Unloading:
Time per Cycle: 8–14 sec

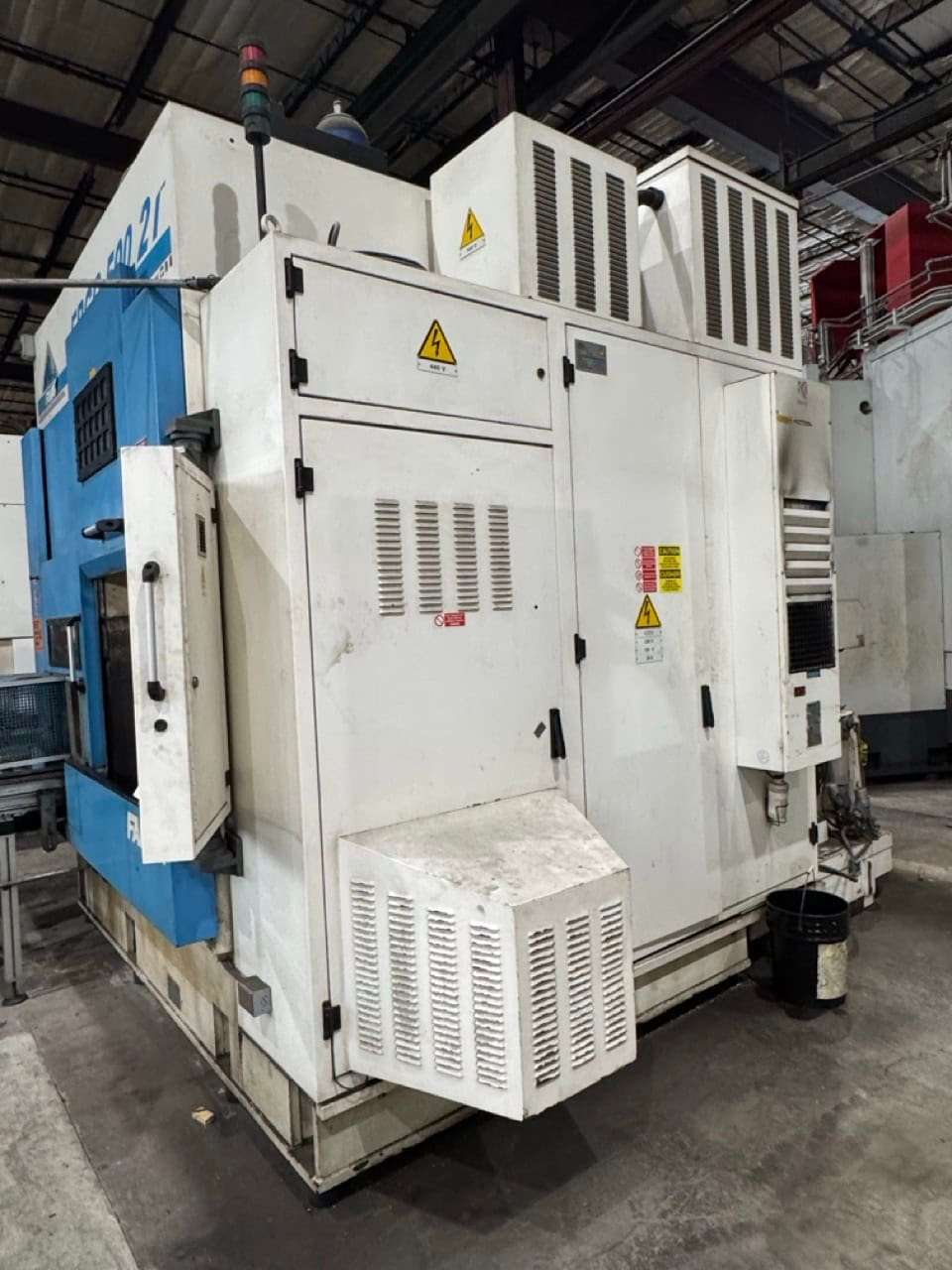

Power Requirements: 400v, 50Hz
Machine Weight: 35,274 lbs
Overall Dimensions: 233.2″(L) x 203.3″(W) x 74.8″(H)
Equipped With:

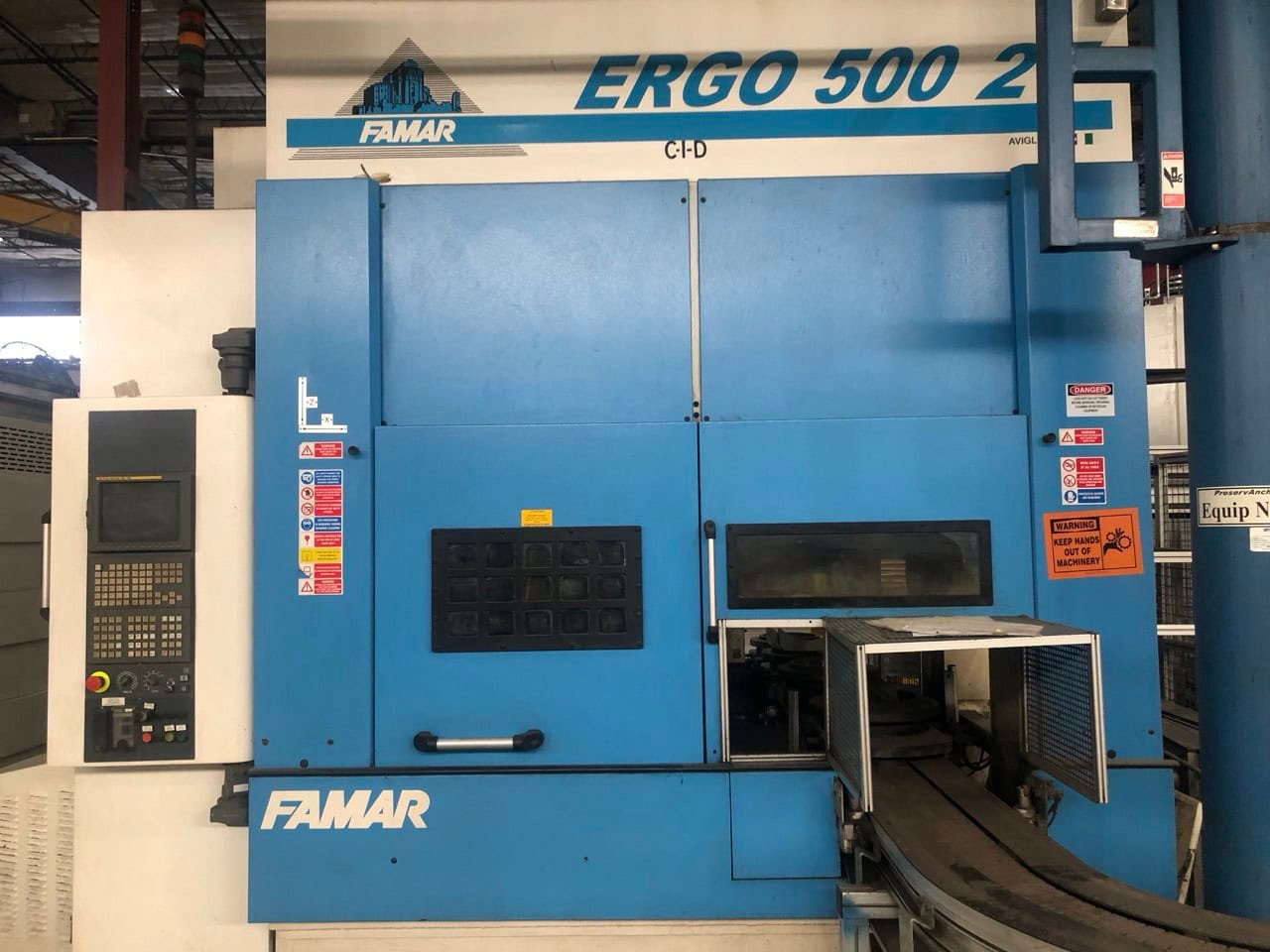

Fanuc 18i-TB Control
High Pressure 15 Bars

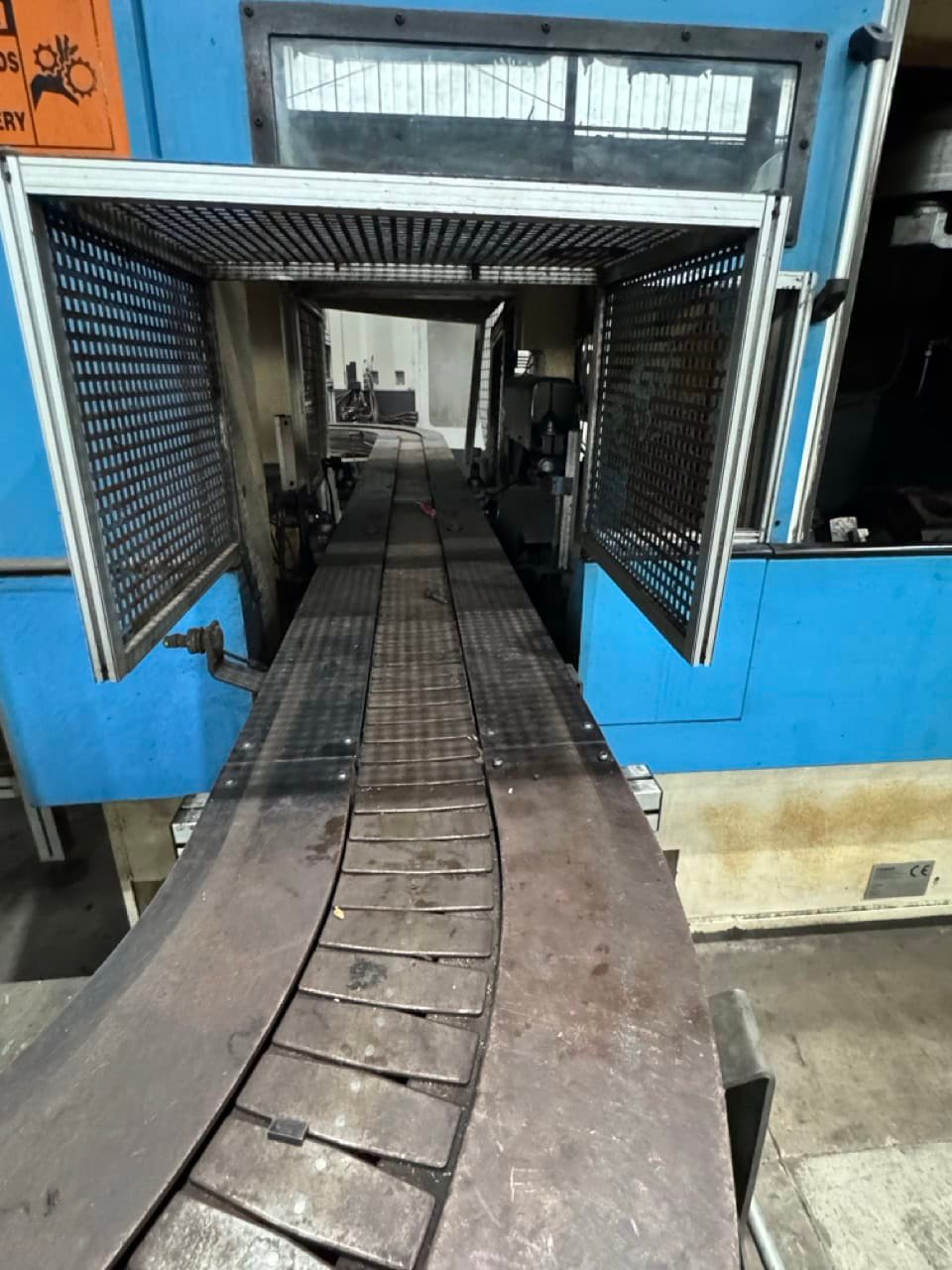

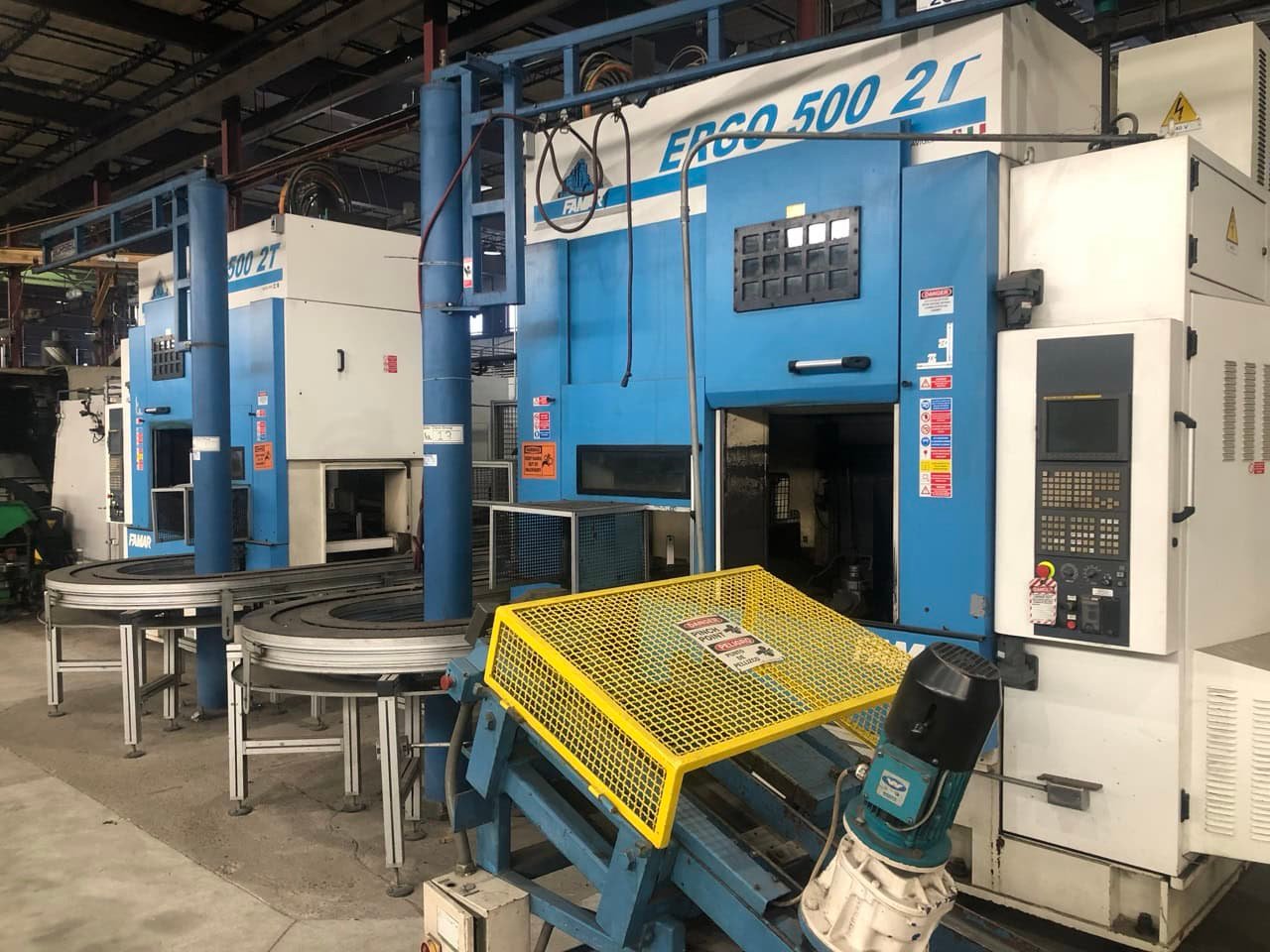

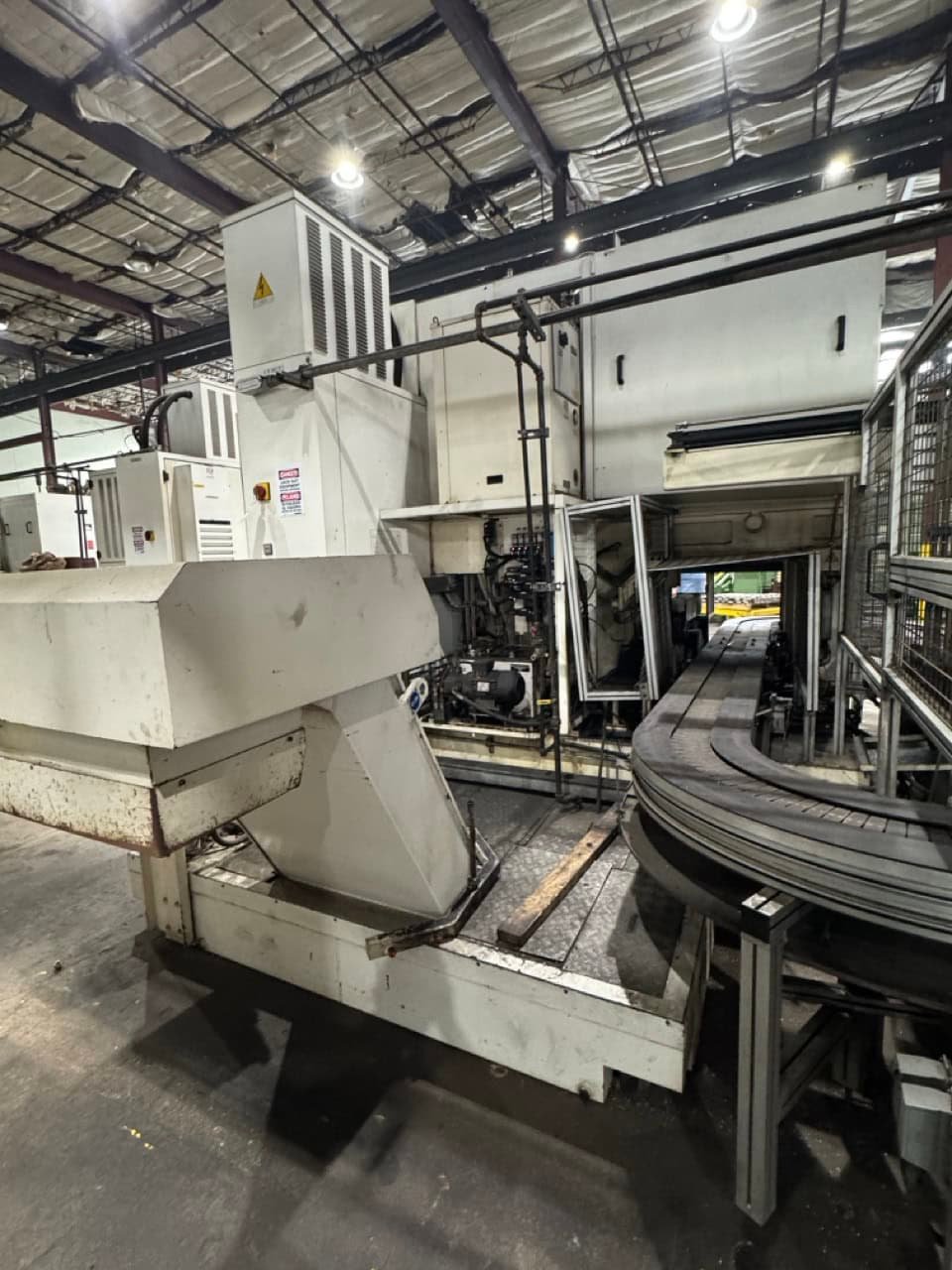

Belt Type Chip Conveyor
Turret for Driven Tools with VDI 50 Clamping

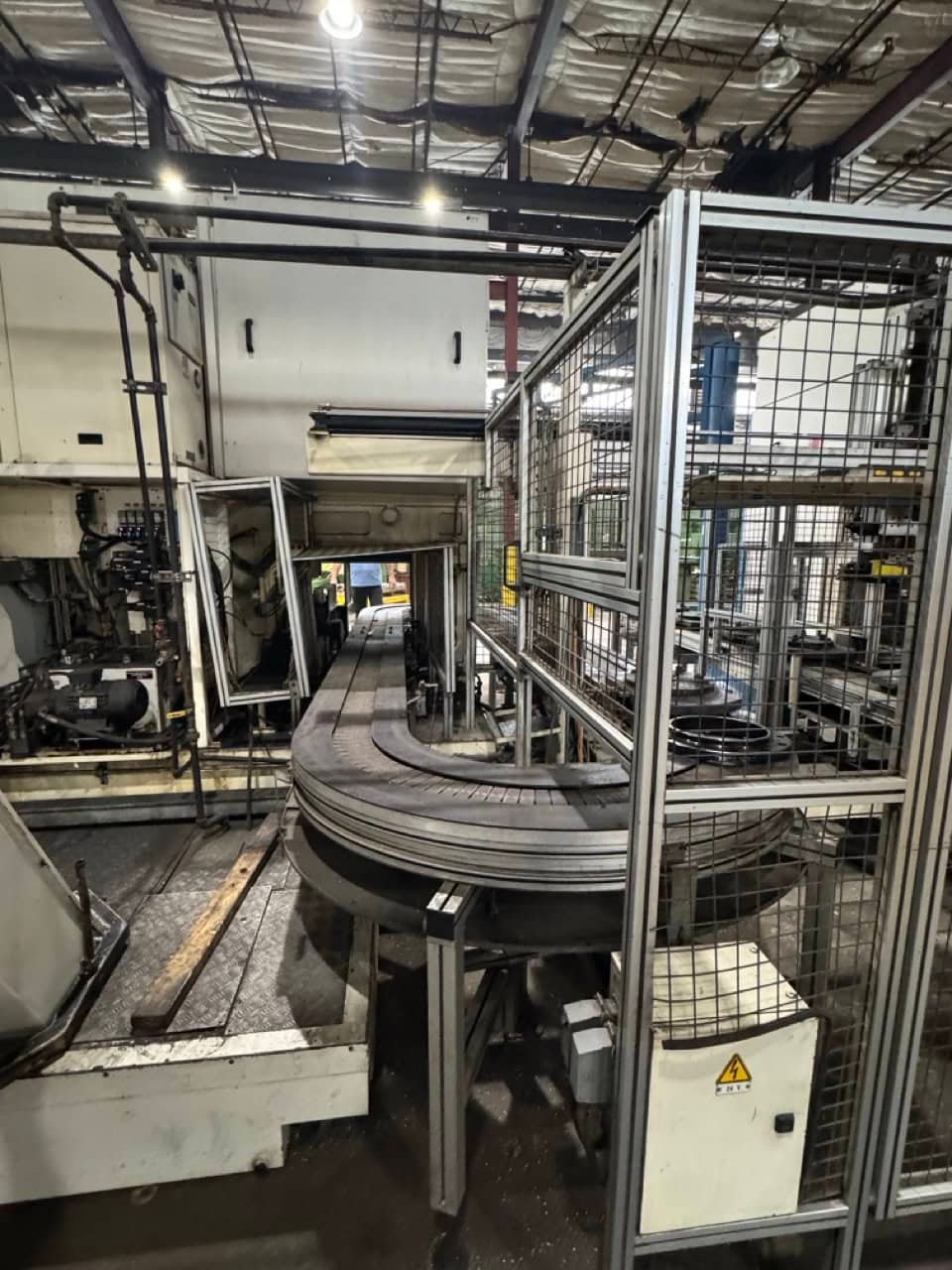

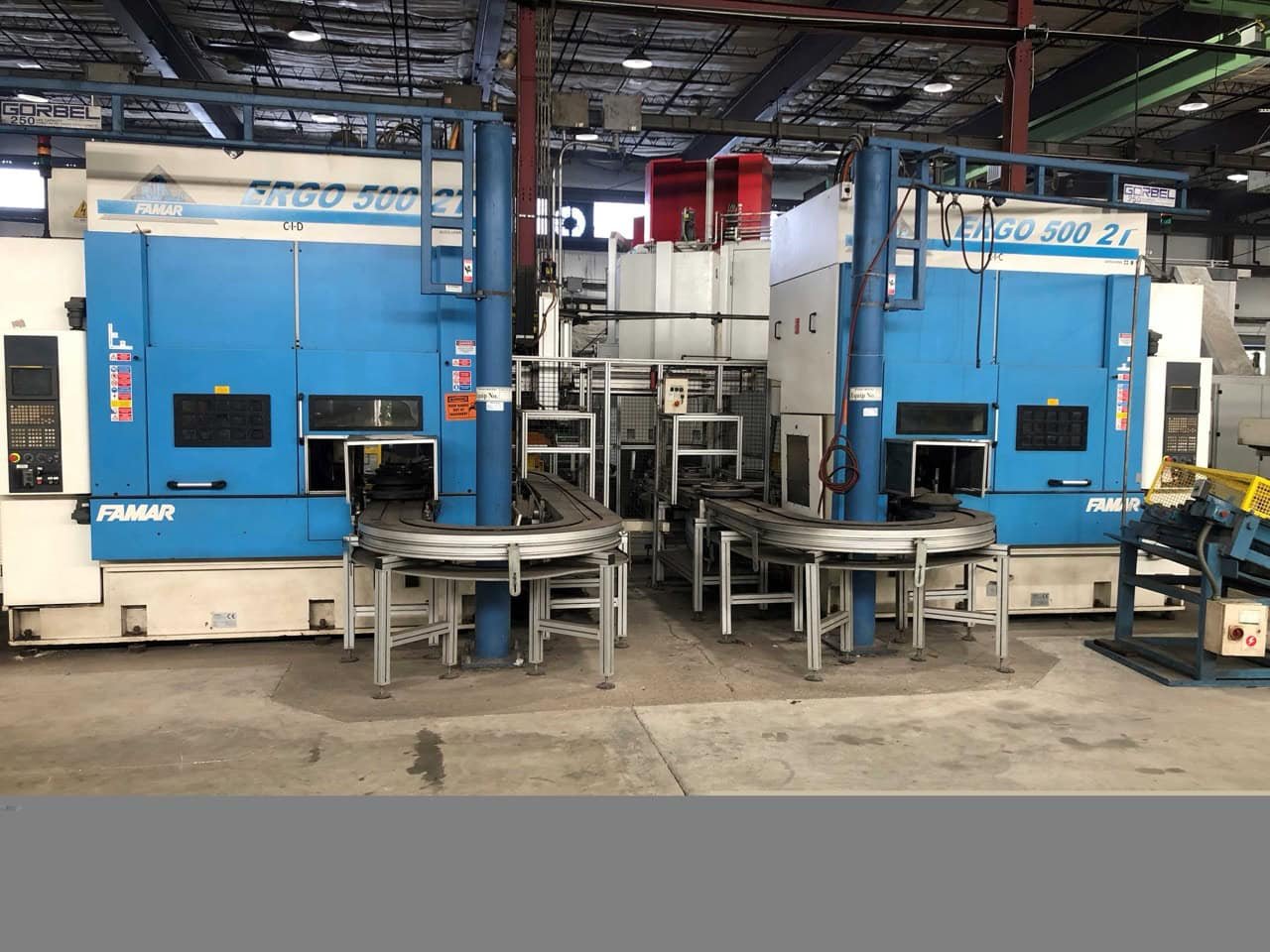

Automatic Load/Unload Conveyor

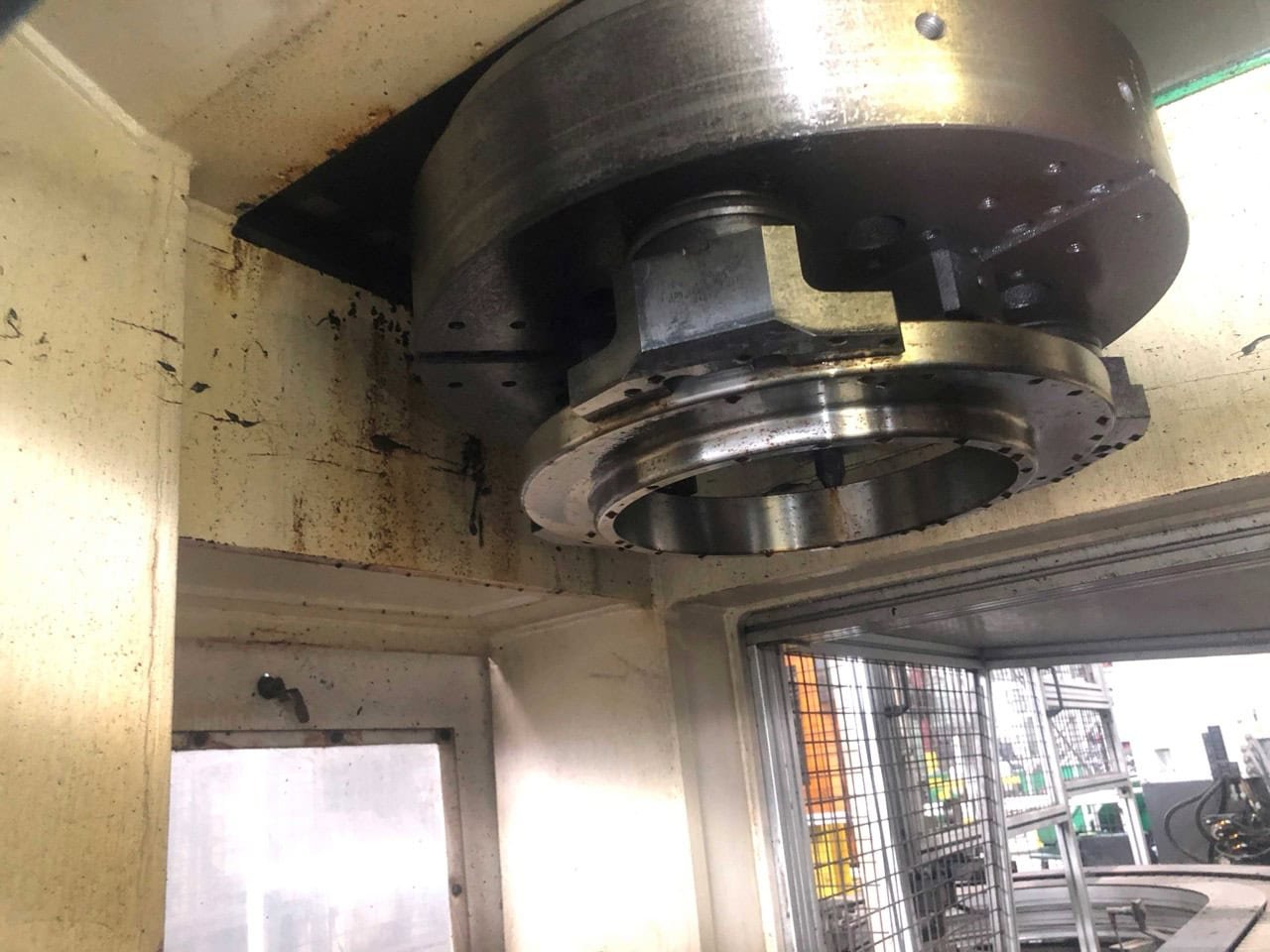

Portal Turnover Device
“C” Axis Application
In-Process Measuring Device
Tool Monitoring Breaking Device Montronix
Electrospindle for Special Machining
