Description
X Axis Travels: 19.68″
Y Axis: 14.96″
Z Axis: 11.81″
Spindle Nose to Worktable
Minimum: 9.84″
Maximum: 21.65″
Work Table
Table working surface: 25.59″ x 15.74″
Table loading capacity (uniform load): 440lbs
Table surface configuration
Number of T slots: 3
Width: 0.55″
Pitch: 4.92″
Spindle
Speed range: 100 – 15,000rpm
Spindle Motor: 7.3 HP
Taper: BT 30
Rapid traverse rate 48m/min
Feedrate: 1 – 30000mm/min

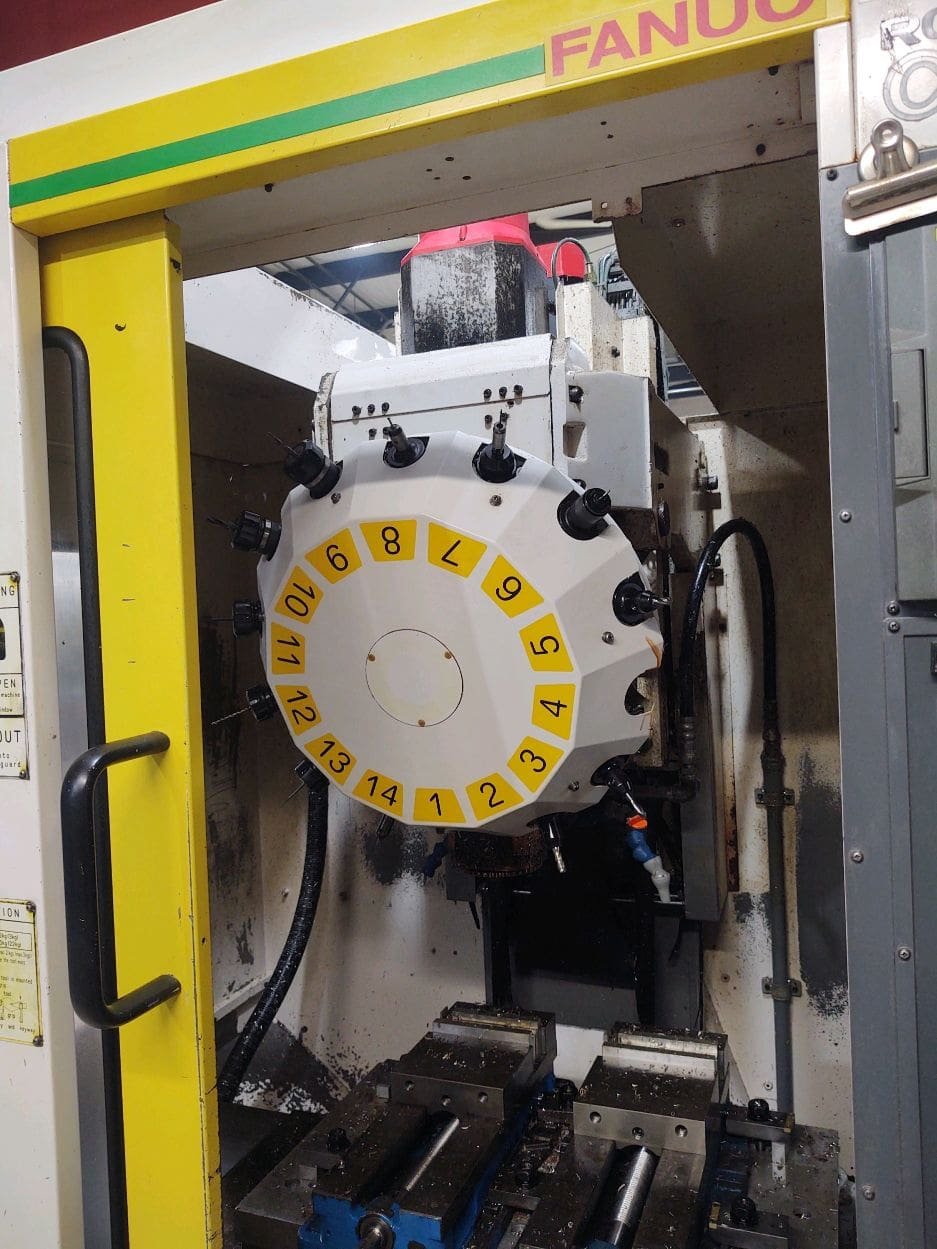

Toolchanger
Type of tooling: MAS BT 30
Tool storage capacity: 14 Tools
Voltage: 415V, 3Phase, 50Hz
Equipped with:
CNC Control System: Fanuc Series 16iM
4th Axis Drive
Thru Spindle Coolant
Tooling Vises Included
