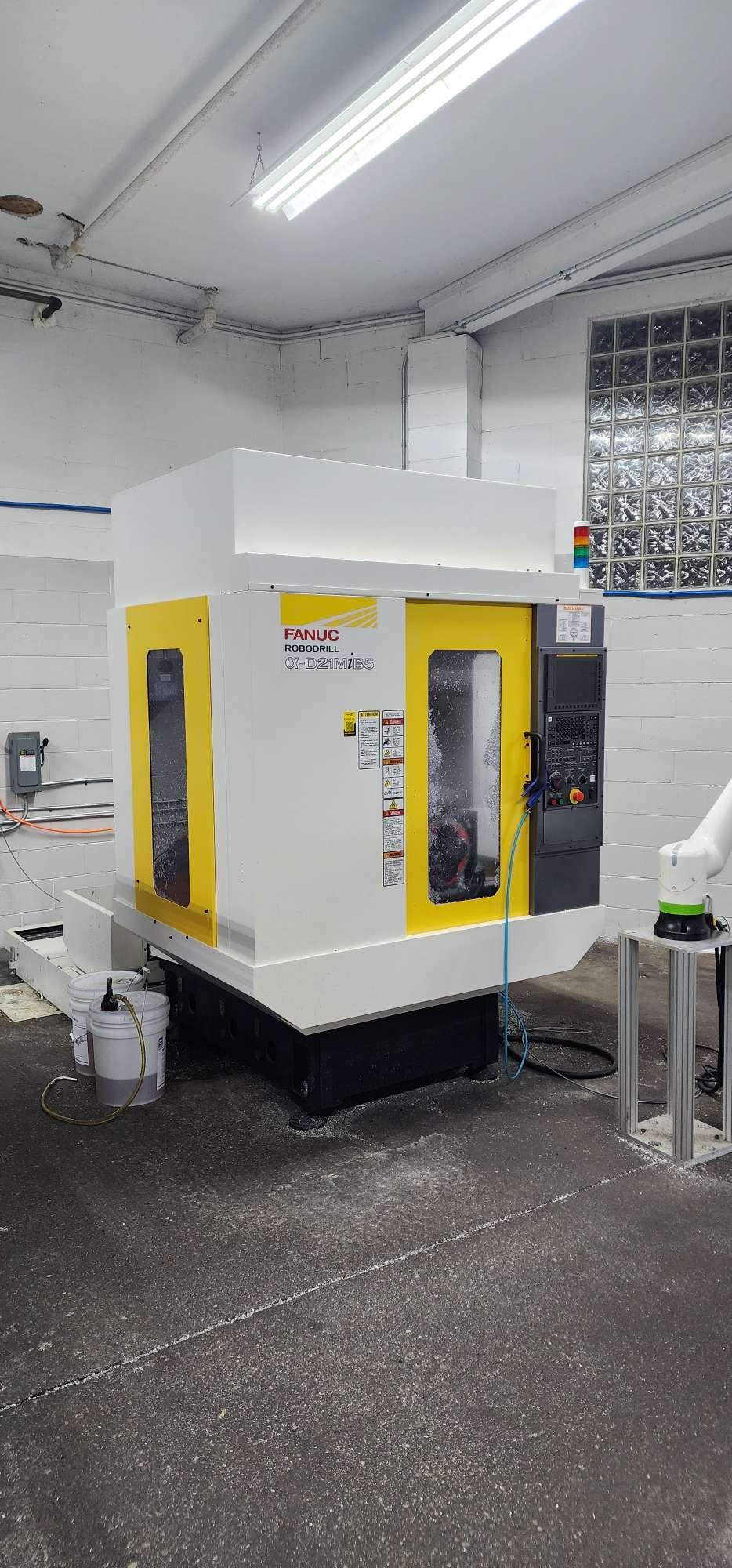

Description
X-Axis 19.68″
Y-Axis 15.74″
Z-Axis 12.99″
Table Size 25.59″ x 15.74″
Spindle Speed 10000 RPM
Spindle Taper BT-30 Big Plus
Spindle Motor 7.5 HP

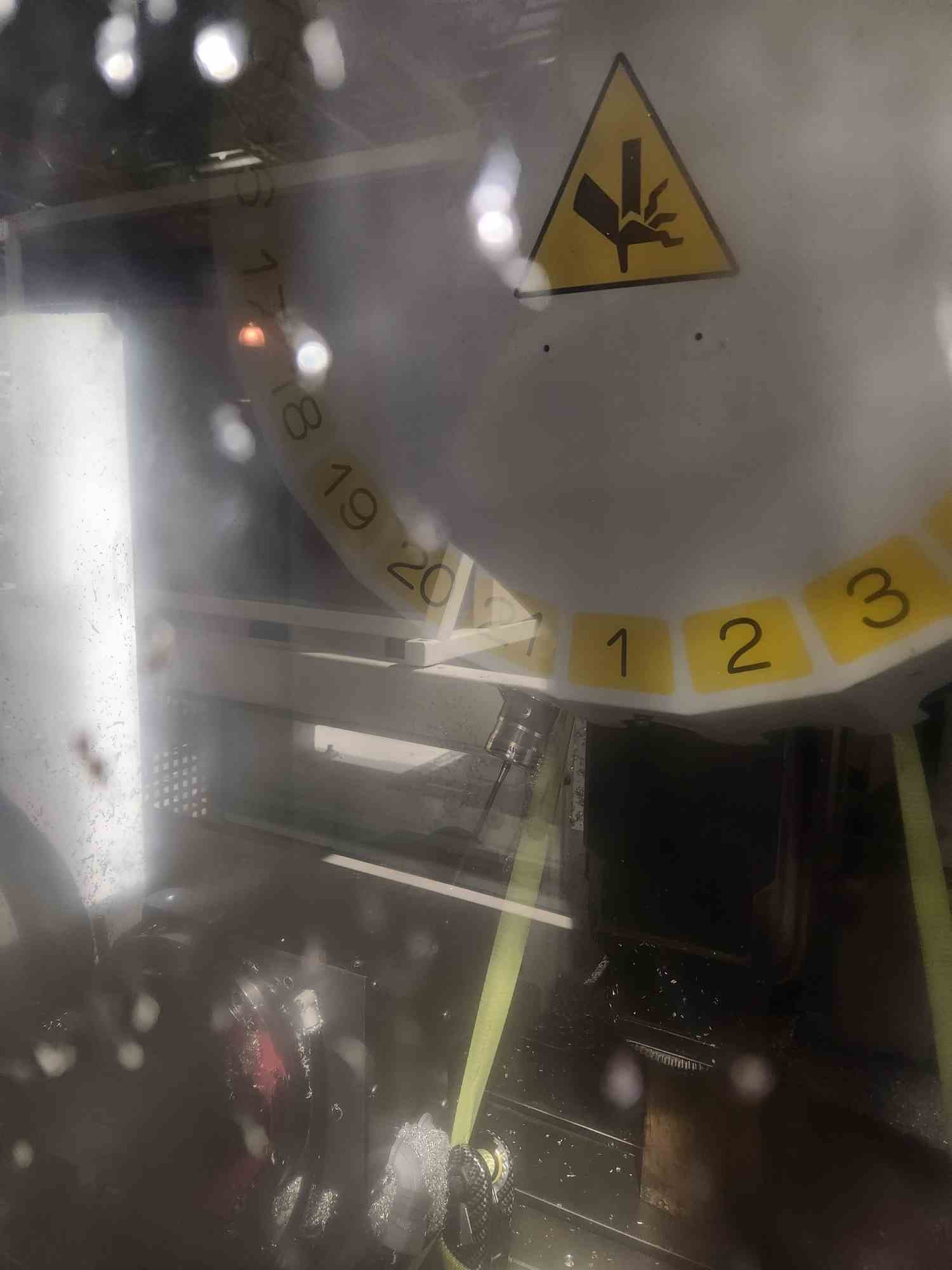

Tools 21
Table Load Capacity 660 lbs.
Rapid Traverse Rates 2125 IPM
Max Tool Diameter 3.14″
Max Tool Length 9.84″
Max Tool Weight 6.6 lbs.
Machine Dimensions (L x W x H) 63.58″ x 80.3″ x 88″
Machine Weight 4409 lbs.
Spindle Torque 51.6 ft. lbs.
Tool Change Time (T – T / C – C) 0.9 / 1.6 Seconds
Equipped With:
227L Coolant Tank
Renishaw RMP400 & RTS Kit
Bed Flush System – Mounted to 227L tank

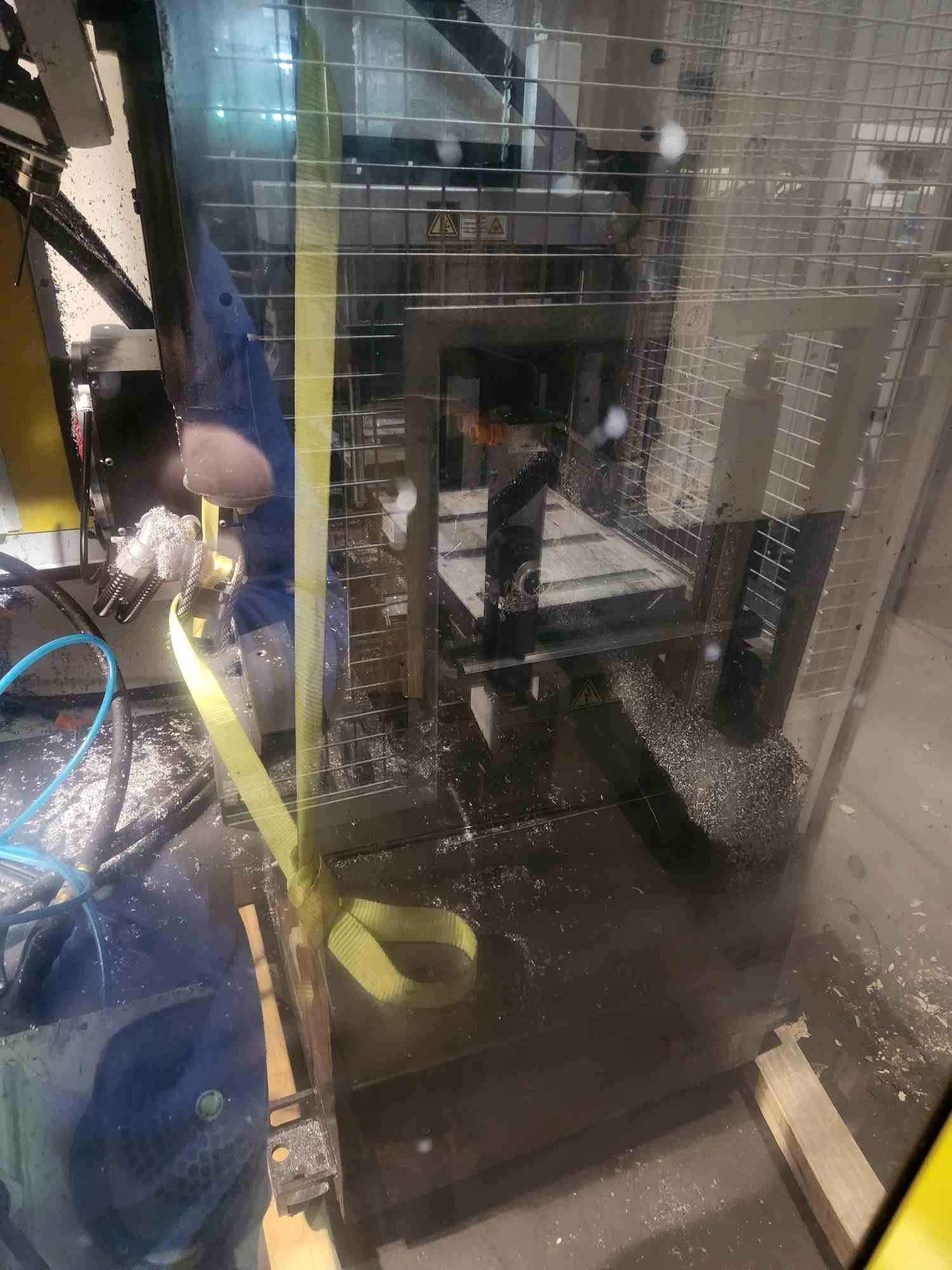

DTTiB %-Axis Double Torque Table
110mm Column Riser

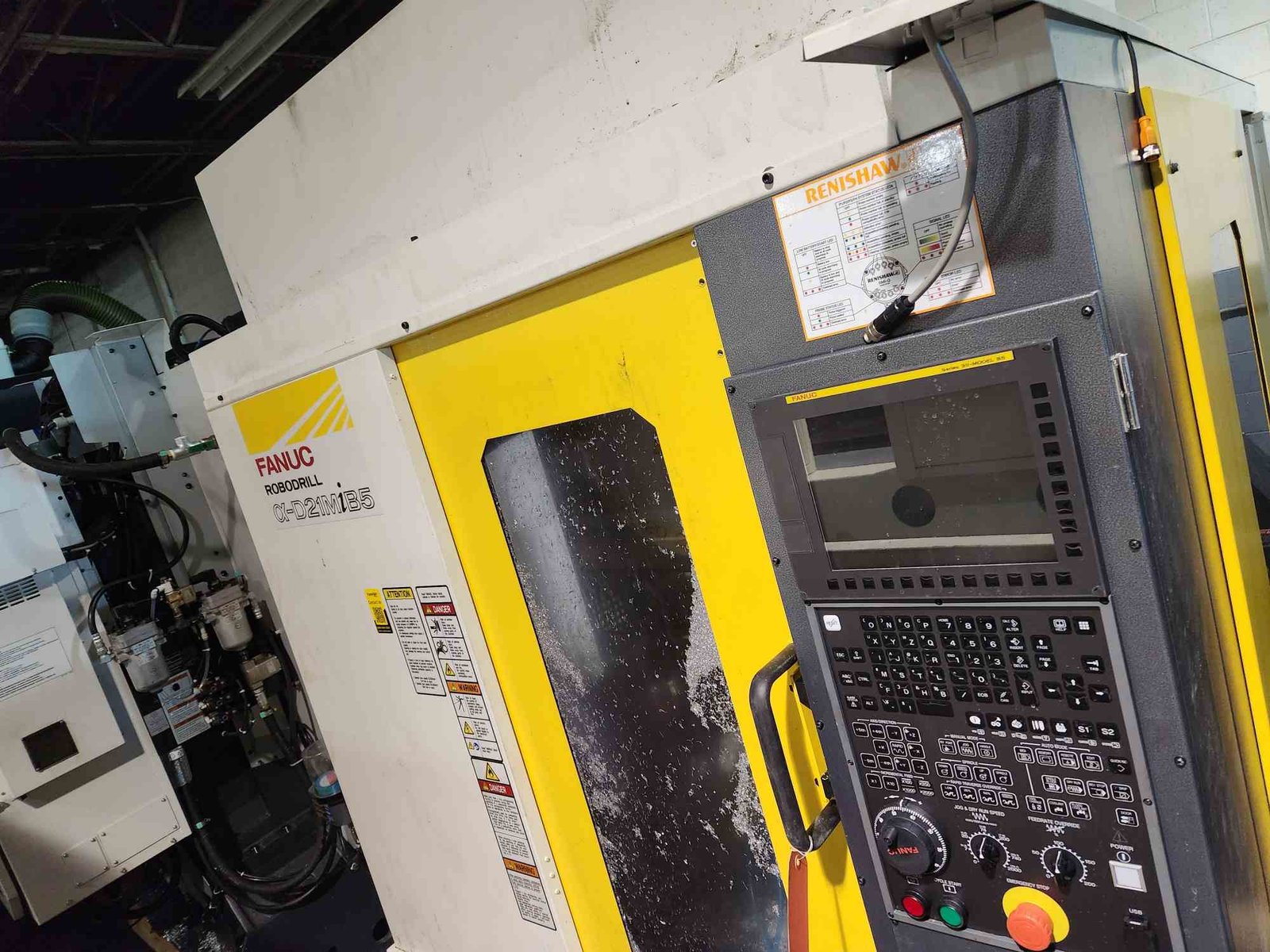

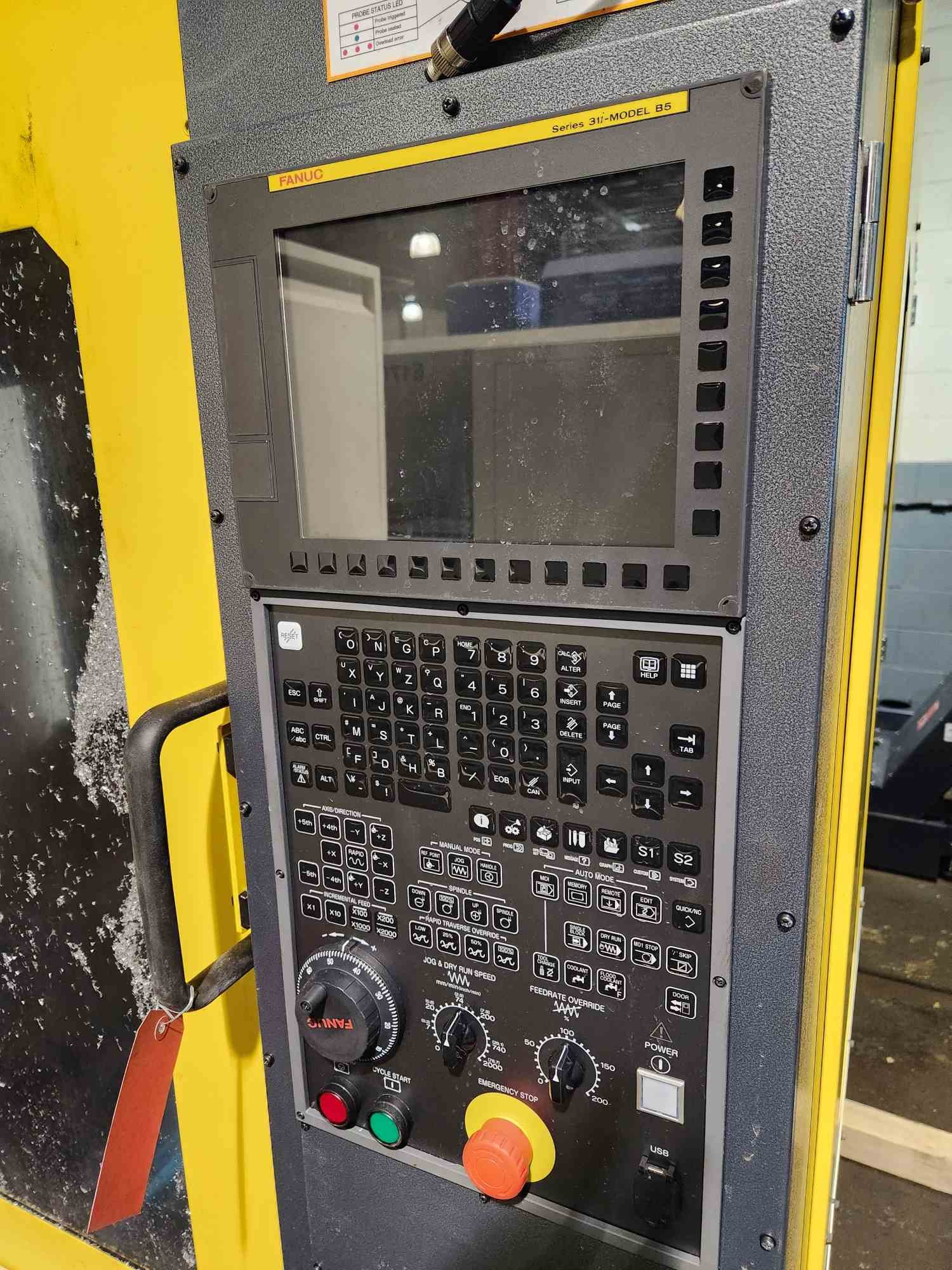

Fanuc 31–B5 Control

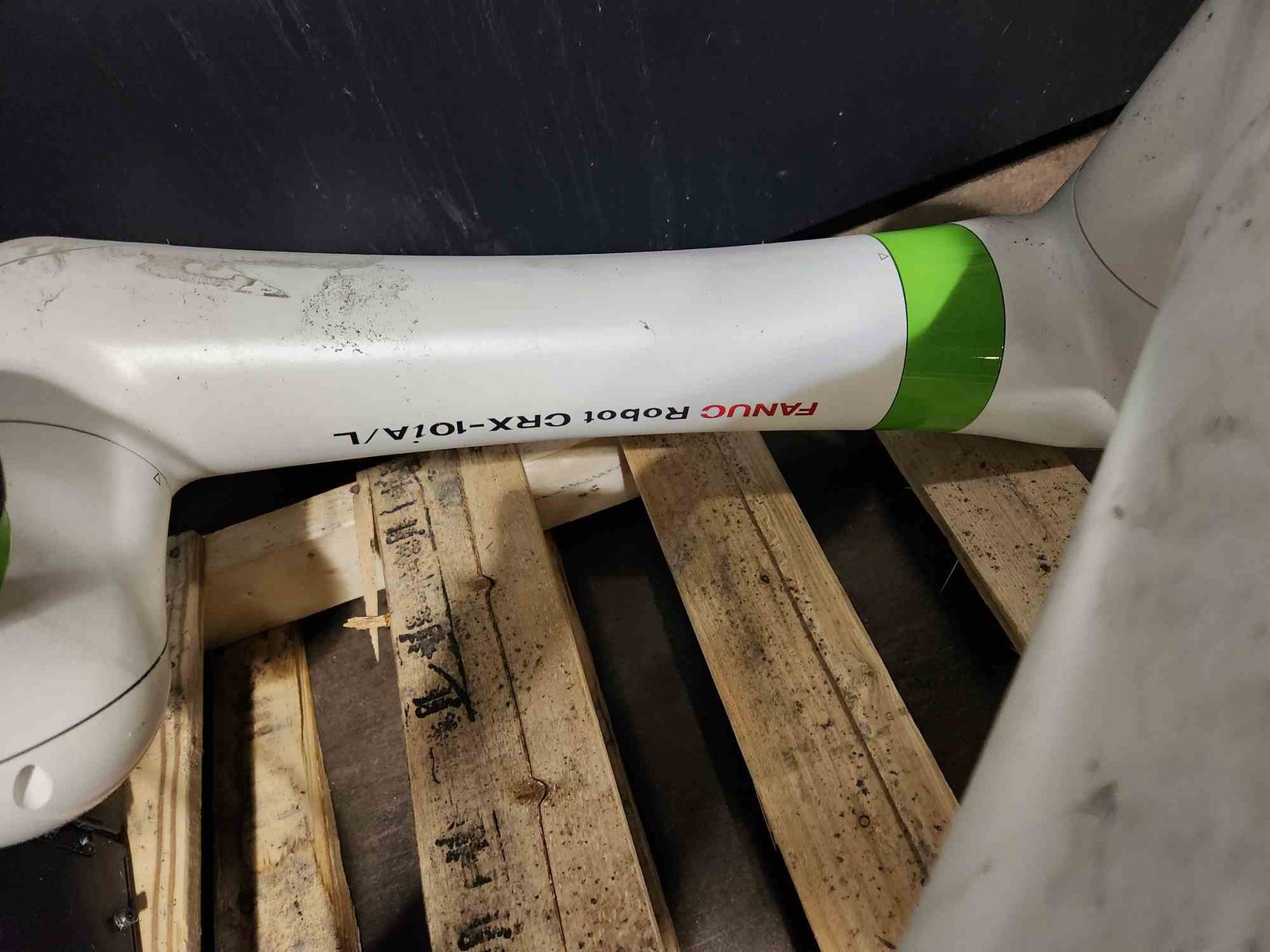

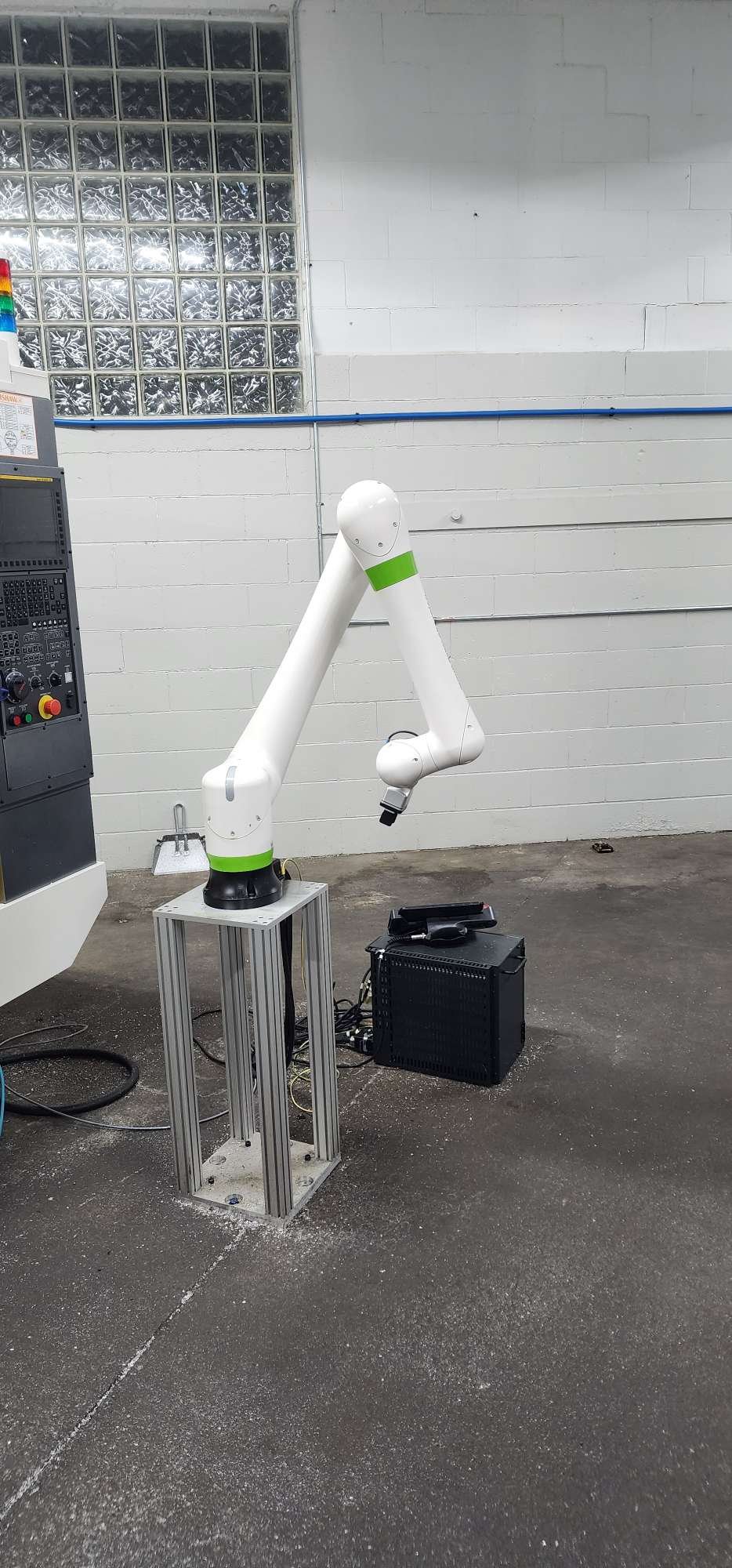

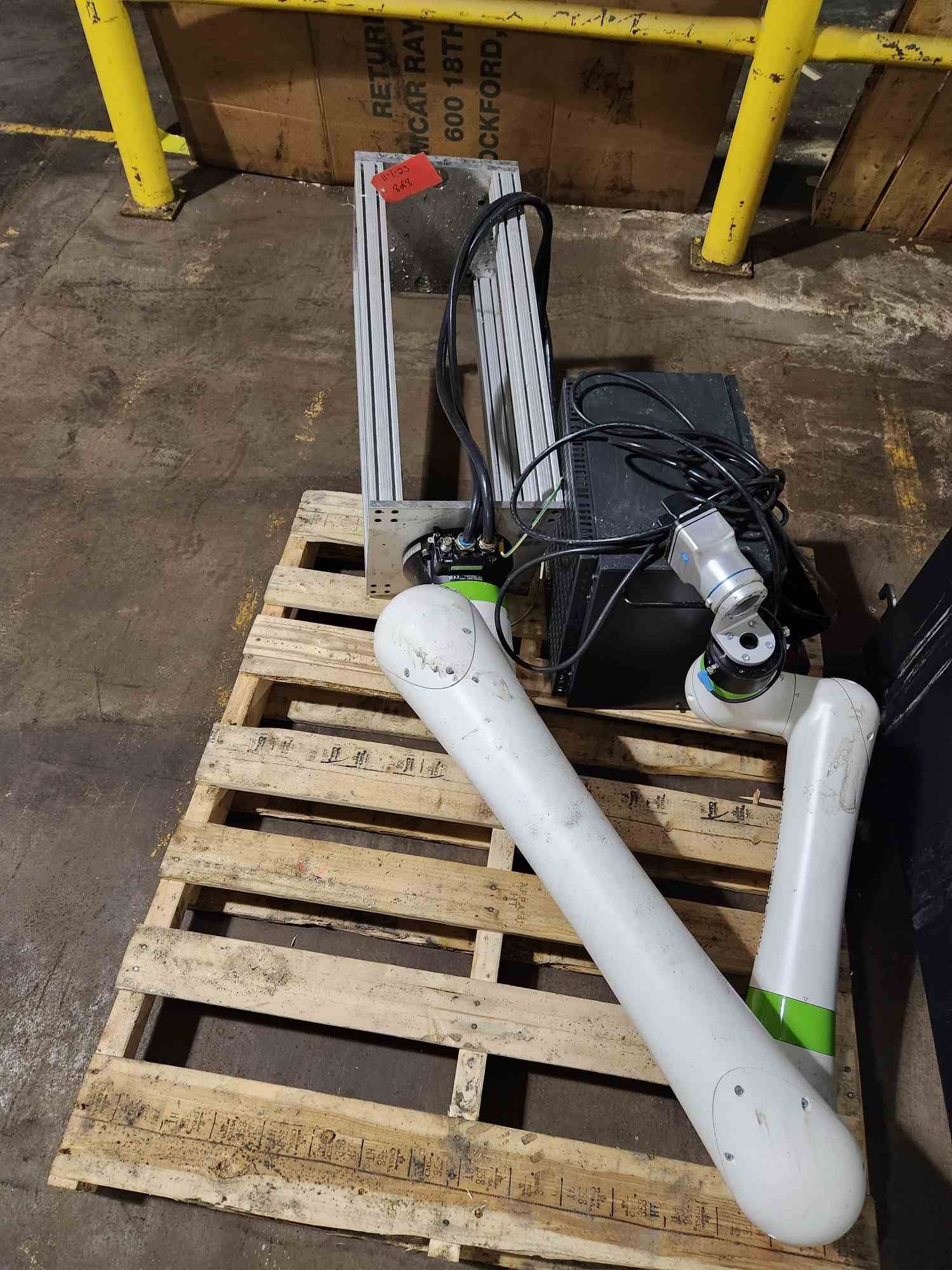

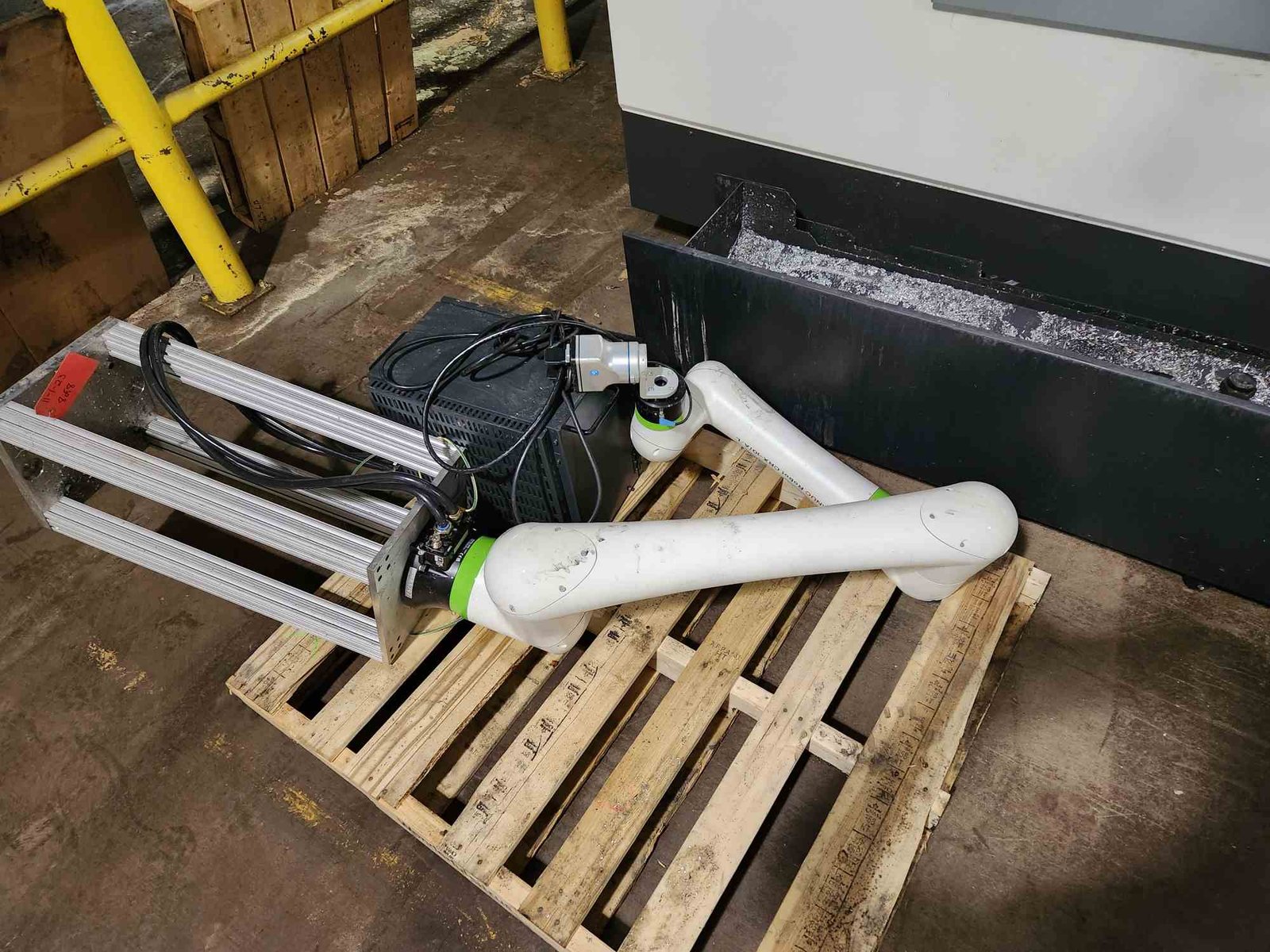

Fanuc CRX-10iA/L Collaborative Robot

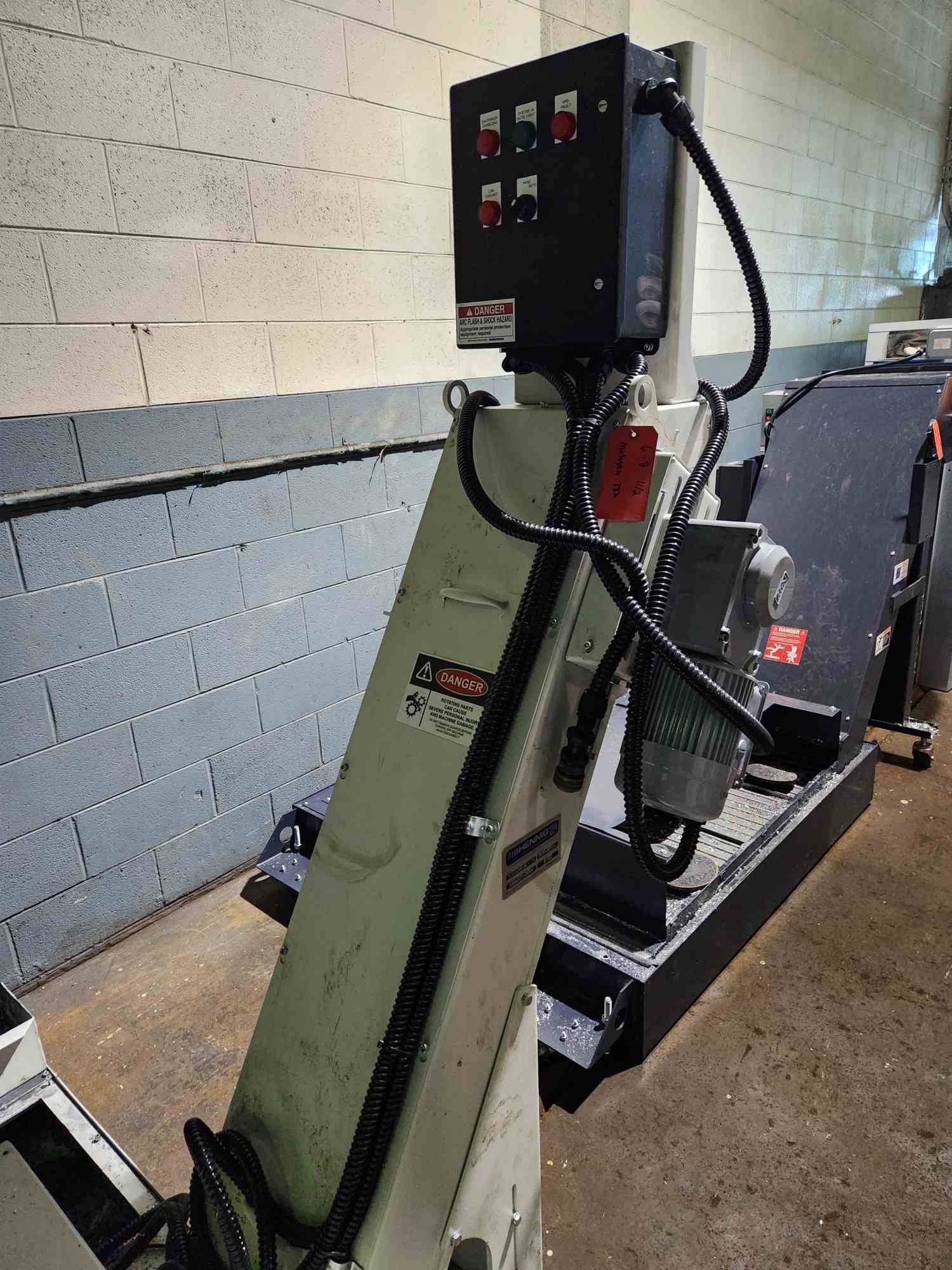

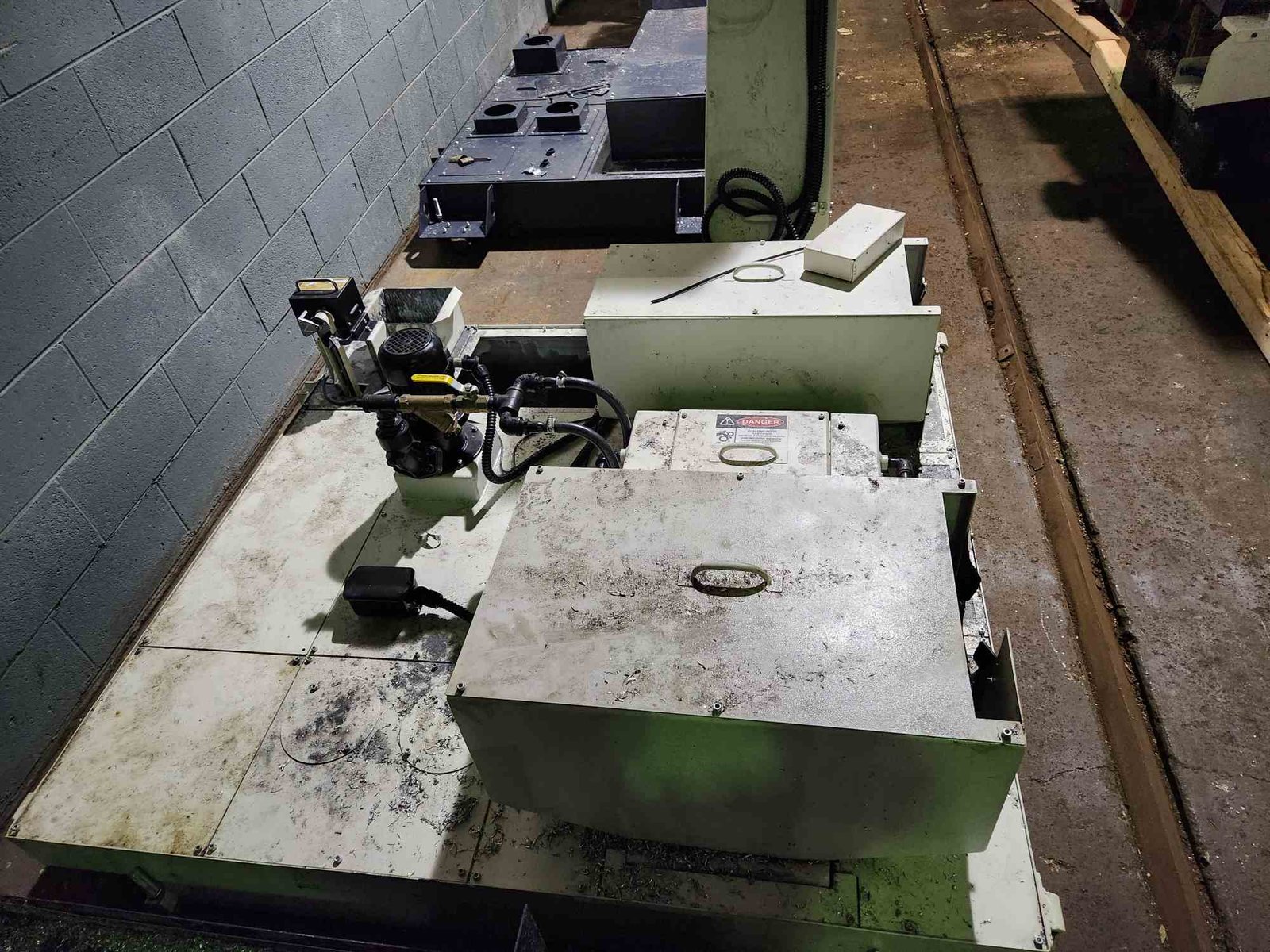

Chip Conveyor
