Description
Equipment Overview

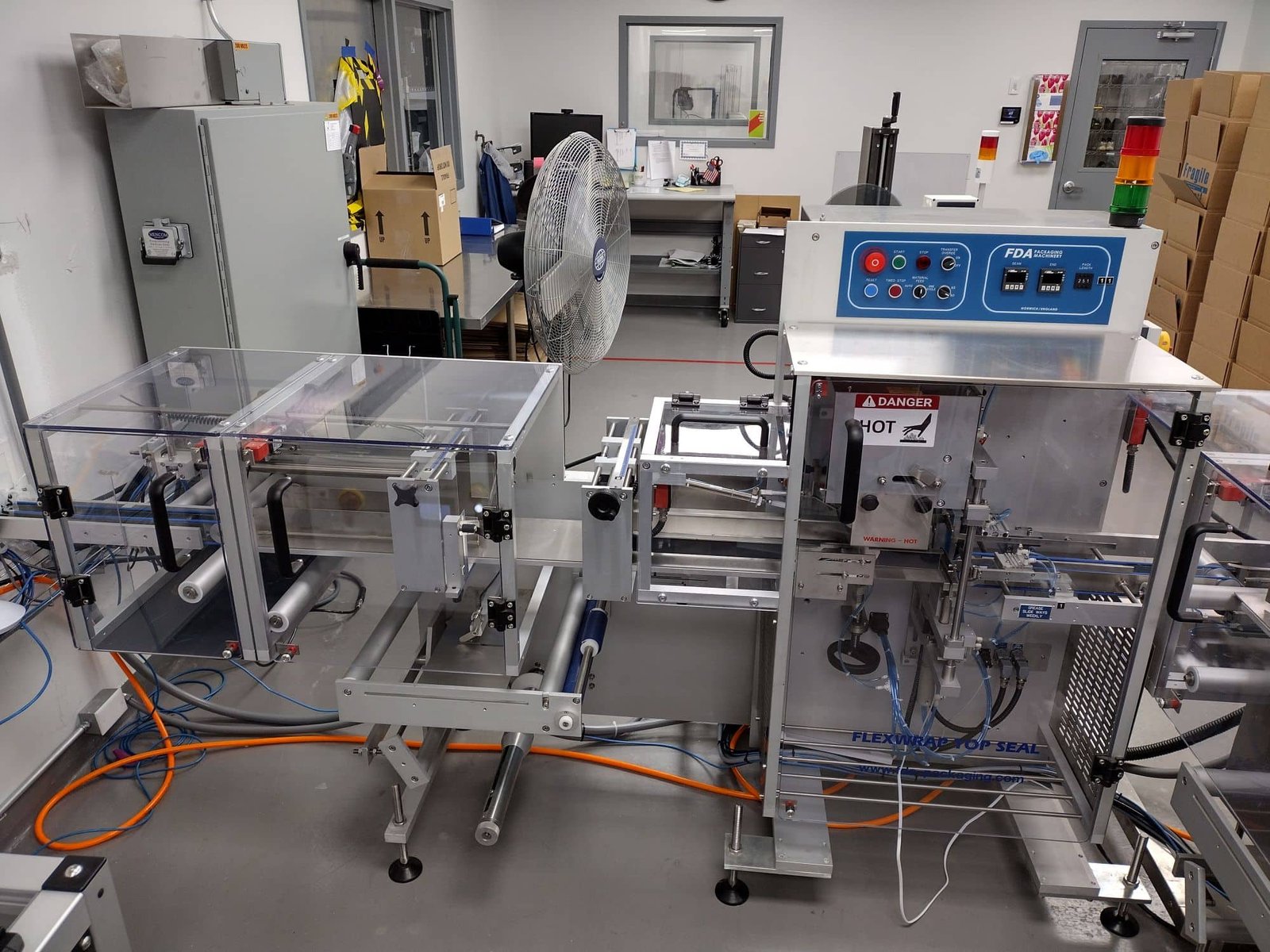

The FDA Flexwrap Right Angle is a modern, servo-assisted horizontal form-fill-seal packaging machine producing pillow packs with a cross seal at both ends and a single fin seam down the back/top. This model is designed for automatic loading from upstream pouring or feeding equipment and is capable of high-speed, consistent packaging for products requiring sealed flexible film. It supports a wide variety of film materials and offers fine-tuned controls for pack length, sealing temperature, and product positioning.

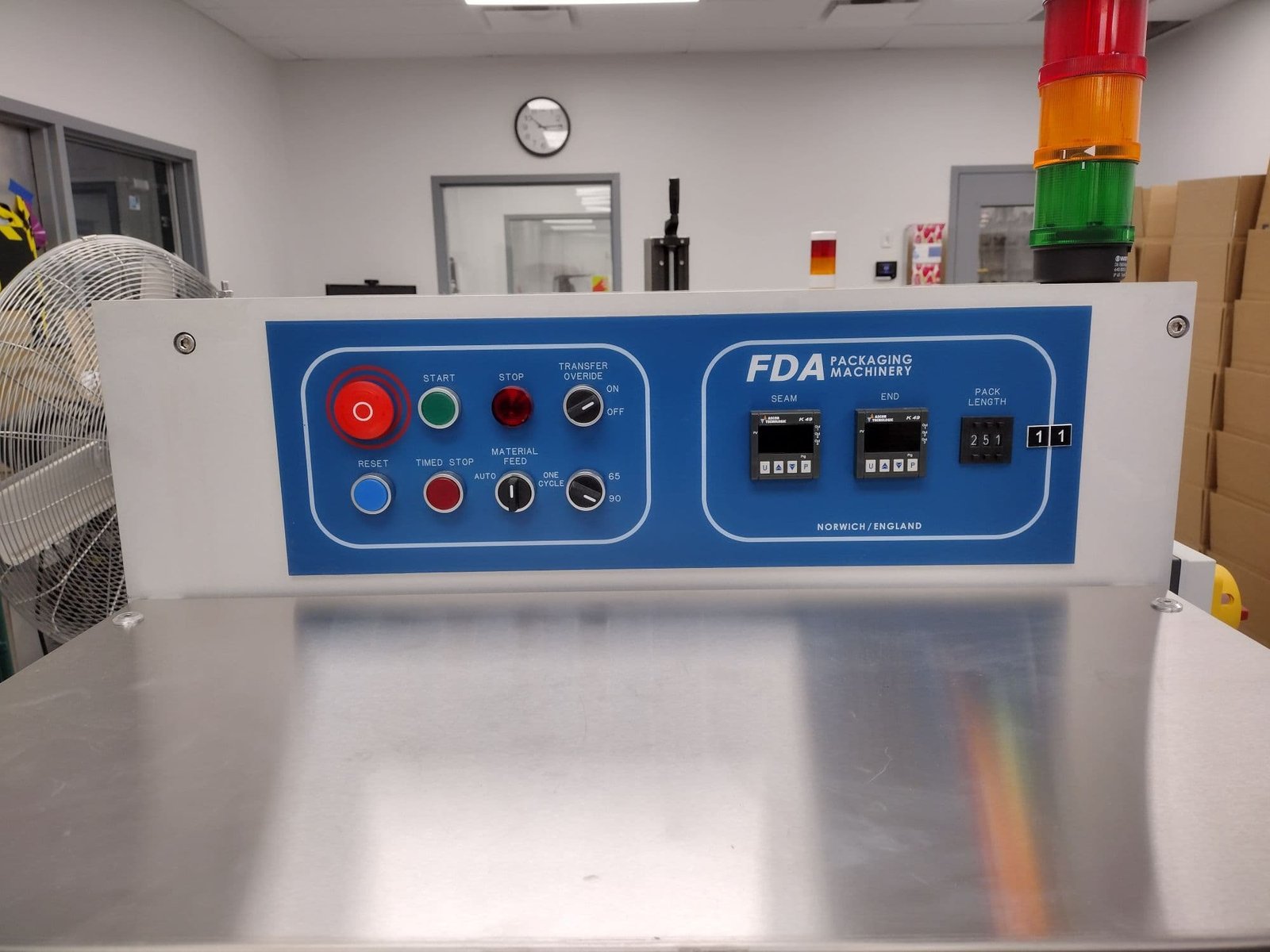

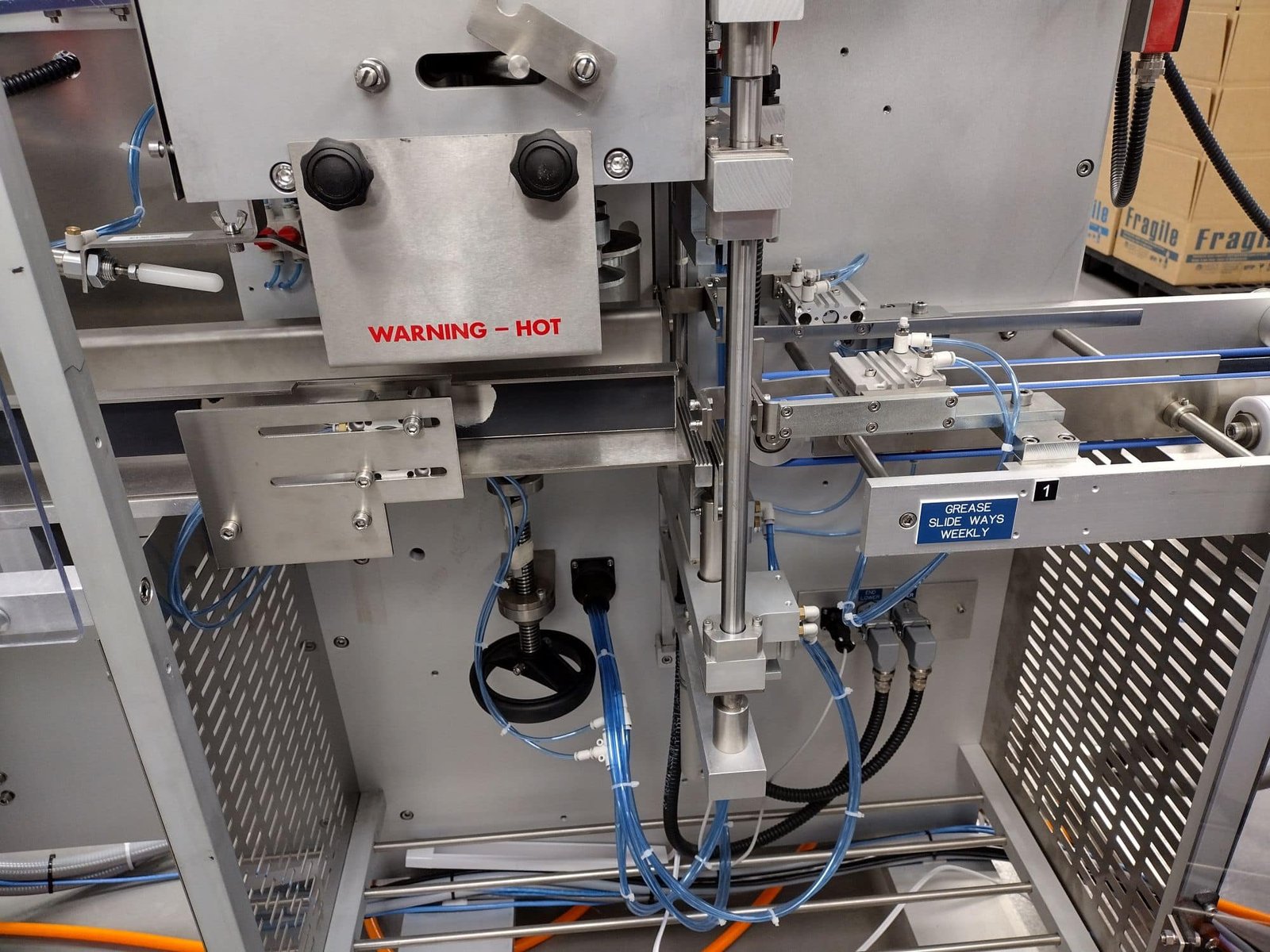

The machine is enclosed with full interlocked safety guarding and fitted with a clear operator control panel including emergency stop, start/stop, timed stop, mode selector, and temperature controls. Pneumatic and electrical systems are easily accessible for maintenance, and the machine features daily/weekly maintenance points as per the OEM manual.
Key Features & Specifications
Form-Fill-Seal Method: Pillow pack, fin-seam on top, cross end seals.

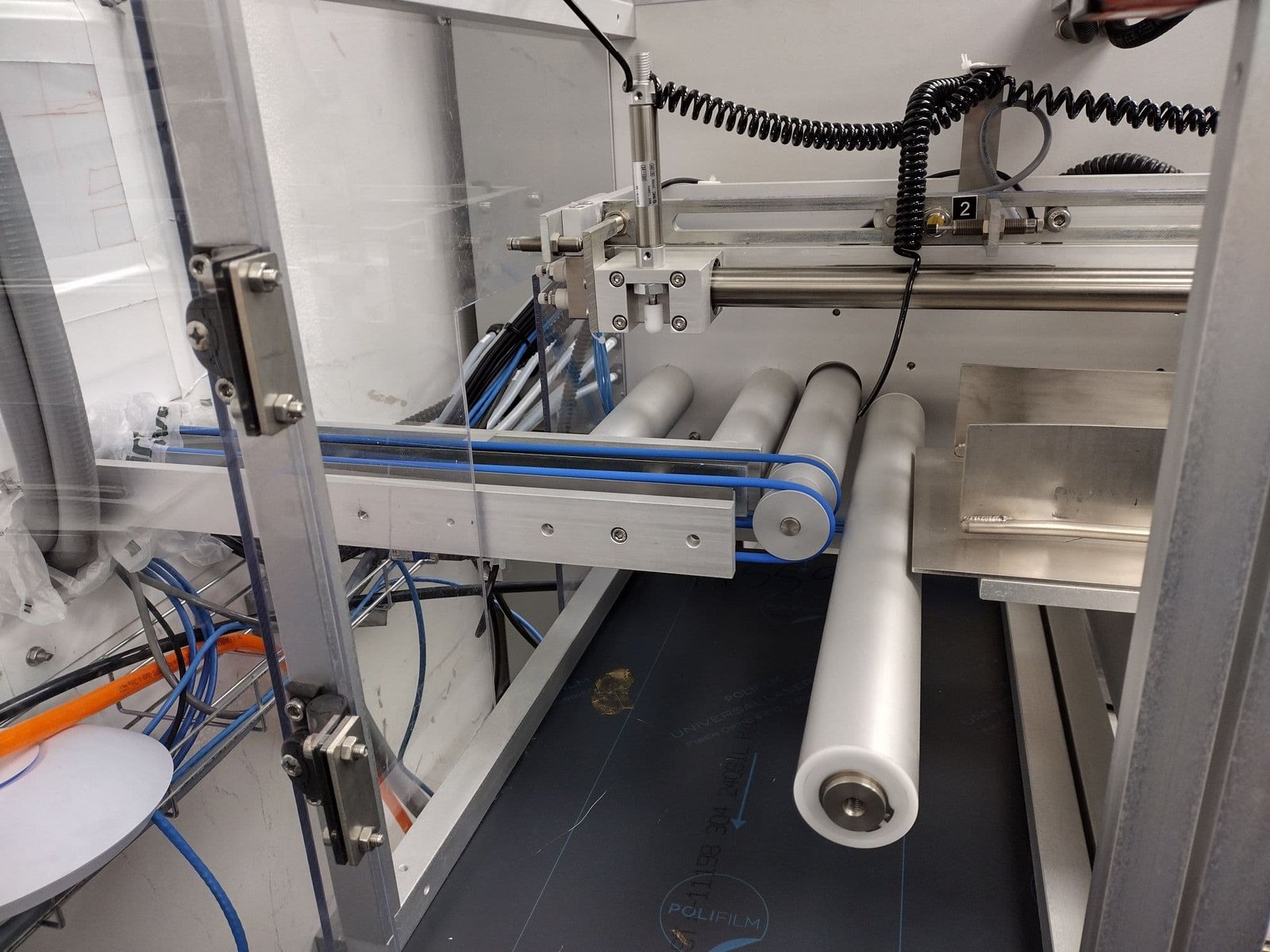

Adjustment Capabilities: Film reel (75 mm core, up to 330 mm outer diameter, width 450 mm); reel tension and firewall adjustable
Control System: Mitsubishi micro PLC and inverter, with heating via Tecnologic controllers
Safety System: Full interlocked guarding (polycarbonate hinged doors), E-stop with air dump and reset, lockable main isolator .
Pneumatic System: Single cycle 1.6 L/cycle at 6 Bar; requires 120 L/min supply .
Installation Requirements: Requires stable flat floor, clear space, ventilation, and safe lifting points for installation .
Weight & Mobility: 500 kg frame with forklift/crane lifting support .
