Description
Drilling Capacity: 40’ L X 44” H
Max Weight of Beam: 771 Lbs
Table Length: 60’
Beam Length: 50’
Number of Spindles: 1
Spindle Taper: No. 4 MT
Spindle Motor: 7.5 HP
Spindle Speed: 170-1000 RPM
Drilling Feeds: Infinitely Variable
Max Hole Diameter: 1-11/16”
Max Feed Rate: 850”/ Min
Positioning Speed:
X-Axis (Portal): 65’/ Min
Y-Axis (Drill Head): 16’/ Min
Hydraulic Power unit: 5 HP

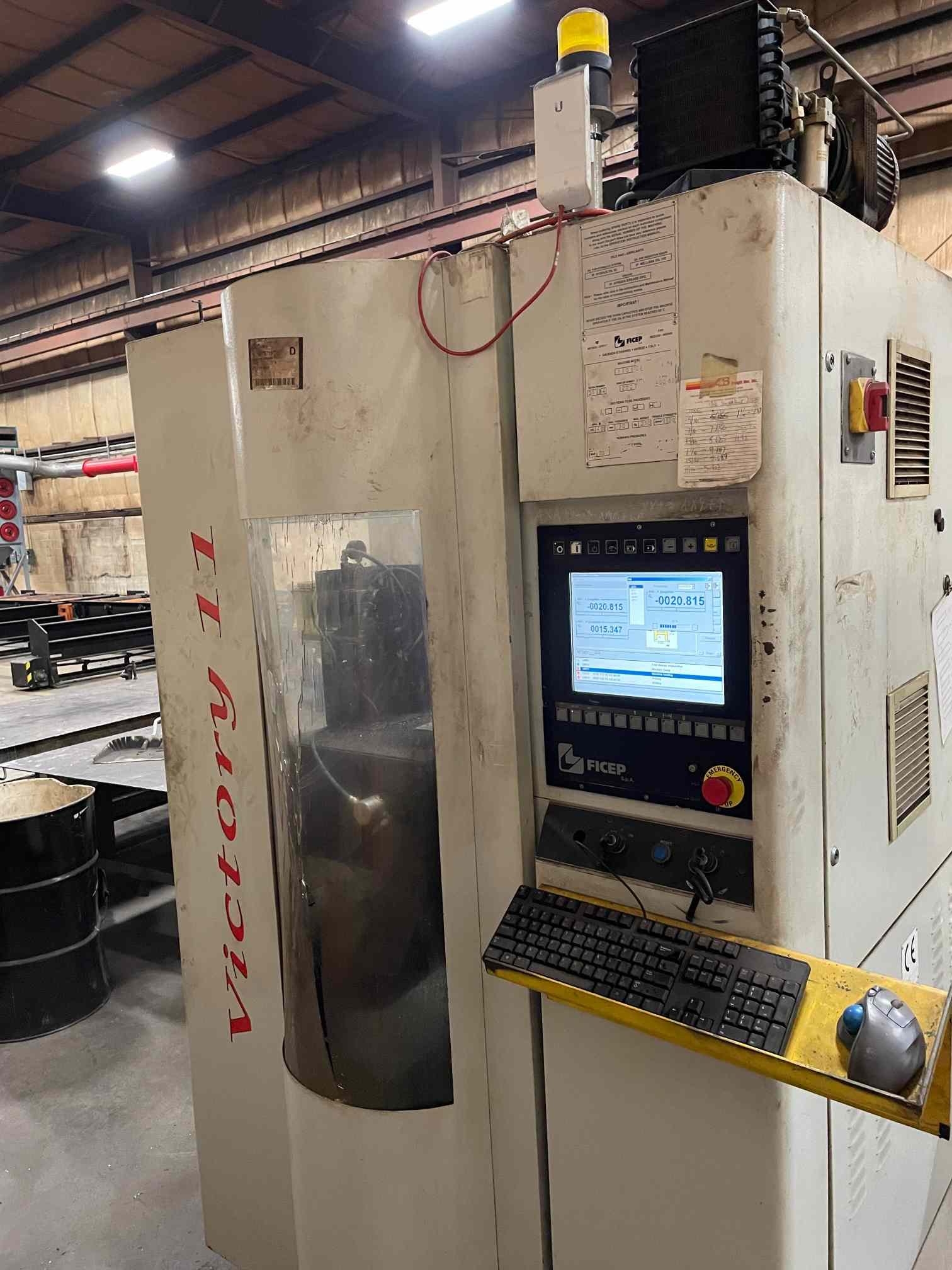

CNC Controls: PC-Based

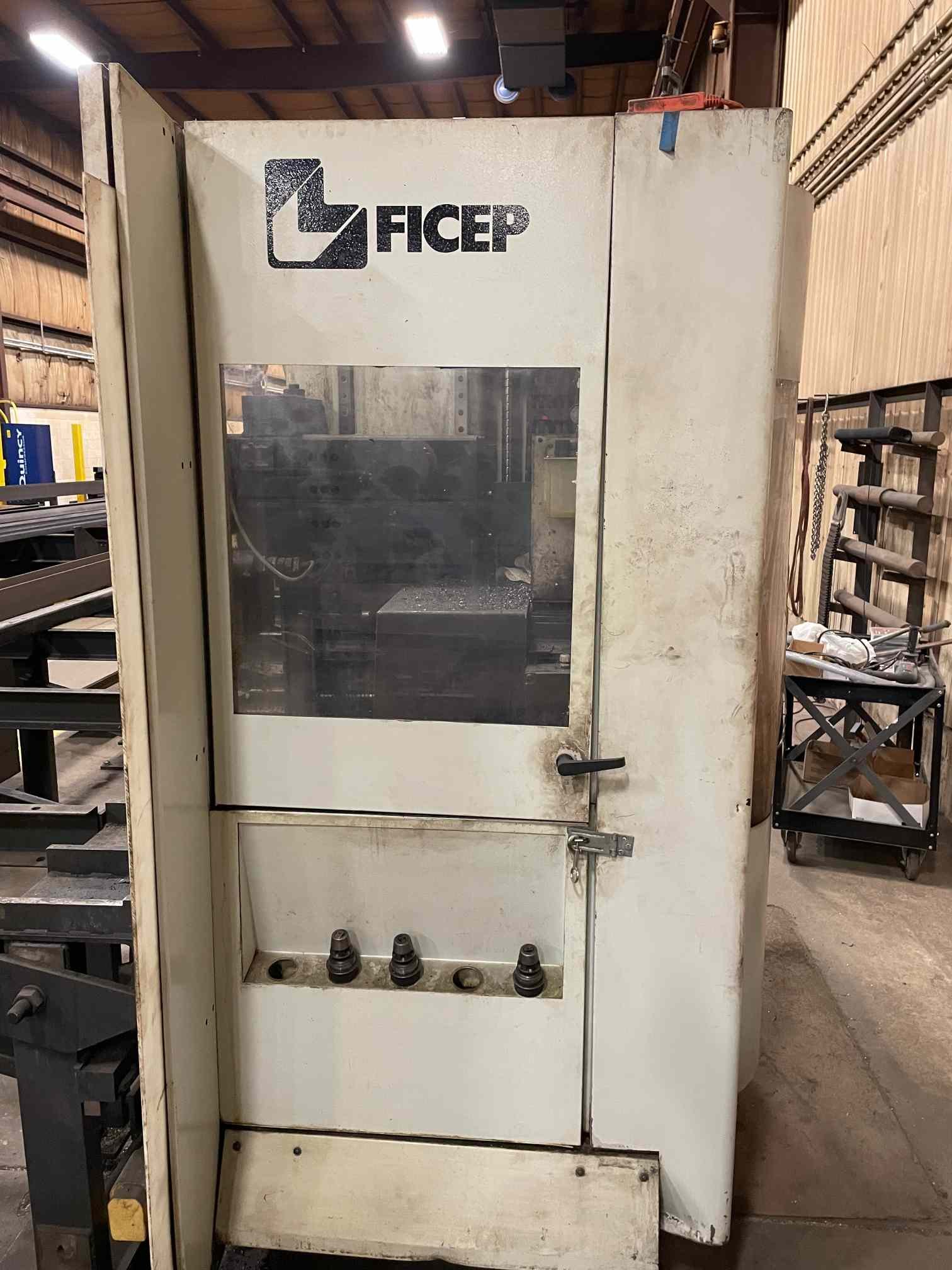

Tooling Pallet: Quick Change
Cooling System: Internal and External
Equipped With:

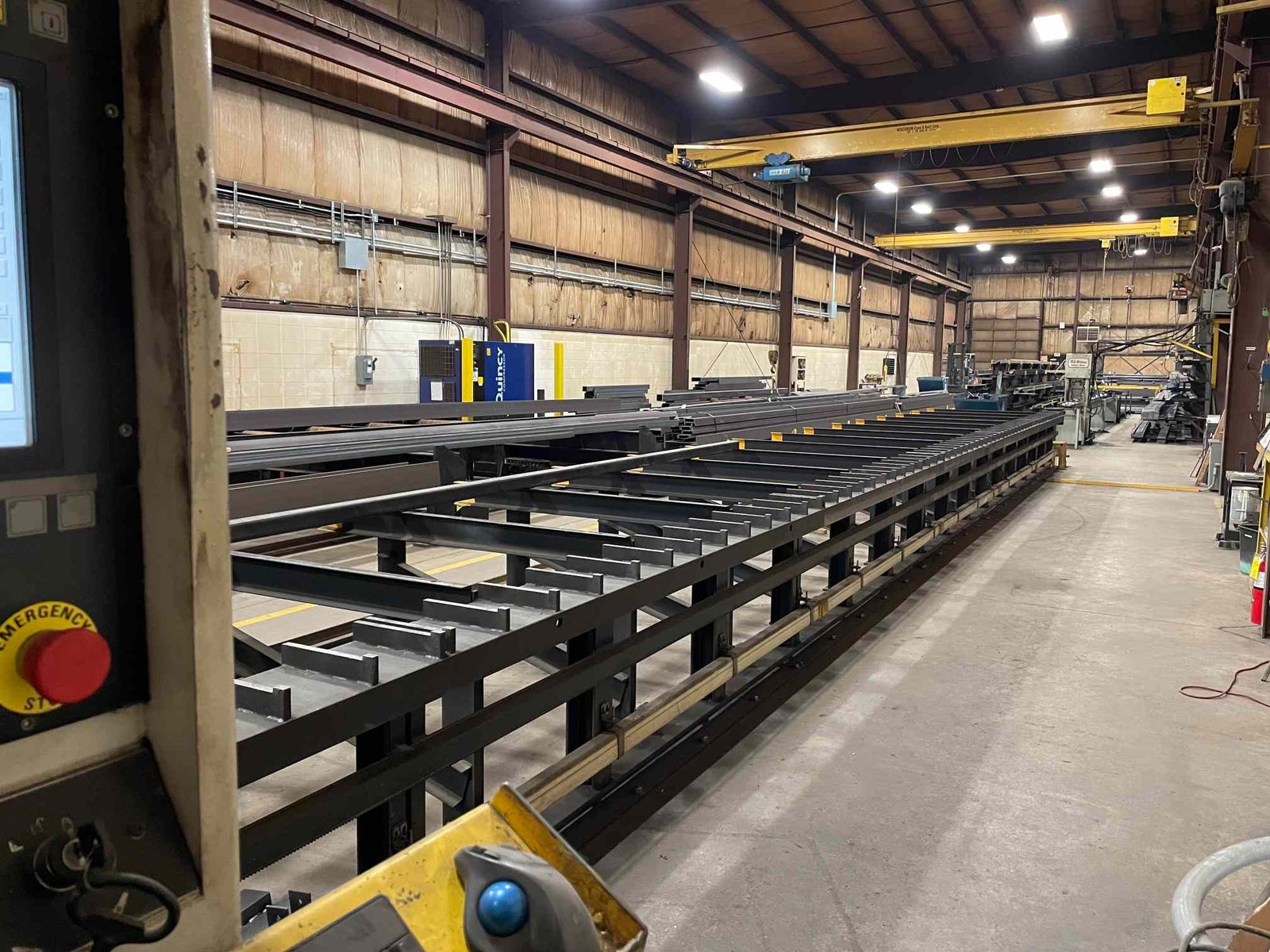

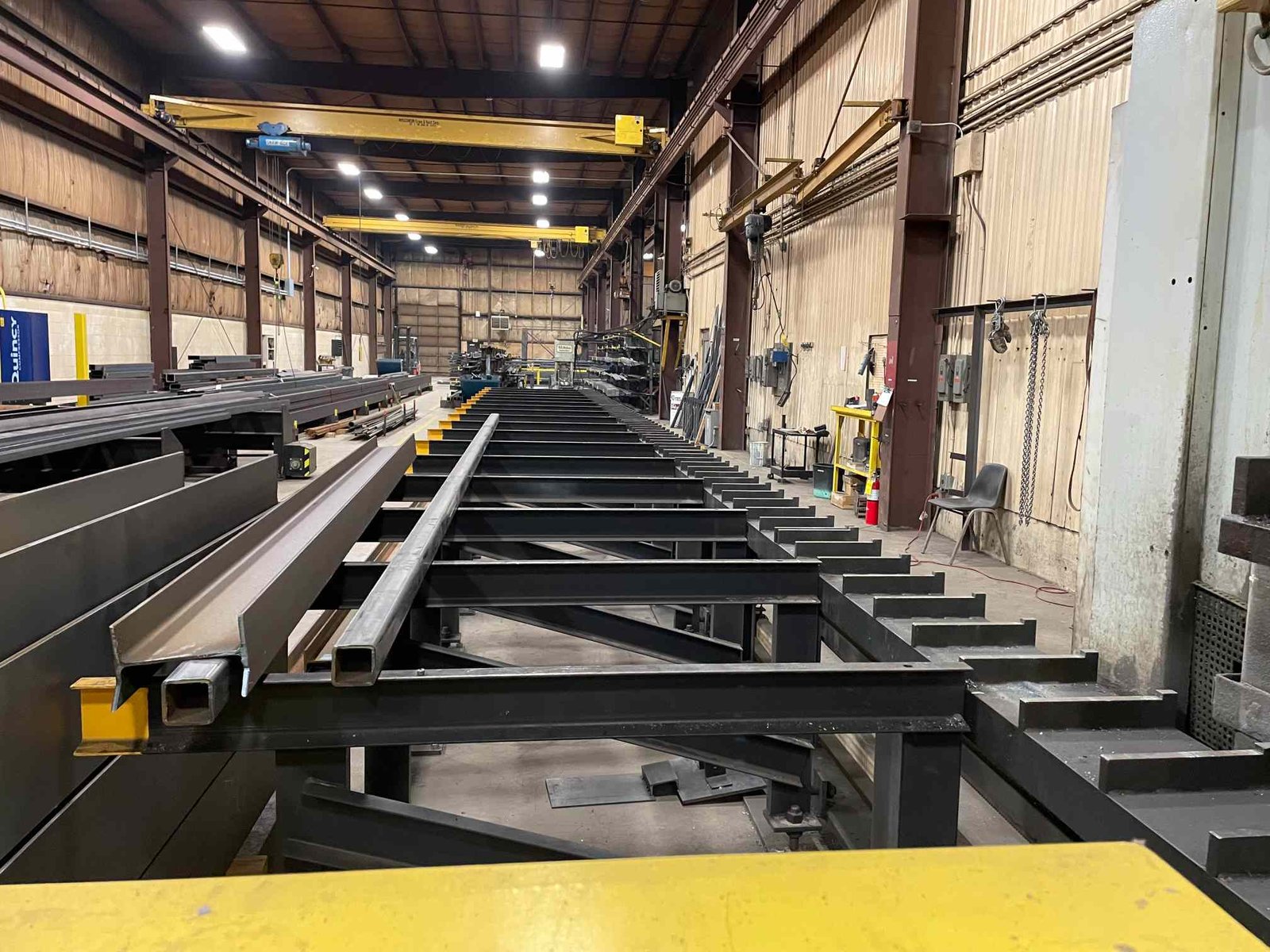

All Conveyors and Rails in the photos
