Description

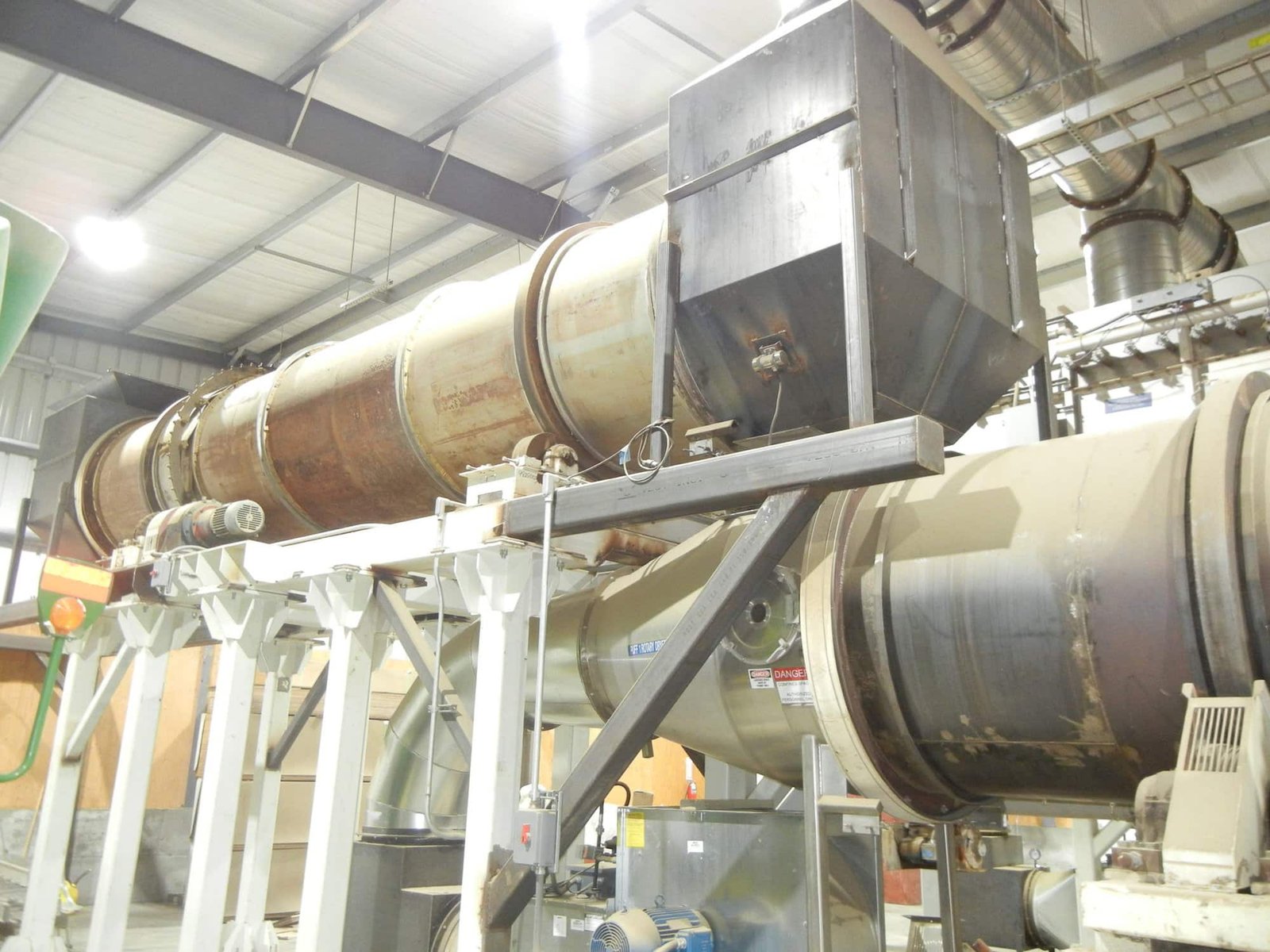

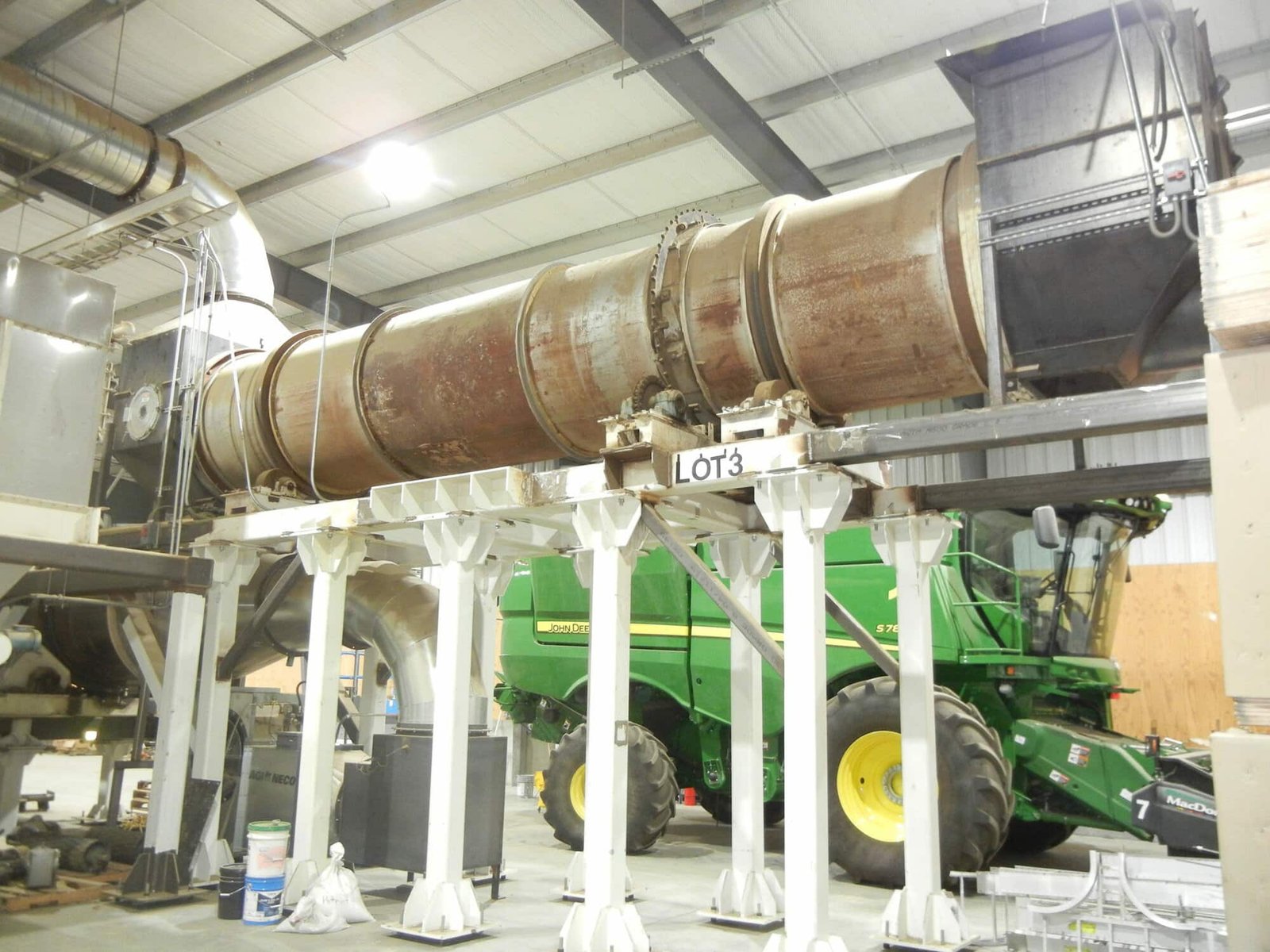

Qty 1 – Used FMC Link-Belt Roto-Shell Drum Dryer.
1 – Drum, approximately 60” Diameter x 312” Long.
Carbon Steel.
2 – 5’ x 15” Diameter Trunnion Idlers
1 – Chain Drive, driven by a 10 HP, 3 PH., 60 HZ., 460V, 1755 RPM Gearmotor, with 38.4:1 Ratio.
1 – Support, Carbon Steel
1 – Custom Discharge Airlock, 12” Diameter x 28” Wide, driven by Baldor 3 HP 230/460V, 60 HZ., 3 PH, TEFC Motor and Hub City Gearbox, Ratio 28:1
1 – Belt Feed Section, Carbon Steel

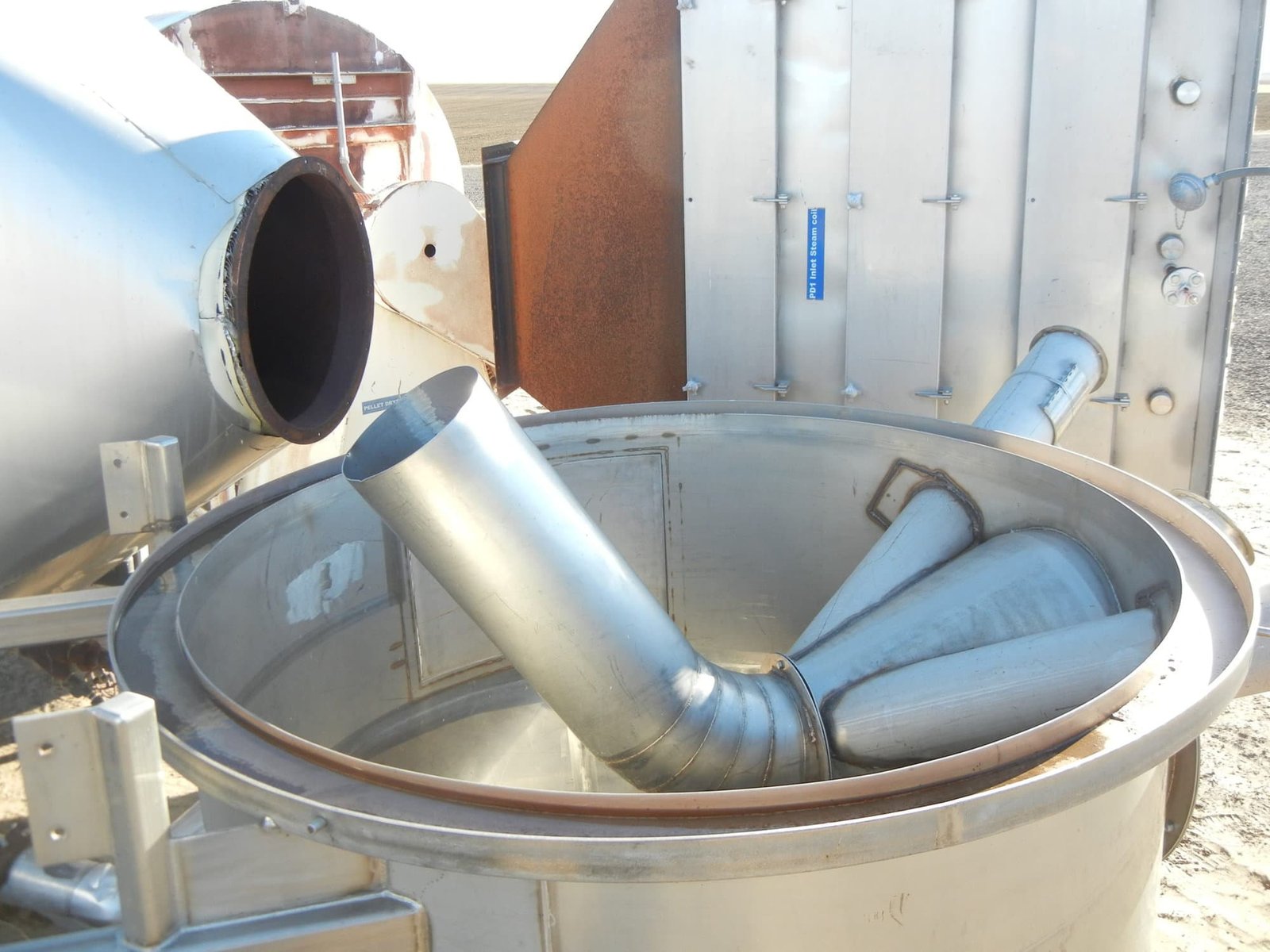

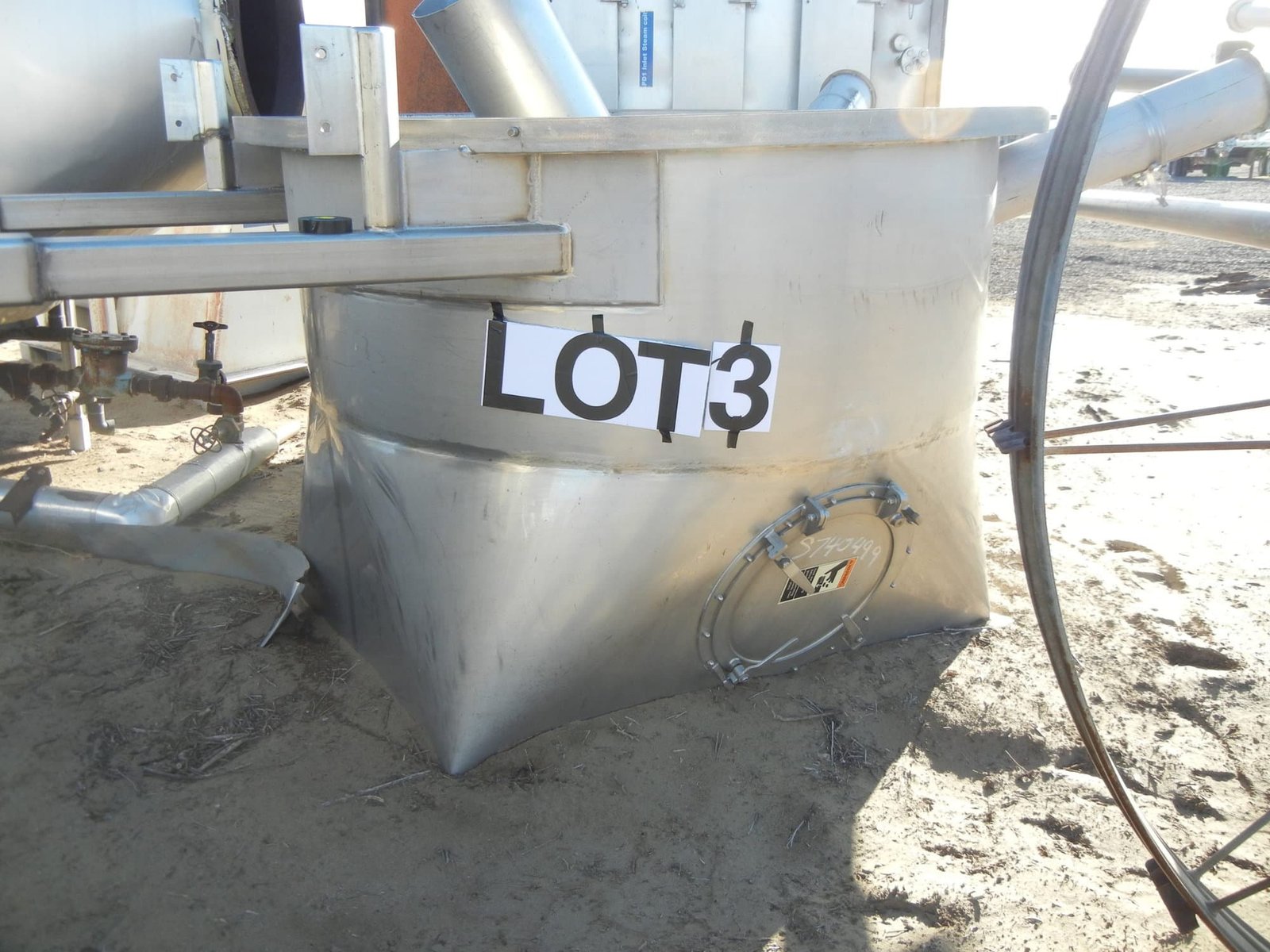

1 – Discharge Section, Stainless Steel

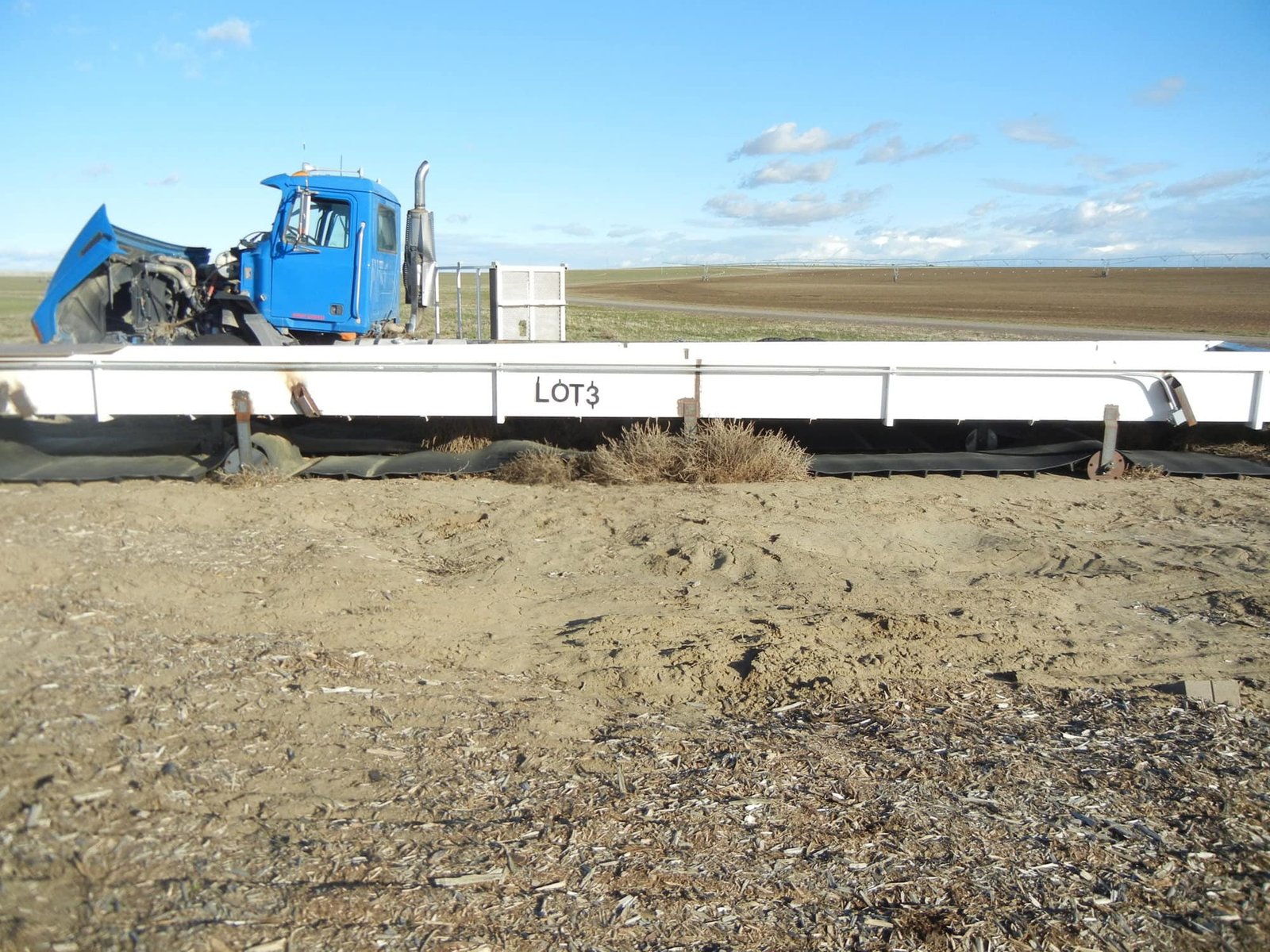

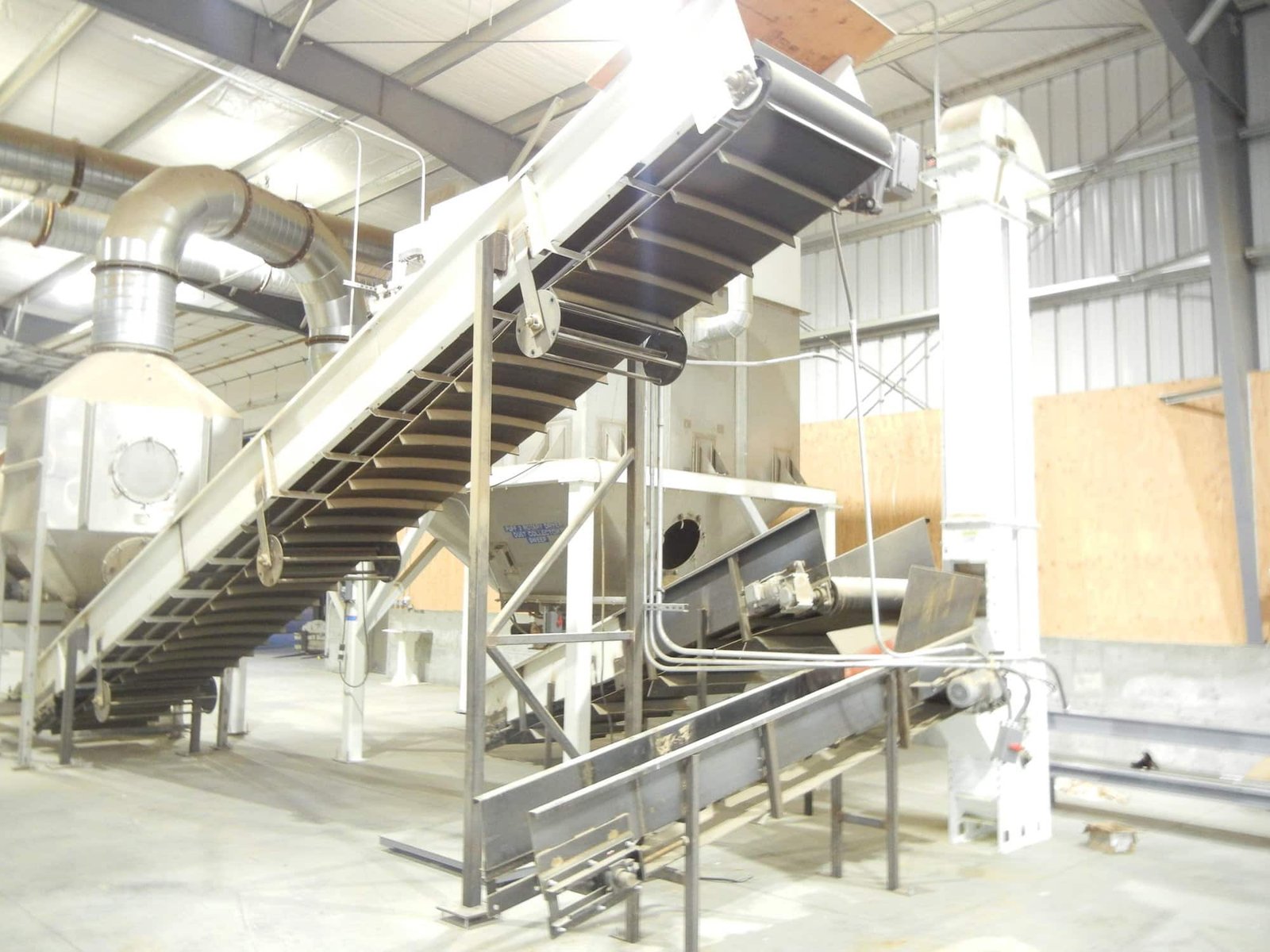

1 – Feed Conveyor, 36” x 468” x 17” Sides, Pan Bottom, Carbon Steel Frame w/ 3” Full Width Flights x 12” Spacing Belt, 10” Dia. Wing Tail Pulley, 10” Dia. Head Pulley w/3/8” Lagging, 1 15/16 Bearings Head & Tail, Nord 7.5 HP TEFC 3 PH, 230/460V 60 HZ Inverter Duty Motor, Nord Hollow Shaft Gearbox, Ratio: 40.36:1
1 – Discharge Conveyor, 36” x 372” x 17” Sides, Pan Bottom, Carbon Steel Frame w/3” Full Width Flights x 12” Spacing Belt, 10” Dia. Wing Tail Pulley, 10” Dia. Head Pulley w/3/8” Lagging, 1 15/16 Bearings Head and Tail, Nort 5 HP TEFC 3 PH, 230/460V 60 HZ Inverter Duty Motor, Nord Hollow Shaft Gearbox, Ratio 40.36:1
Two Independent Air Heating Systems

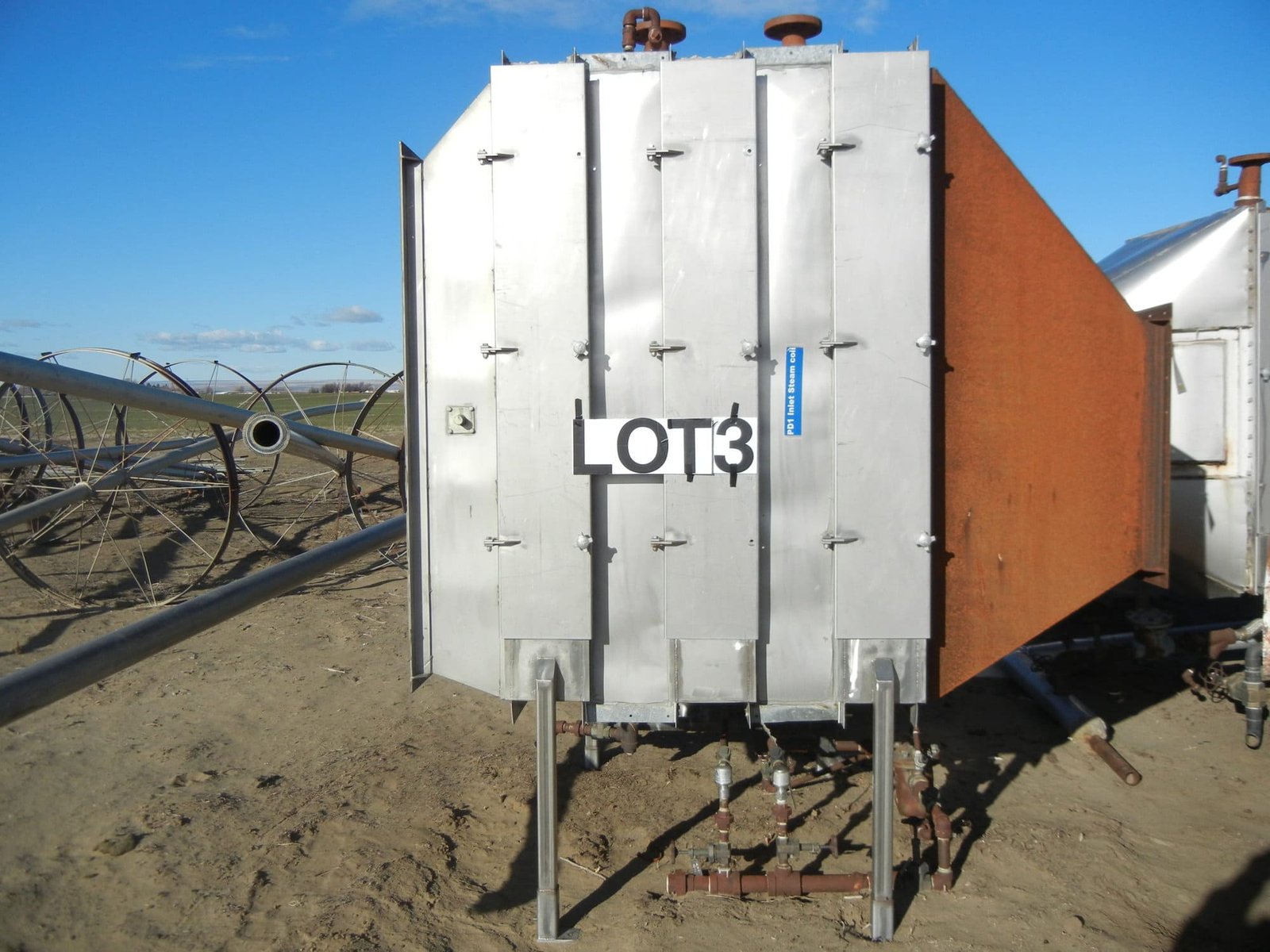

Qty 1 – Used Steam Coil Chest

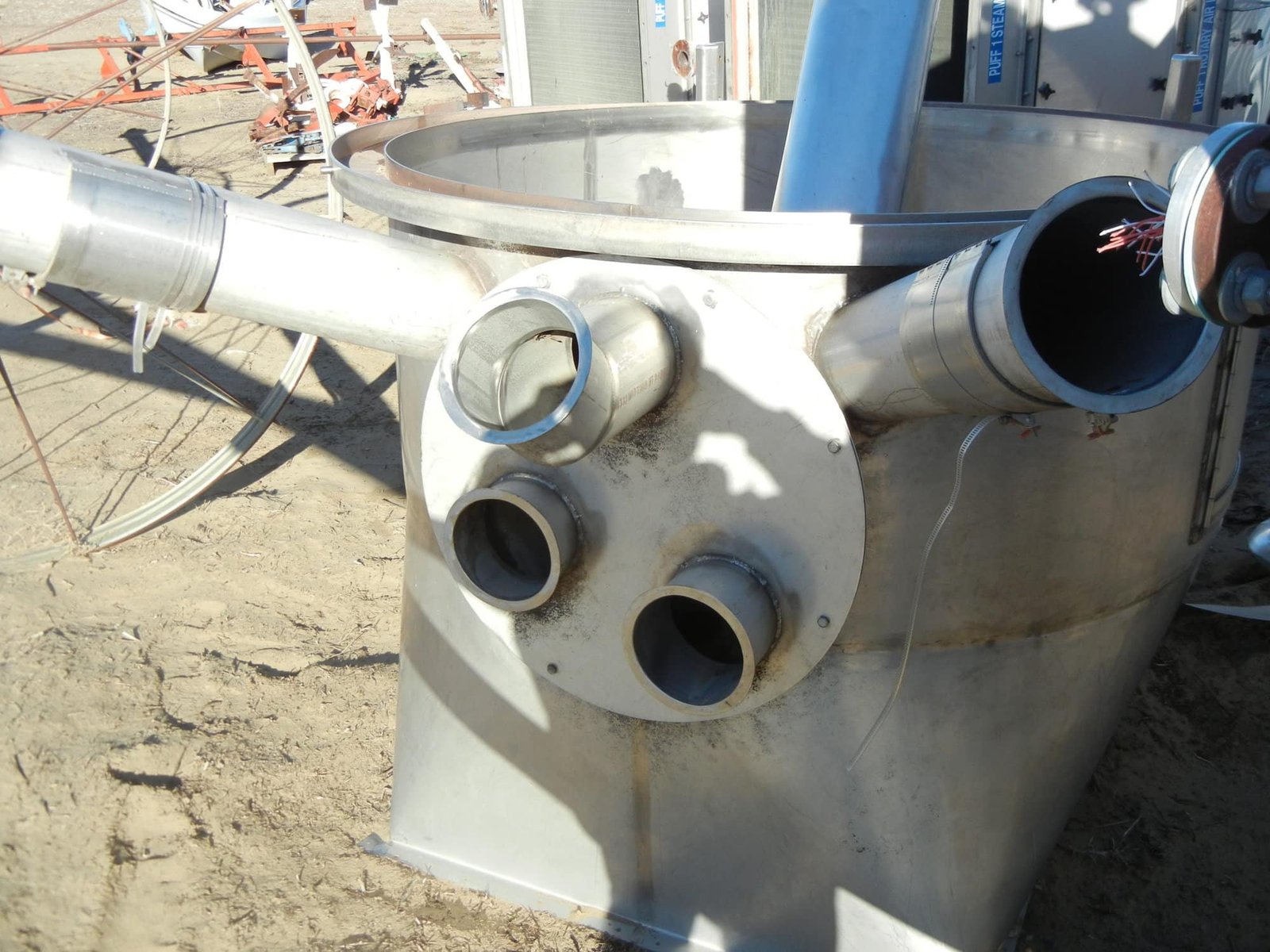

1 – Steam Coil Chest Adaptor to Drum Feed w/multi–Feed Ports, Stainless Steel
1 – Steam Coil Chest to New York Blower Adaptor, Carbon Steel

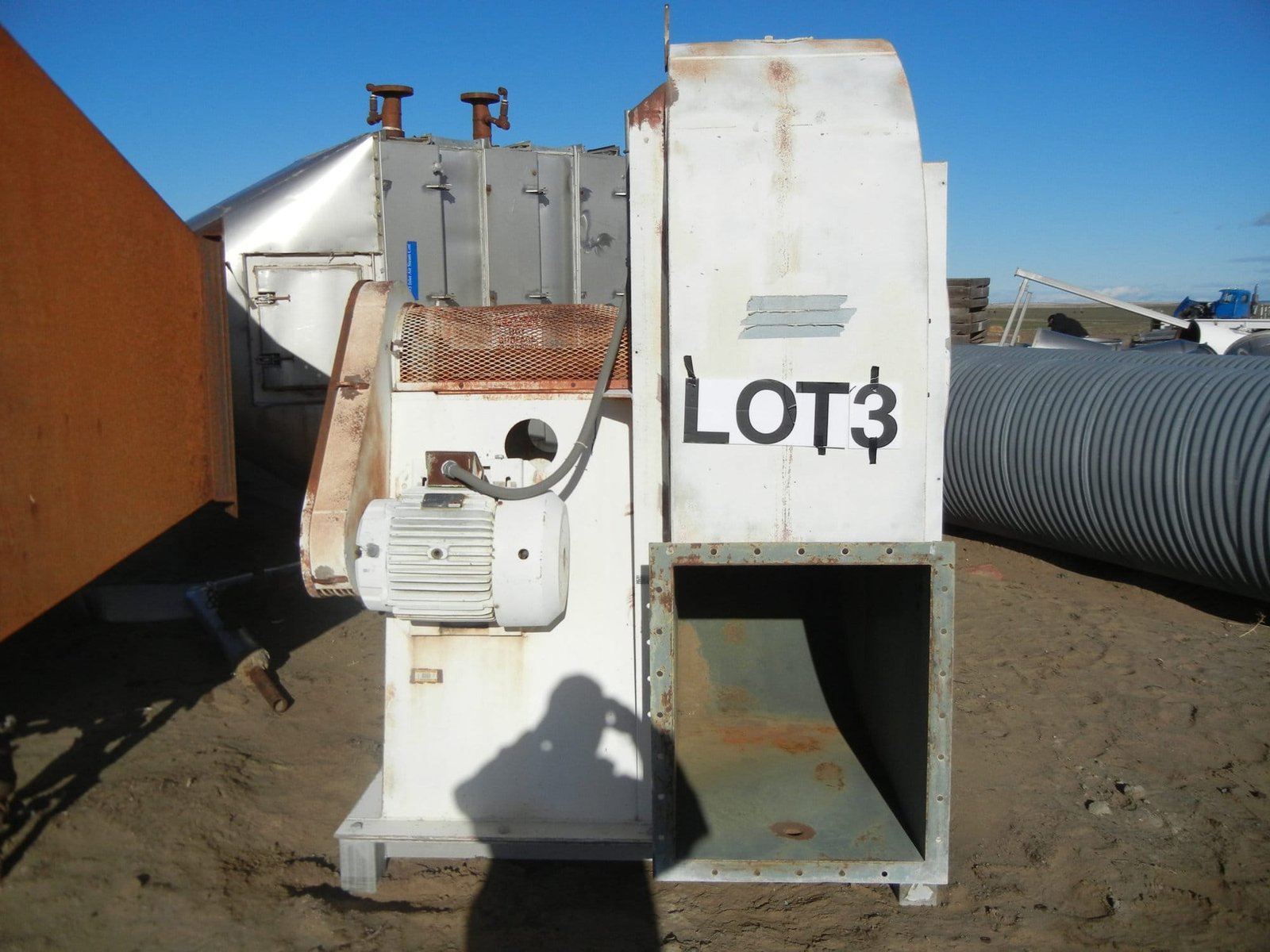

1 – New York Blower, 25 HP, 3 PH, 460V, 60 HZ
Qty 1 – Used NECO Air Heating System
1 – NECO Centrifugal Fan, 25 HP, 24,000 CFM
1 – NECO Centrifugal Heater, Liquid Propane, Up to 4 MBTU heat output Model 05DSH2LPH
2 – 30” Dia. 90 Deg., Galvanized Air Pipe

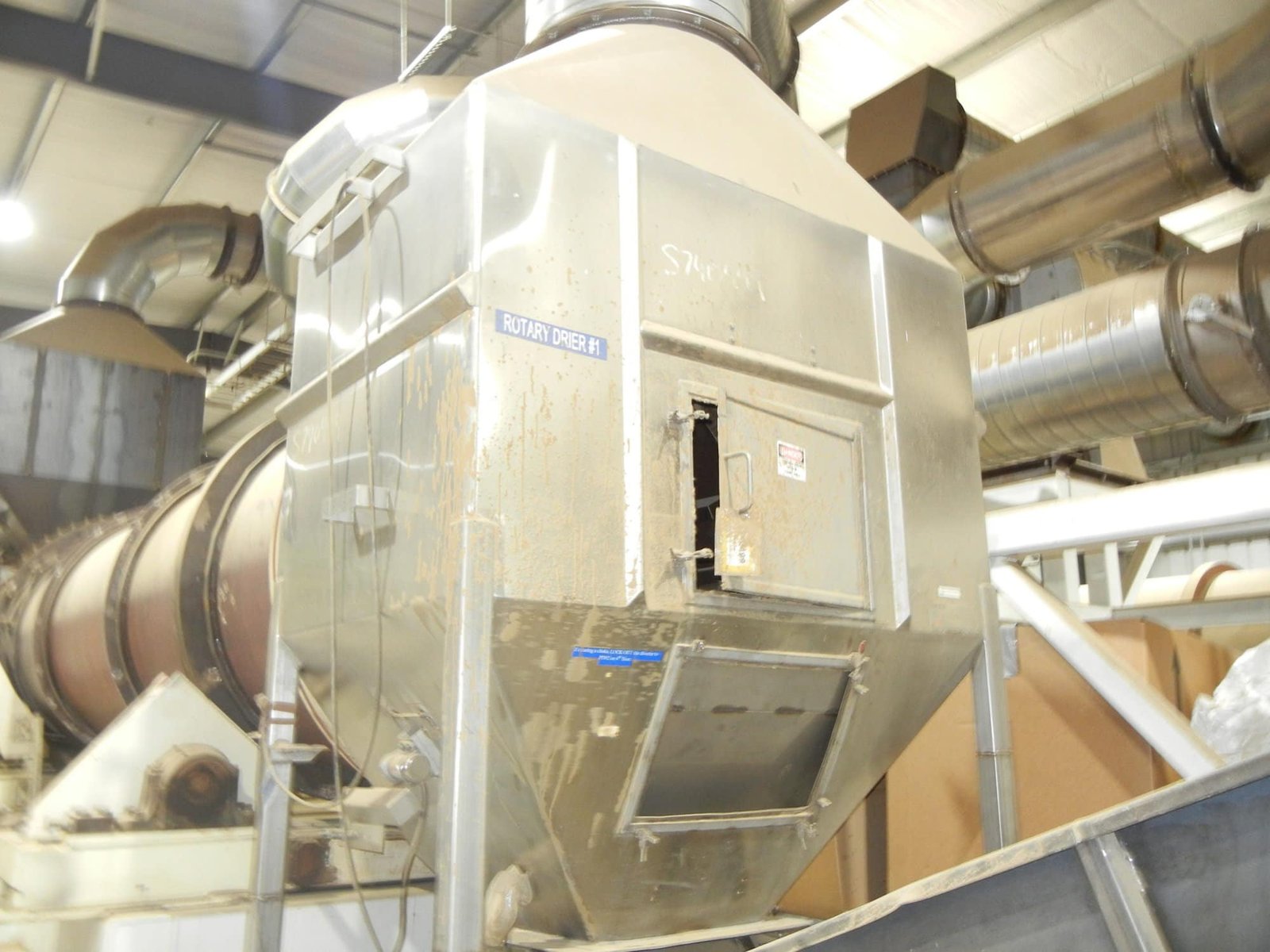

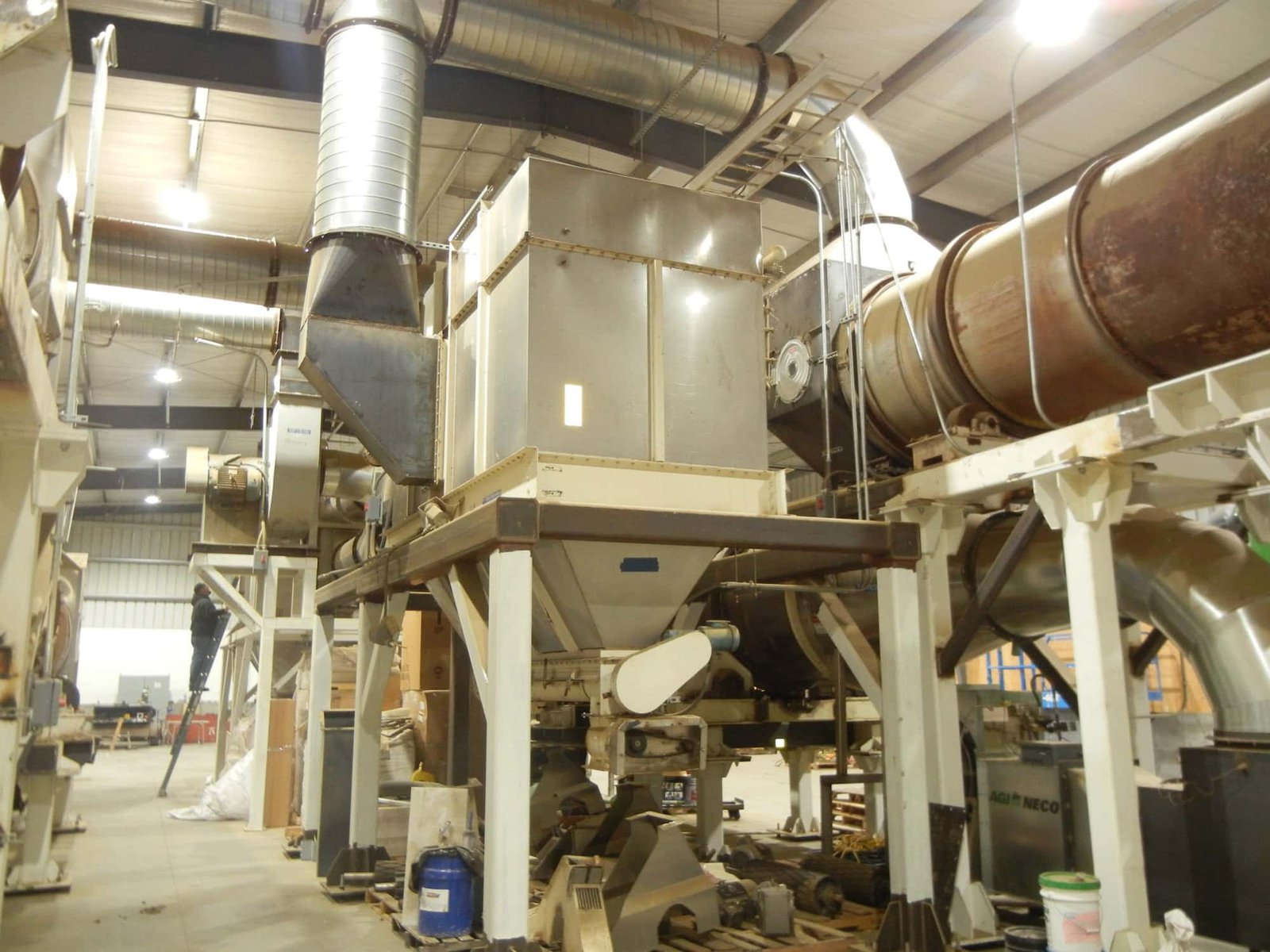

Qty 1 – Used FlexKleen Stainless Baghouse Style Dust Collector Model 10-7-9-30871
1 – Stainless Housing, Two Compartments 64” x 64” each, w/Vee Bottom Hopper 120” Long x 63” Wide Top x 53” Deep Side, leading to 8” Wide Bottom.
1 – 8” Dia. x 112” Long Screw Conveyor, Carbon Steel , driven by a 1 HP, 3 PH, 60 HZ, 230/460V 1725 RPM Gearmotor.
1 – Rotary Discharge Airlock Valve 10” Dia. x 12” x 12” , driven by a 3/4 HP 3 PH, 60 HZ, 230/460V 1725 RPM Gearmotor, Ratio 37.55:1
1 – New York Blower, 50 HP, 3 PH, 60 HZ, 460V 1750 RPM Motor
1 – 30” Dia. x 12.00” Straight, Galvanized Spiral Air Pipe
2 – 30” Dia. x 60.00” Straight, Galvanized Spiral Air Pipe
1 – 30” Dia. x 18.00” Straight, Galvanized Spiral Air Pipe
4– 30” Dia. x 96.00” Straight, Galvanized Spiral Air Pipe
4 – 30” Dia. 90 Deg., Galvanized Air Pipe
1 – 30” Dia. x 16” Wide Gate Valve, Galvanized Spiral Air Pipe
15 – Donaldson Custom Ultra Web SB Filters
1 – Steel Support Frame
