Description
Dimensions & Capacity
Profile width (web): 3″ to 6″
Profile height (flange): 1.33″ to 2″
Material thickness: 0.028″ to 0.063″
Machine length: 177.17″
Machine width: 31.5″
Machine height: 47.24″
Weight: 4,837 lb

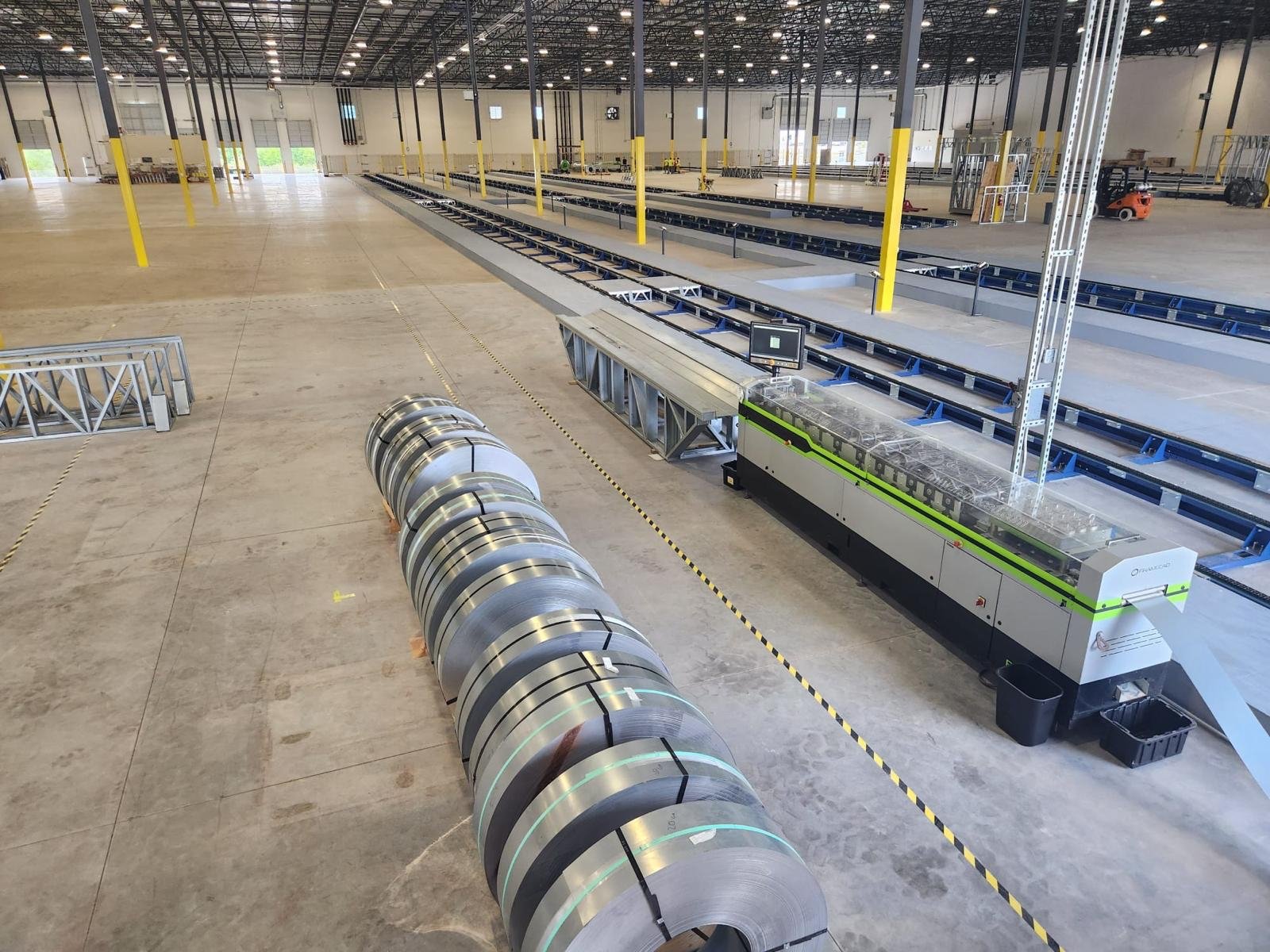

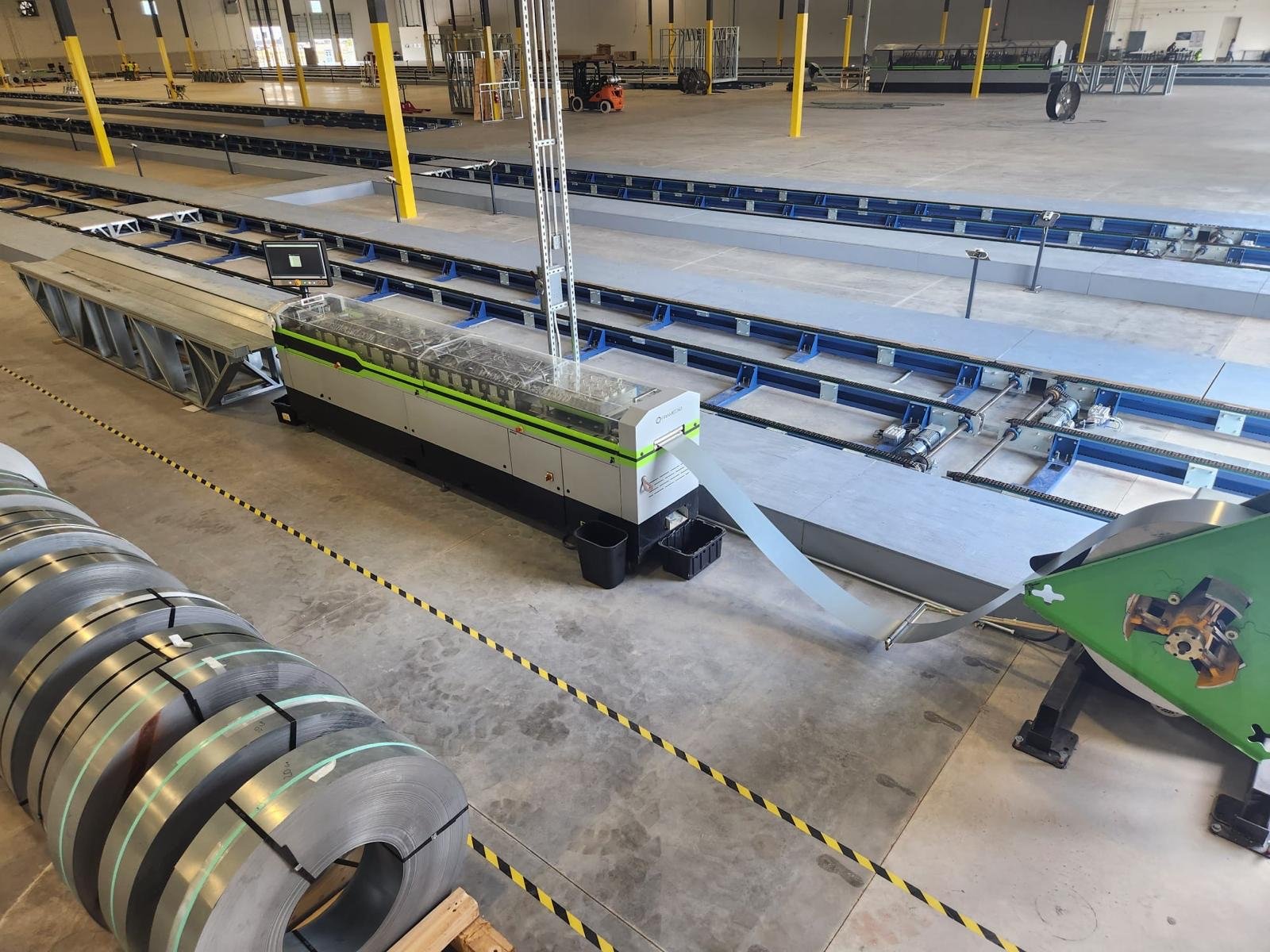

Decoiler capacity: 6,600 lb
Max. Hydraulic Oil Pressure: 195 Bar
Max. Oil Temperature: 65*C
Performance
Max line speed: 7,090 ft/hr
Typical production speeds:
Joists: 985 ft/hr
Walls: 2,300 ft/hr
Main drive power: 10 HP
Hydraulic power: 7.4 HP
Tooling & Punching

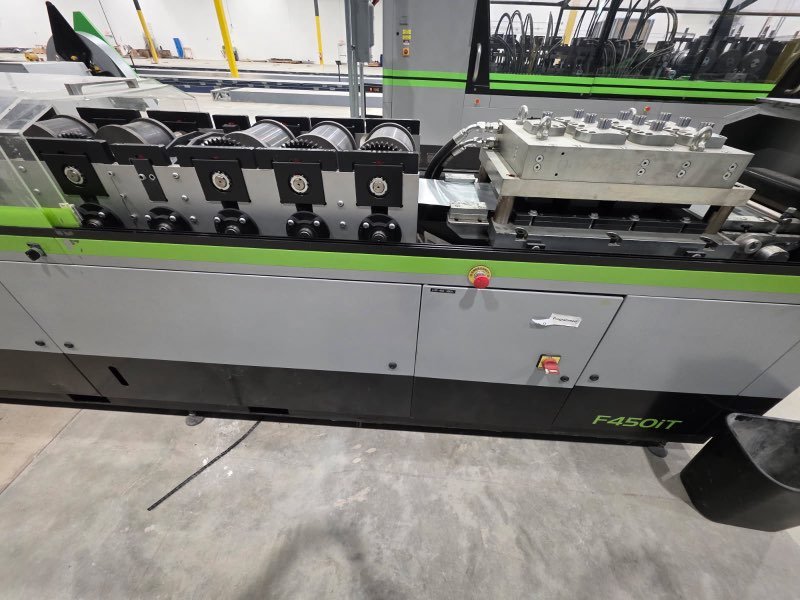

Roll-forming stations: 11 auto-gauging
Punching stations: 12 standard punches
Printer: Dual printer heads for part labeling
