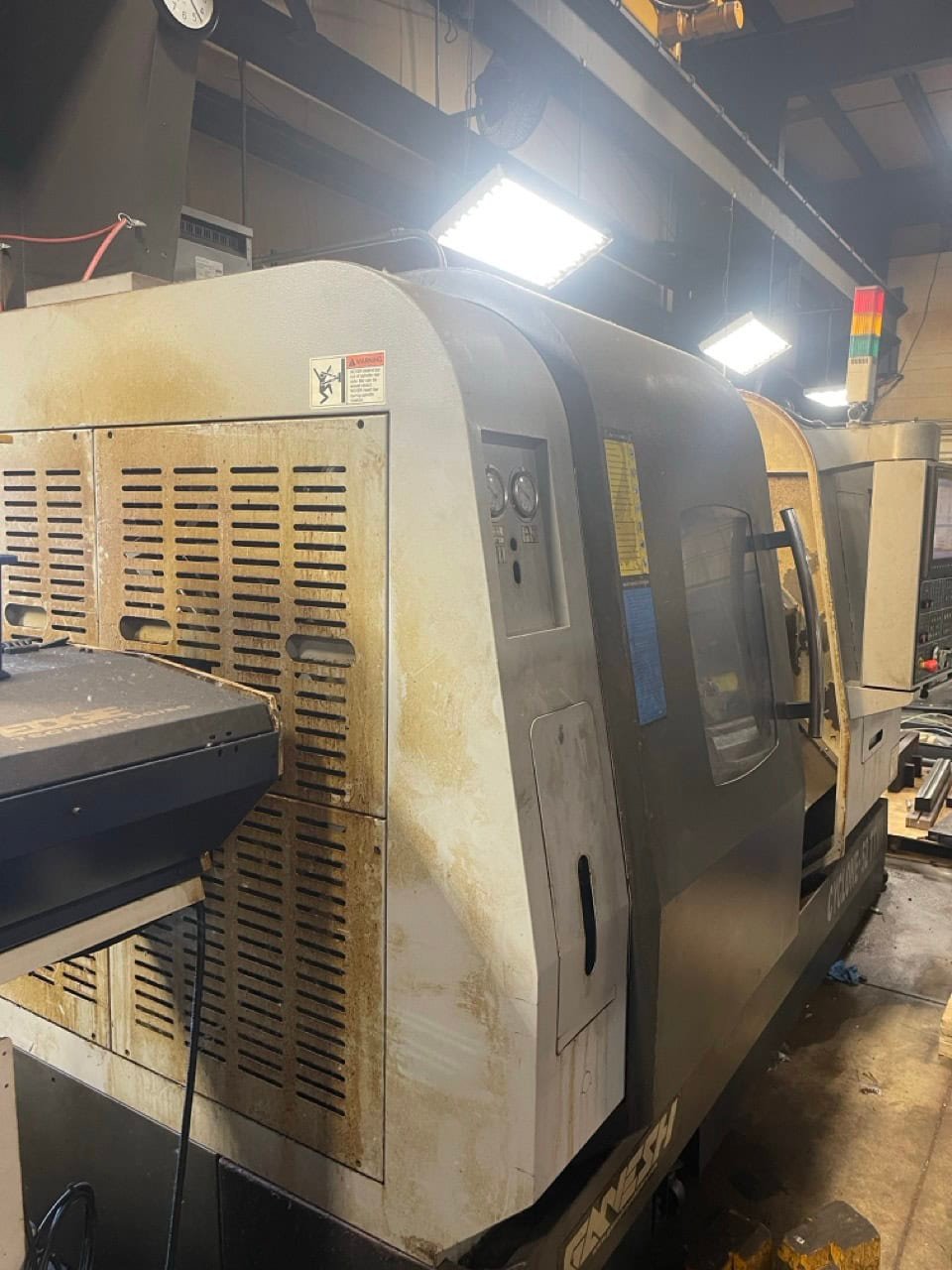

Description
Max Turning Diameter : 7.48″
Max Turning Length: 15.75″
Distance Between Spindle Centers: 36.0″

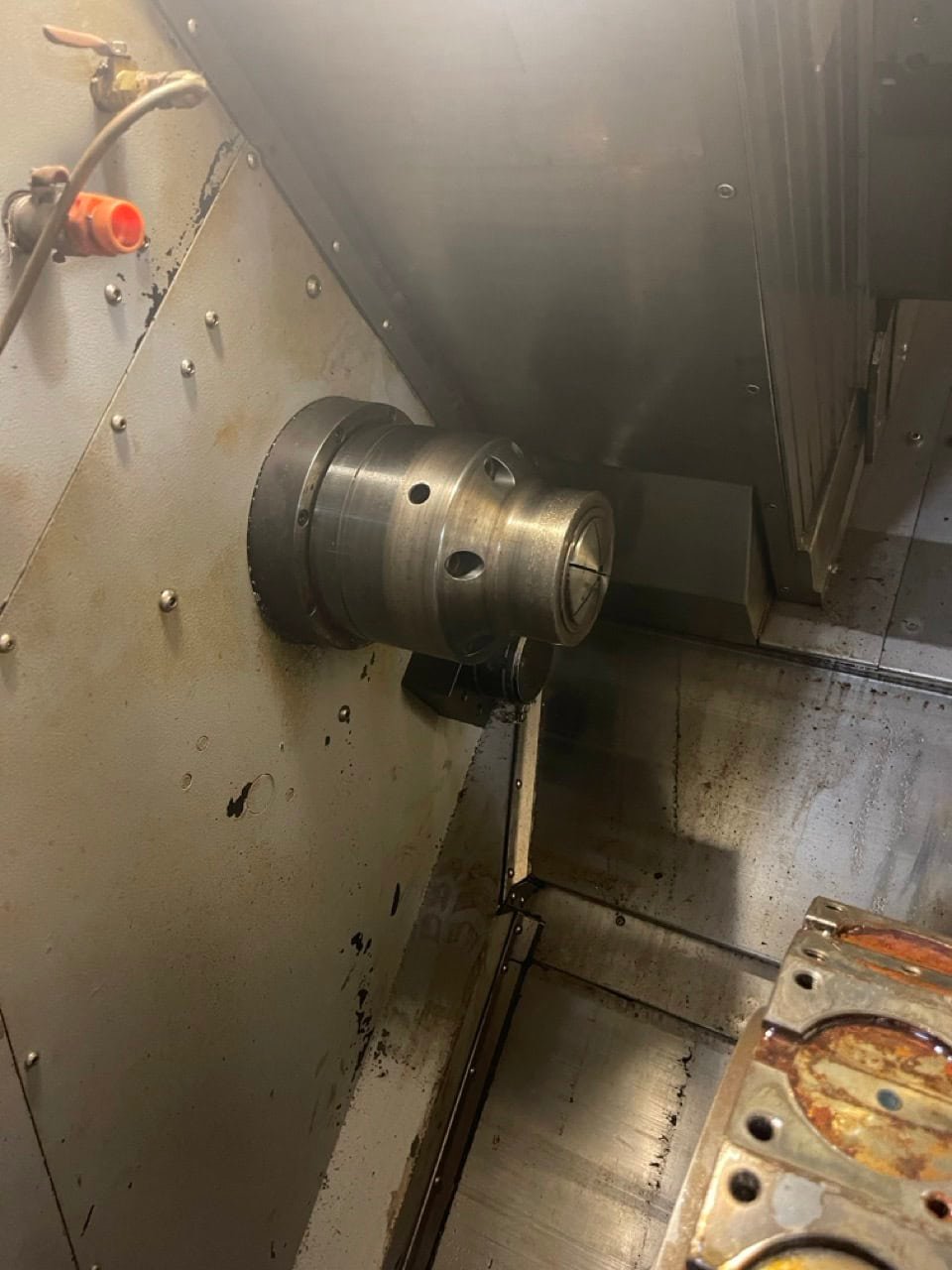

Spindle
Spindle Nose: A2-5
Spindle Bore: 2.40”
Spindle Bar Capacity: 2.0”
Chuck Size: 6”
Spindle Speed: 6,000 RPM
Spindle Motor Horsepower: 20-HP

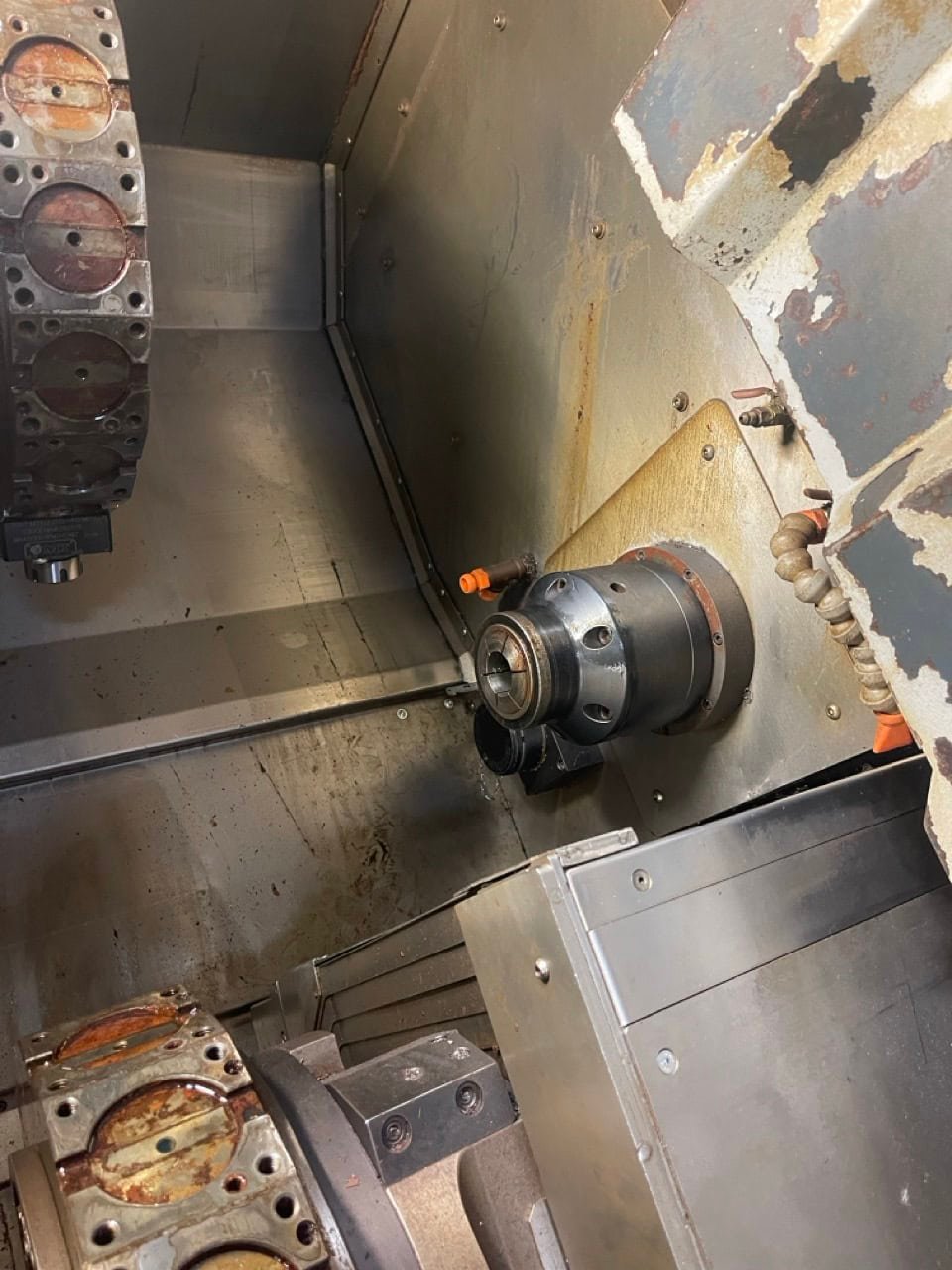

Sub Spindle
Spindle Nose: A2-5
Spindle Bore: 2.40”
Spindle Bar Capacity: 2.0”
Chuck Size: 6”
Spindle Center Height: 46.45”
Spindle Speed: 6,000 RPM
Spindle Motor Horsepower: 20-HP

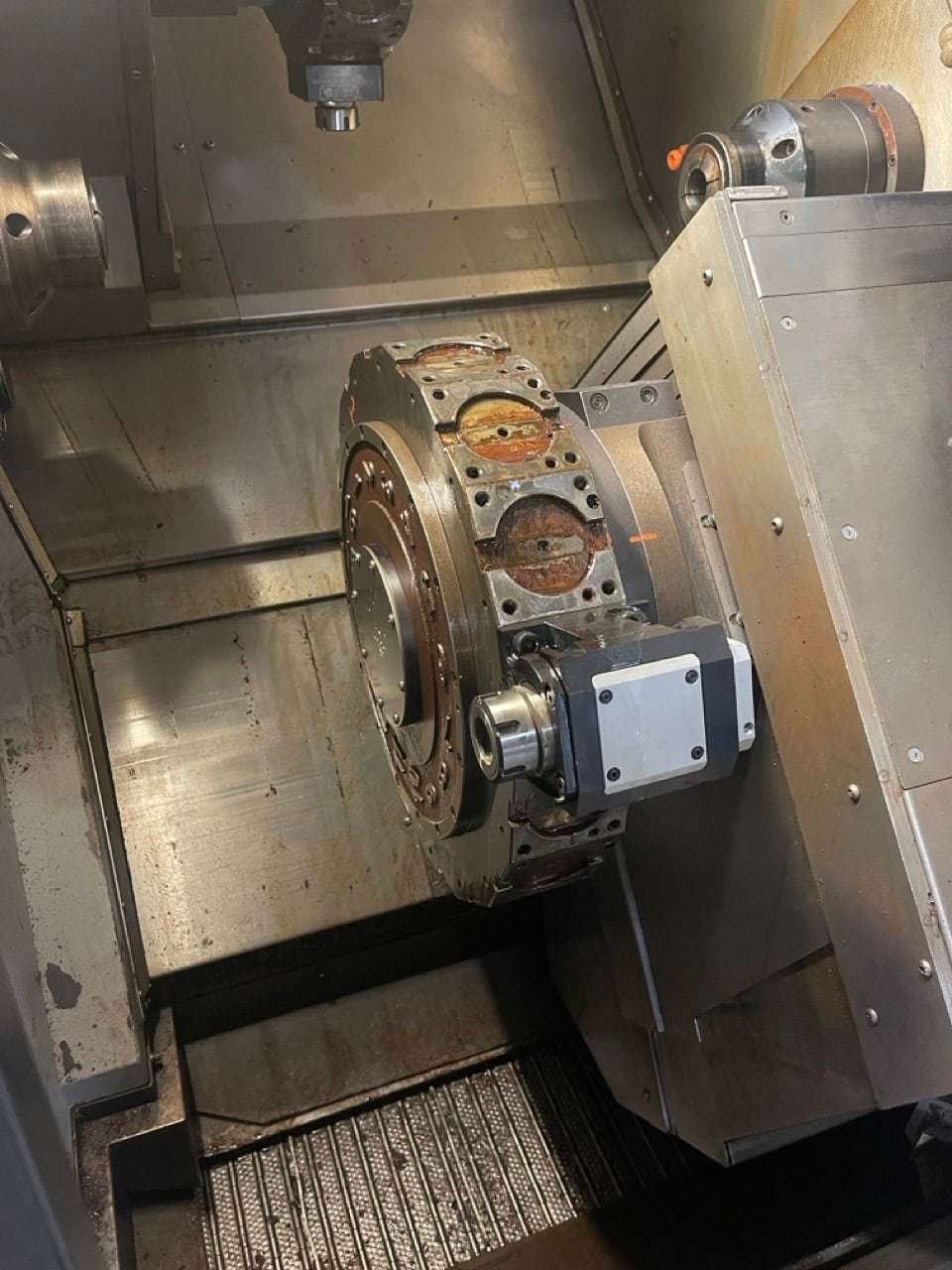

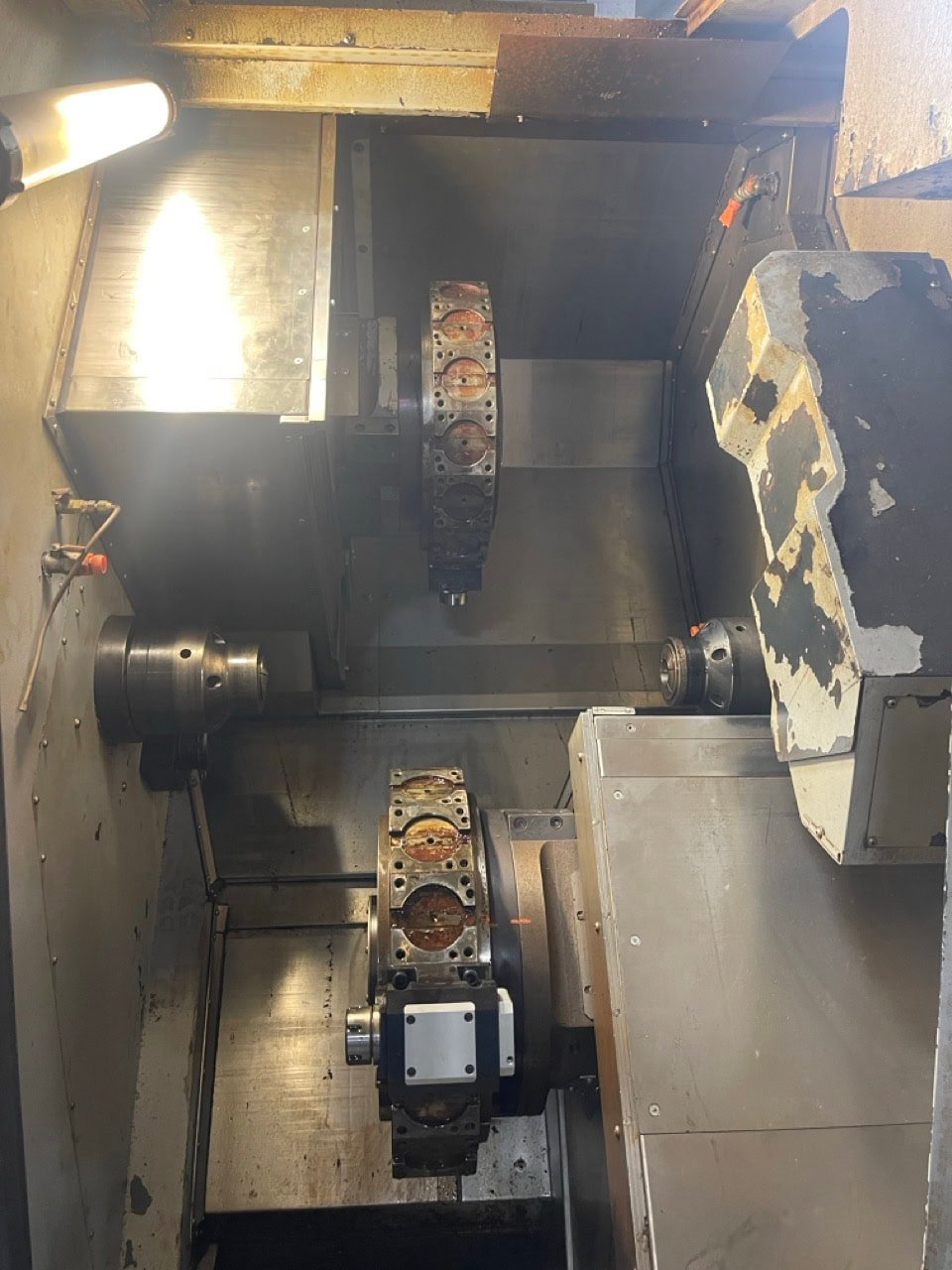

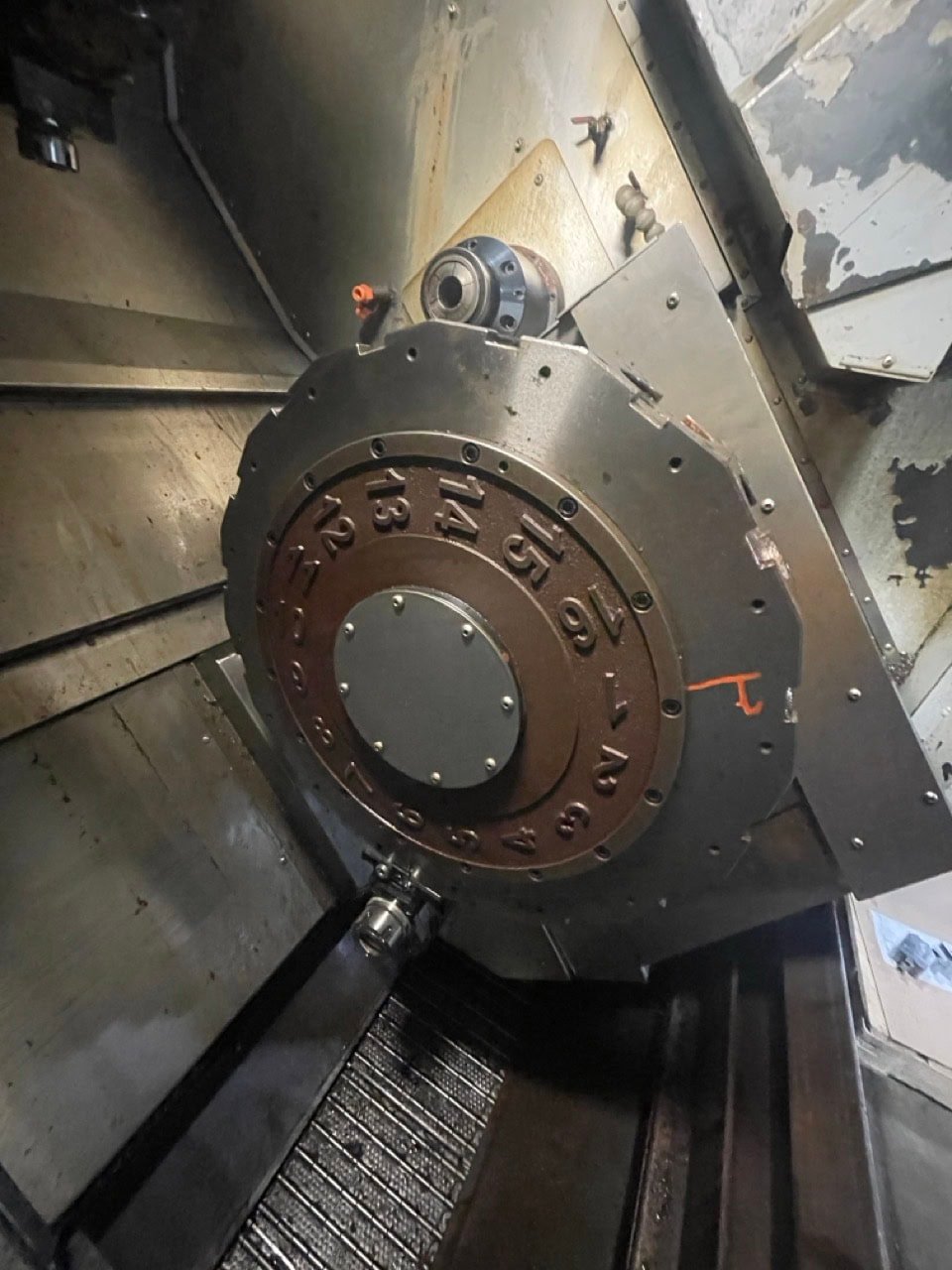

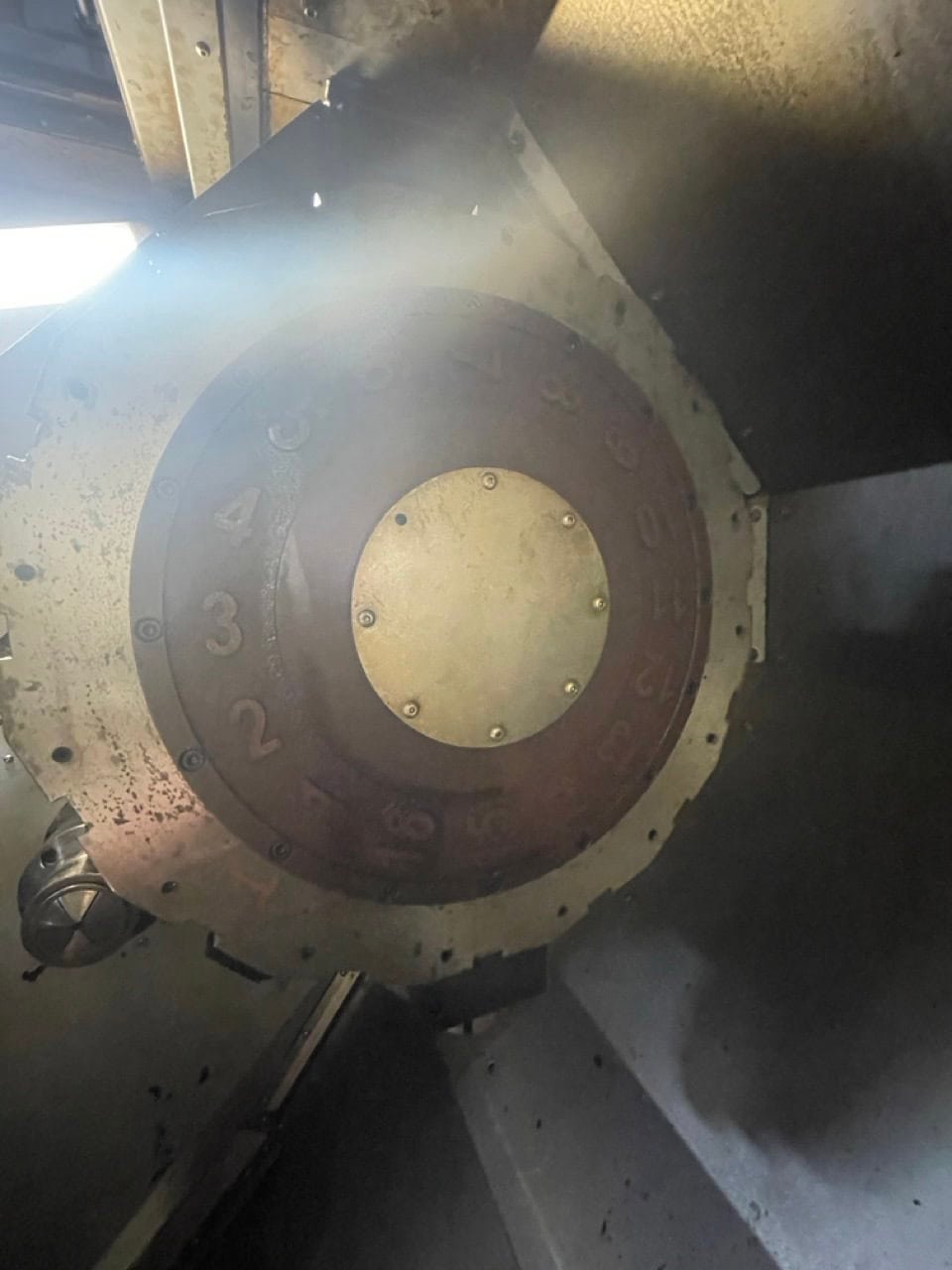

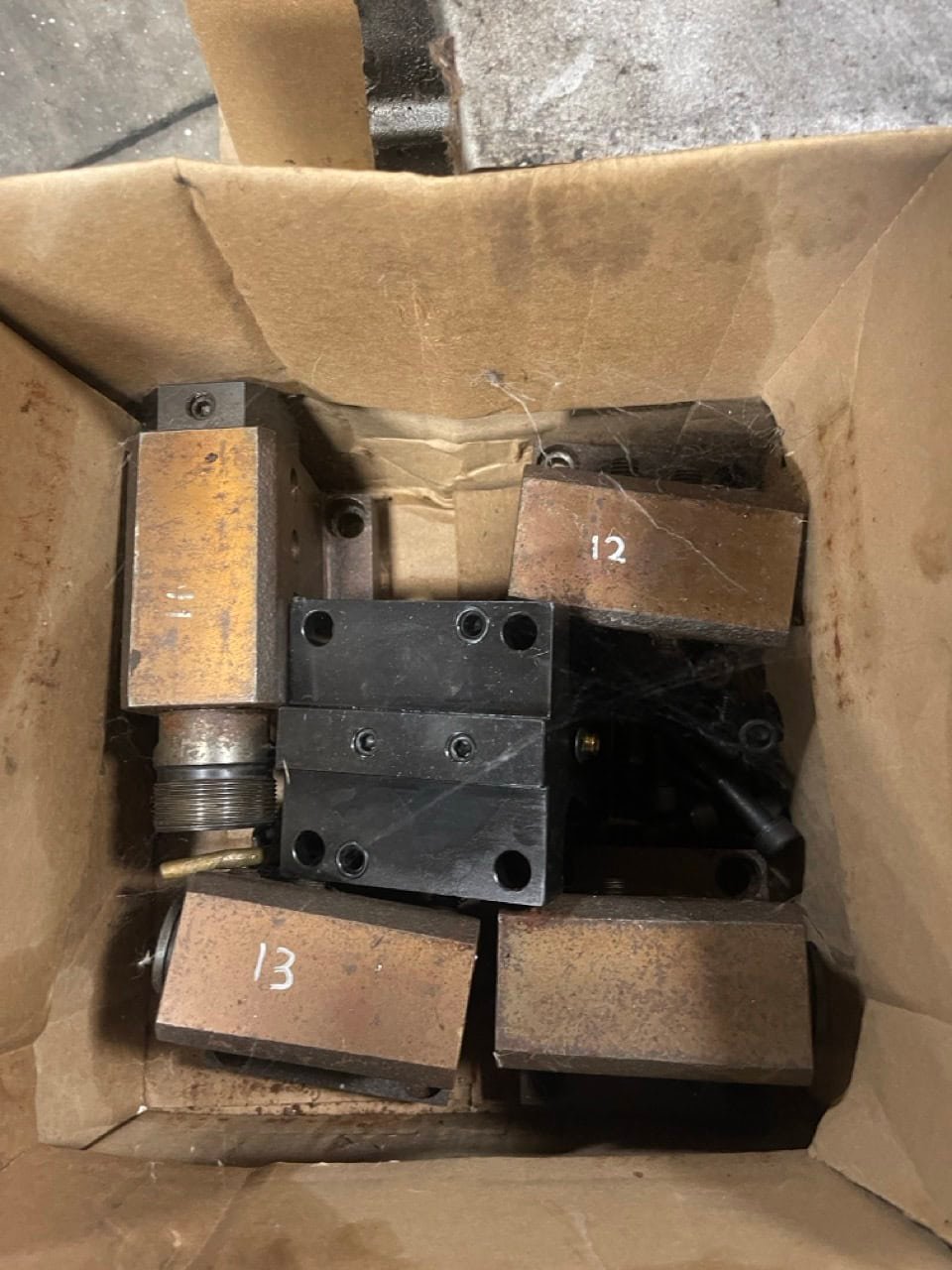

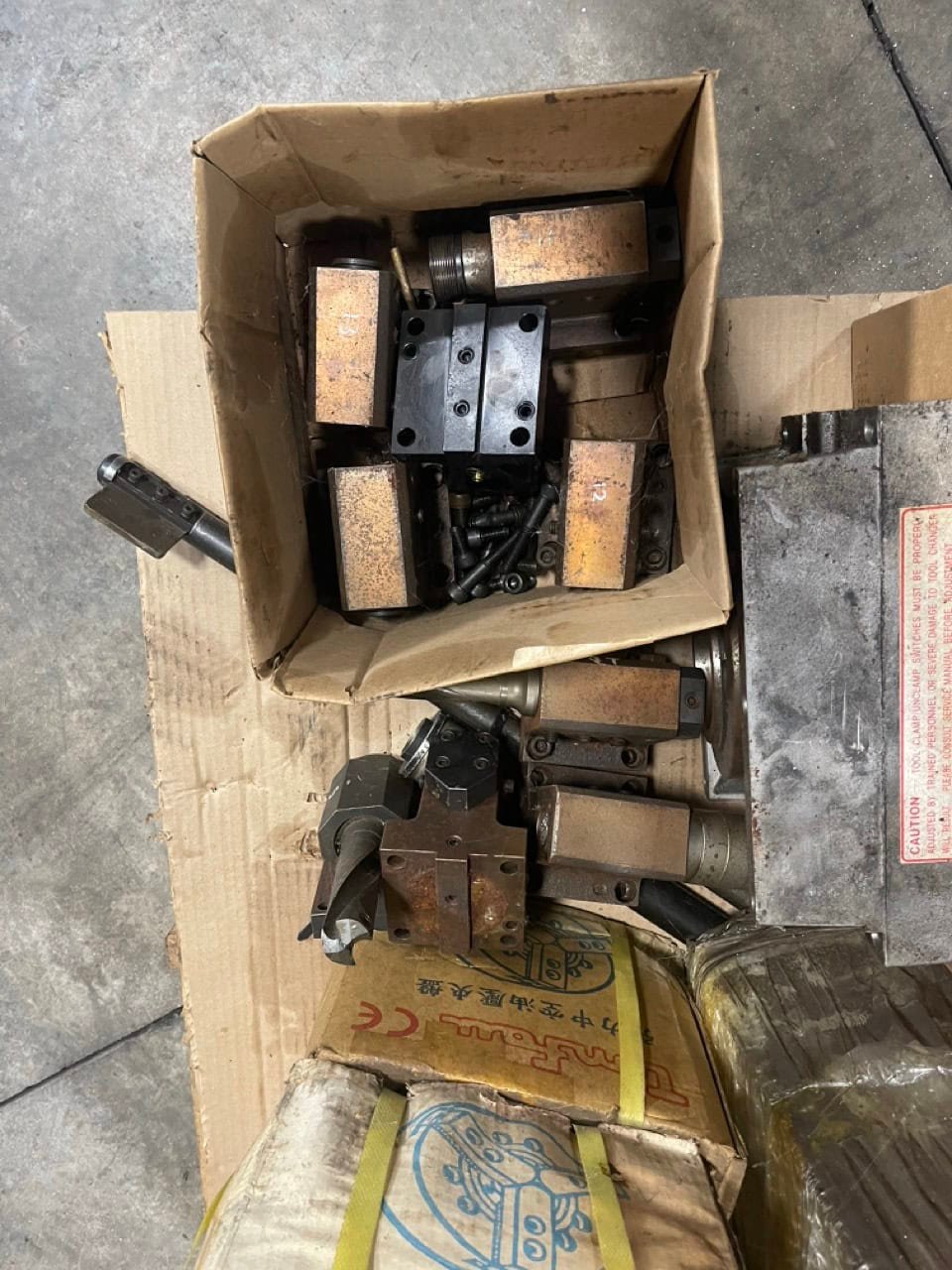

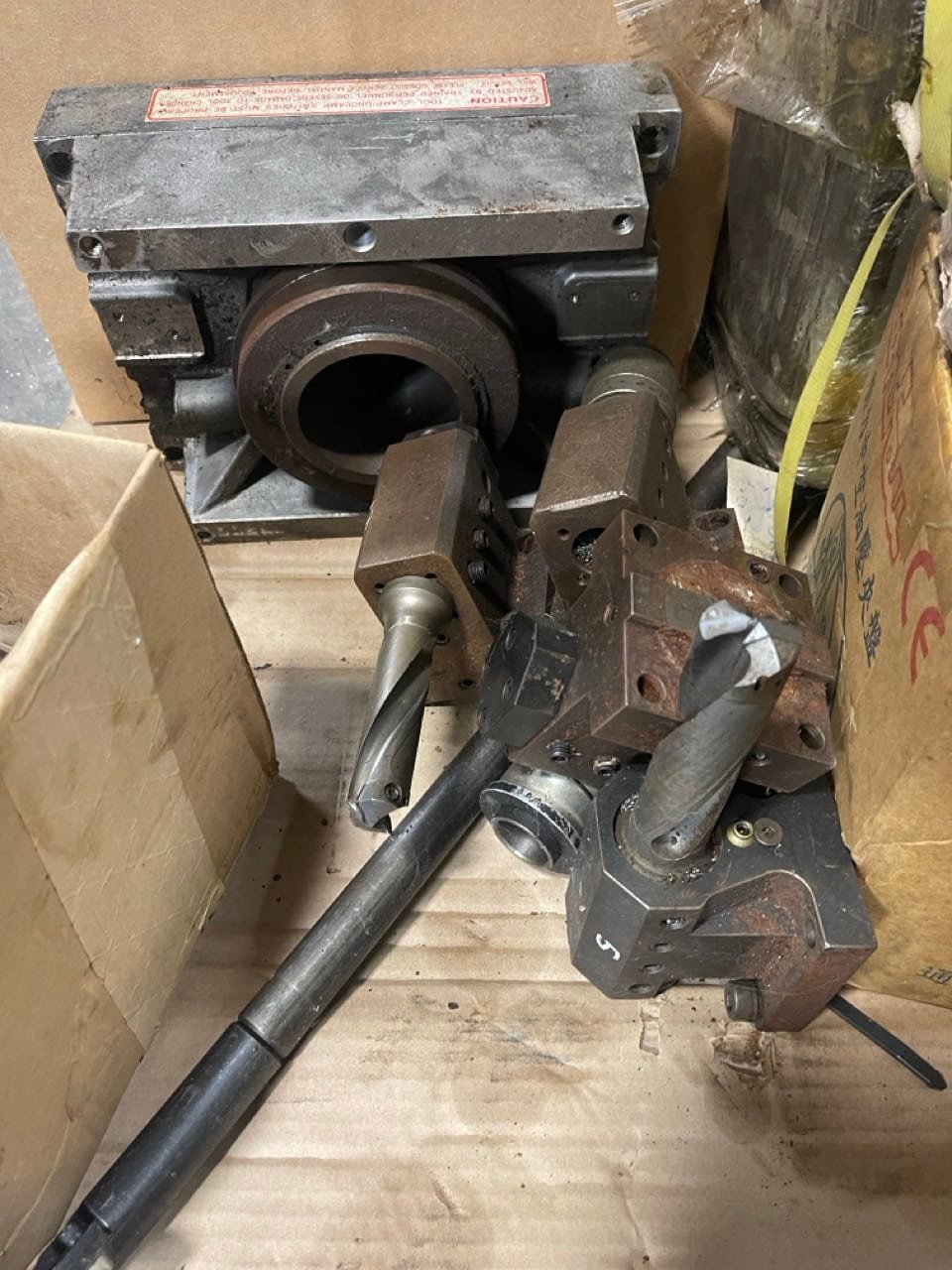

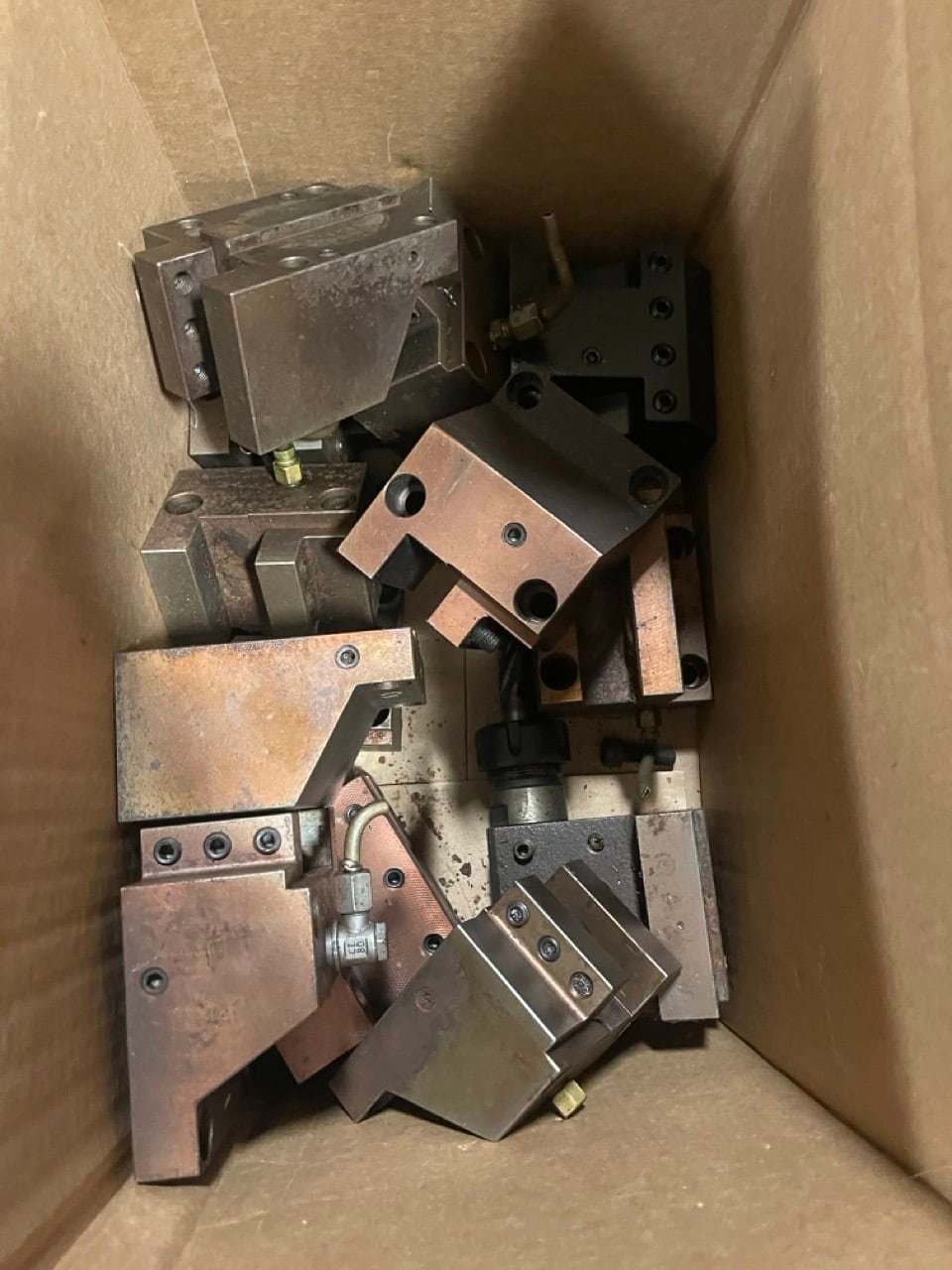

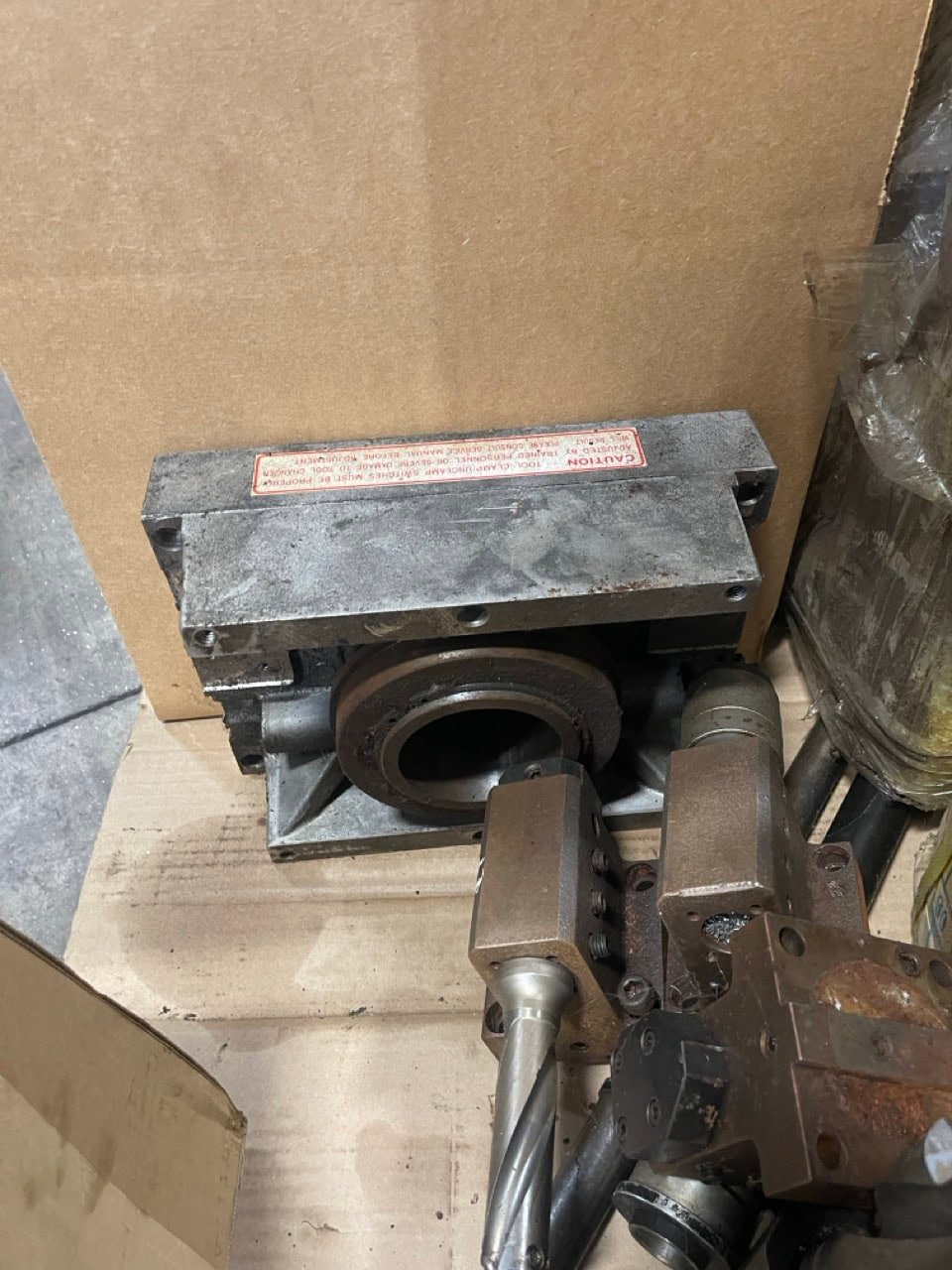

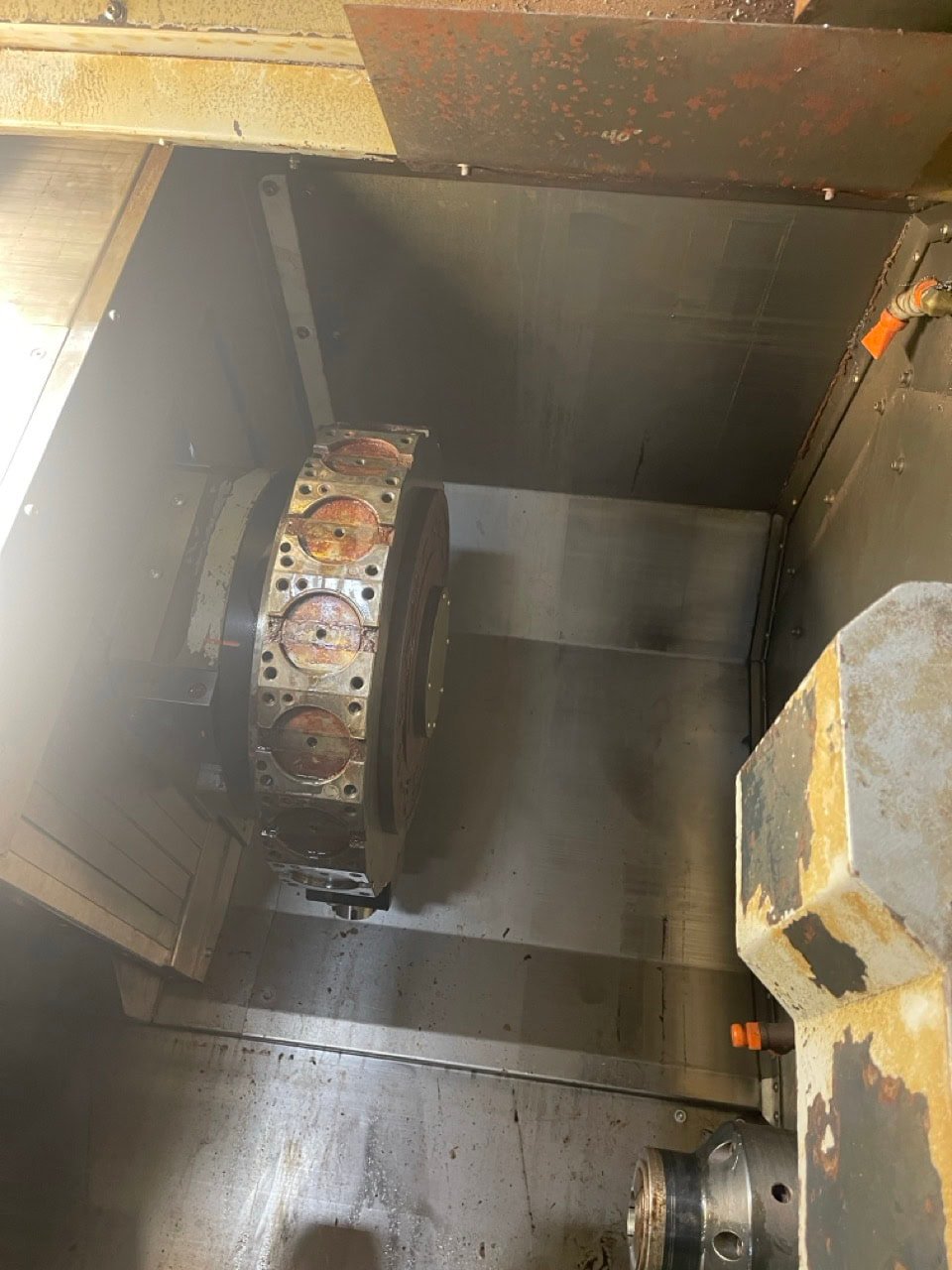

Live Tool Turrets (Dual 16-Station Live Tool Turrets)
Number of turret stations: 32
Turret index time: (adjacent tool): 0.2 seconds
Turret index time: (180-degree index): 1.2 seconds
Y-Axis
Y-axis travel (Upper Turret only):± 1.38”
Y-axis Rapid Feed Rate: 236 Inch Per Minute
C-Axis
Spindle Radial Resolution: 360,000 radial positions + full contouring capability
Live Tool Speed: 4,000 RPM
B-Axis
B Axis Rapid Traverse Rate: 1,573 Inch Per Minute
B Axis Travel: 25.59”
Rapid Traverse Rate – X-axis 630 IPM
Rapid Traverse Rate – Z-axis 1,573 IPM

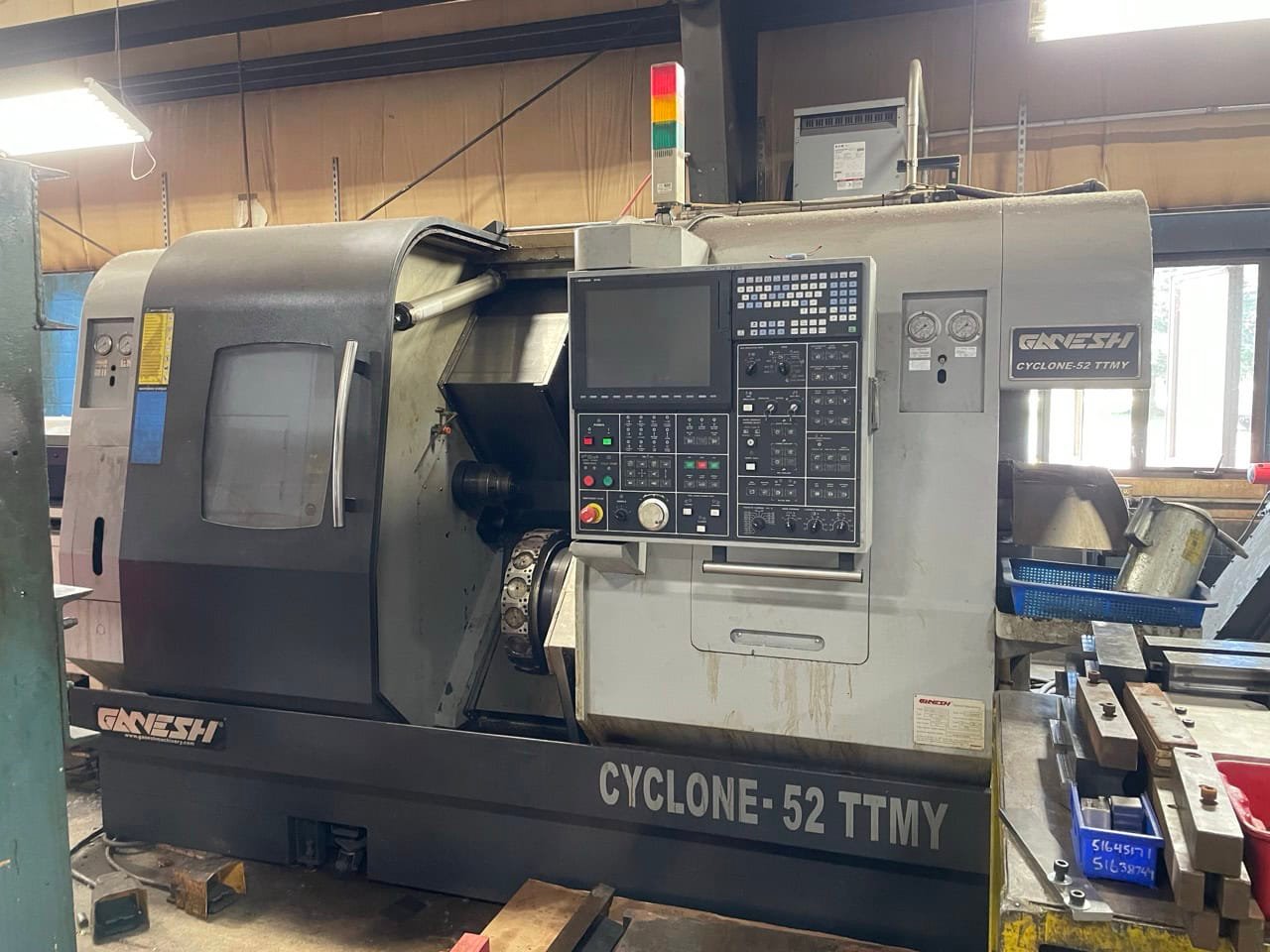

Equipped With:

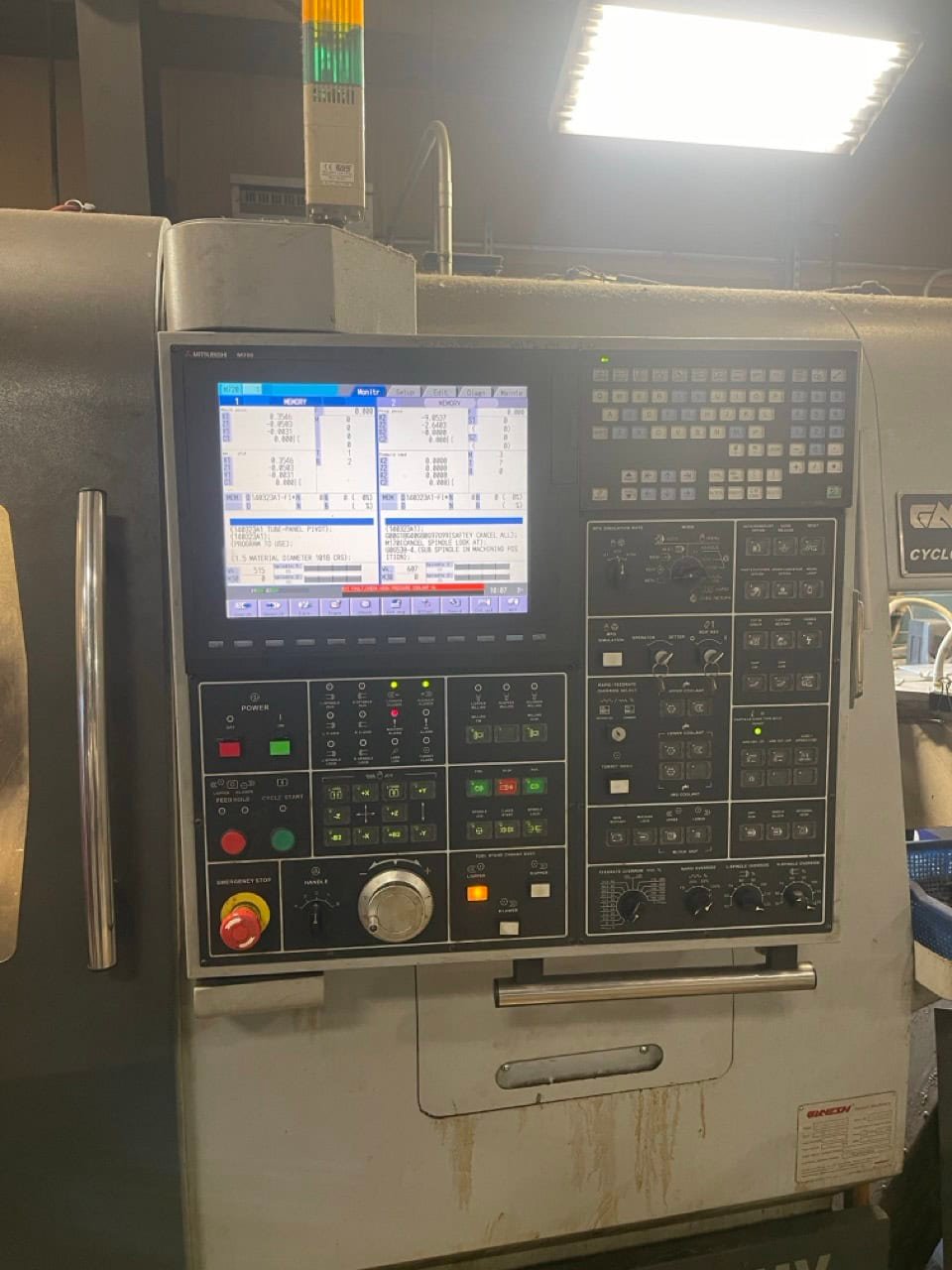

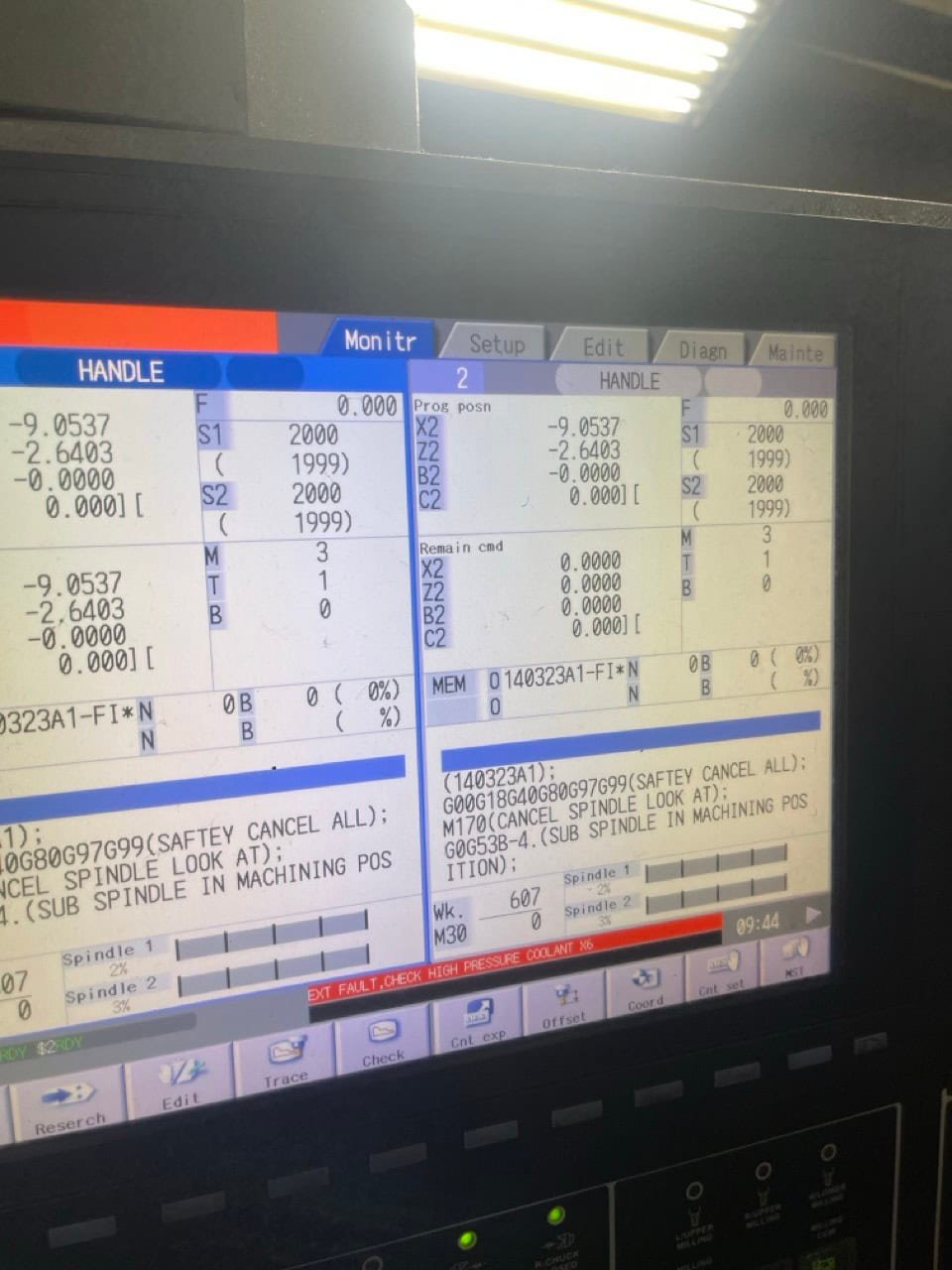

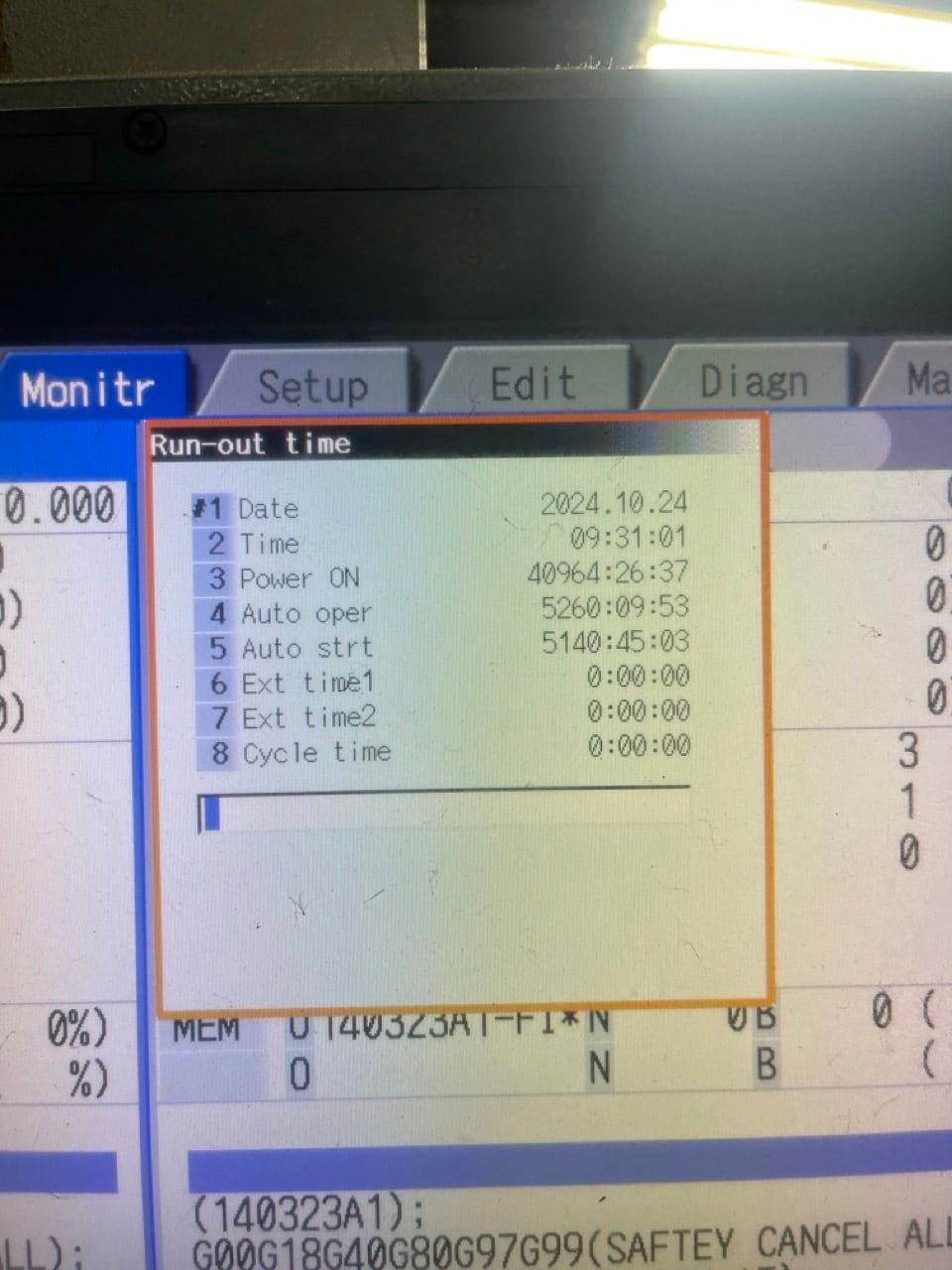

Mitsubishi M700 CNC Control

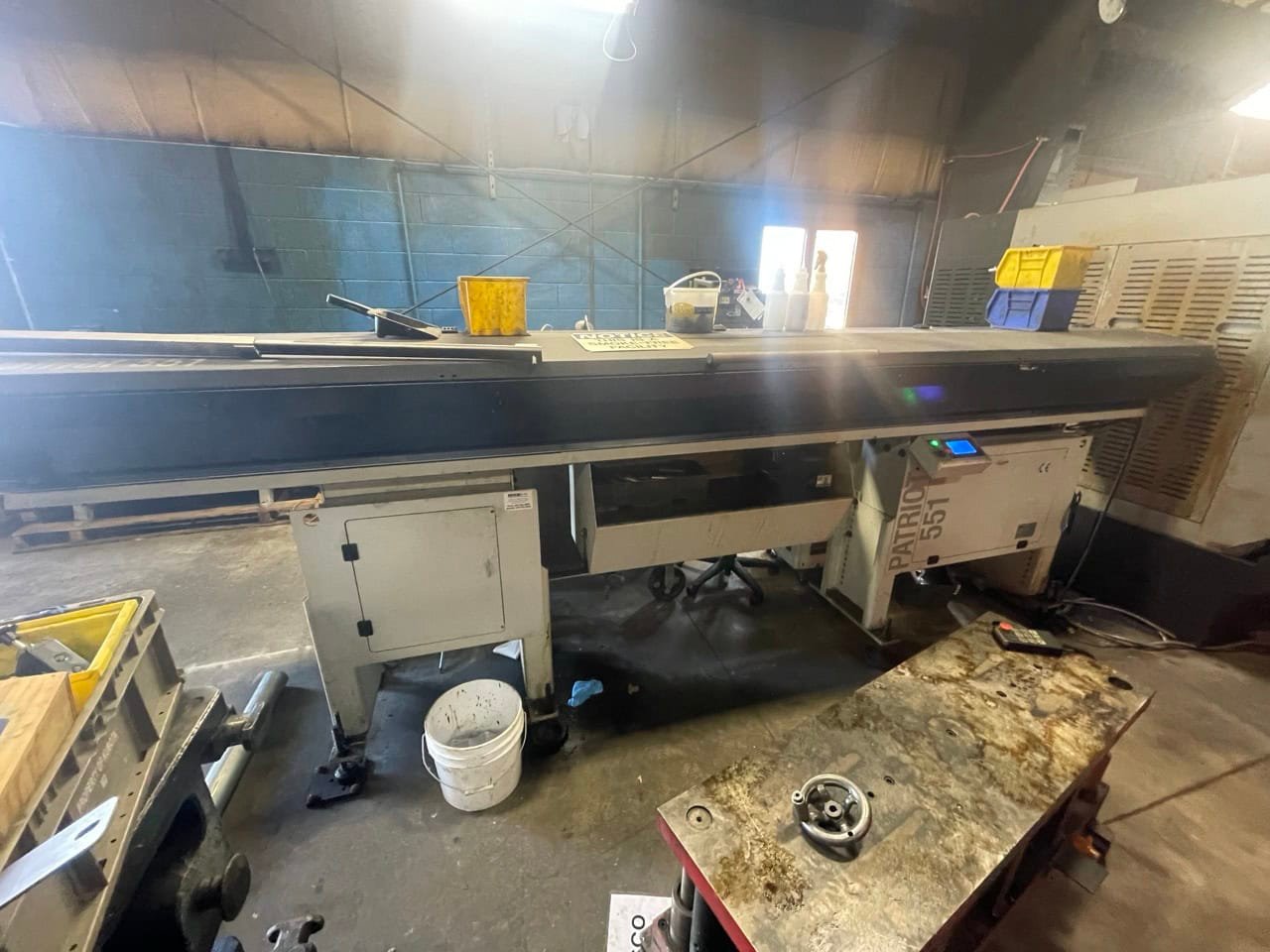

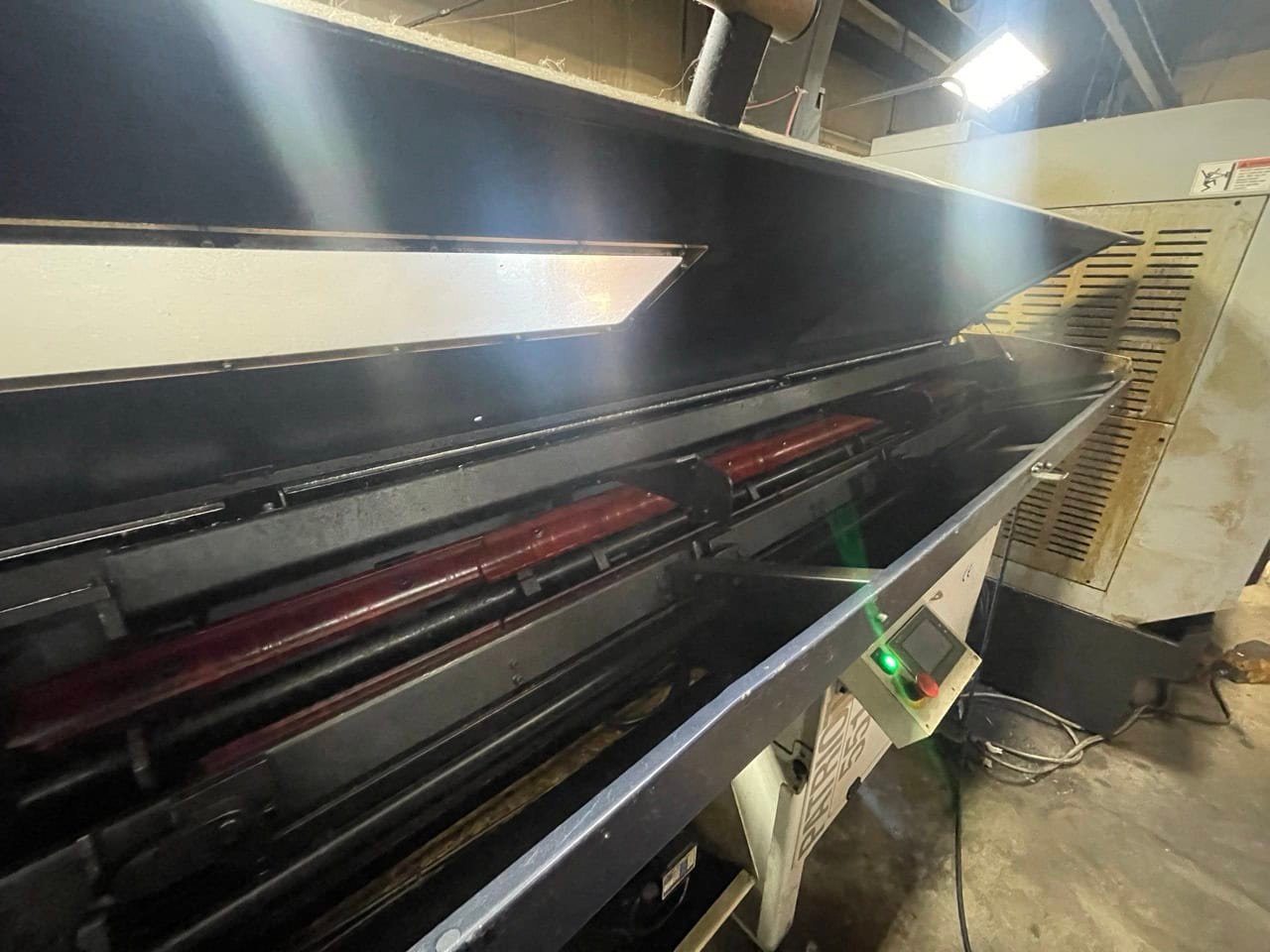

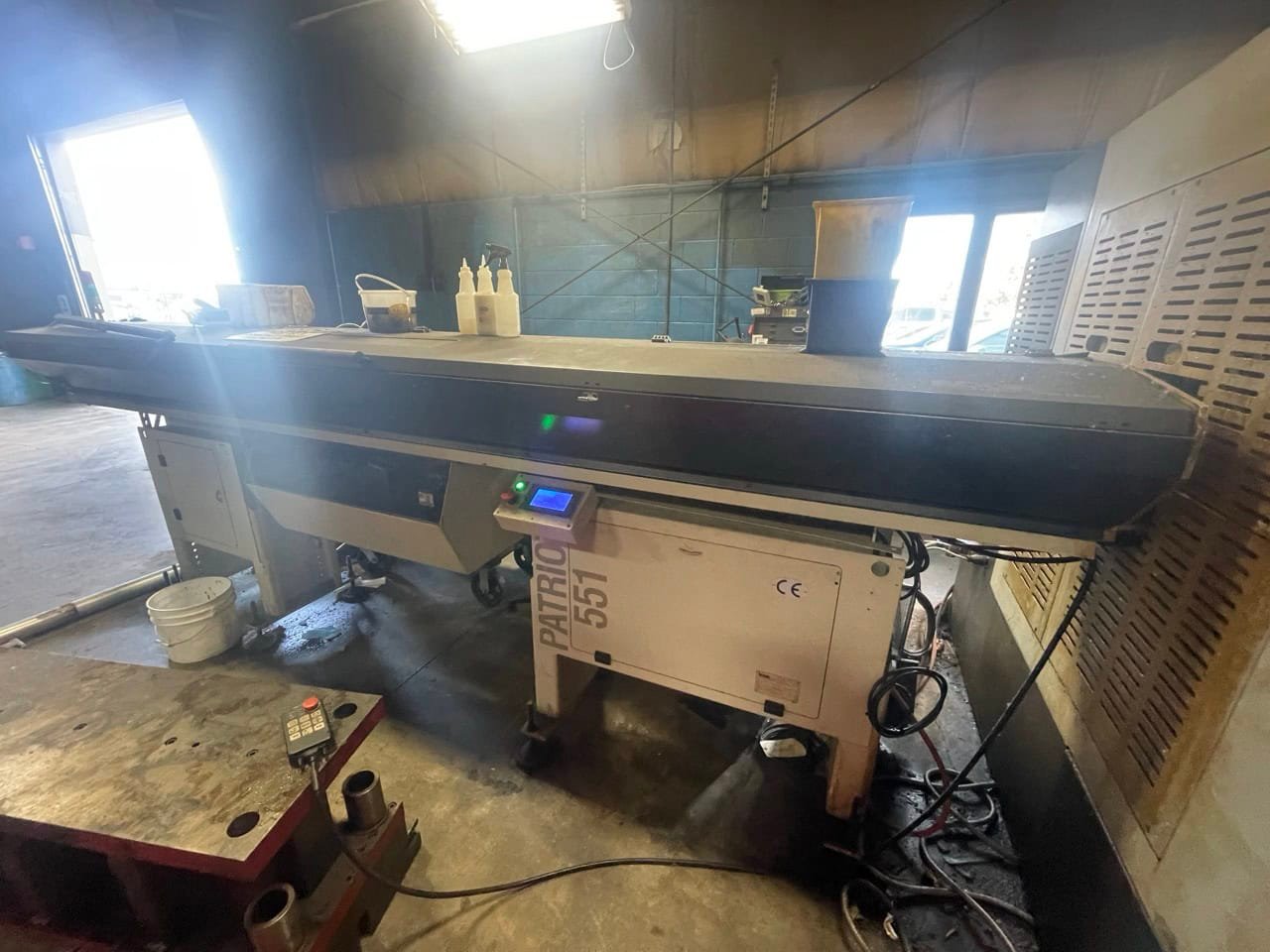

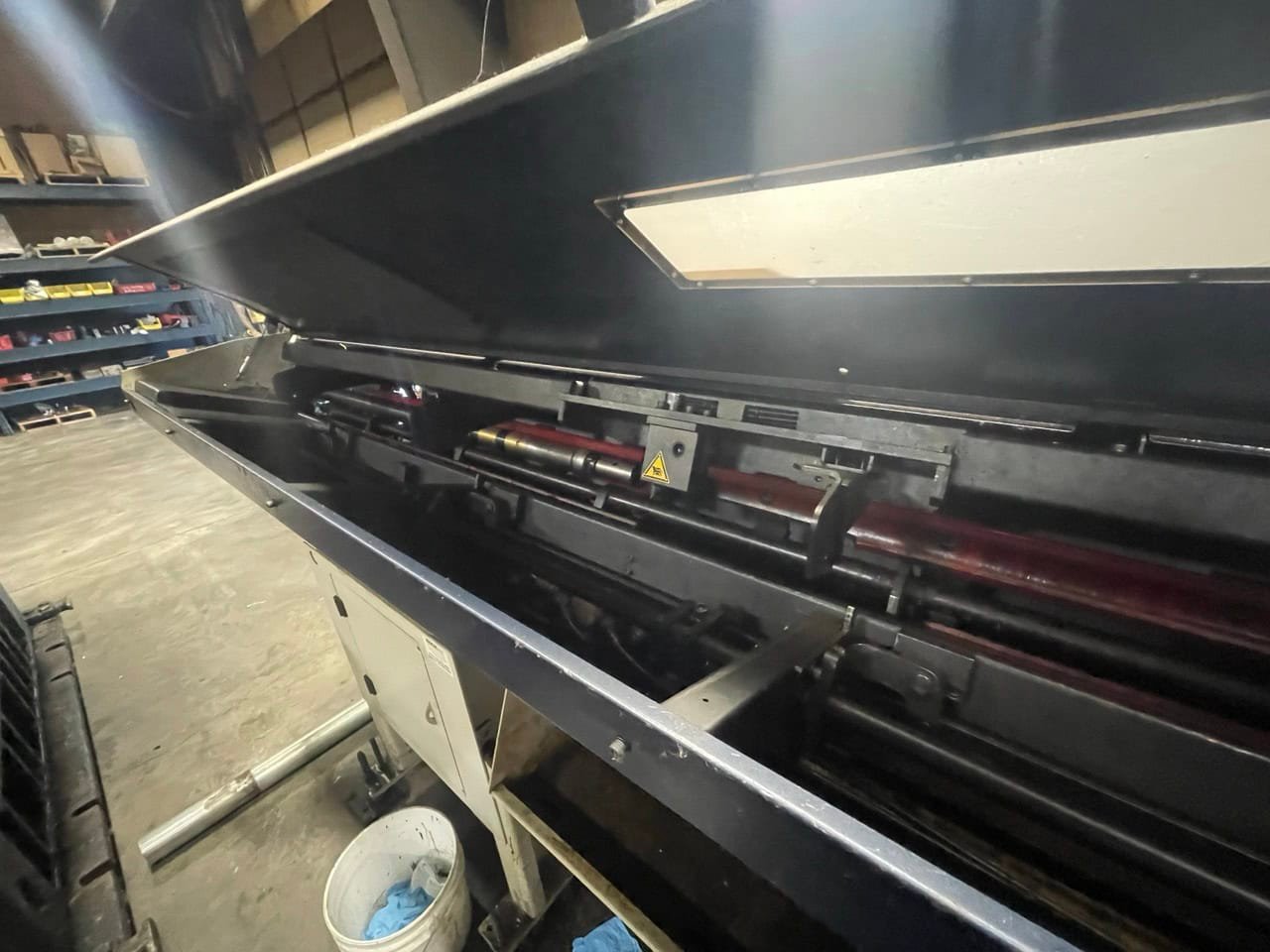

Edge Technologies Patriot Bar Feeder
Chip Conveyor
Parts Catcher

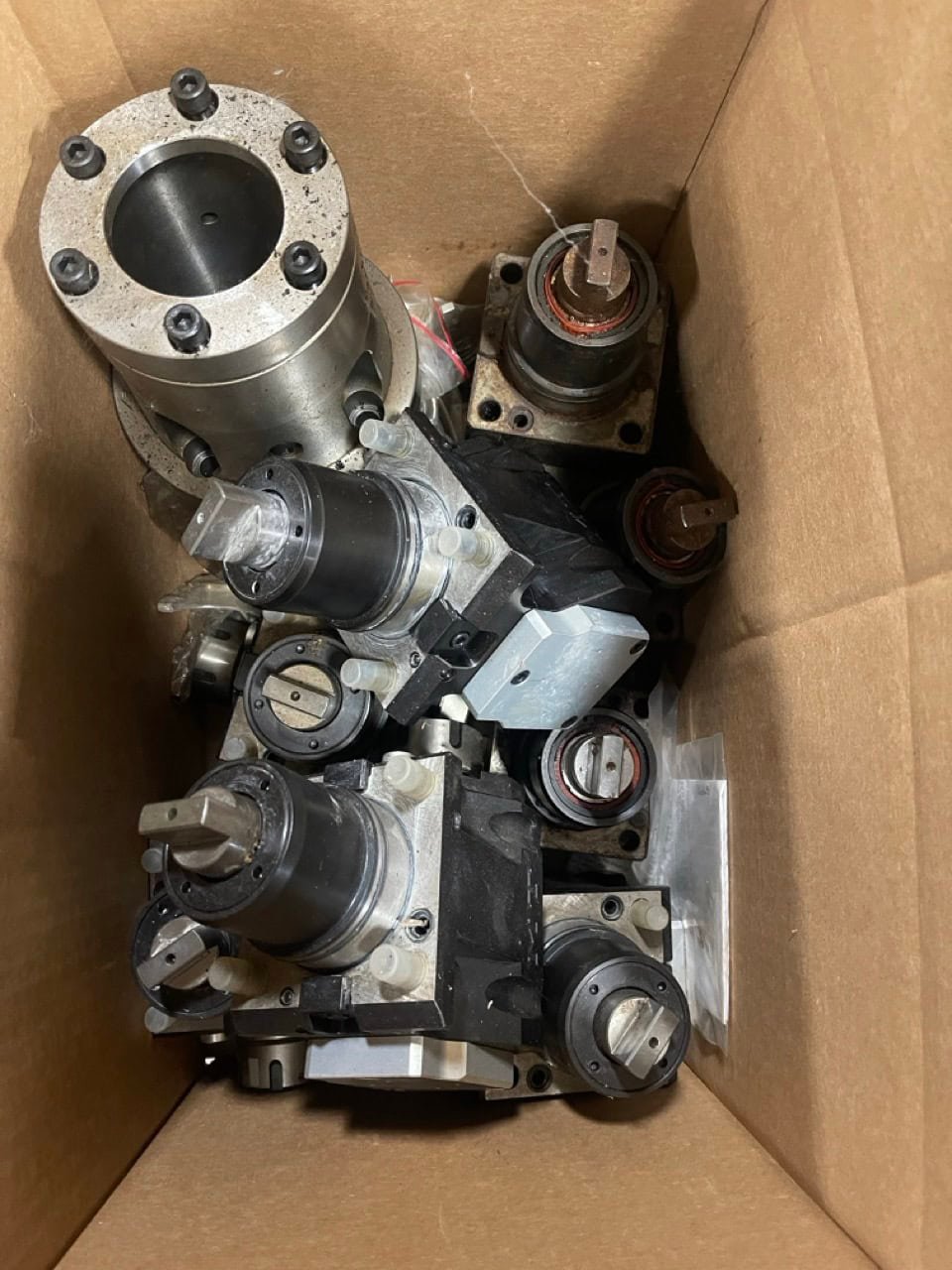

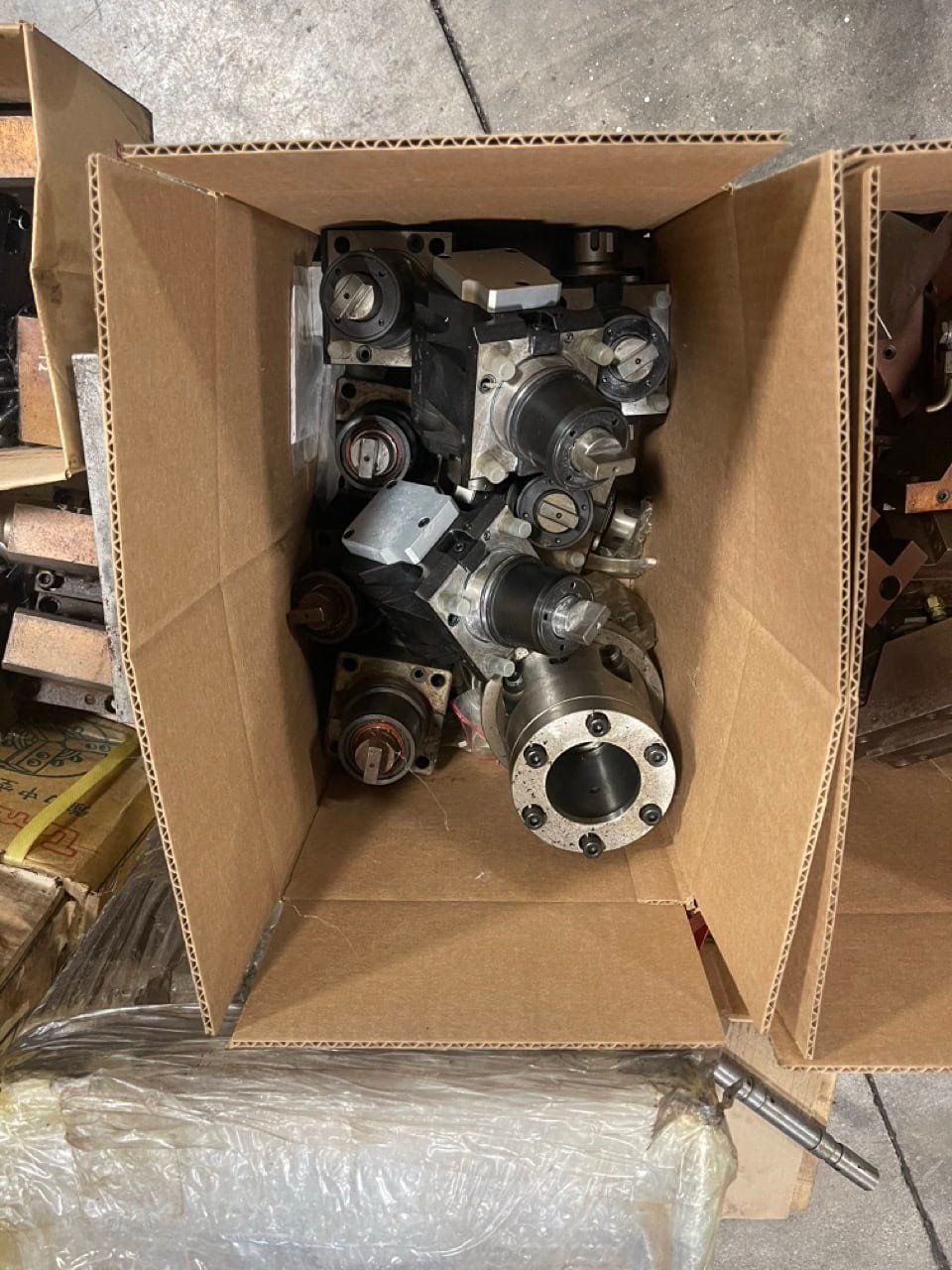

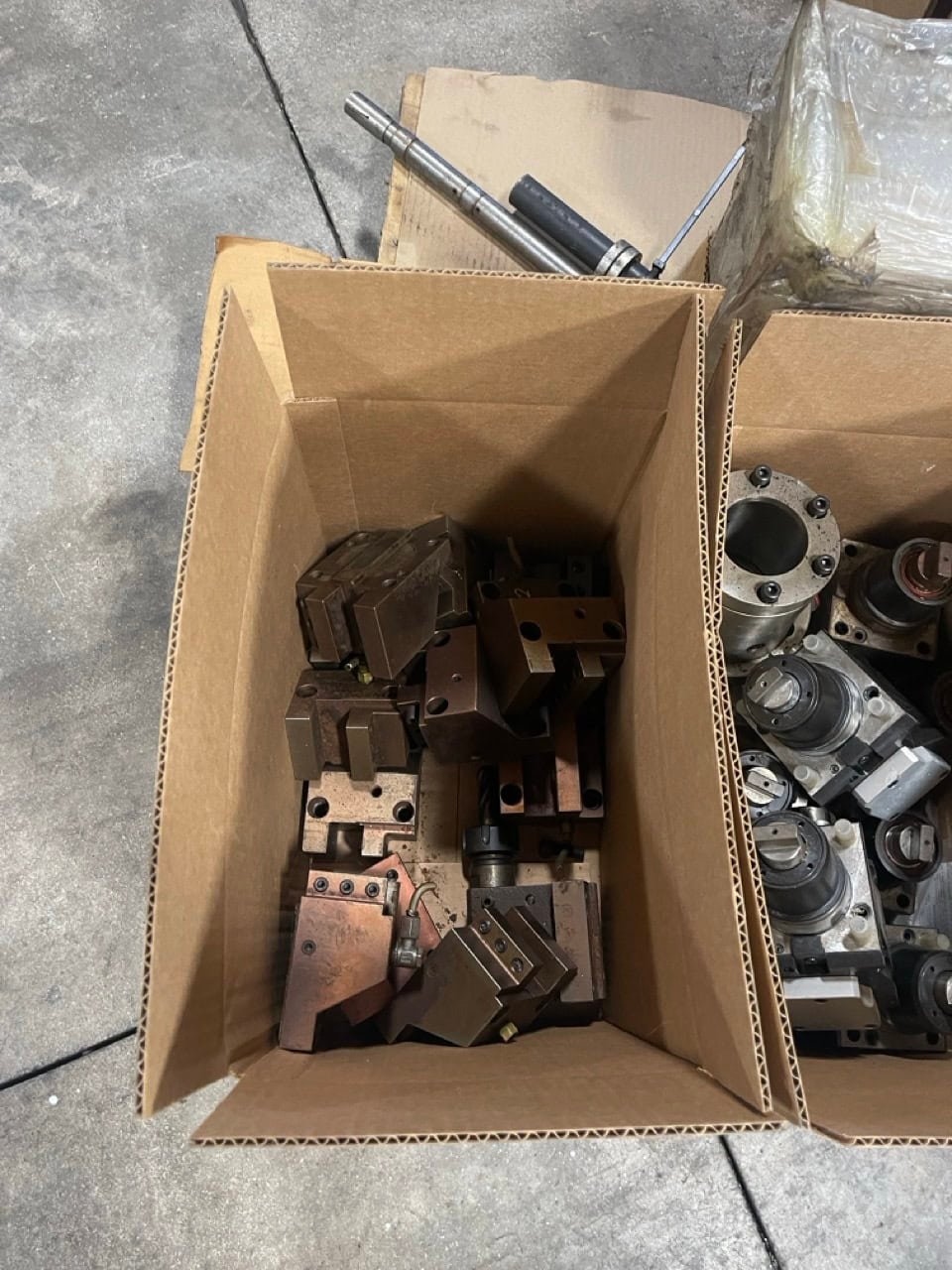

Live Tooling
Sub Spindle
Y Axis
