Description

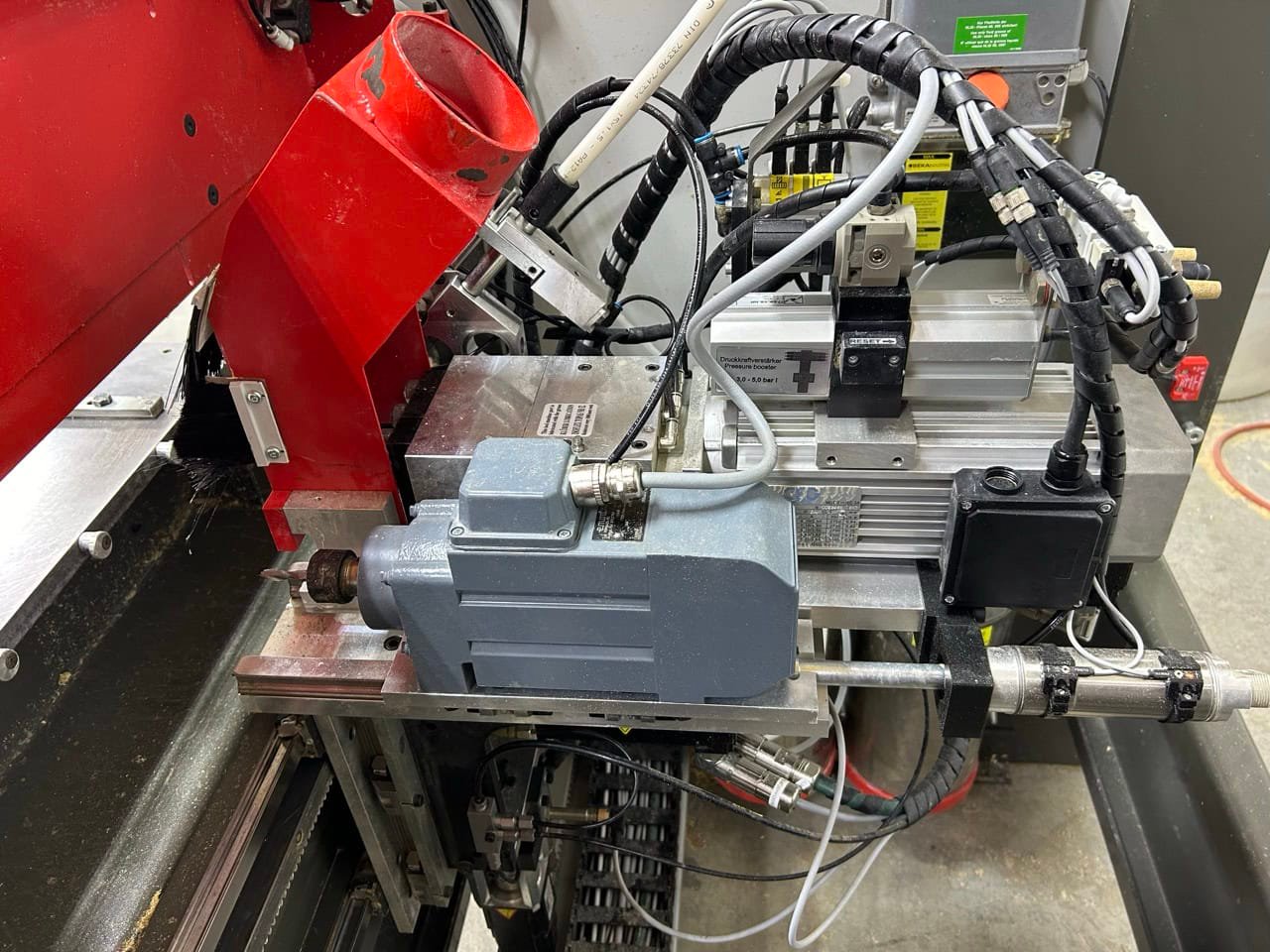

Boring/Inserting aggregate travel on profile bearing guides with:

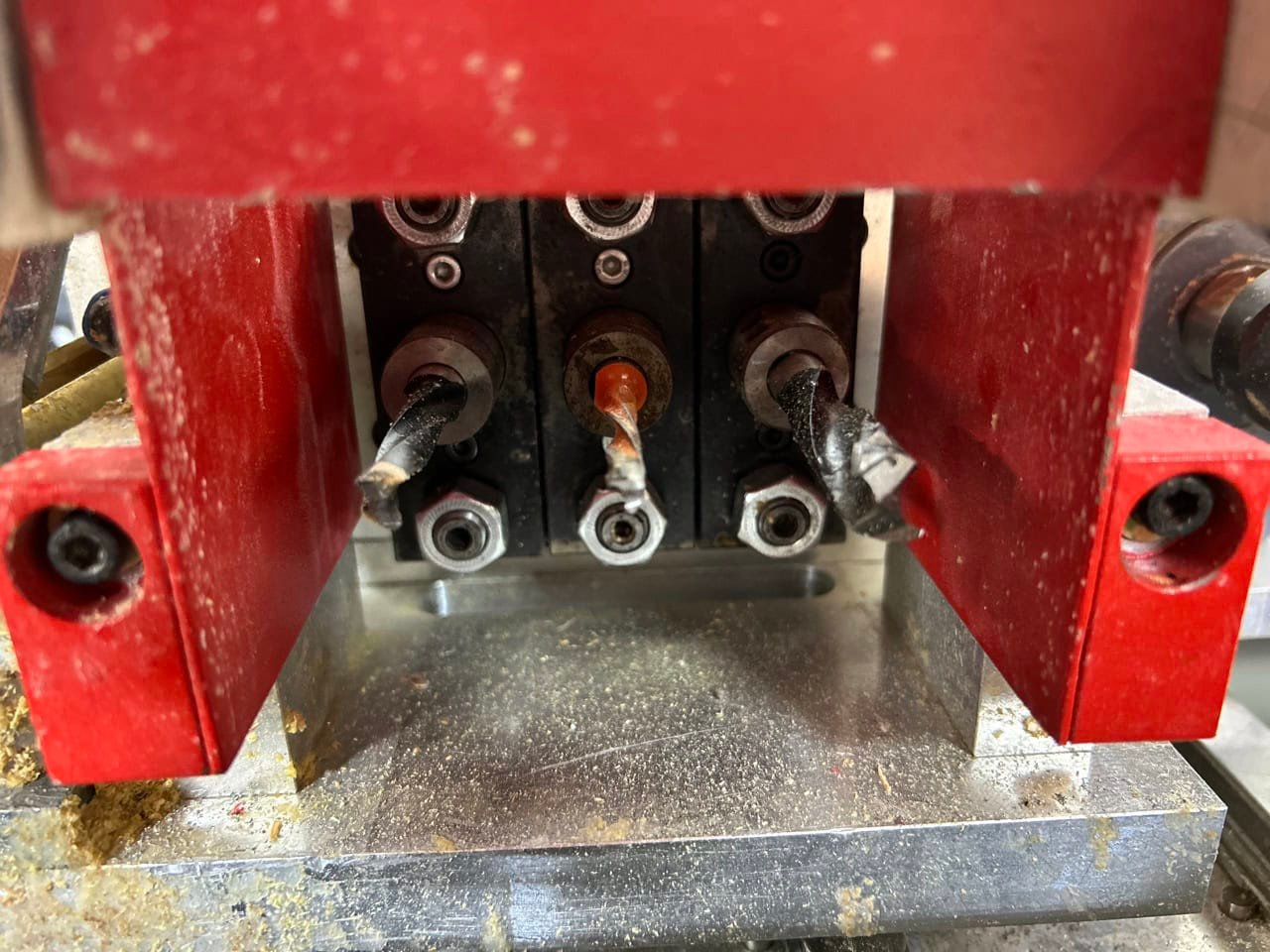

3 spindle boring unit – Horizontal

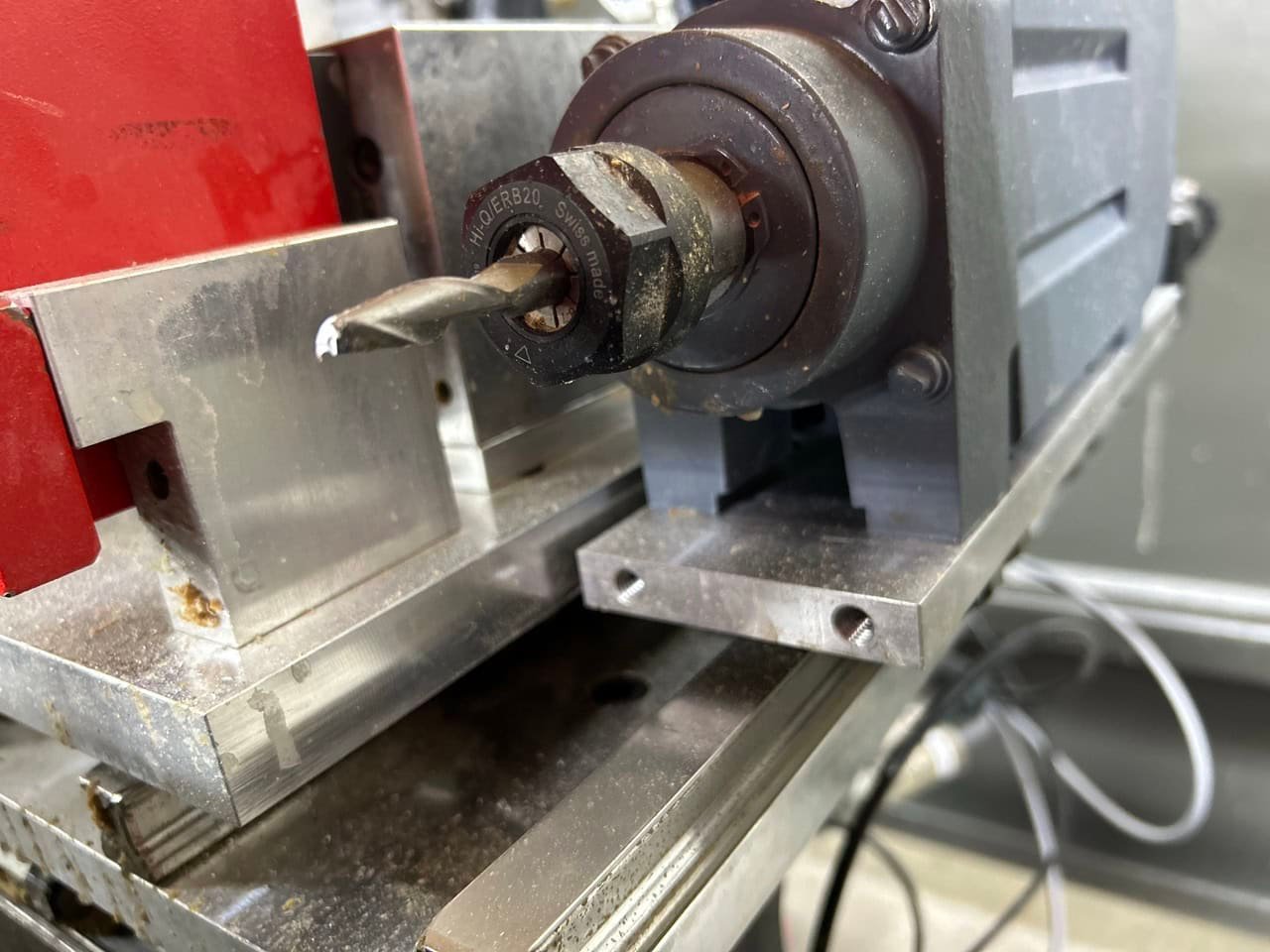

1 Spindle Routing unit – Horizontal
1 Blowing, gluing, dowel inserting unit for a single selected dowel 6 – 12mm diameter, 25 – 60 mm length – Horizontal
Barcode reader
Fully automatic electronically controlled central lubrication
Closed gluing system with variable setting of glue amount by touch screen
Selector switch GLUE/WATER for quick rinsing of entire system
1½ gallon glue Stainless steel container
1½ gallon water Stainless steel container
Glue control warning light
1 Right-hand stop, 1 left-hand stop, and 1 center stop, all removable
(3) Starting buttons for individual processing of 1-4 work pieces
(8) Pneumatic clamping cylinders for work piece thickness max 80mm, work piece length minimum 70mm
1 Exhaust ducting, with connection diameter 80mm (Additional depending upon options.)
Programming by menu-based software;
Beckhoff 15″ Touchscreen display
Operating system: WINDOWS 7
Video documentation as supplement to operating instructions
Network software and barcode software
