Description
Main Spindle:
Spindle Diameter – 3″
Spindle Taper – NO. 5 MT
Spindle Longitudinal Travel – 24″
Spindle Speeds – (36) 8.3 TO 500 RPM
Spindle Feeds – (18) .007 TO .375 IPR
High Speed Spindle:
Spindle Diameter: – 2″
Spindle Taper – NO. 4 MT
Spindle Longitudinal Travel – 9″
Spindle Speeds – (36) 25 TO 1500 RPM
Spindle Feeds – (18) .002 TO .125 IPR
Milling Feeds to All Units: 120 IPM

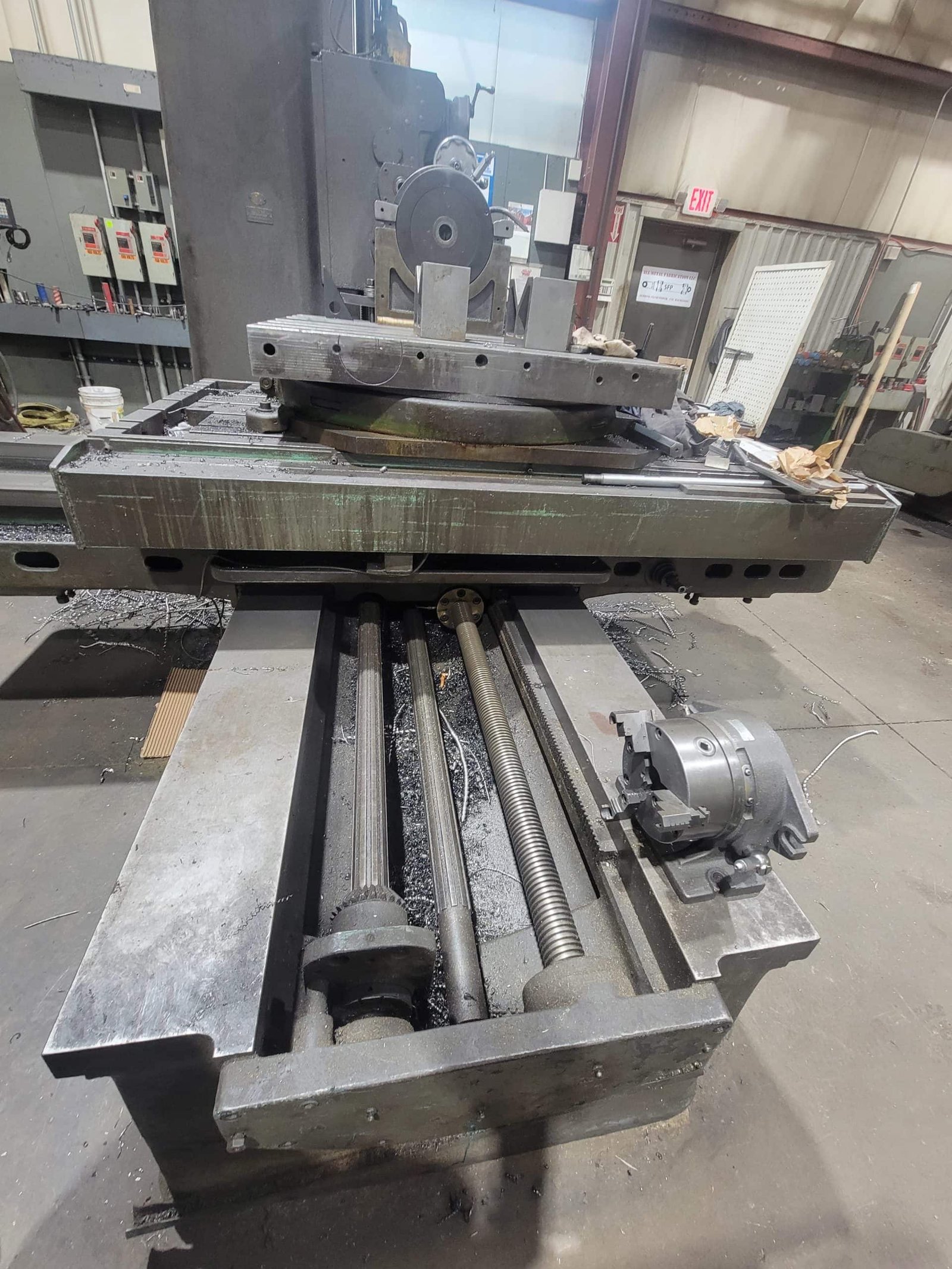

Table Size: 30″ X 62″
Cross Travel of Table: 48″
Longitude Travel of Table: 36″
Vertical Headstock Travel: 36″
Equipped With:

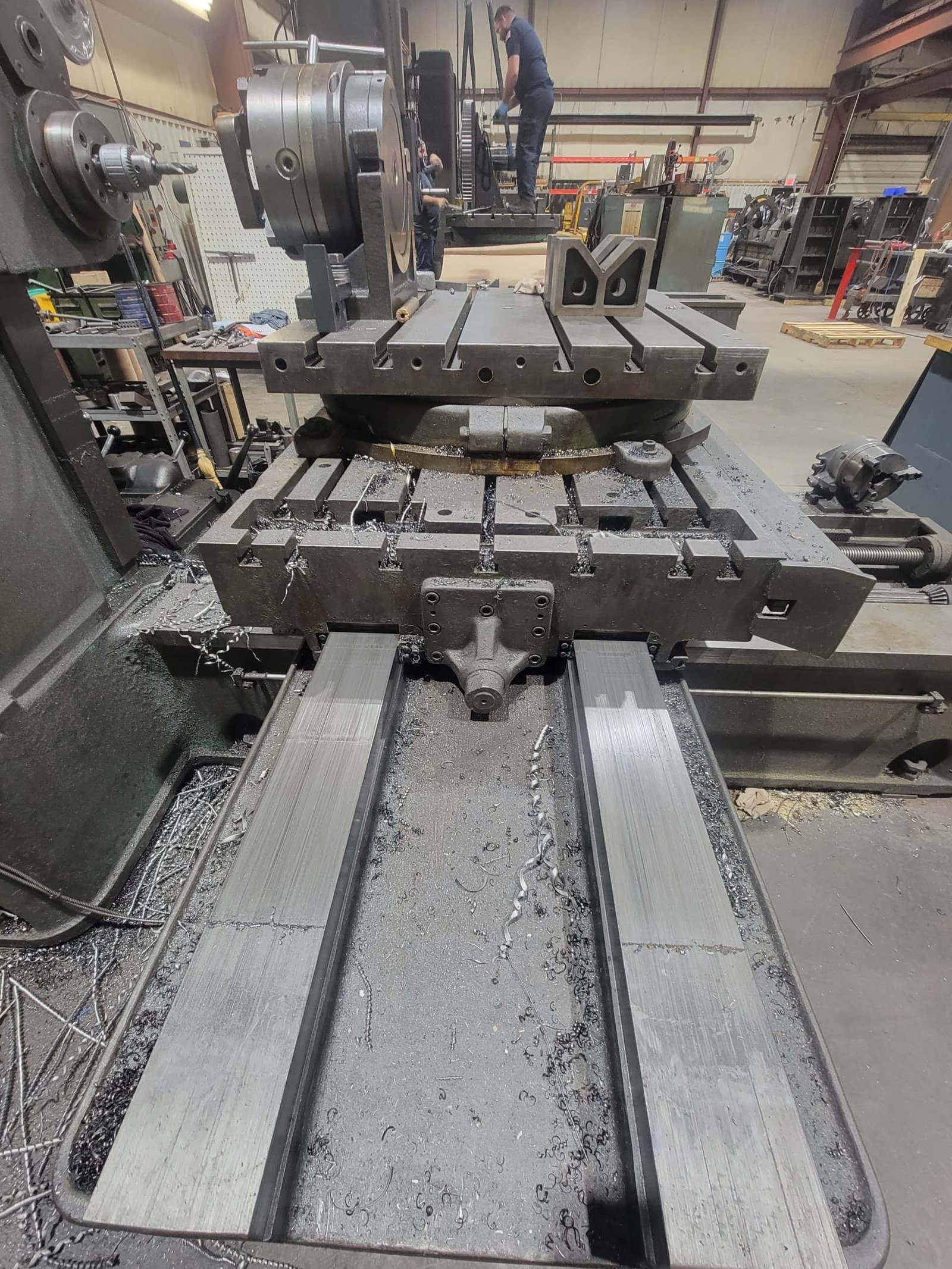

-Rotary Table

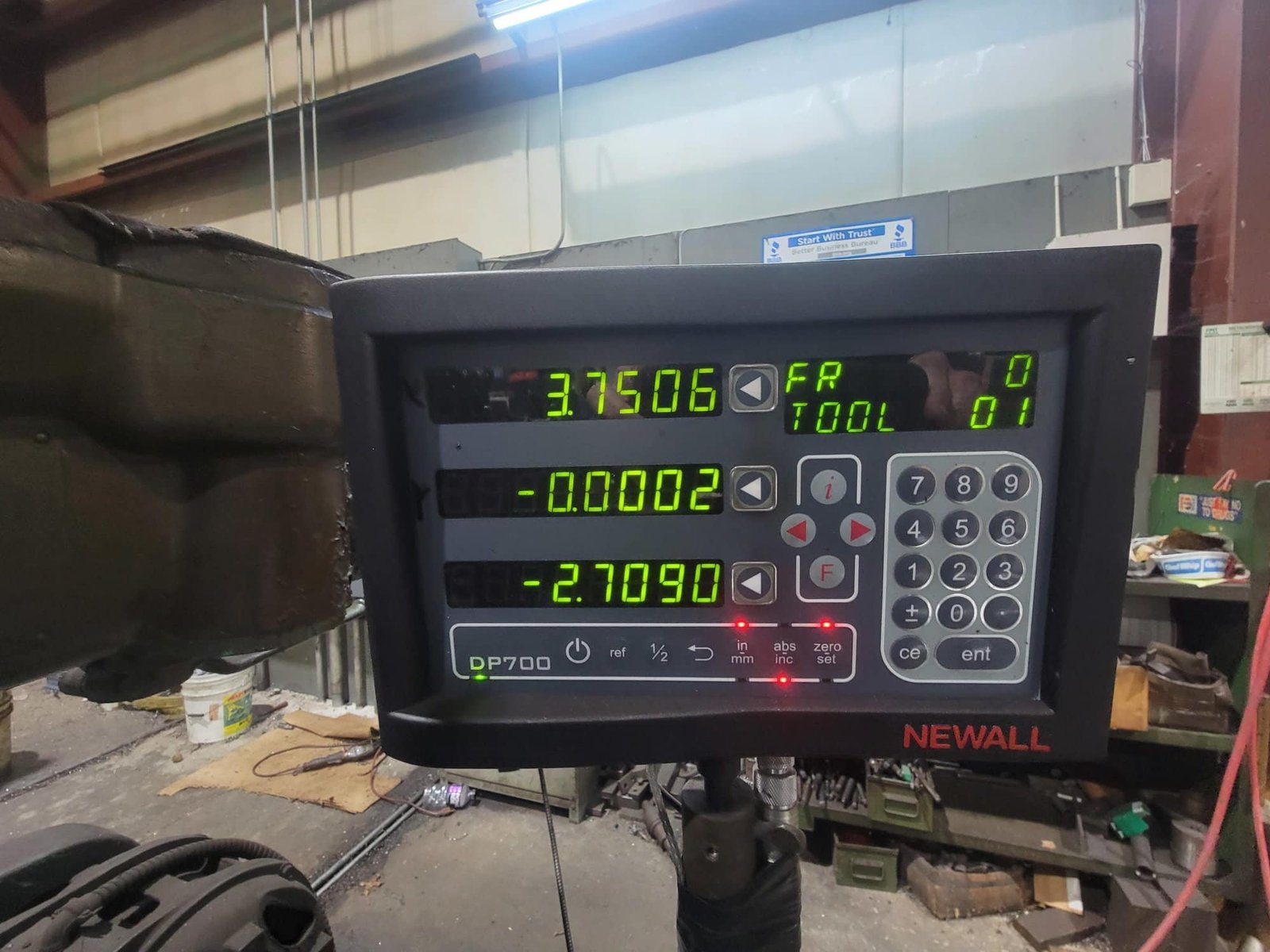

-DRO (Digital Readout)
