Description
Specifications (subject to buyer verification):
Pallet Load Capacity: 1653 lbs

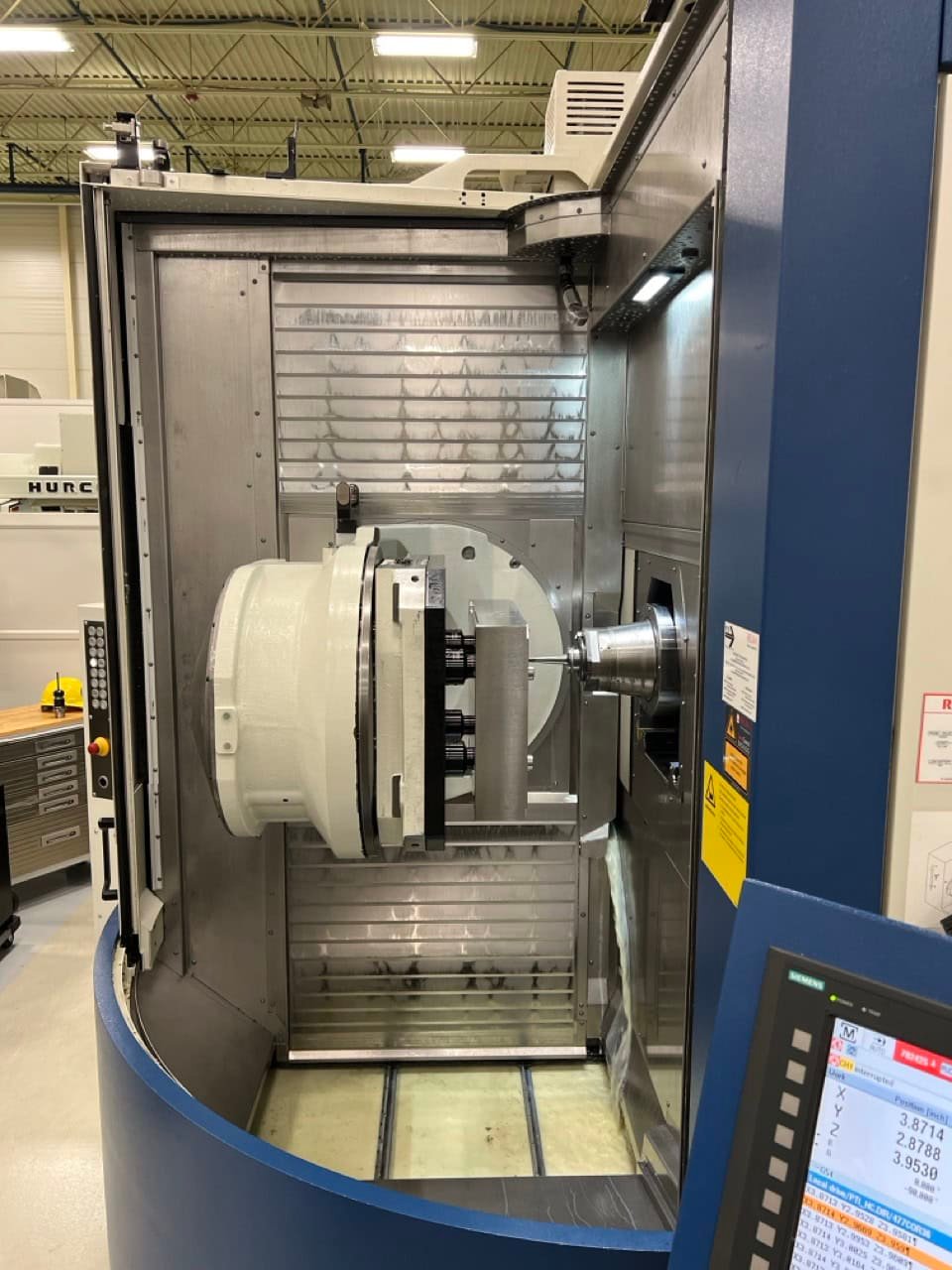

Table Diameter: 30.31″
X-Axis Travel: 31.5″
Y-Axis Travel: 40.2″
Z-Axis Travel: 38.2″

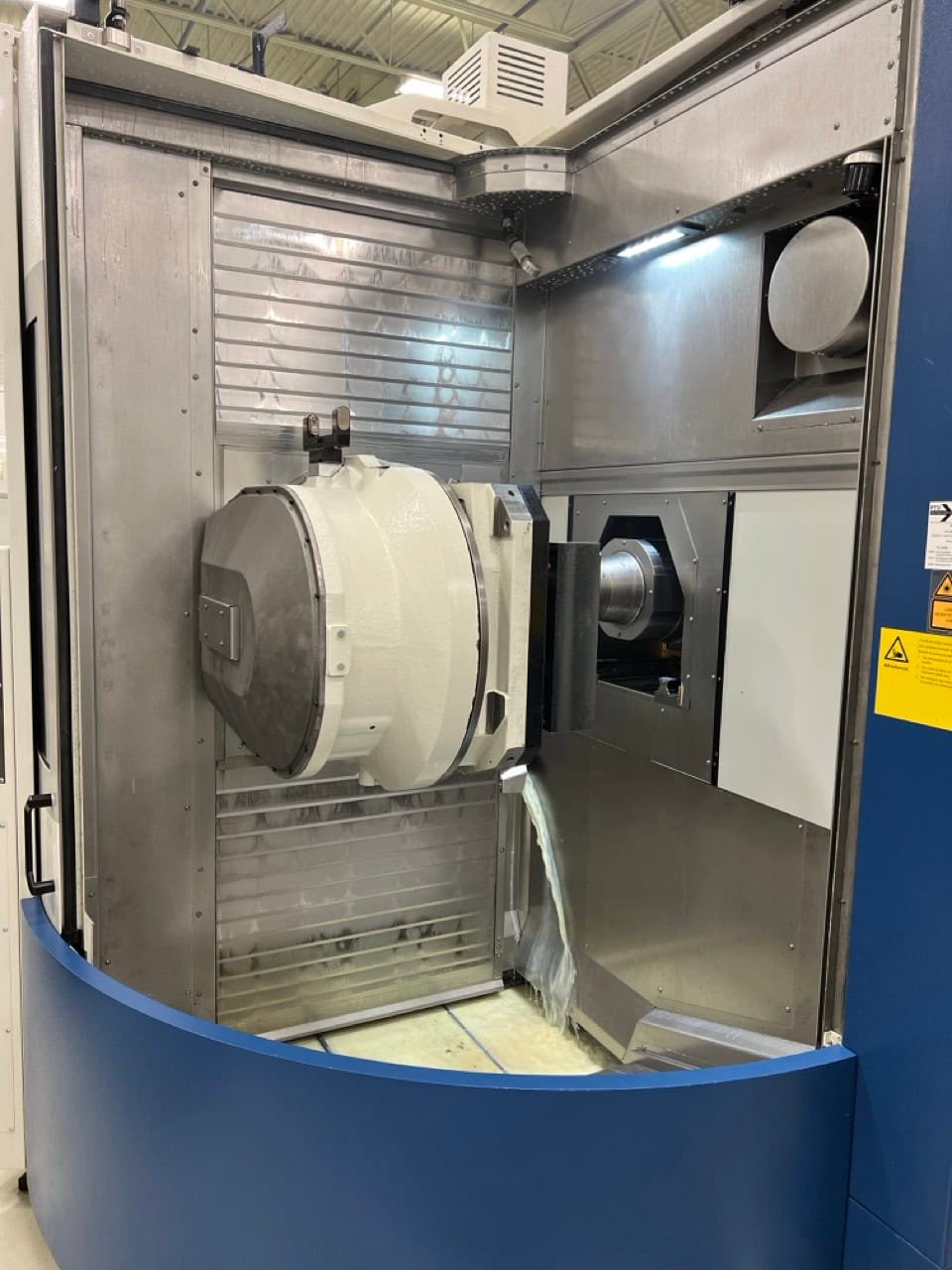

A-Axis Swivel: -185° to + 45°
B-Axis Indexing: 0.001°

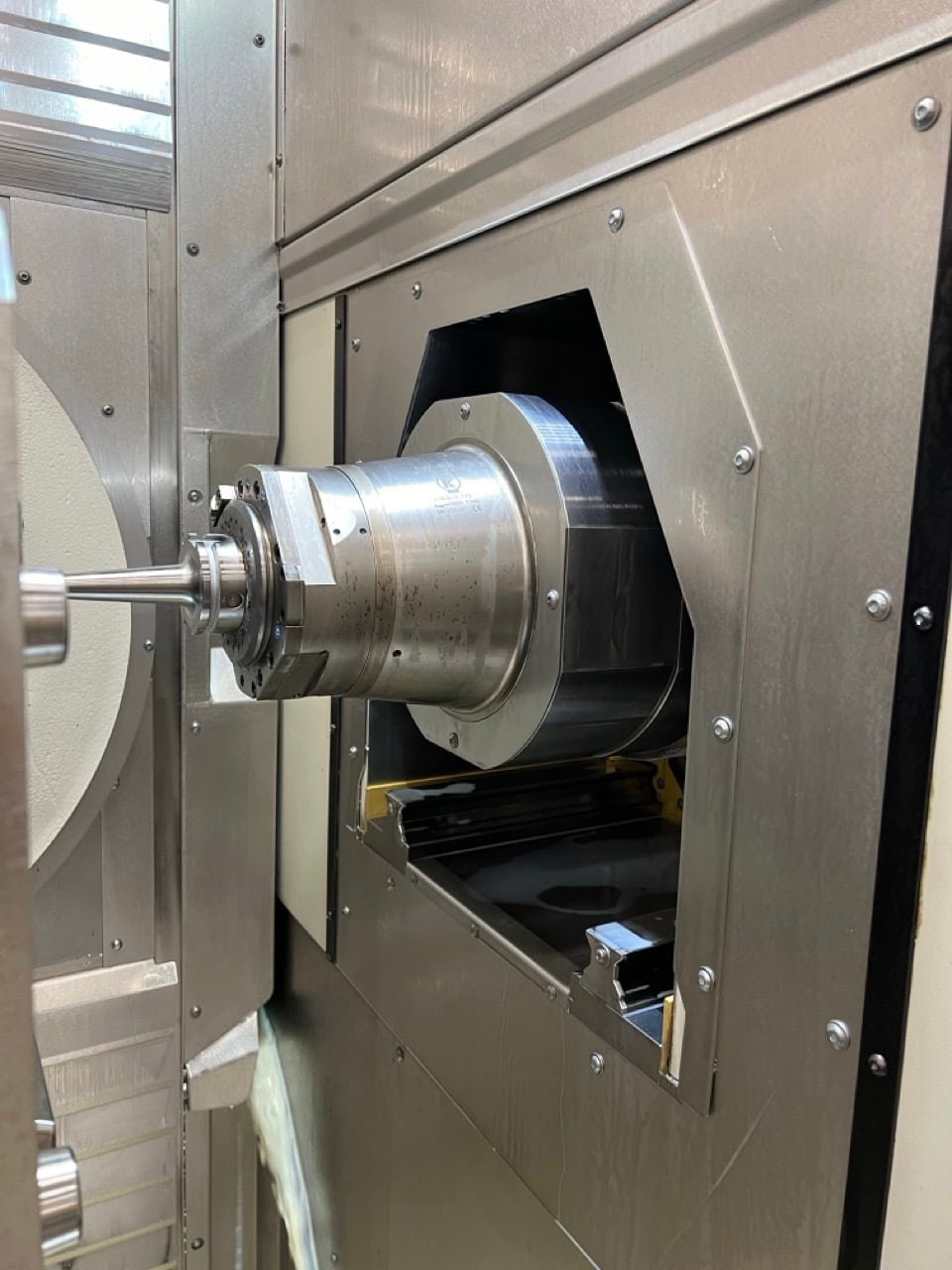

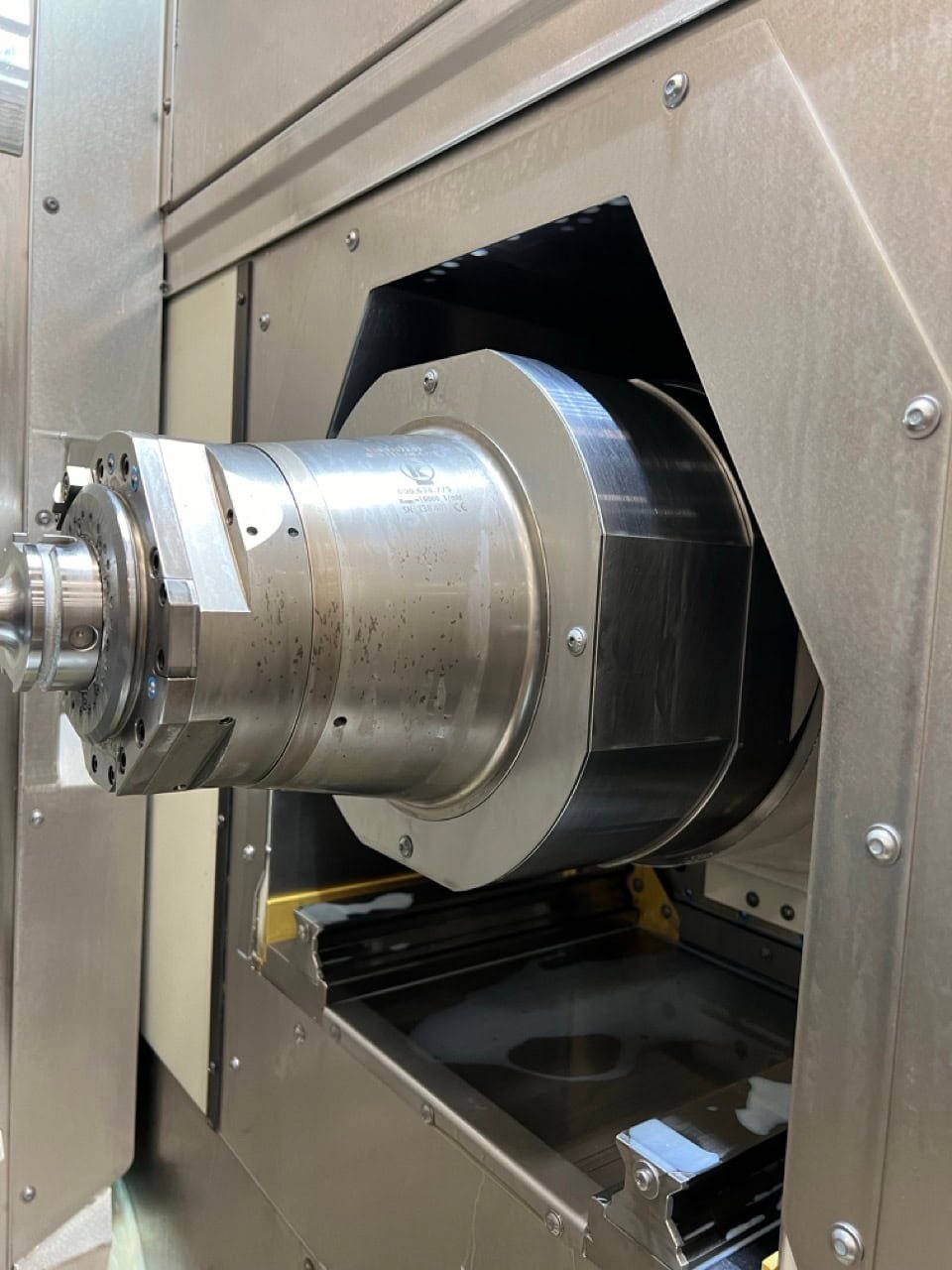

Spindle Taper: HSK 63A
Spindle Speed: 16,000 rpm
Spindle Motor: 43 hp
ATC: 50 Tool
Approx. Dimensions: 253″ x 114″ x 131″
Approx. Weight: 57,000 lbs
Equipped With:

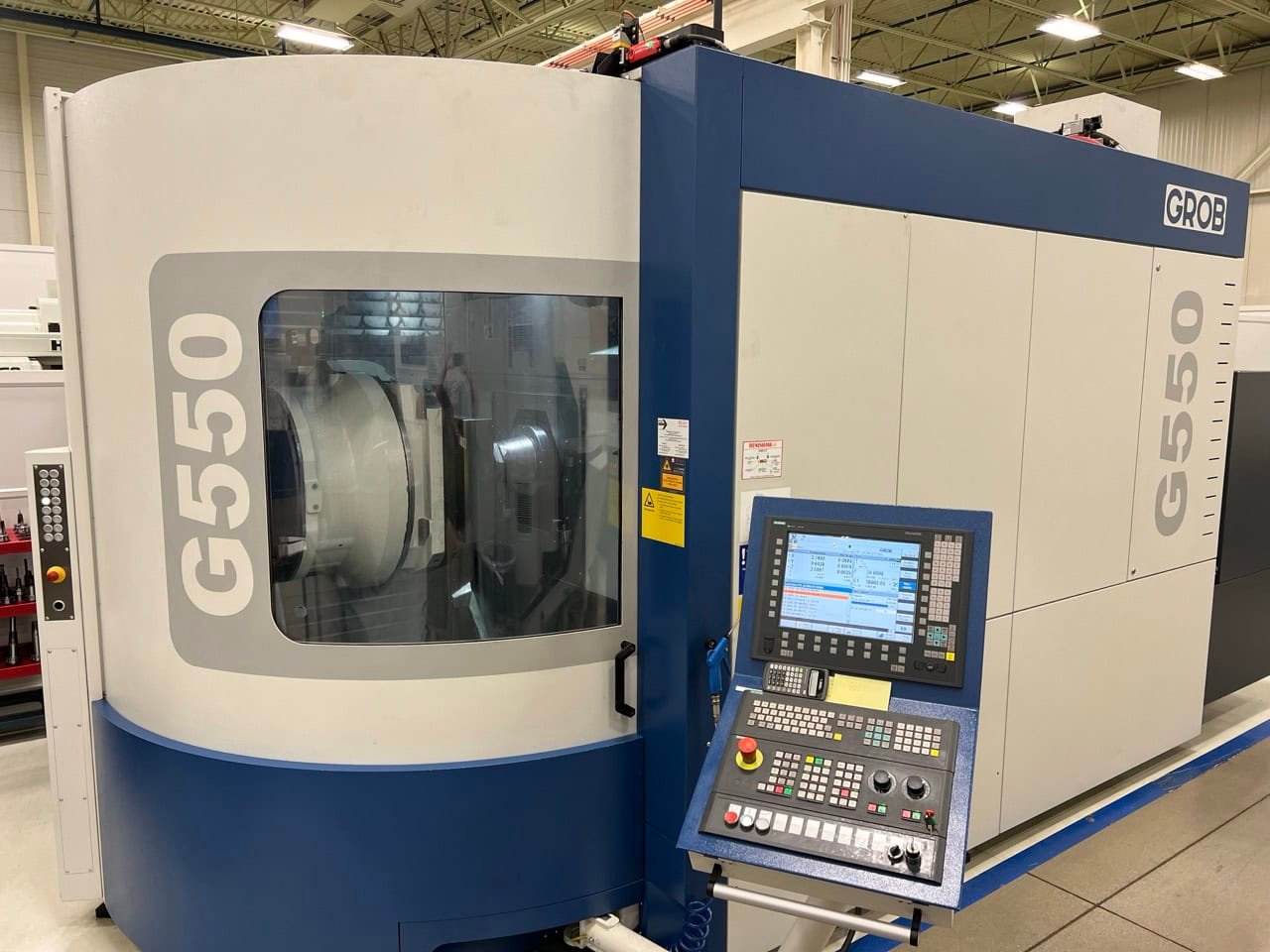

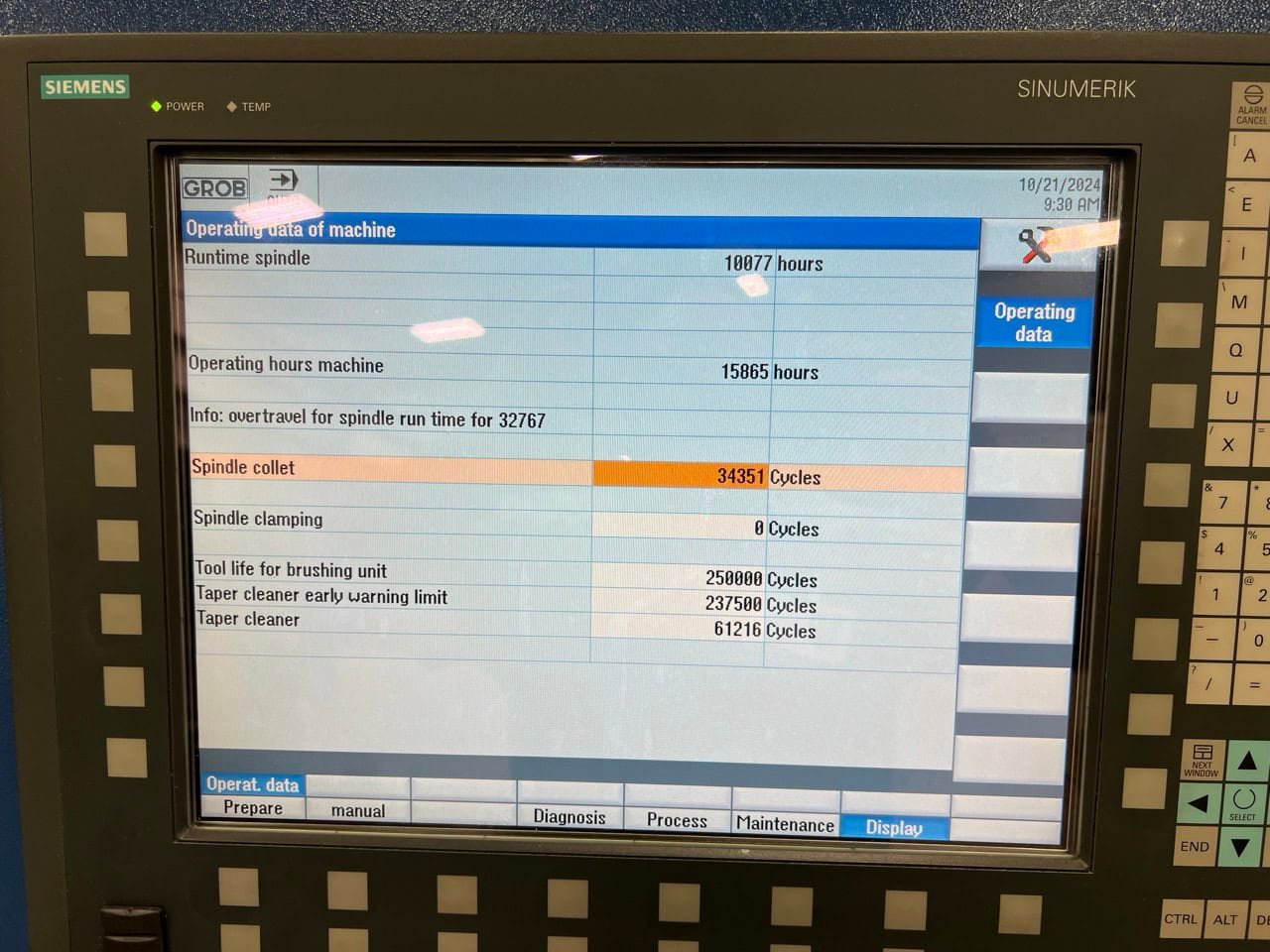

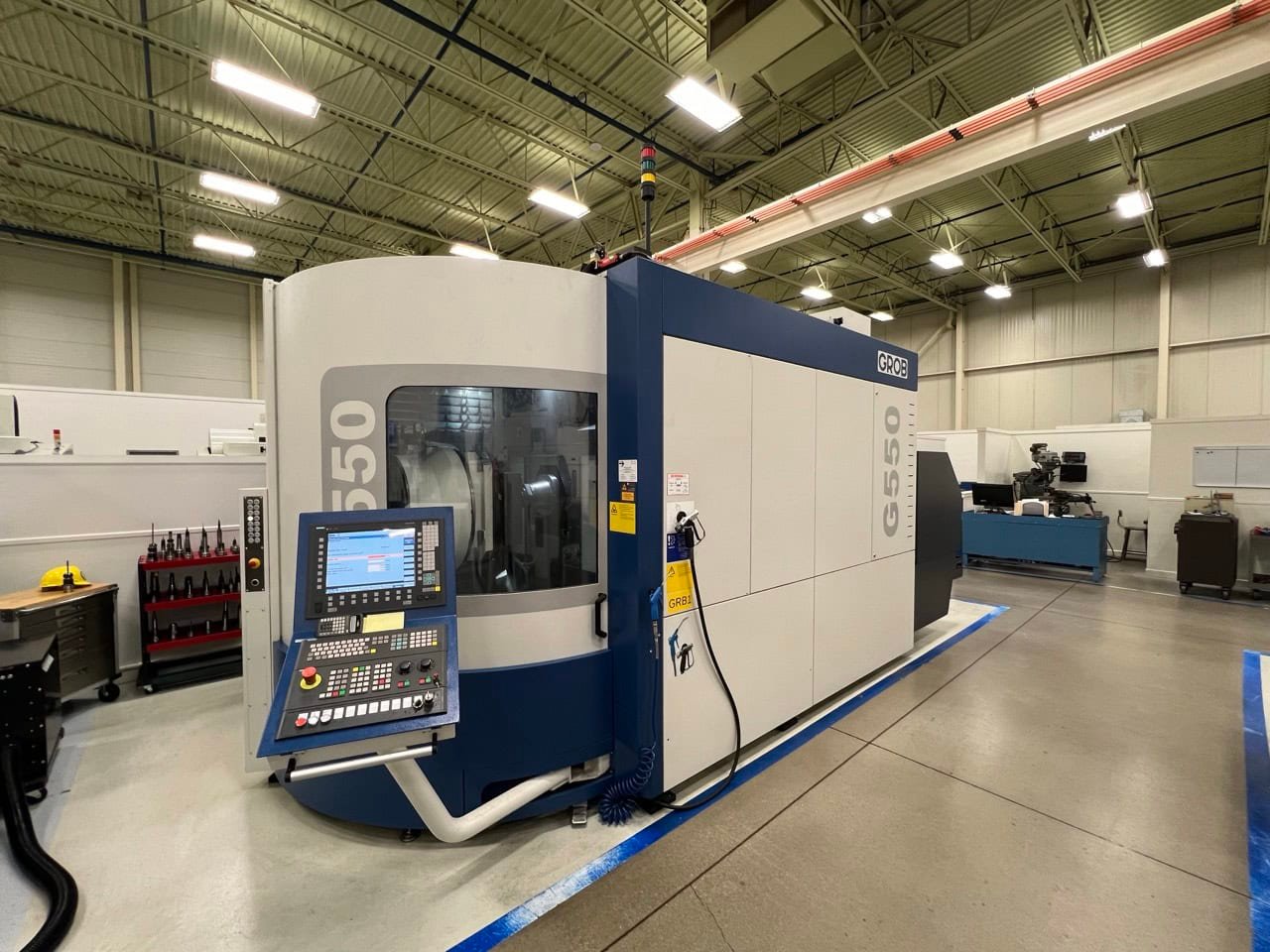

Siemens Sinumerik 840D Control

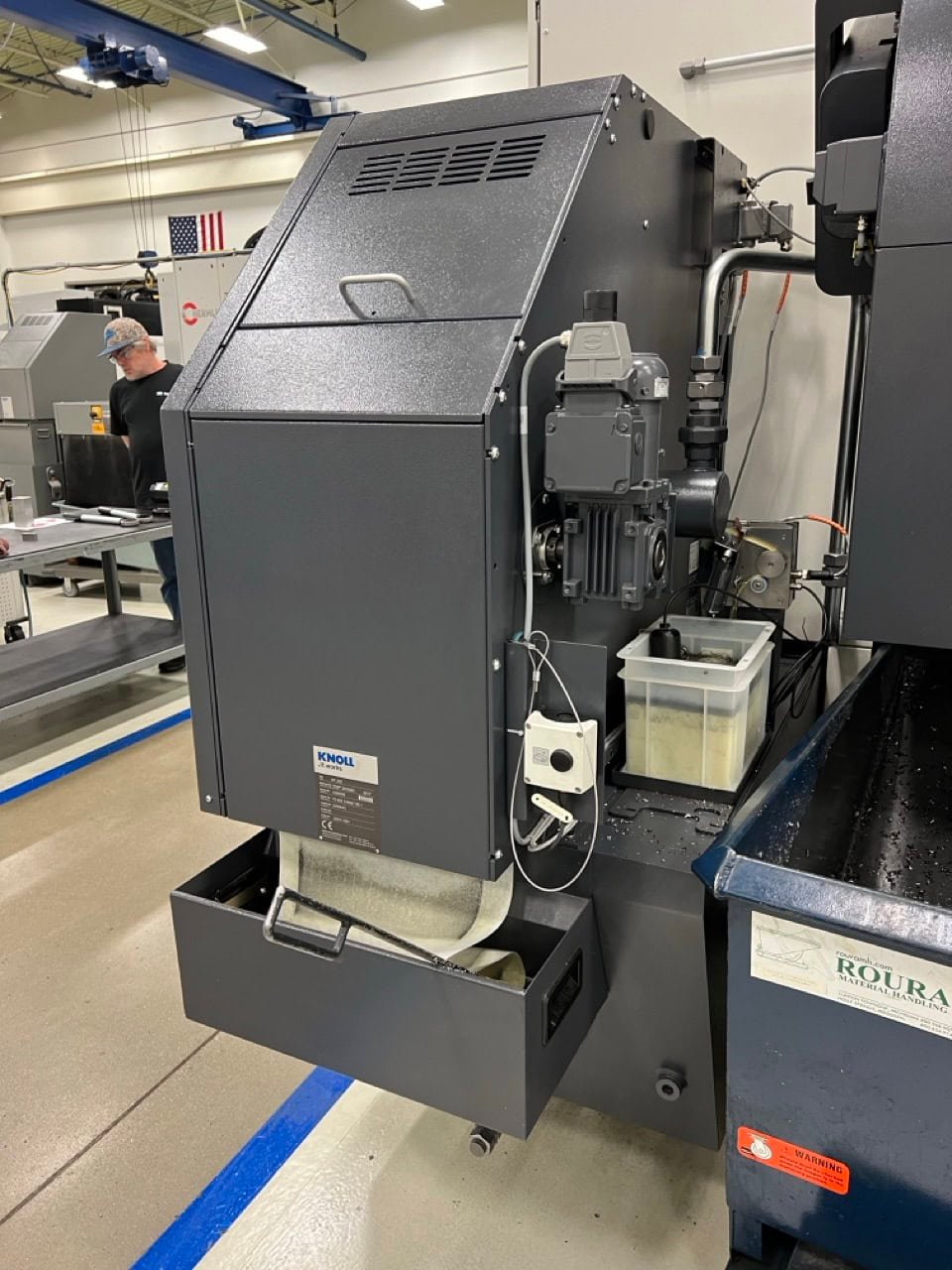

High Pressure Coolant System

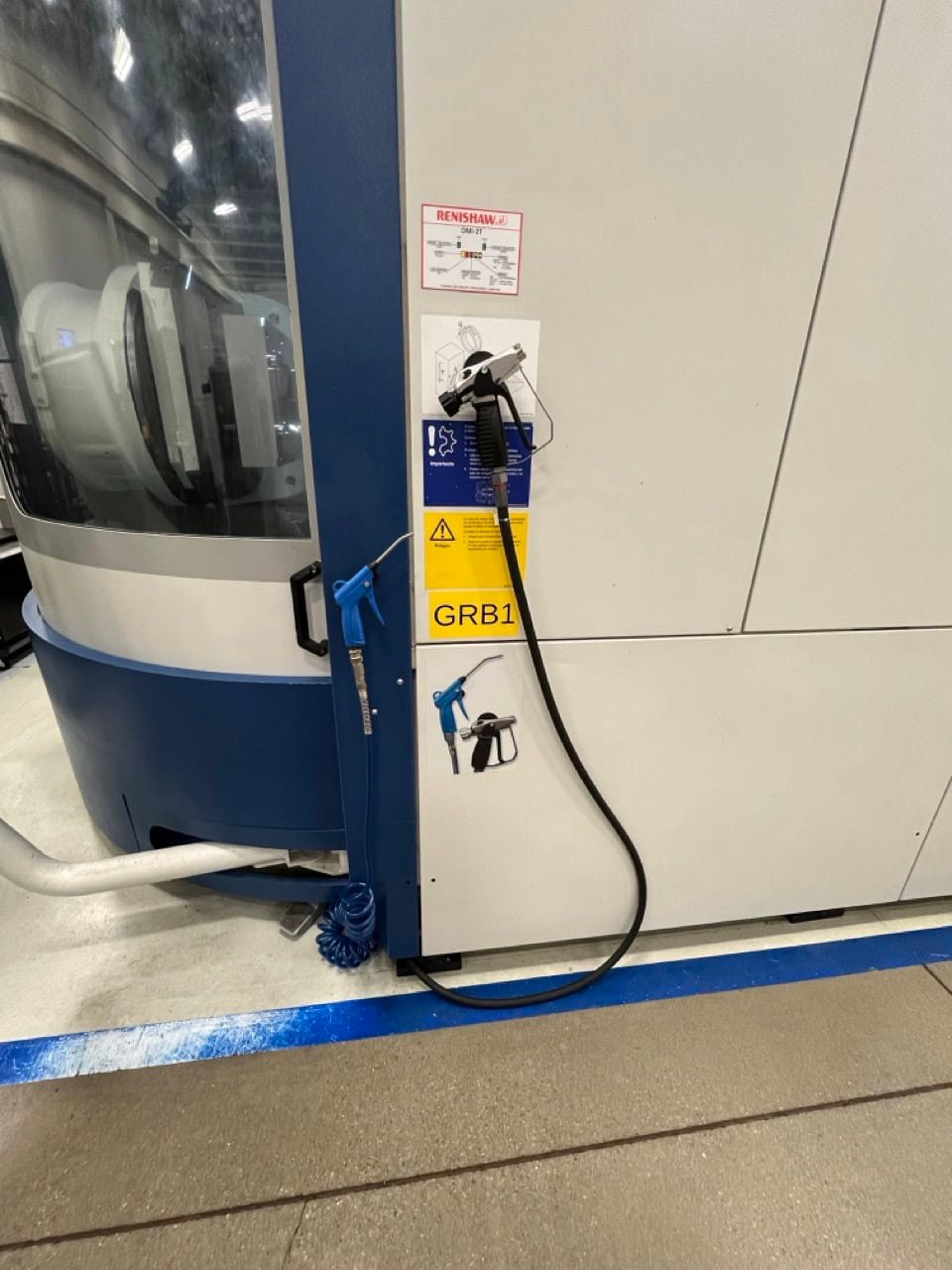

Compressed Air Through Spindle
Renishaw Probe
Mist Collector
Oil Skimmer

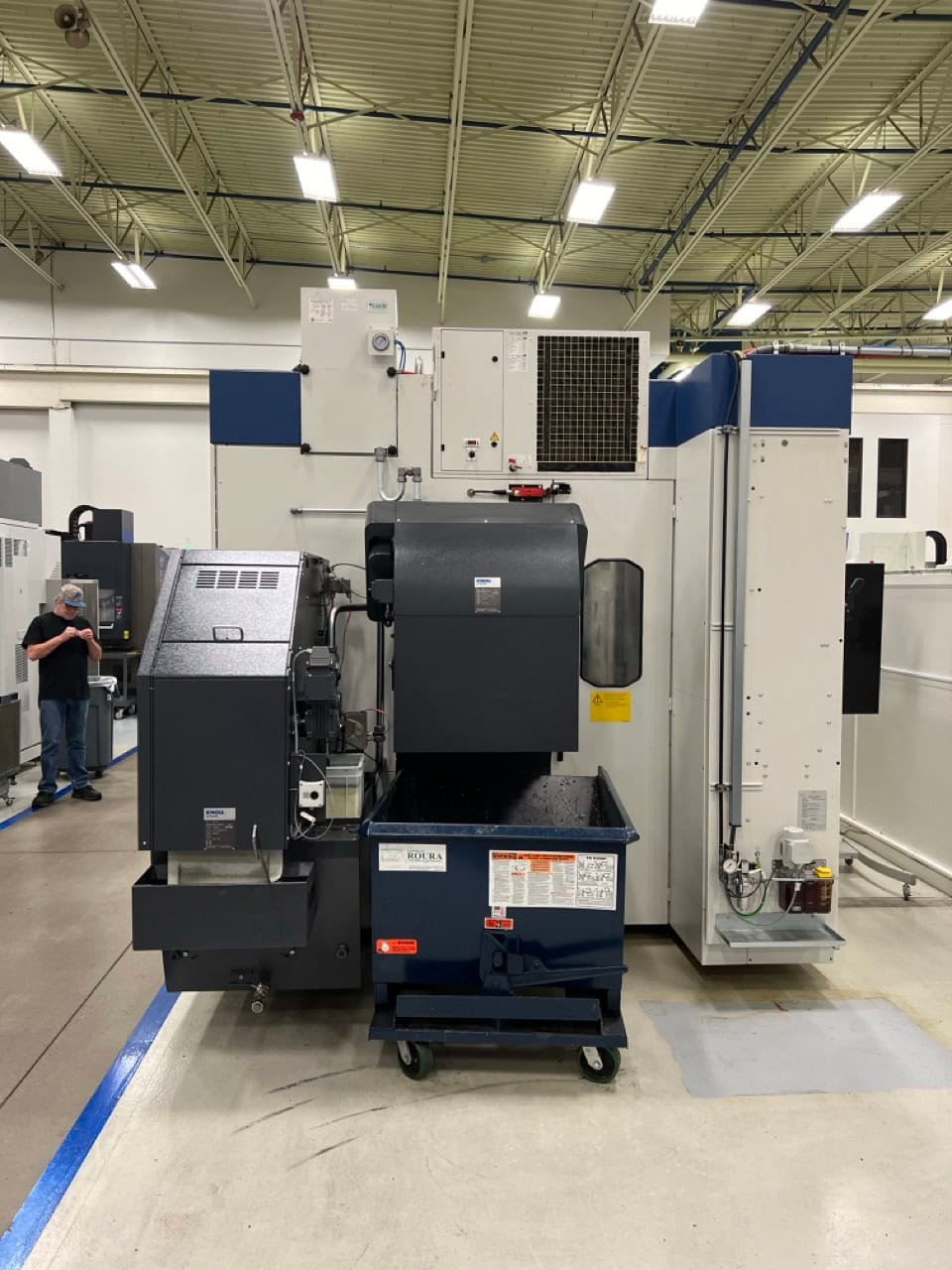

Chip Conveyor

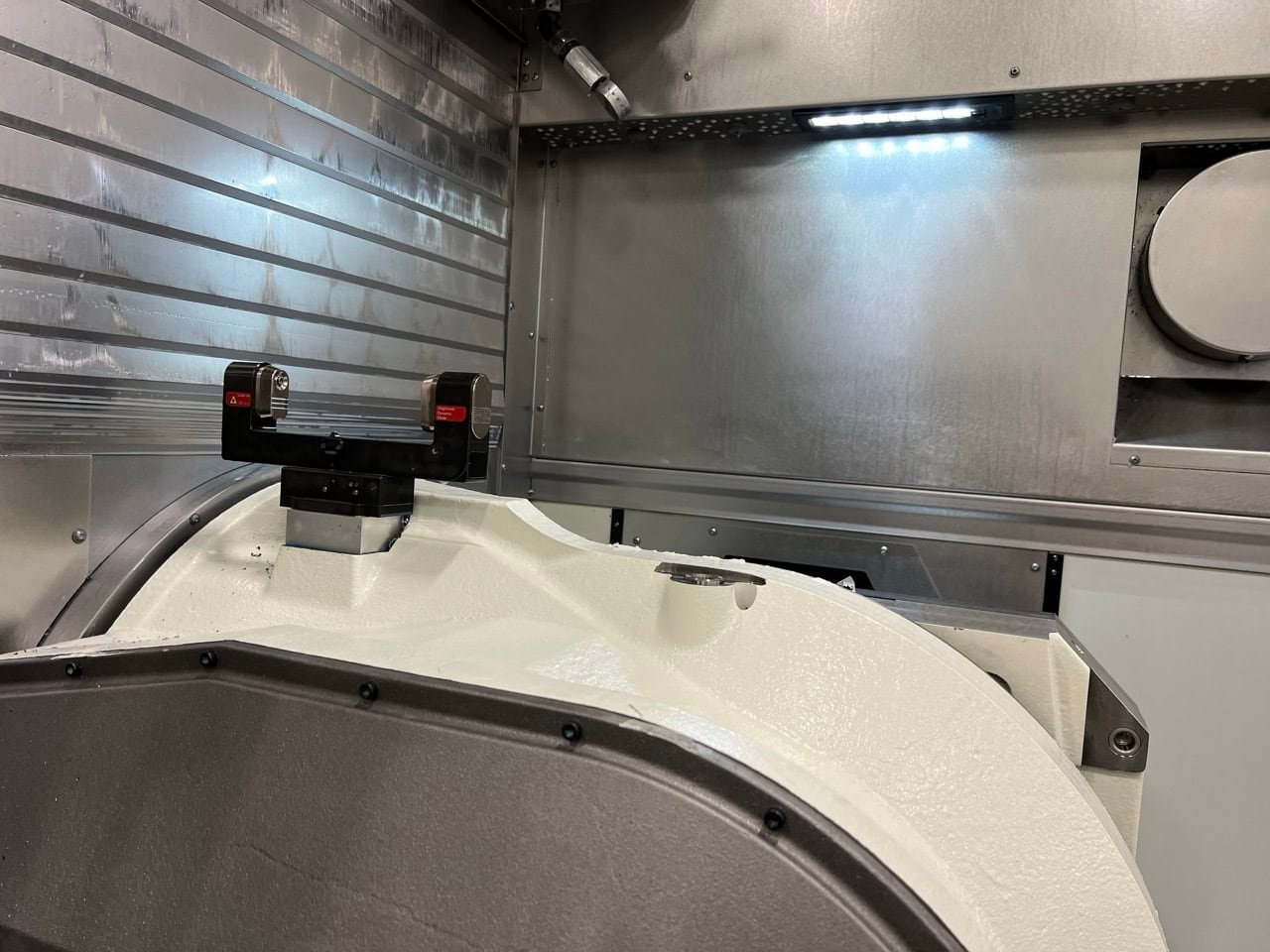

Grid Hole Pattern Pallet Design
Additional Pallet Included
