Description
Maximum swing over the front apron: 20″
Maximum turning diameter: 10.3″
Maximum turning length: 20″
X-axis travel: 8.45″
Z-axis travel: 20″
Spindle speed: 3400 RPM
Spindle motor: 30 hp
Spindle nose: A2-6
Bar capacity: 2.5″
Turret capacity: 10 stations
Rapid traverse rates: 945 ipm (X-axis), 1,200 ipm (Z-axis)
Machine weight: 9,000 lbs
Machine dimensions: 130″ x 77″ x 77″ (L x W x H)
Big Bore: 2.5″
Equipped with:

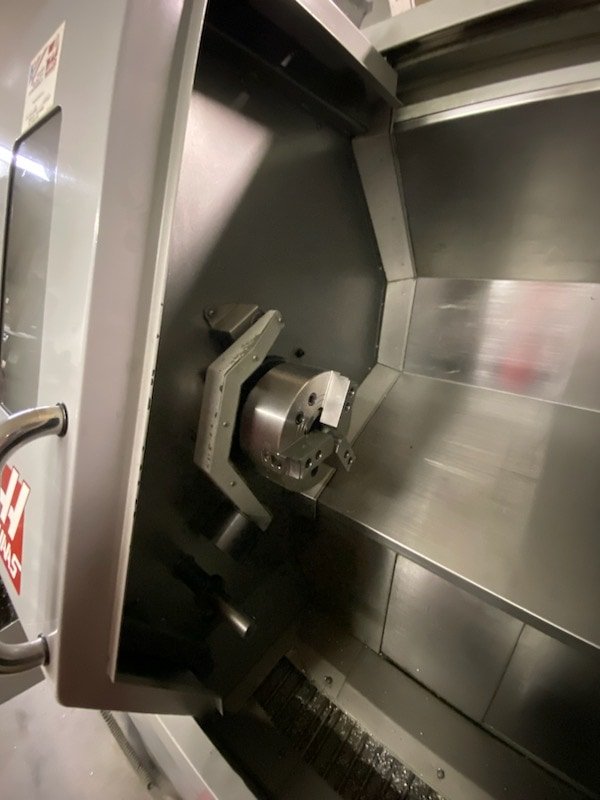

Collet Chuck
Programmable Tailstock

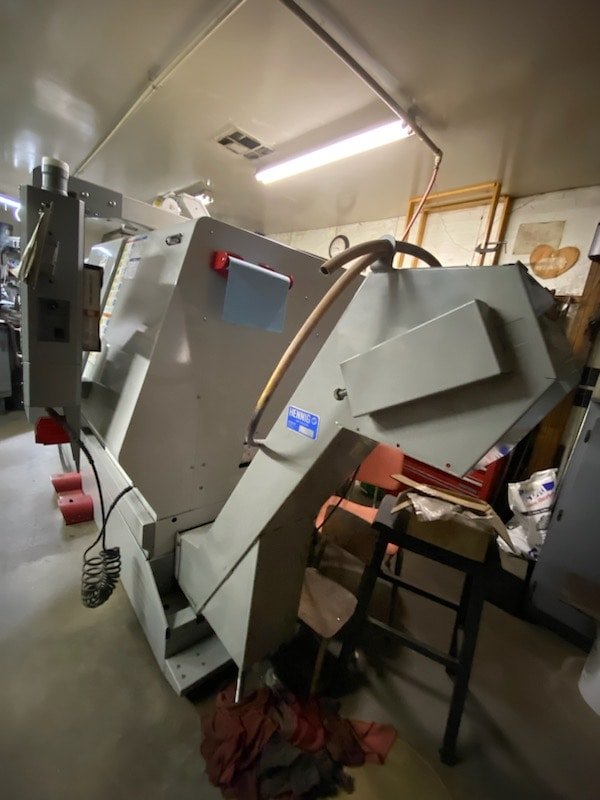

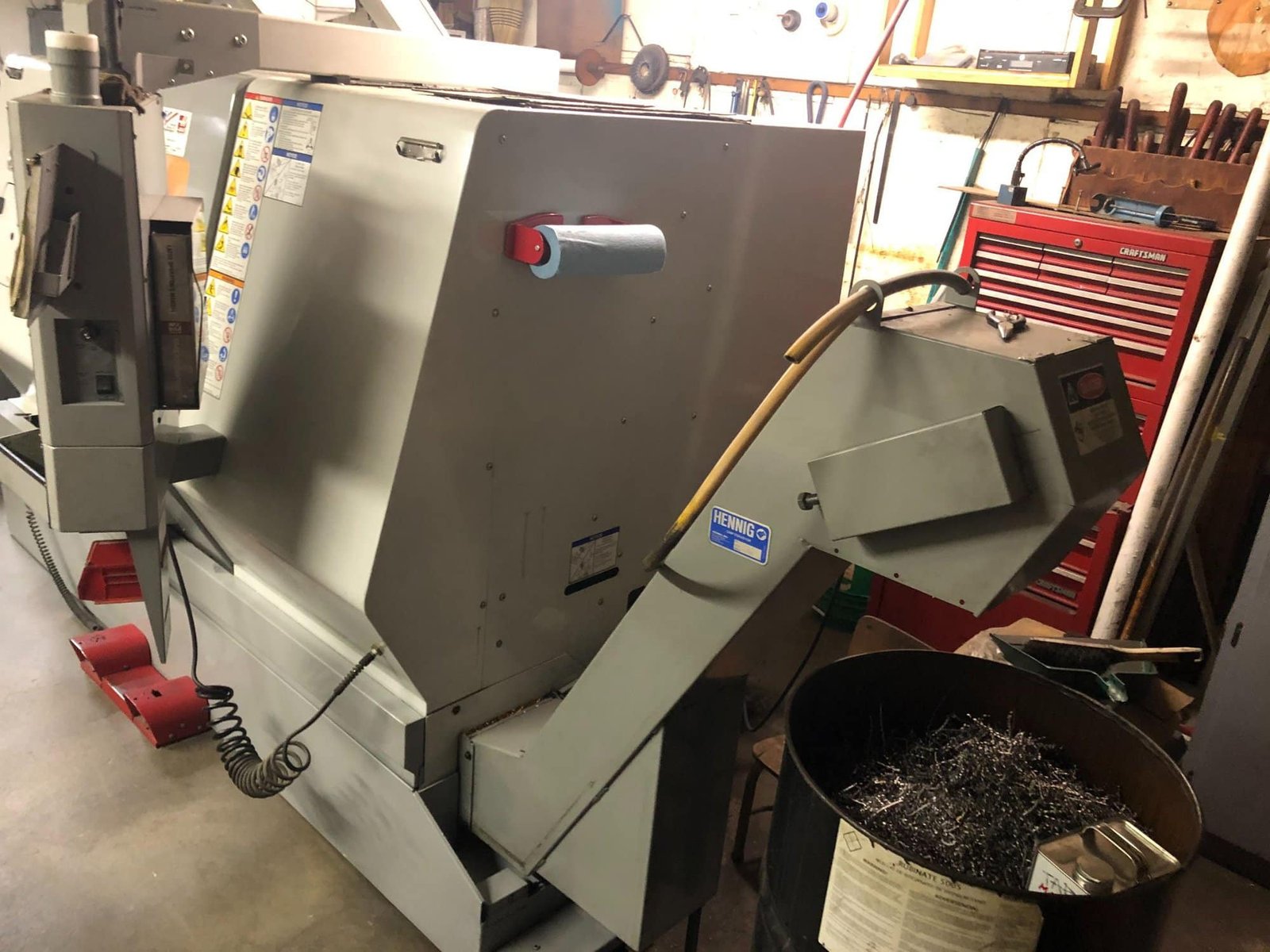

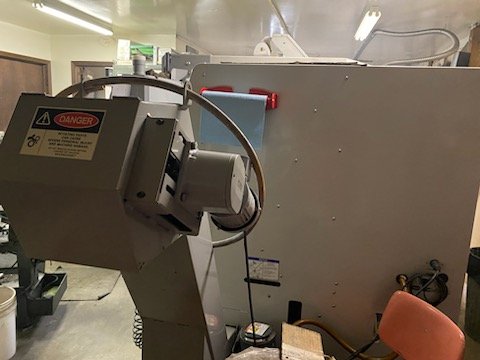

Belt-Type Chip Conveyor
Auto-Jet Blast

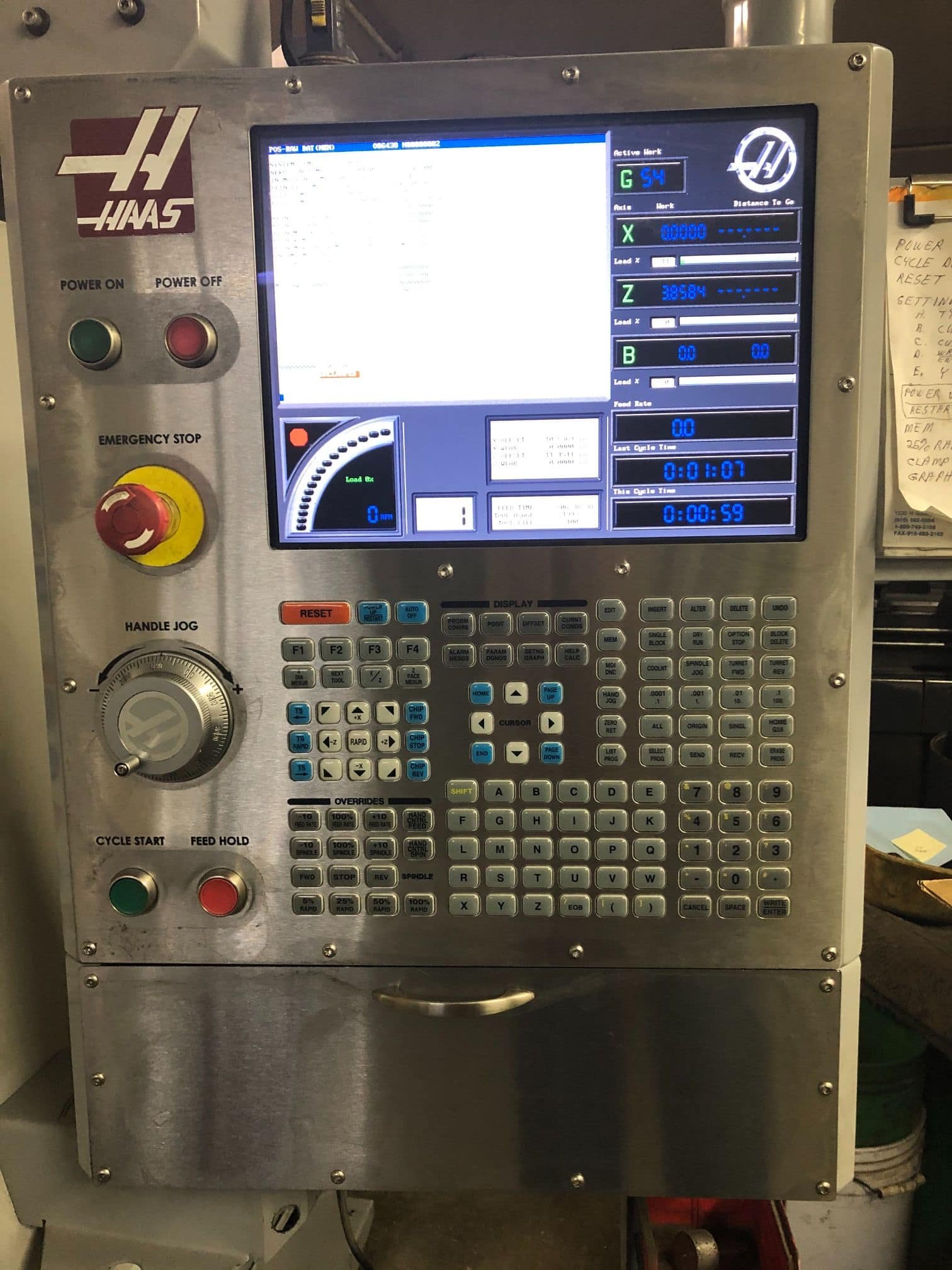

Intuitive Programming System
High-Intensity Lighting
Tool Presetter
Parts Catcher
