Description
X Axis: 12.5″
Z Axis: 26″
Max Swing Over Bed: 30″
Max Turning Diameter: 21″
Max Turning Length: 26″
Distance Between Centers: 39″

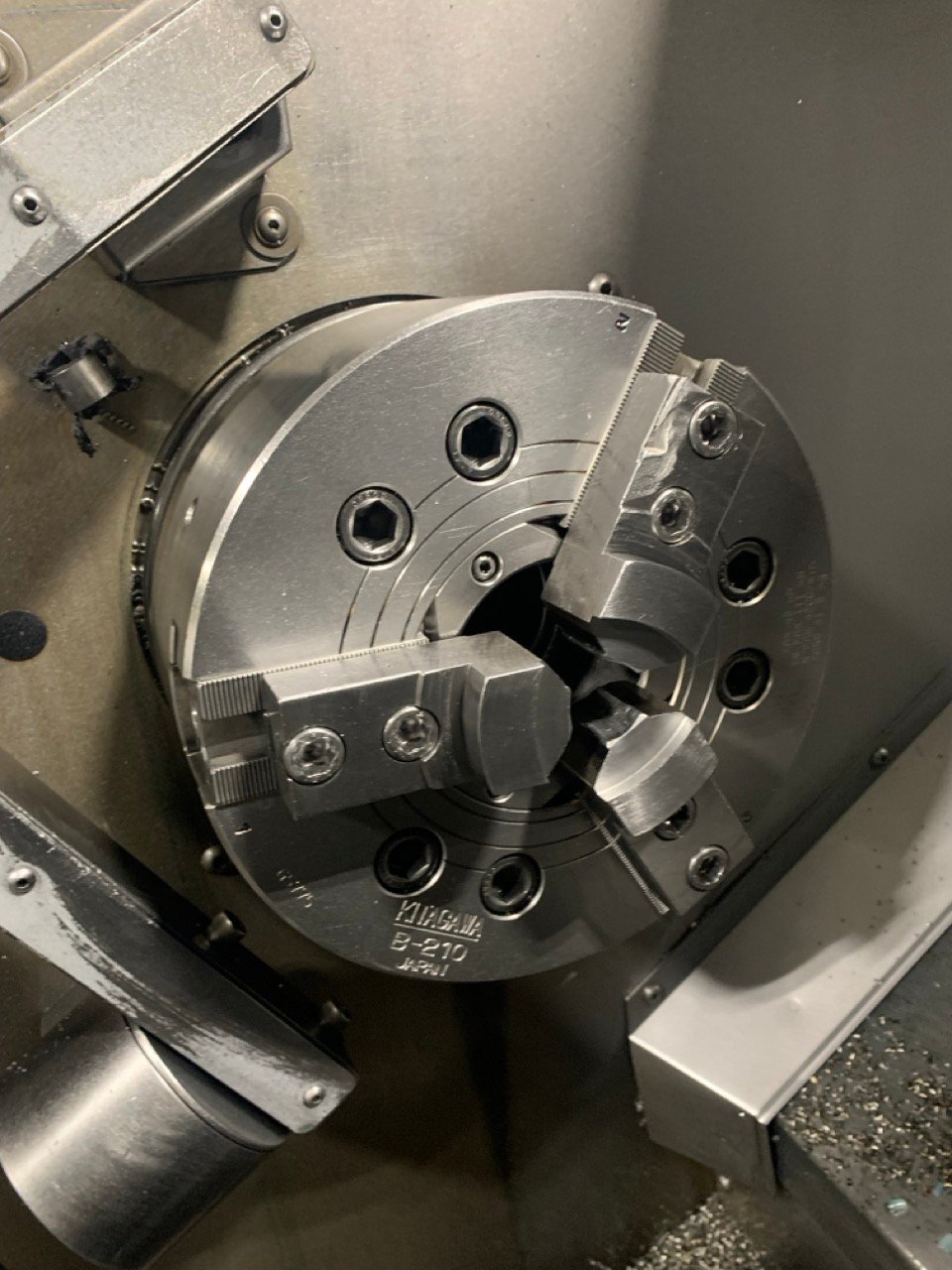

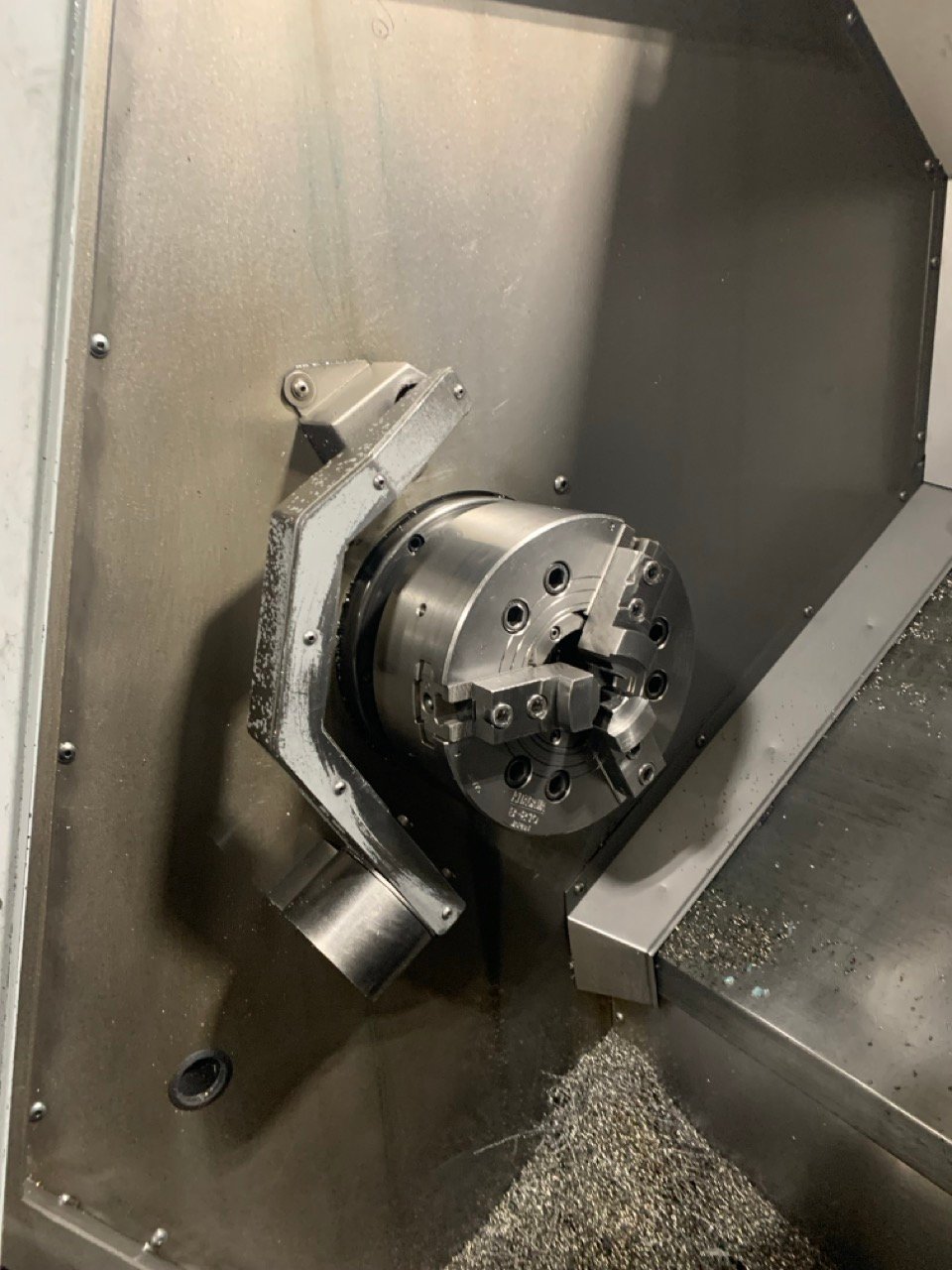

Chuck Size: 10″
Bar Capacity: 3″
Spindle Bore: 3.5″
Max Spindle Speed: 3,400 RPM
Spindle Motor Power: 30 HP

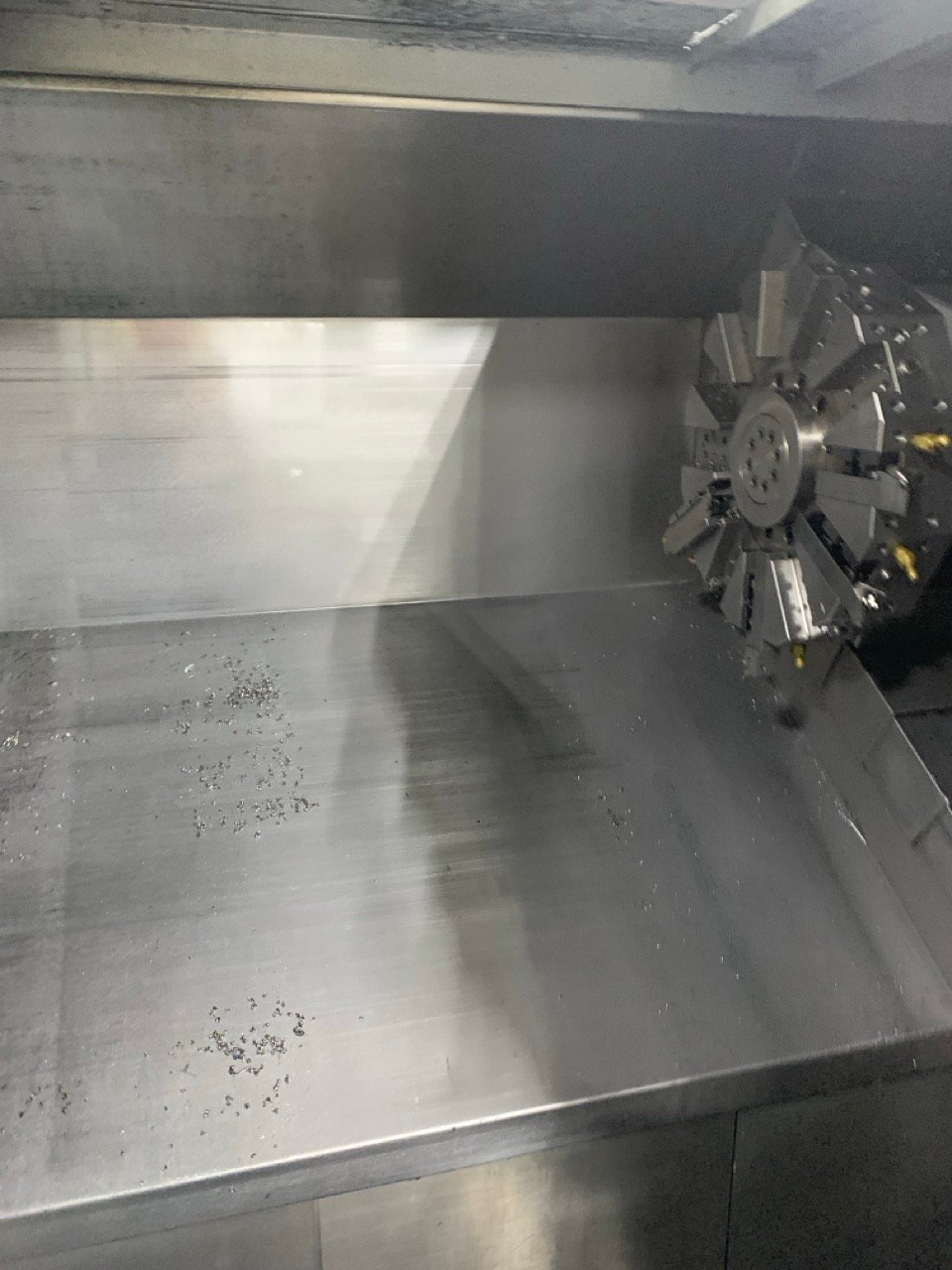

Turret Tool Capacity: 12 Tools
Rapid Traverse Rate (X & Z): 945 IPM
Machine Dimensions (L × W × H): 171″ × 90″ × 98″
Machine Weight: 14,300 Lbs
Equipped With:

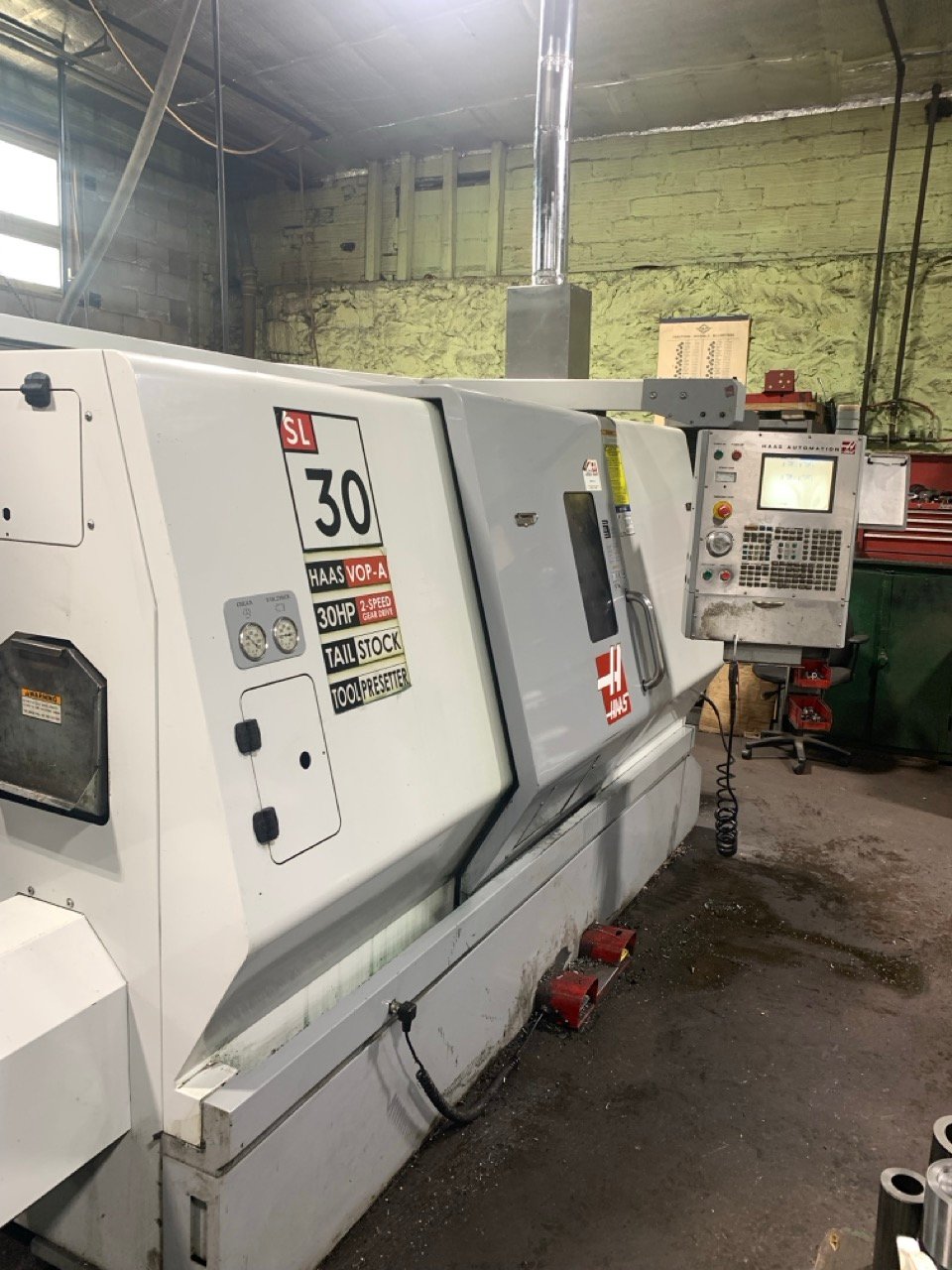

Haas Classic CNC Control
Tailstock

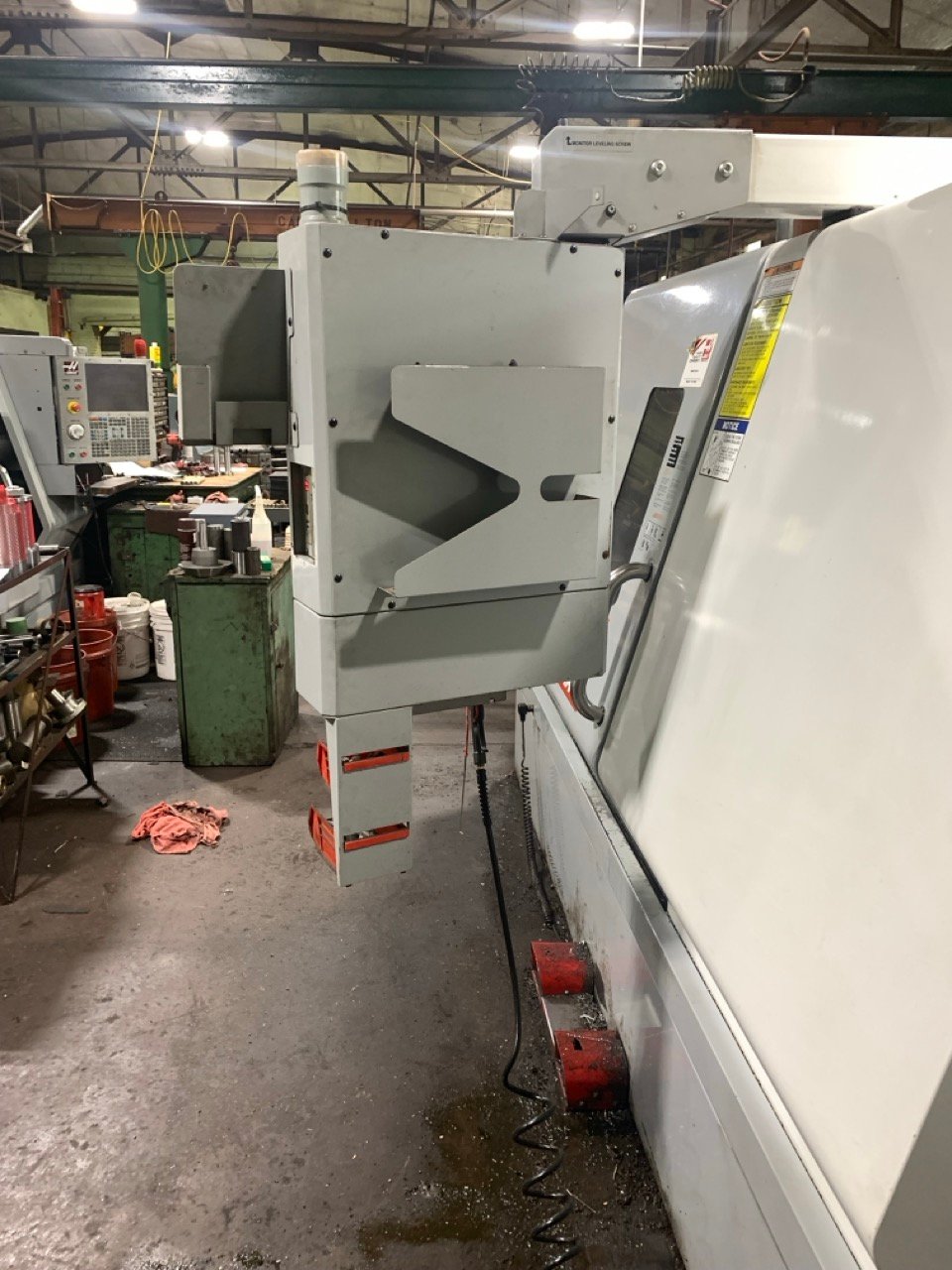

Chip Conveyor
All Available Manuals
