Description
Chuck Size: 15″
Max Swing: 40″
Max Swing Over Cross Slide: 25″
Max Cutting Diameter: 25.5″
Max Cutting Length: 44″
Max Bar Capacity: 4″
X-axis Travel: 17″
Z-axis Travel: 44″
Spindle Nose / bore: A2-8 / 4.62″
Spindle Speeds: 2,400 RPM
Spindle Motor: 55 HP

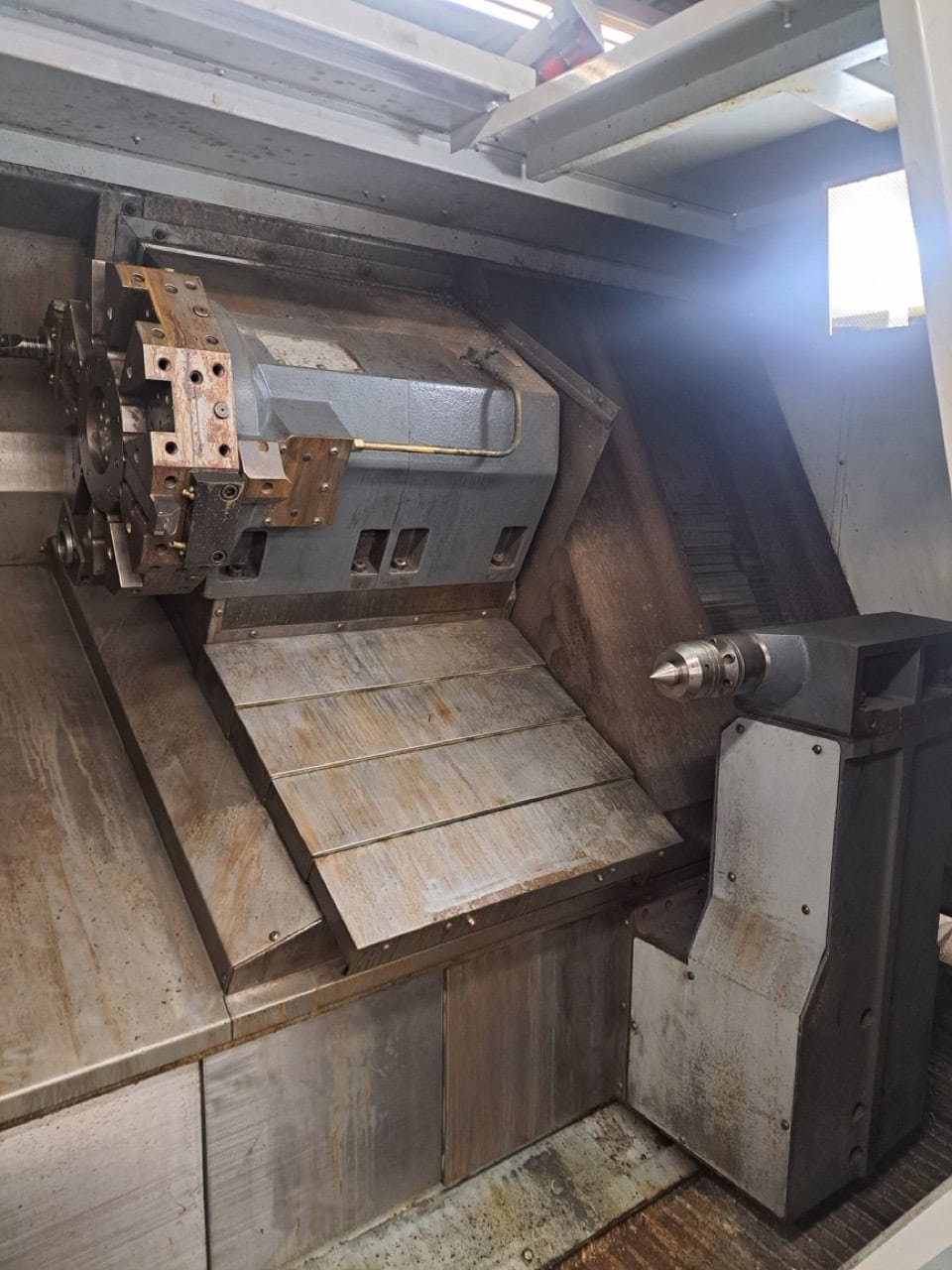

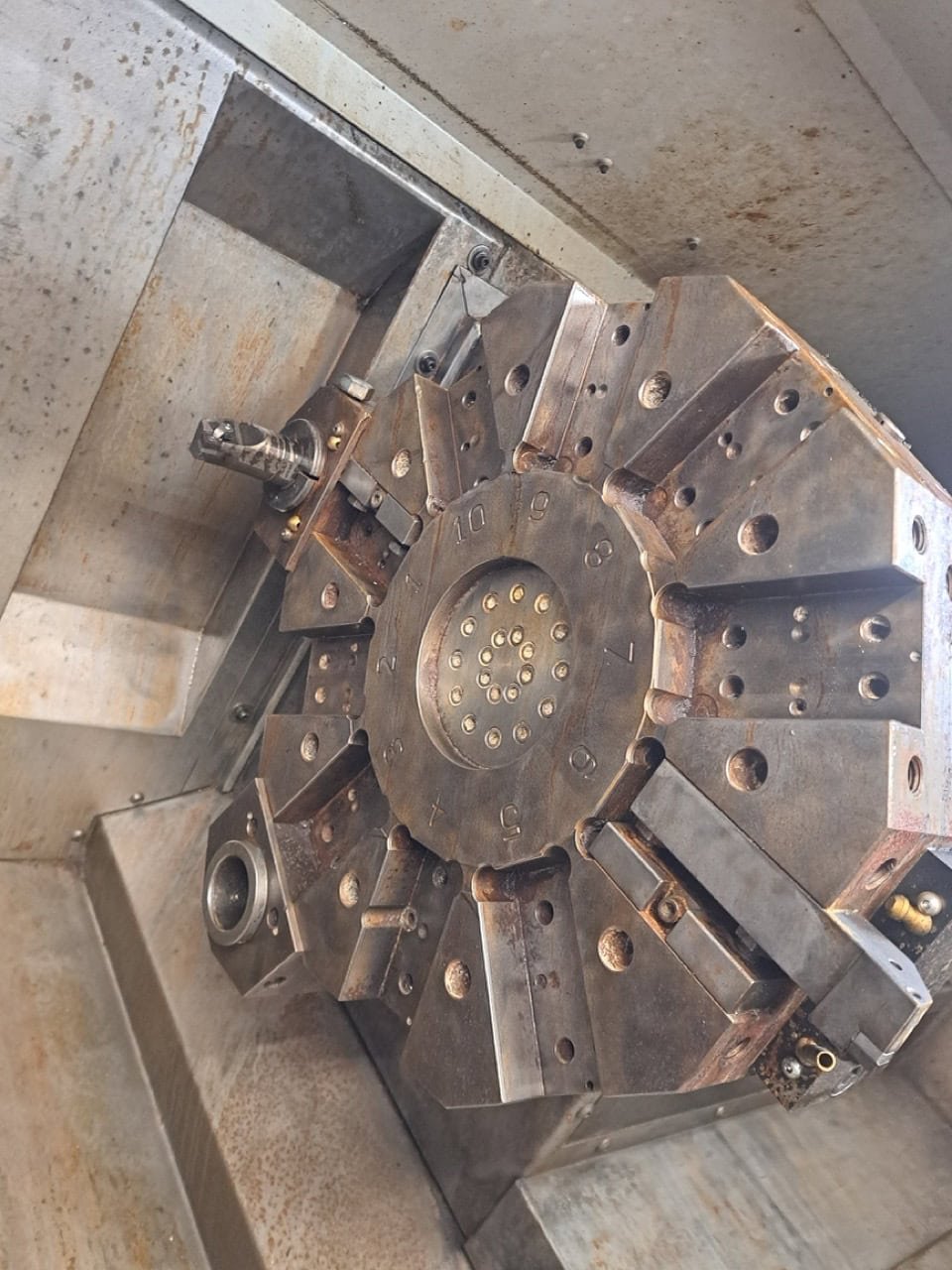

Number of Turret Positions: 10 Station Turret
Rapid Traverse Rates: 710 IPM
Approx. Dimensions: 170″ x 102″ x 89″
Approx. Weight: 25,000 lbs.
Equipped With:

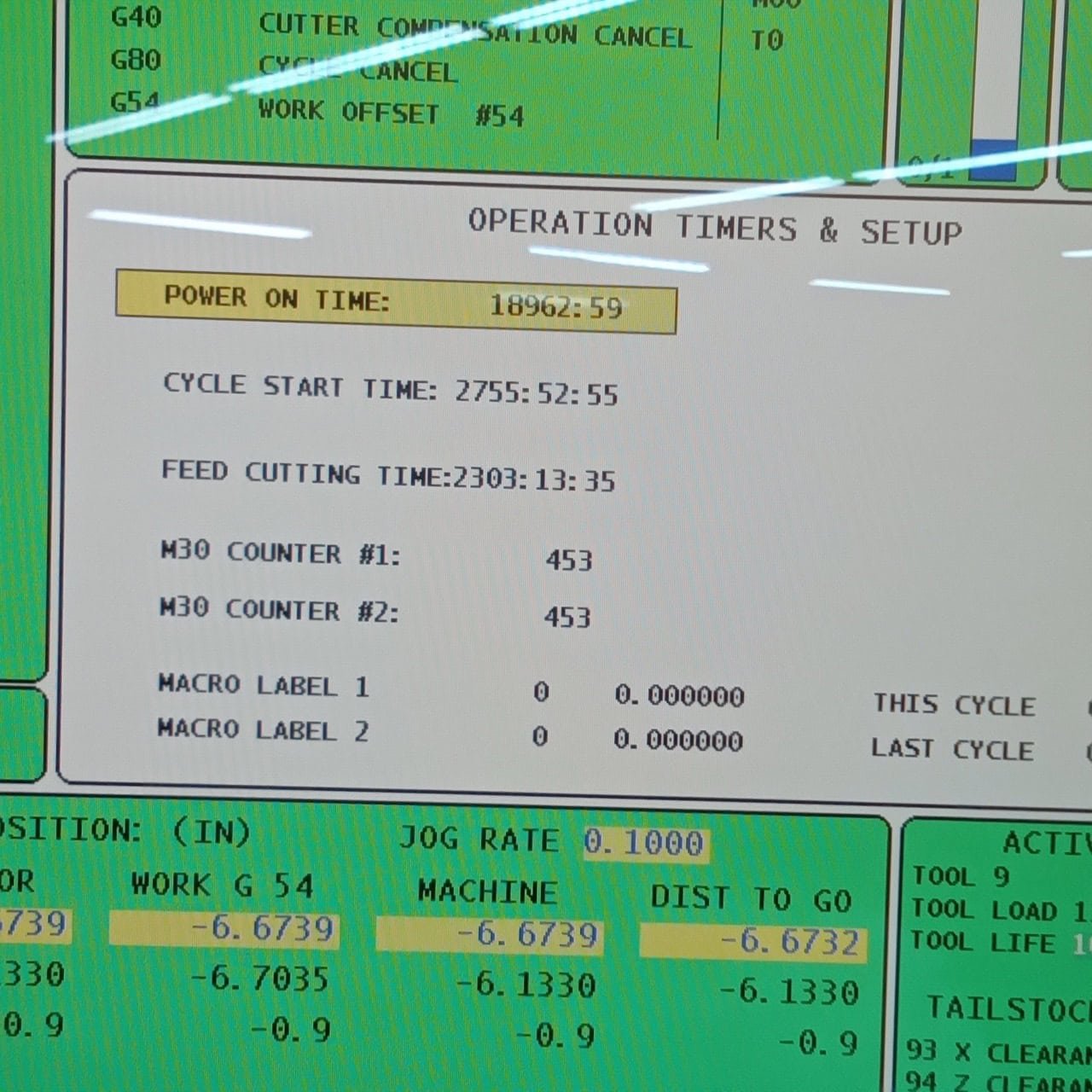

HAAS CNC Control

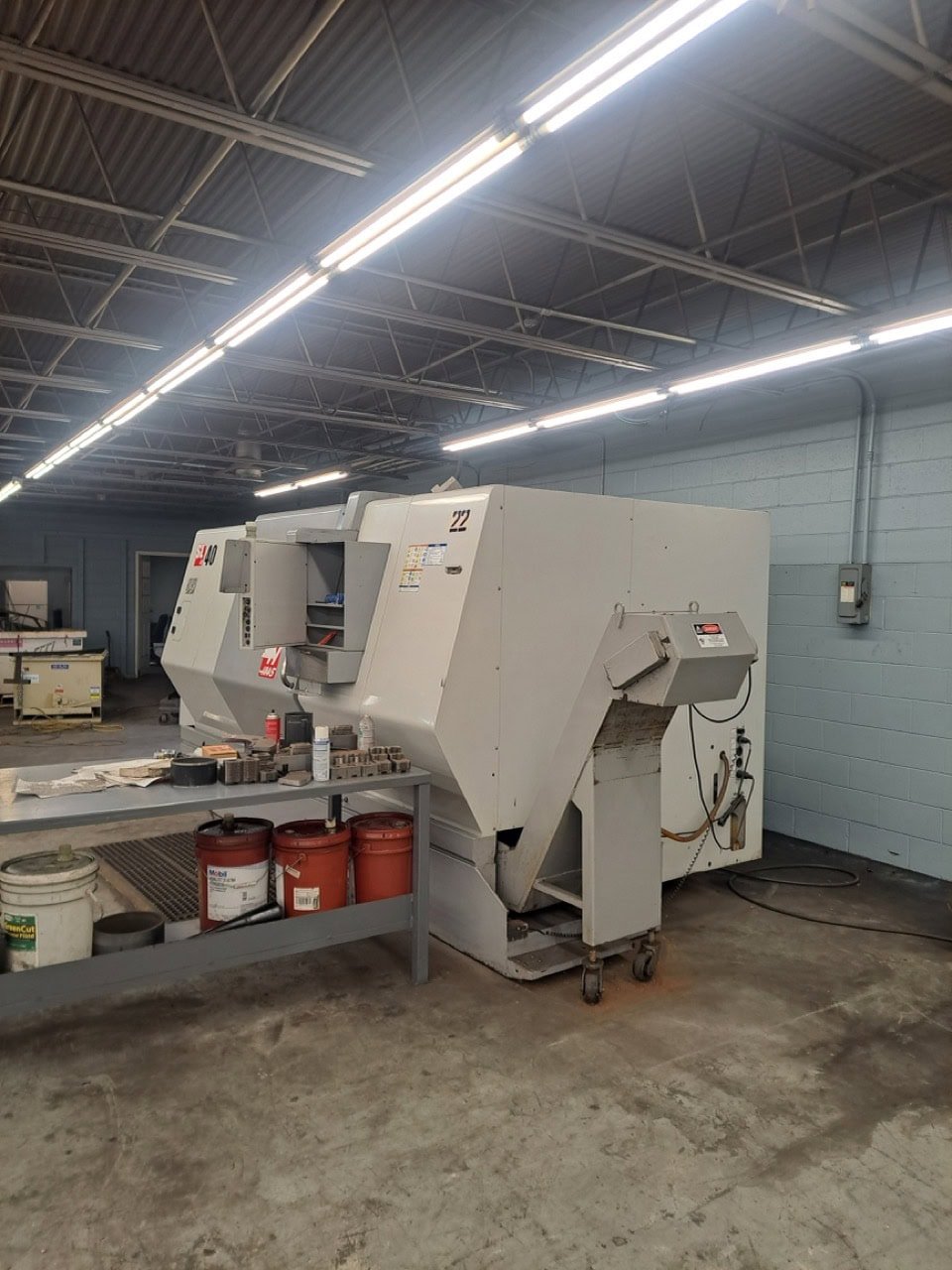

Chip Conveyor
Tailstock
