Description
Max Cutting Diameter: 12″
Max Cutting Length: 16″
Swing Diameter over Front Apron: 25.25”
Swing Diameter over Cross Slide: 16”
Swing Diameter over Tailstock: 23.50″

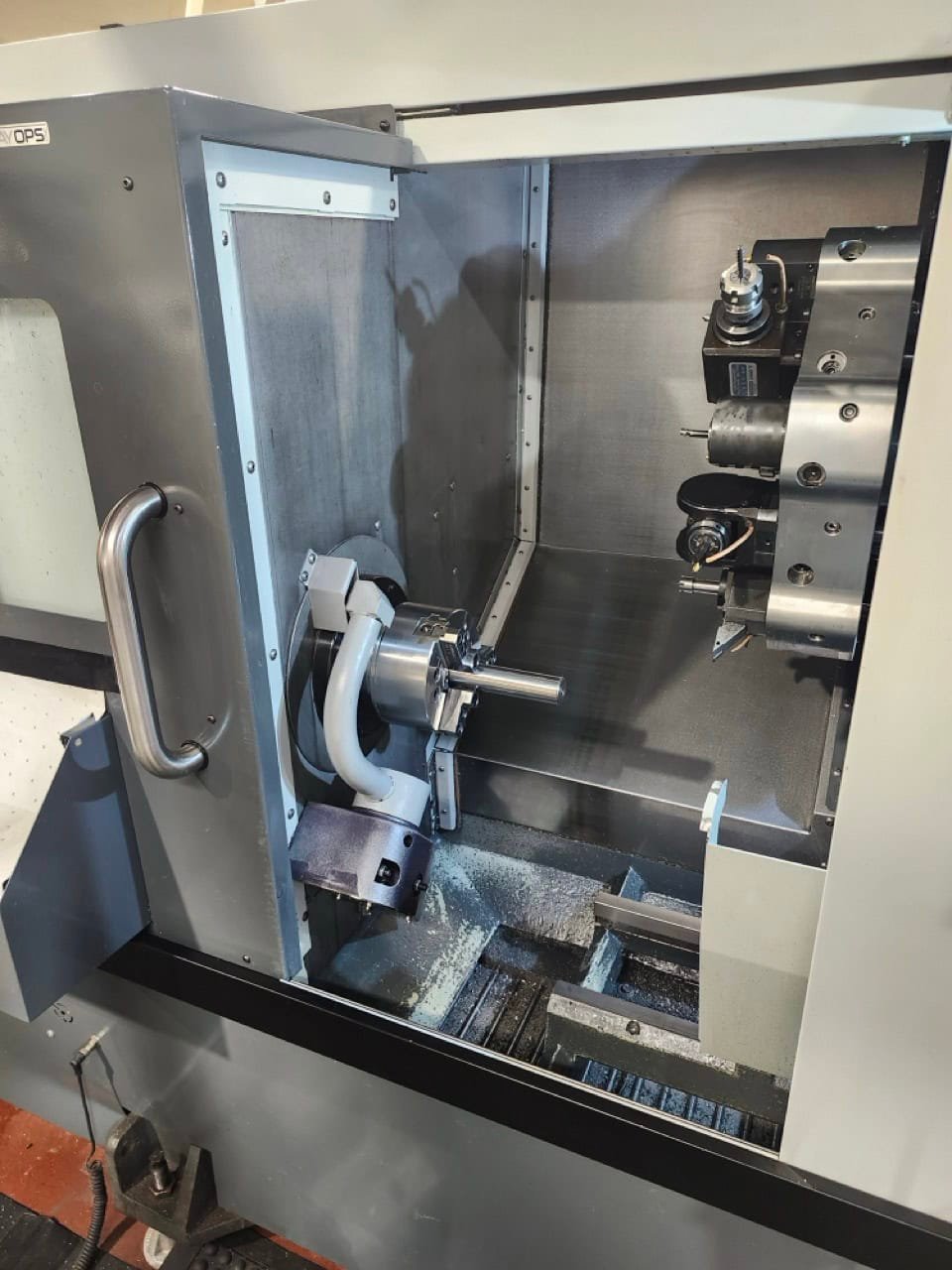

Chuck Size: 6.5”
Swing: 16.25″
Bar Capacity: 1.75″

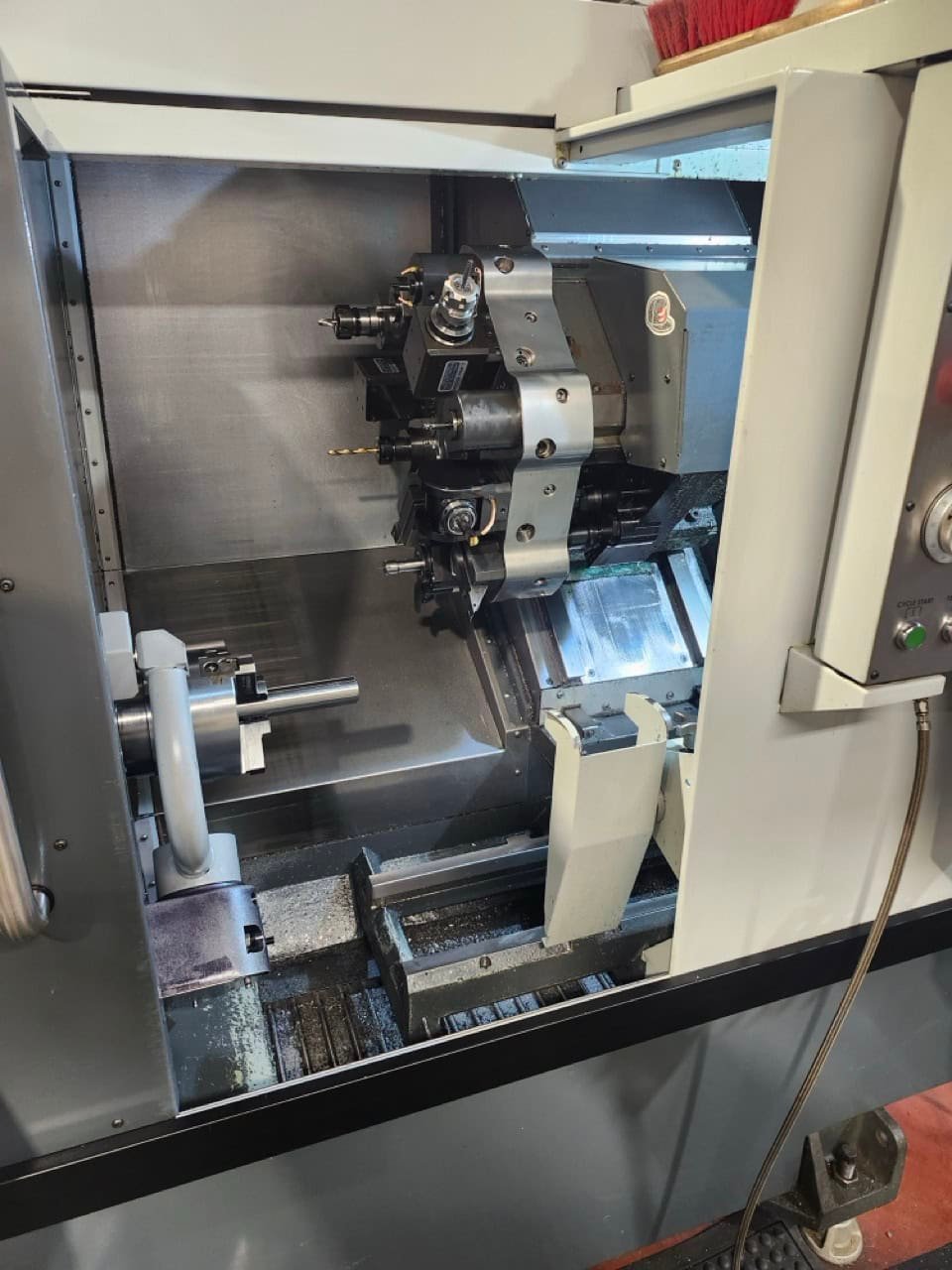

Turret Stations: 12
X Axis Travel: 7.88″
Y Axis Travels: ±2″
Z Axis Travels: 16″
Rapids on X: 472 in/min
Rapids on Y: 472 in/min
Rapids on Z: 1200 in/min
X Axis Max Thrust: 2400 lb
Y Axis Max Thrust: 2300 lb
Z Axis Max Thrust: 3700 lb
Spindle:
Power: 15 HP
Max Speed: 6000 rpm
Spindle Nose: A2-5
Spindle Bore: Ø2.31″
C Axis:
Max Rating: 5 HP
Positioning: 0.01°
Brake clamp force: 1000 lbs
Brake diameter: 14.4″
Dimensions: 71″ x 126″ x 83″
Weight: 5,000 lbs
Shipping Dimensions Pallet Size: 123” × 73” × 80” Shipping Weight: 7,900 lbs
Volts/Phase: 95-260 VAC, 3-Phase, 50-60 Hz
Equipped with:
Automatic Tool Presetter

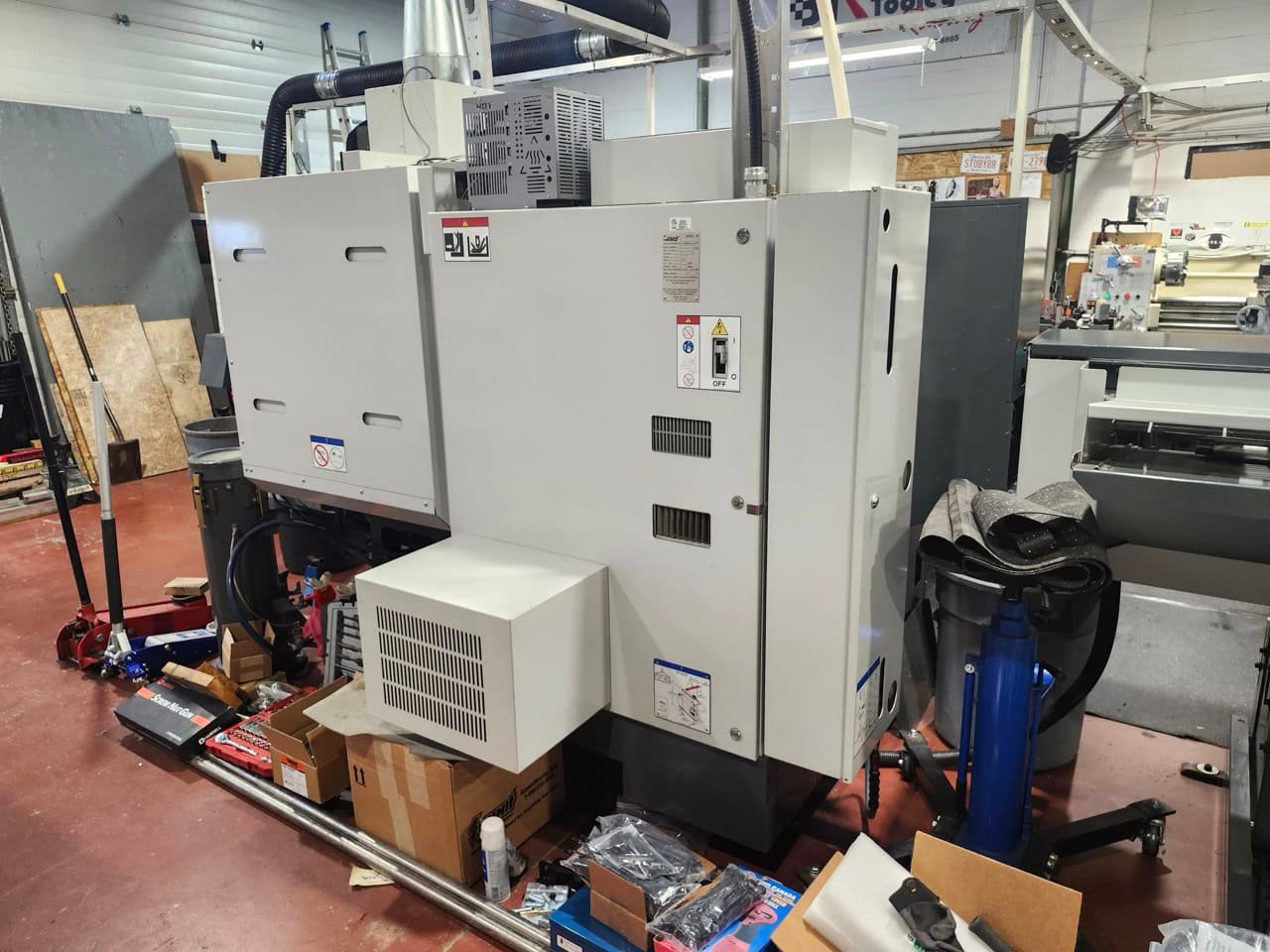

CNC Control Cabinet Cooler

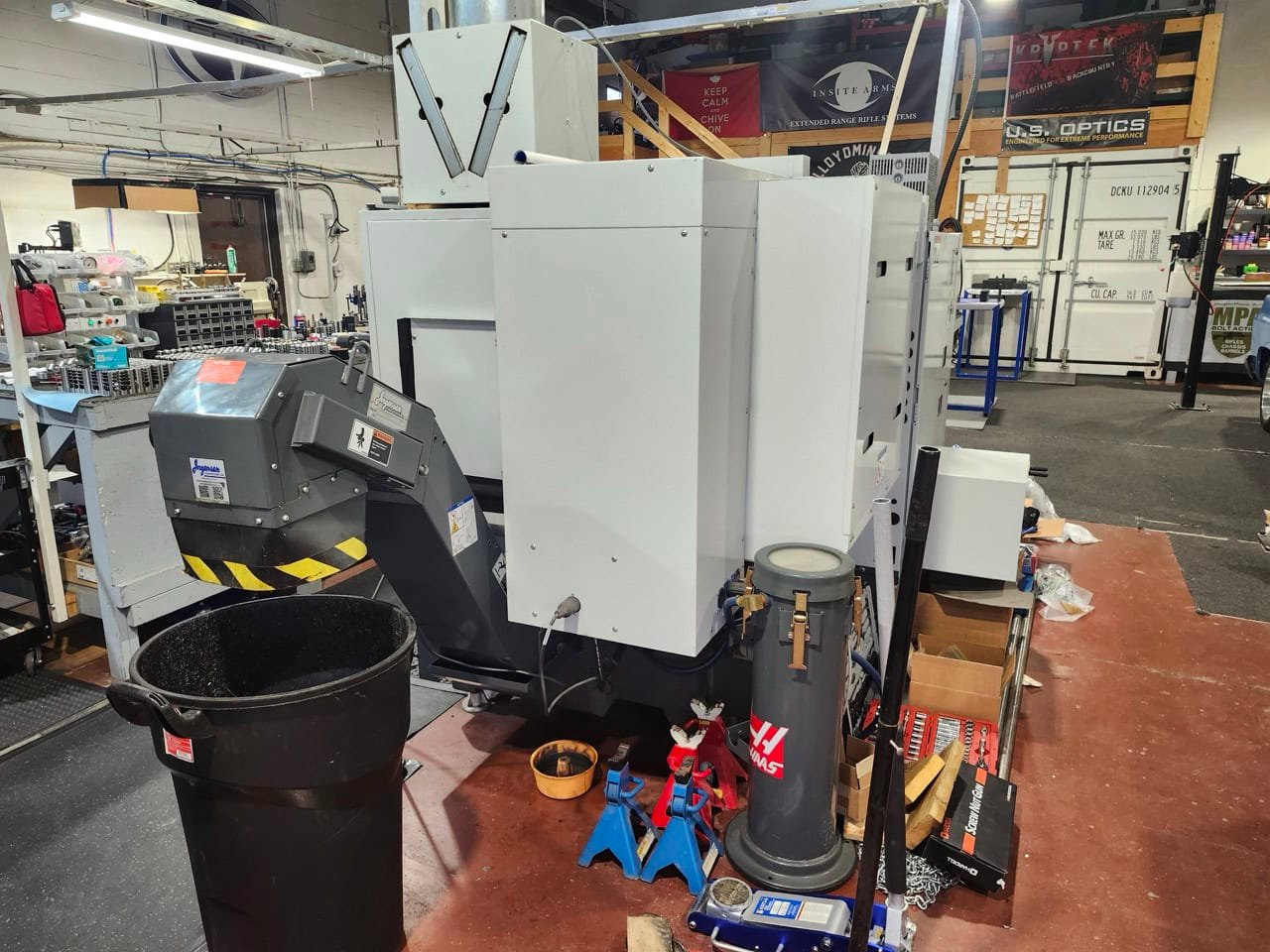

Belt-Type Chip Conveyor
ENCL EXHAUST Enclosure Exhaust System
Tailstock with Hydraulic Quill
Parts Catcher System

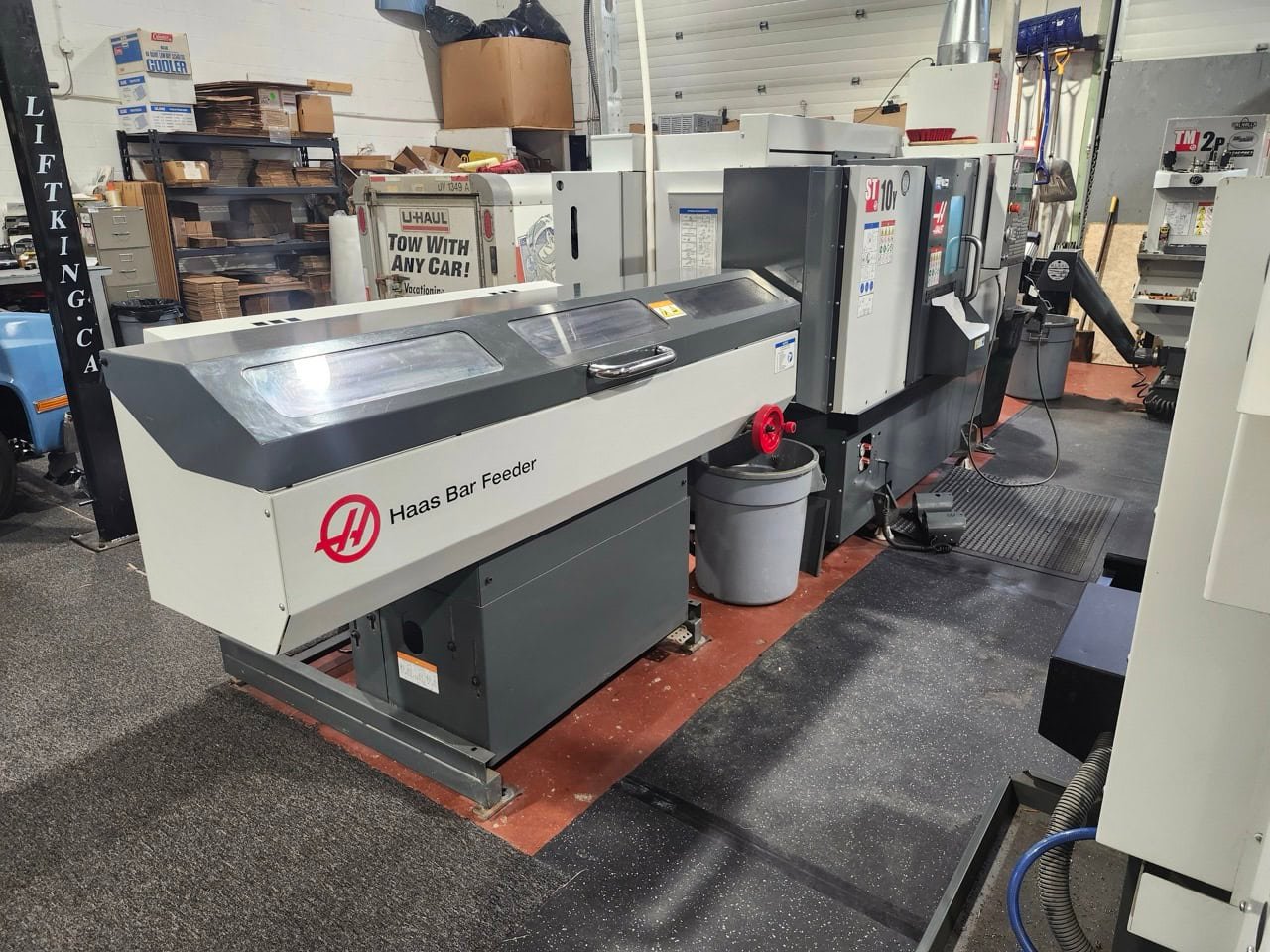

Bar Feeder
Live Tooling
C-Axis
