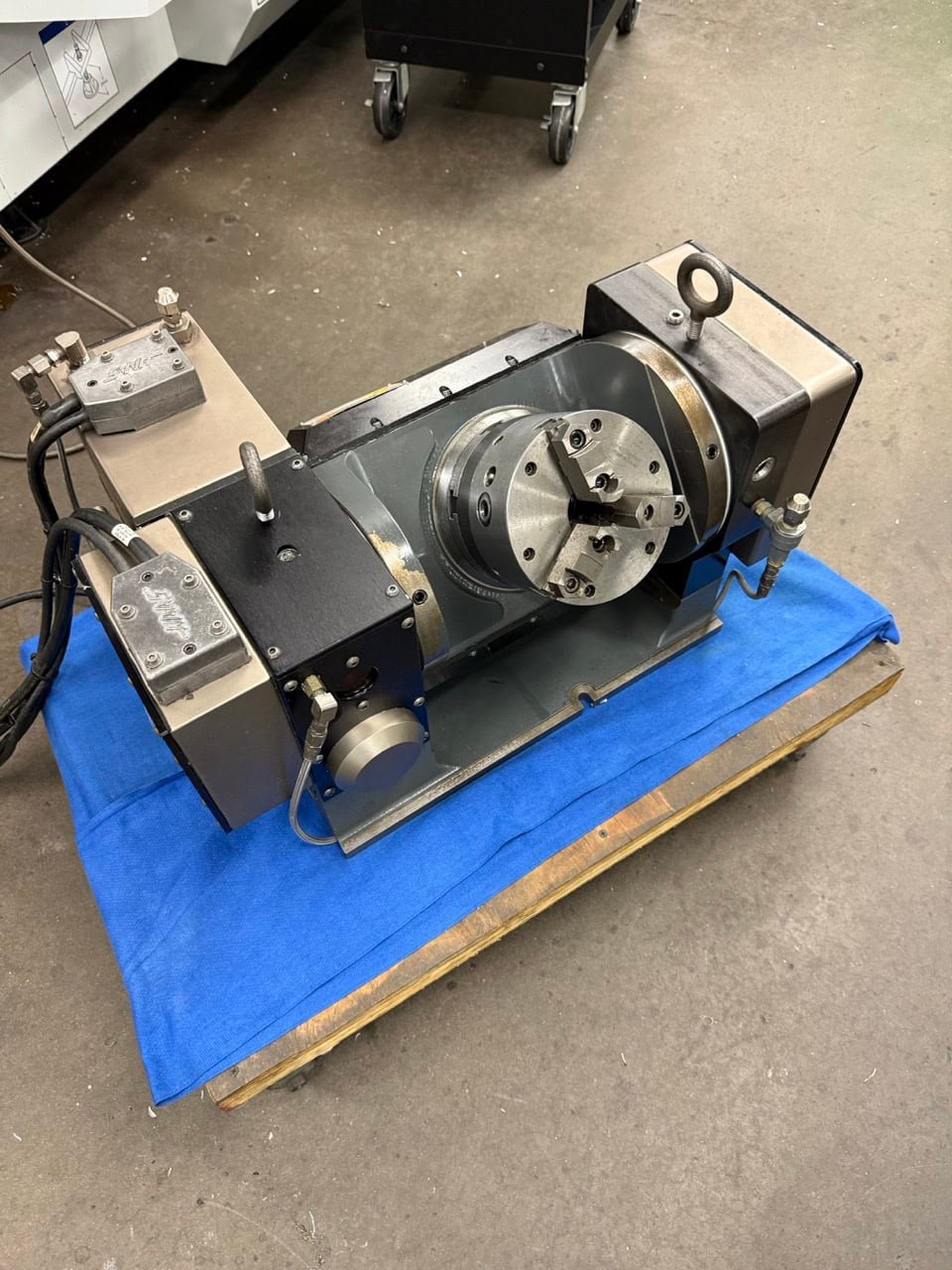

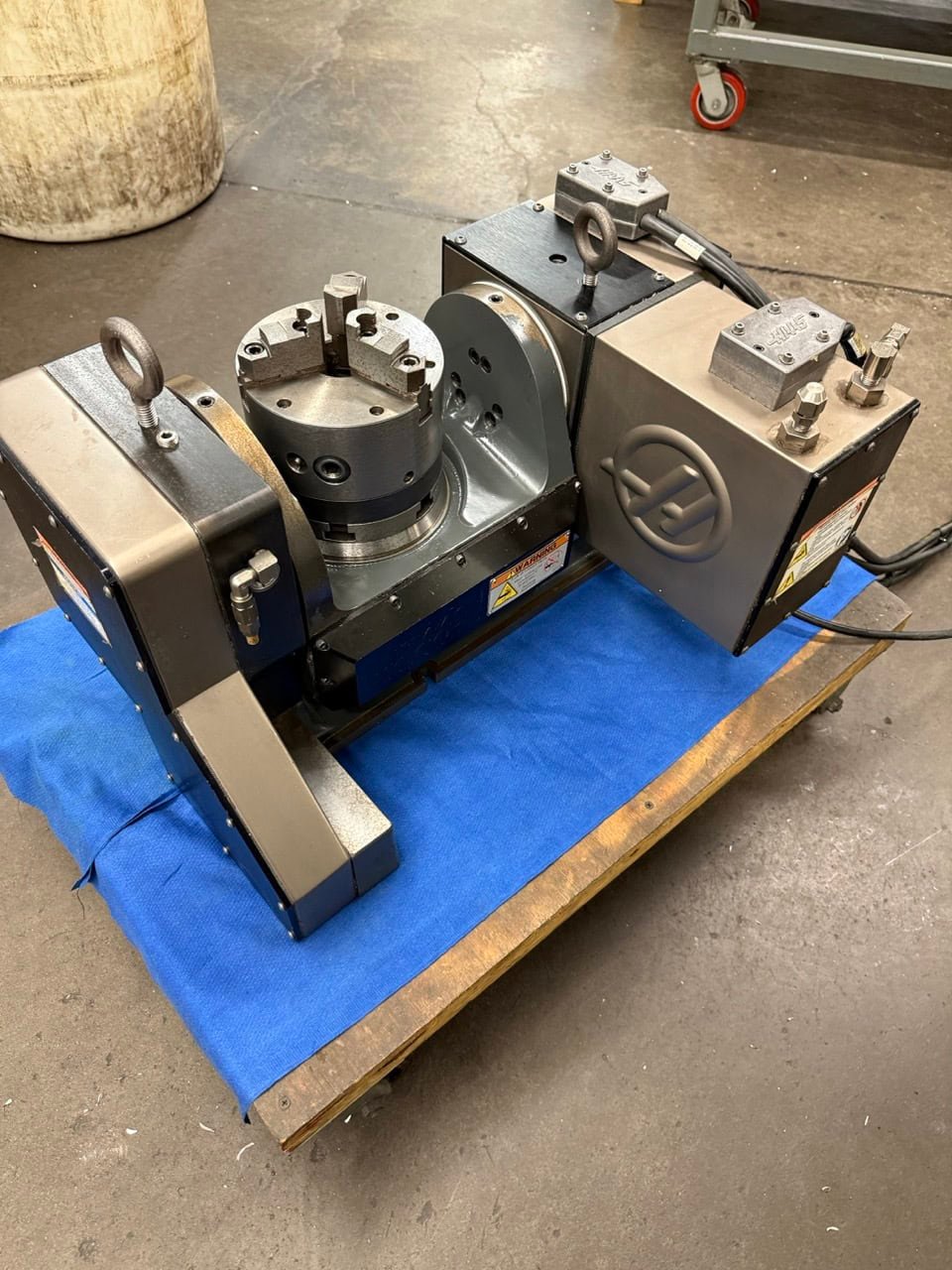

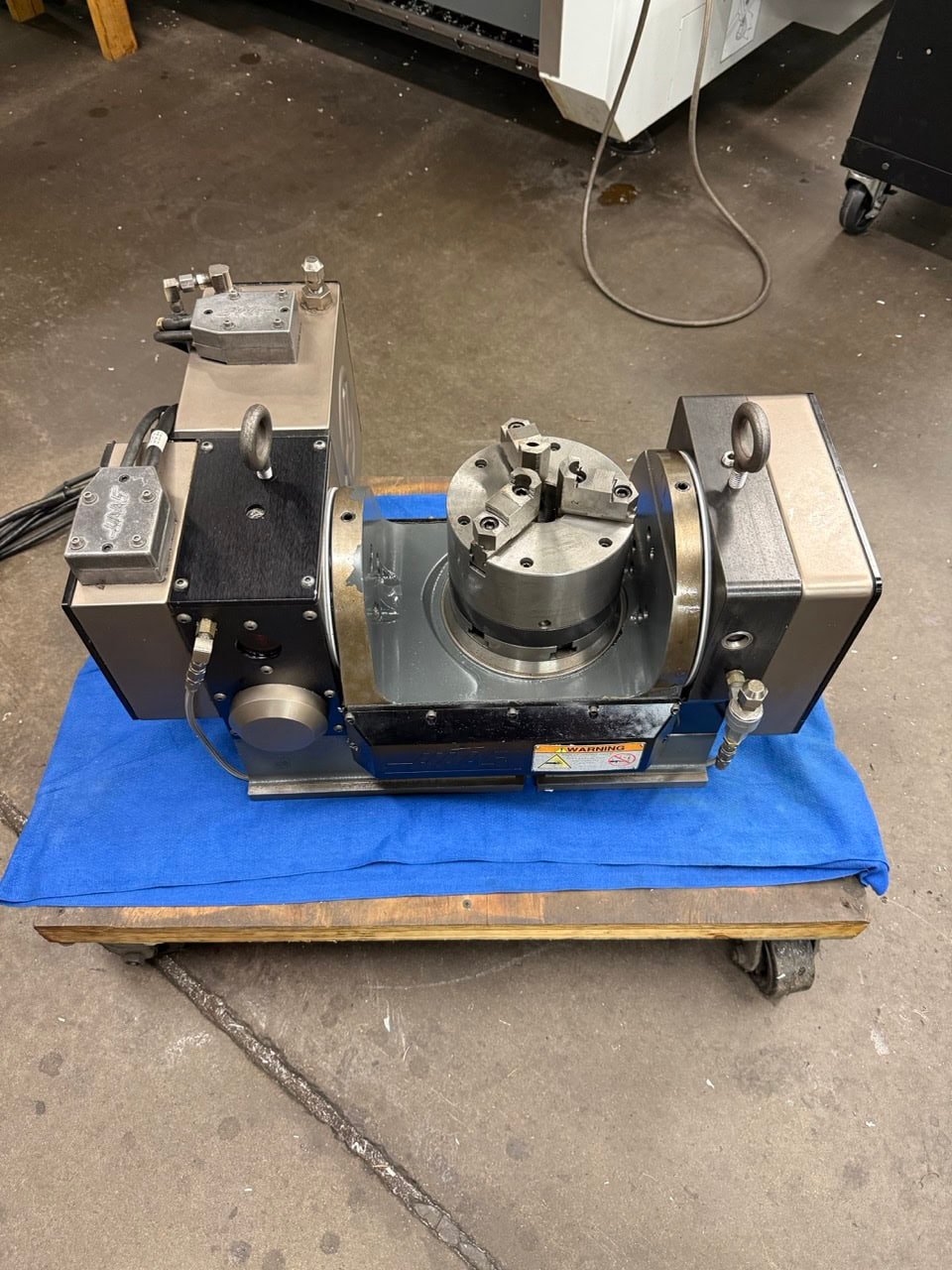

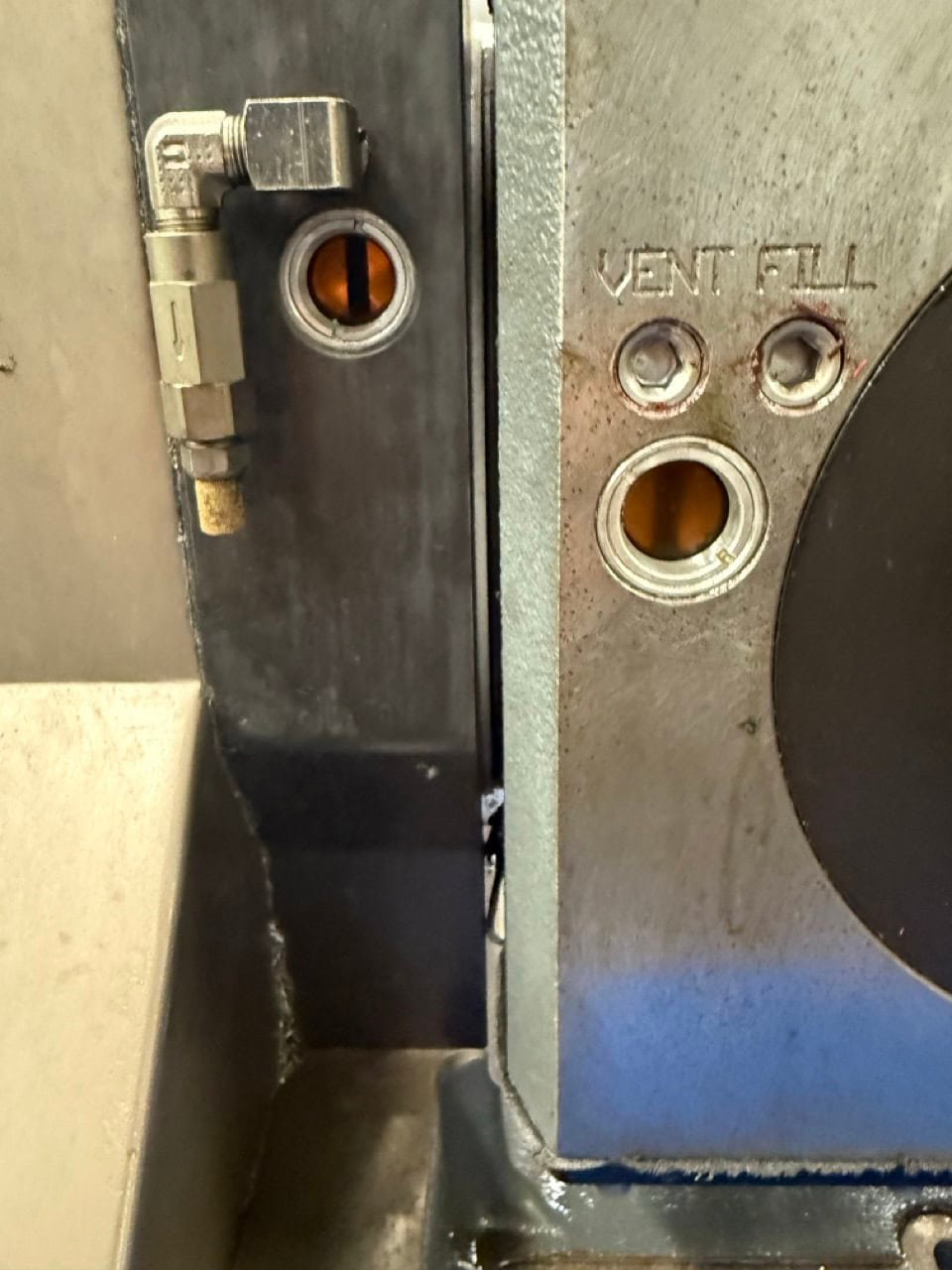

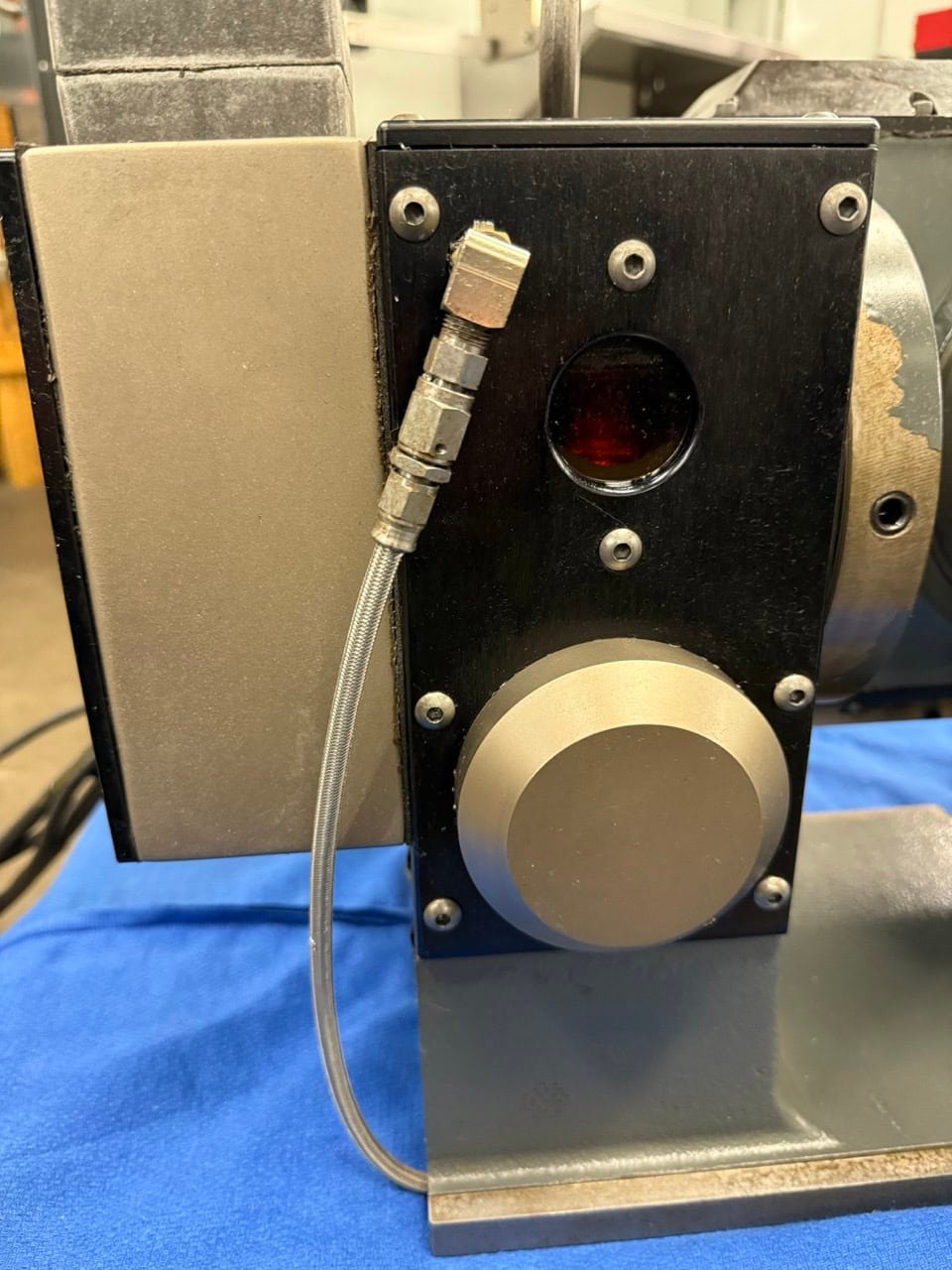

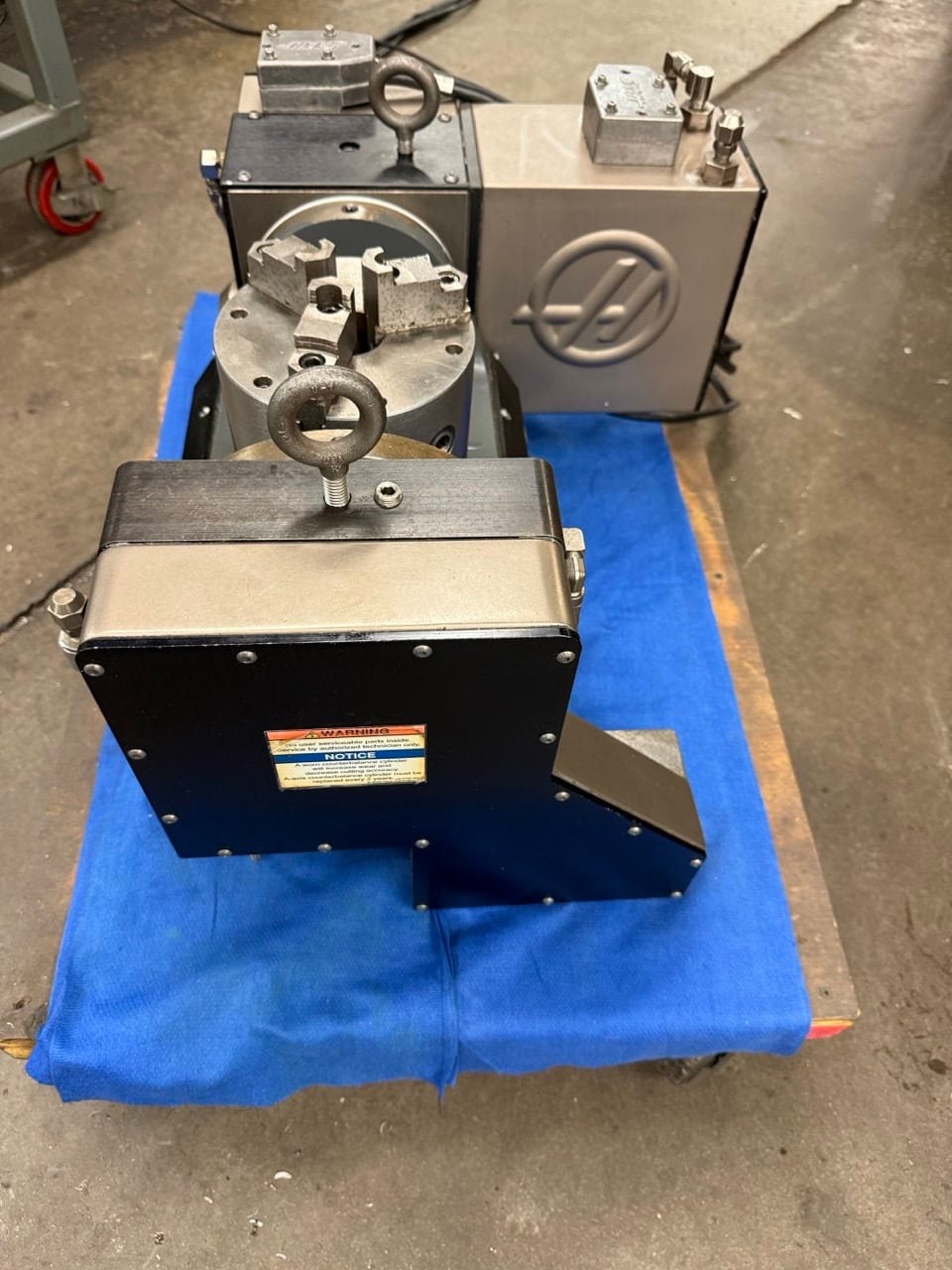

Description

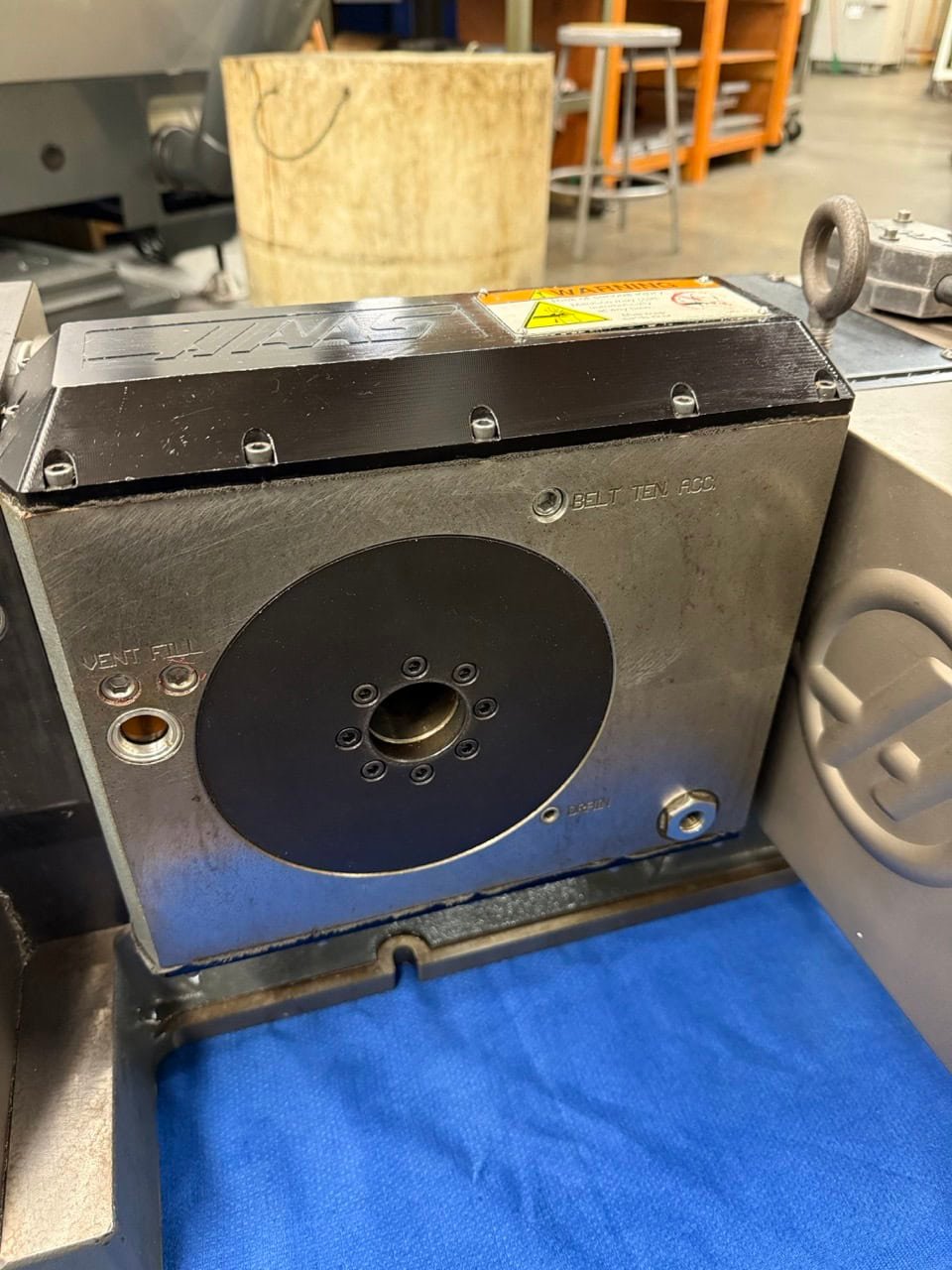

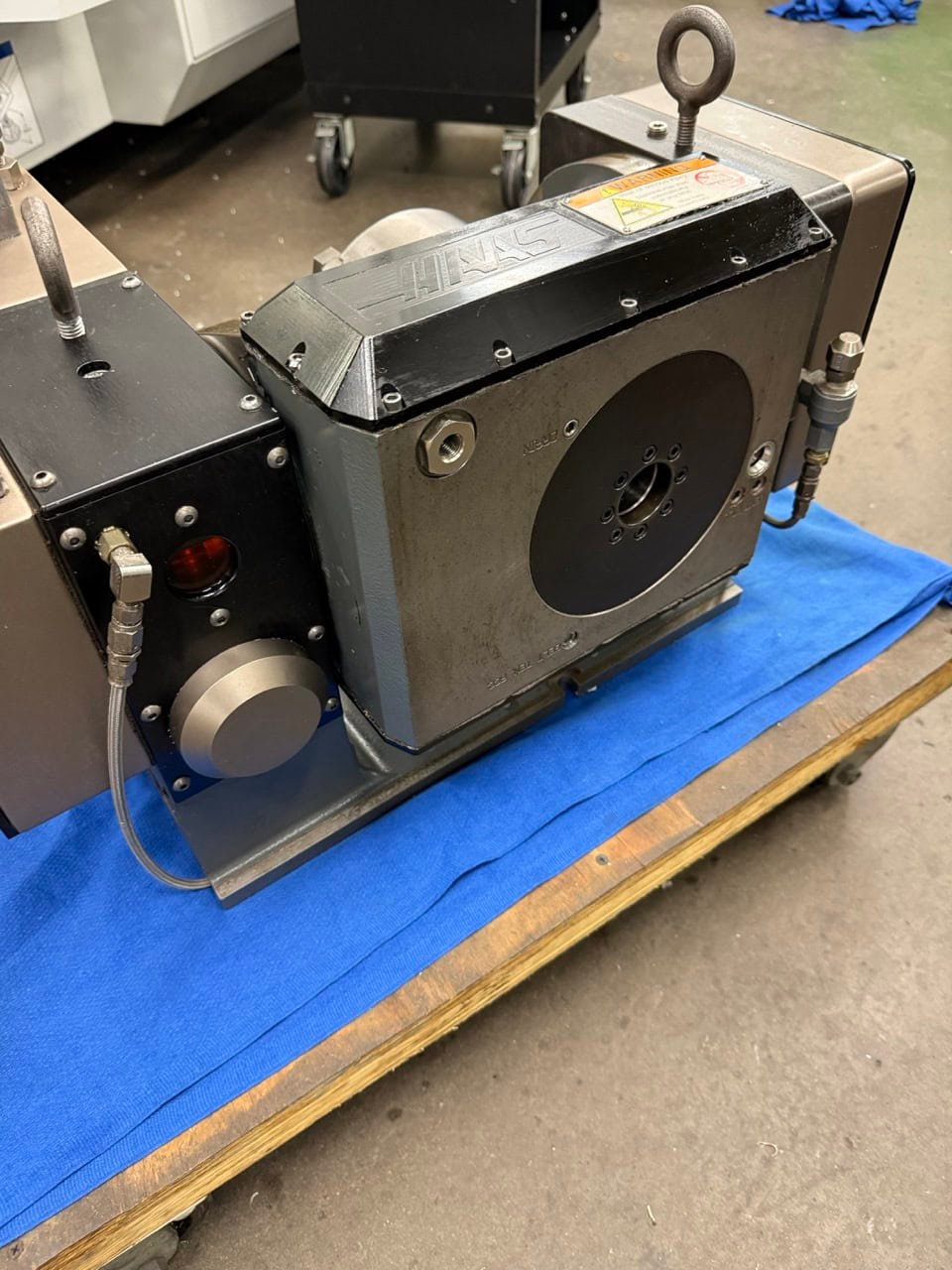

Platter
Platter Diameter: 6.30 In
Max Weight On Platter: 110 Lb
Part Swing Max: 17.5 In
Number Of Std T-Slots: 6 @ 60°
Spindle – A (Tilt)
Max Speed: 80 °/Sec
Torque (Continuous): 150 Ft-Lbf
Backlash: 30 Arc-Sec
Gear Ratio: 63:1
Timing: 2:1
Brake Torque @ 100 Psi: 200 Ft-Lbf
Spindle – B (Rotary)
Max Speed: 80 °/Sec
Torque (Continuous): 100 Ft-Lbf
Runout Max: 0.0005 In
Backlash: 30 Arc-Sec
Gear Ratio: 63:1
Timing: 2:1
Brake Torque @ 100 Psi: 100 Ft-Lbf
Indexing – A (Tilt)
Max Rotation/Step: ± 120 °
Resolution: 0.001 °
Accuracy (±): ± 15 Arc-Sec
Repeatability: 10 Arc-Sec
Indexing – B (Rotary)
Max Rotation/Step (With Rotary Control): 999.999 °
Resolution: 0.001 °
Accuracy (±): ± 15 Arc-Sec
Repeatability: 10 Arc-Sec
General
Operating Temp (Max Ambient): 100 °F
Air Requirements
Air Pressure Max: 150 Psi
Dimensions – Shipping
Export Crate: 49.0 In X 21.0 In X 25.0 In
Weight: 520 Lb

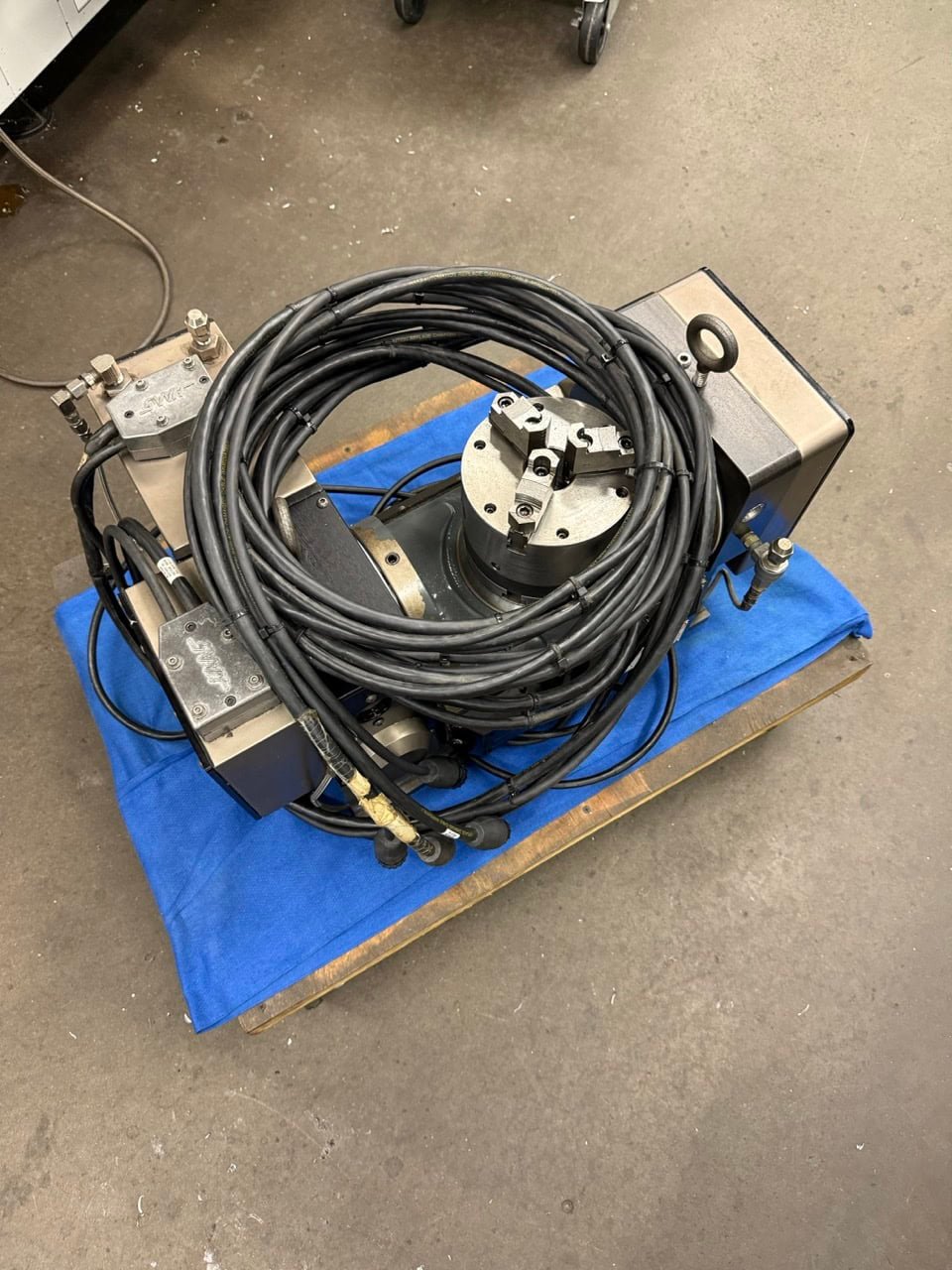

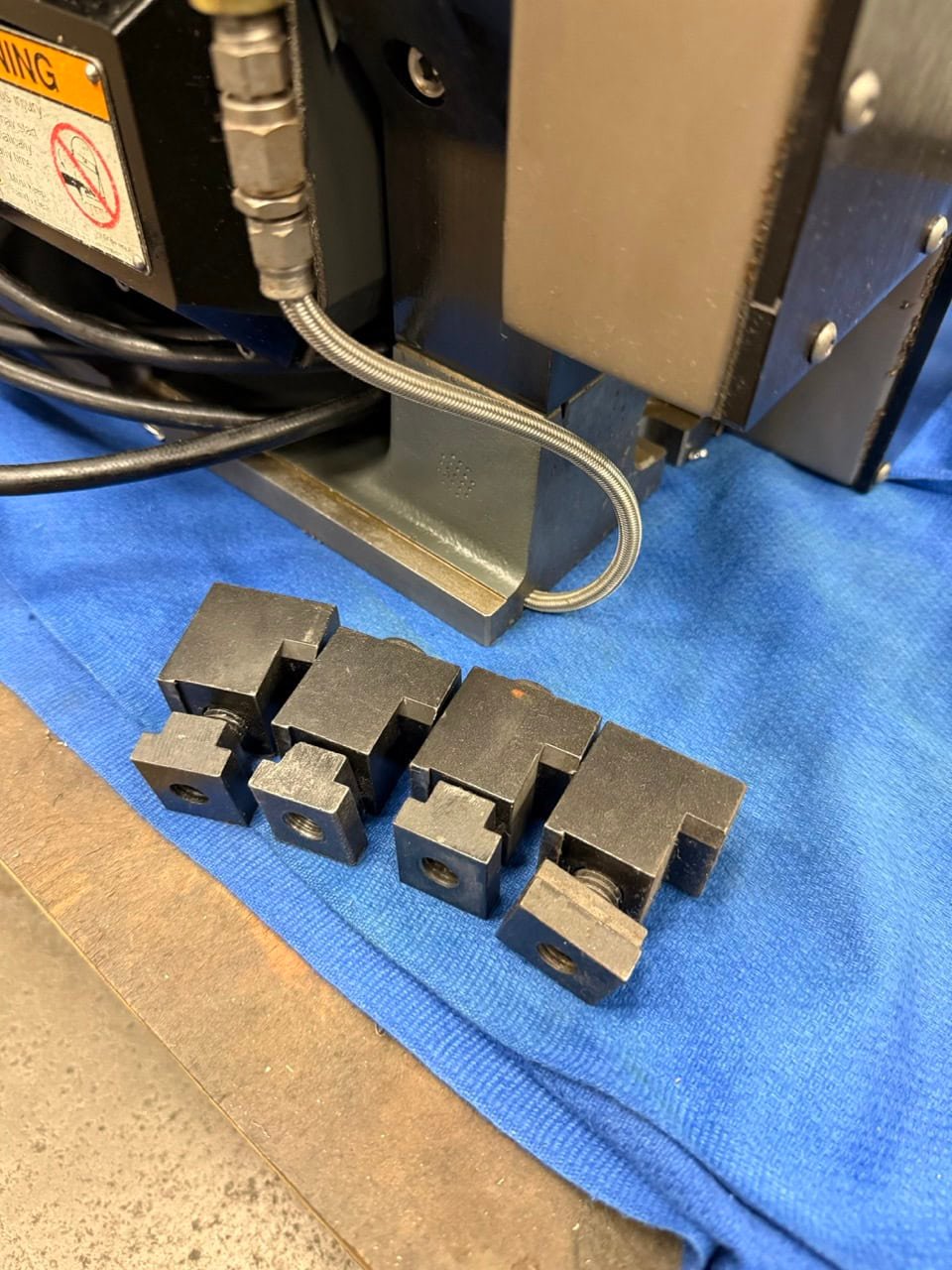

Equipped With:

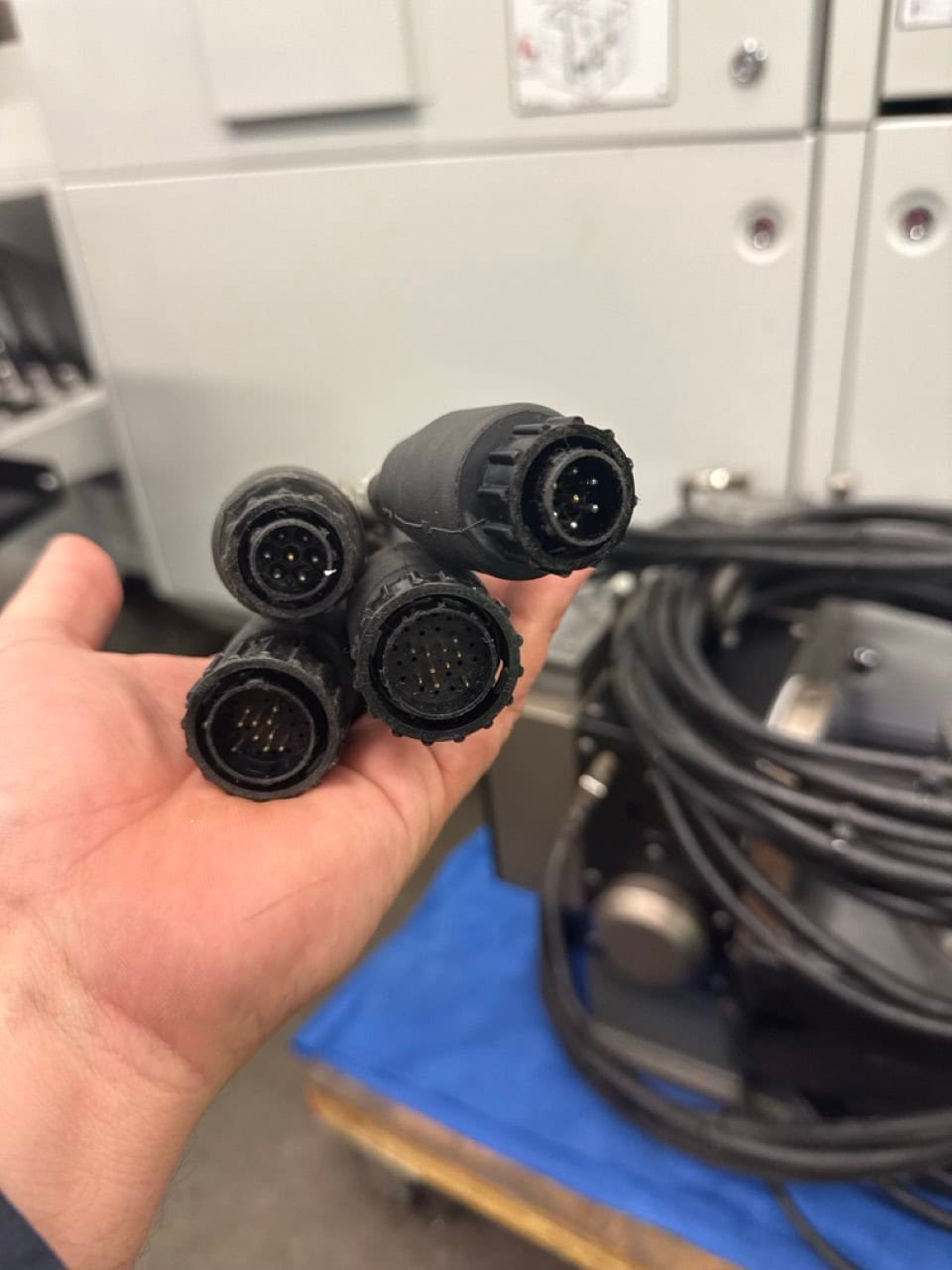

4th and 5th Axis Drives
