Description
X Axis: 30″
Y Axis: 16″
Z Axis: 20″

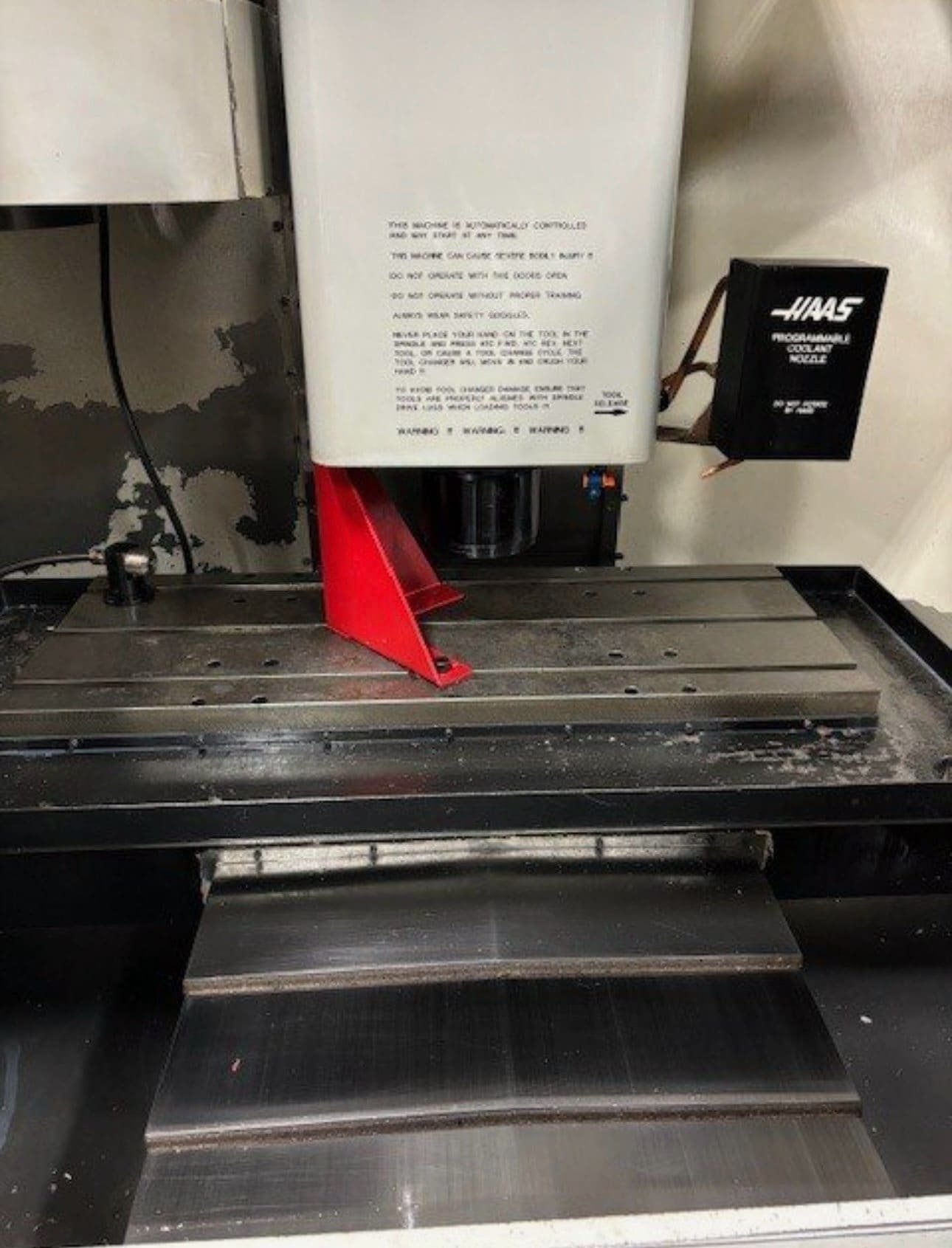

Table Size: 36″ x 14″
Table Capacity: 3,000 lbs
Spindle Taper: CAT 40
Spindle Speeds: 0 – 7,500 RPM
Spindle Motor Power: 20 HP
Tool Changer Capacity: 20 stations (ATC)
X Axis Rapid Traverse Rate: 710 IPM
Y Axis Rapid Traverse Rate: 710 IPM
Z Axis Rapid Traverse Rate: 710 IPM
Maximum Cutting Feed Rate: 300 IPM
Approximate Machine Weight: 8,000 lbs
Approximate Dimensions (LxWxH): 110″ x 93″ x 97″
Equipped With:

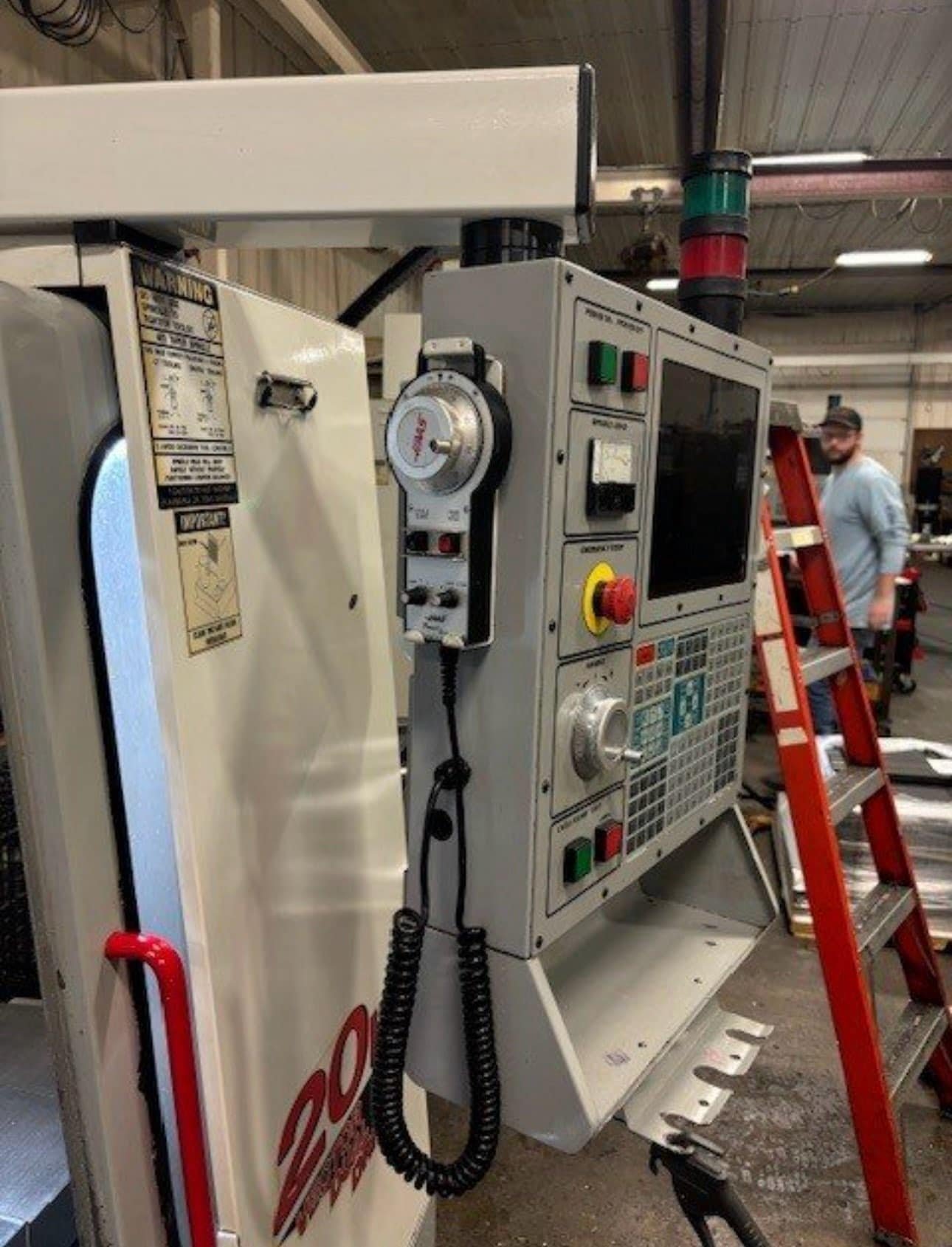

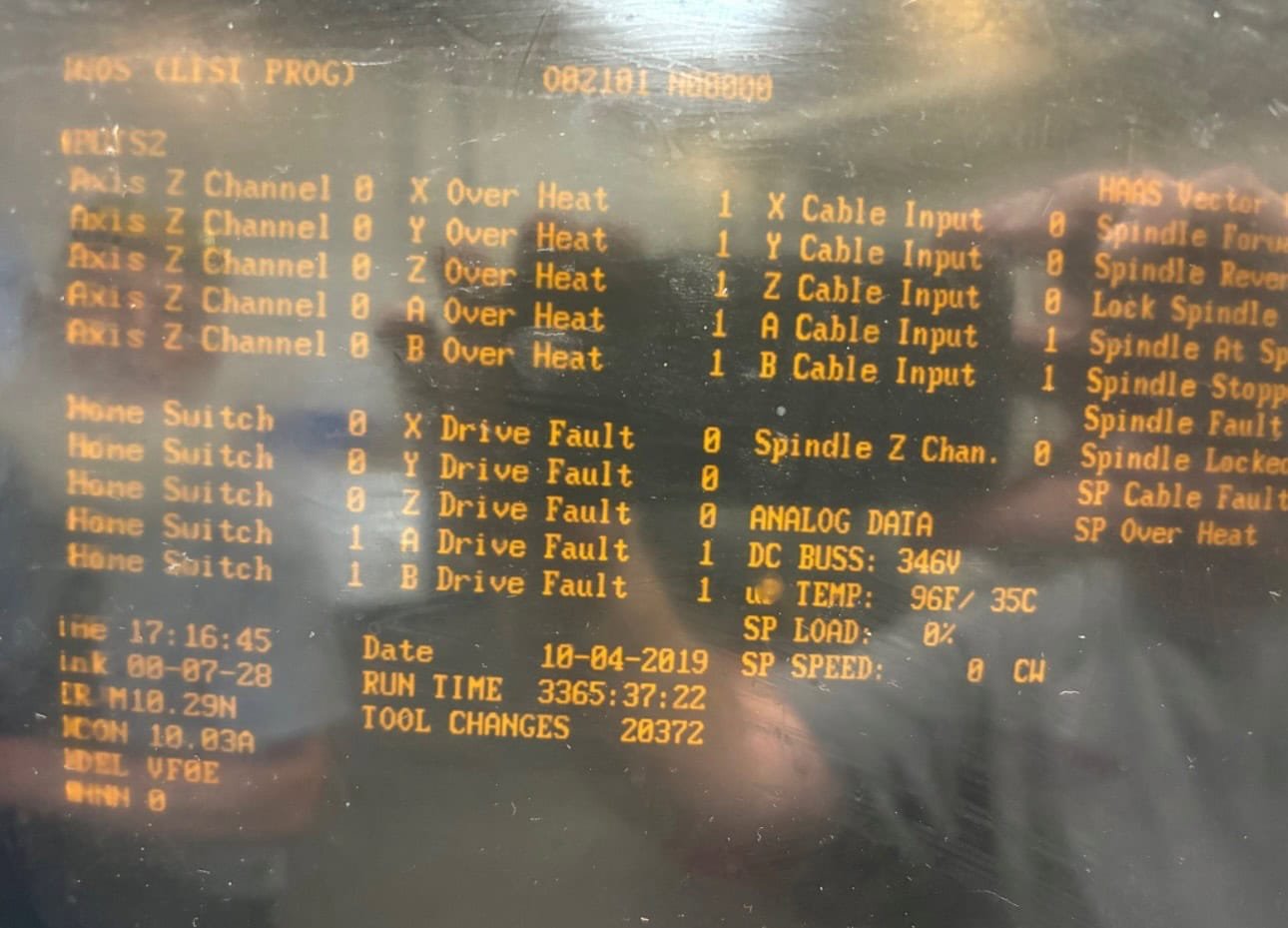

Control: Haas 32-bit CNC

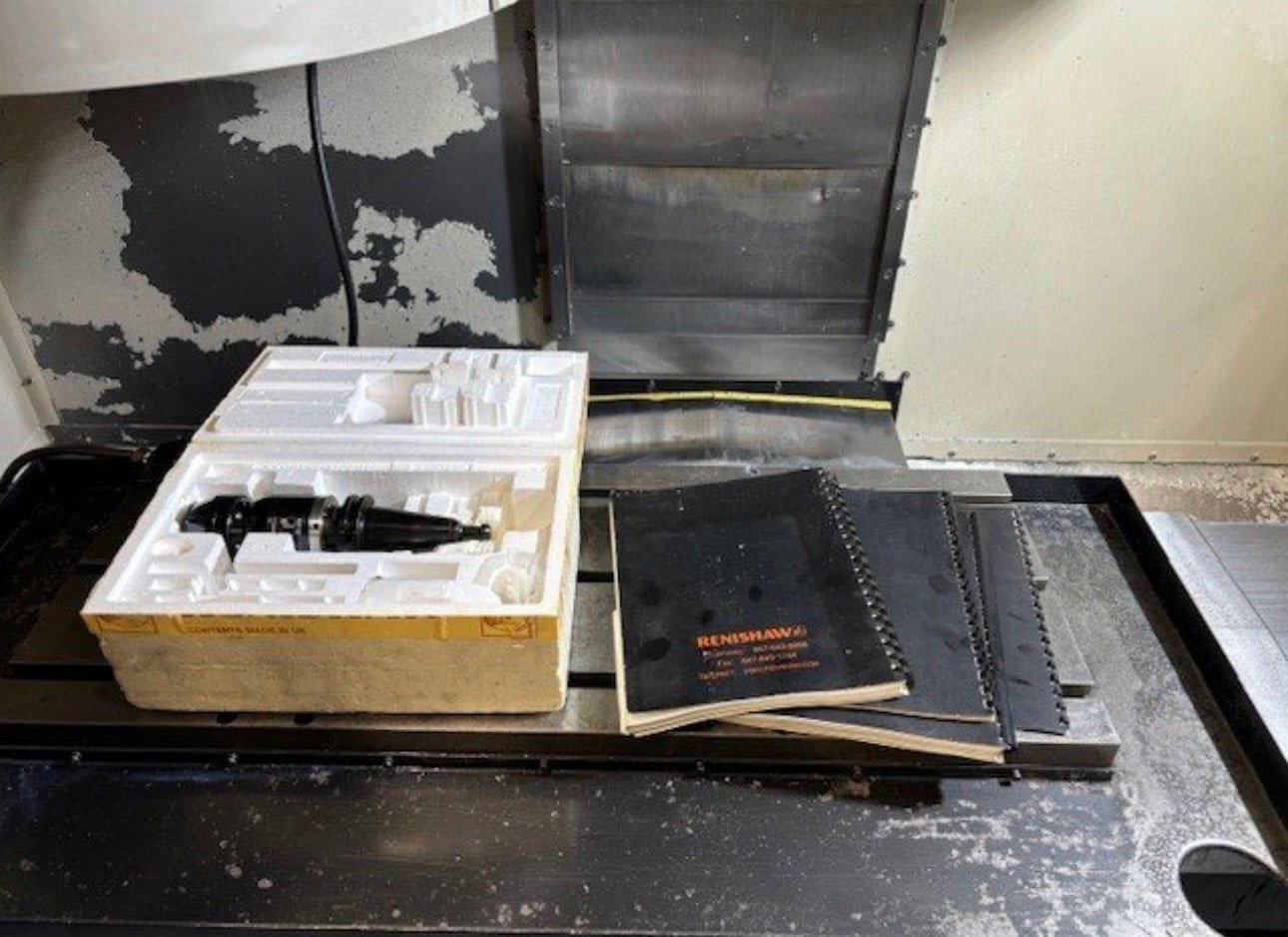

Renishaw Probe
Programmable Coolant
Chip Conveyor

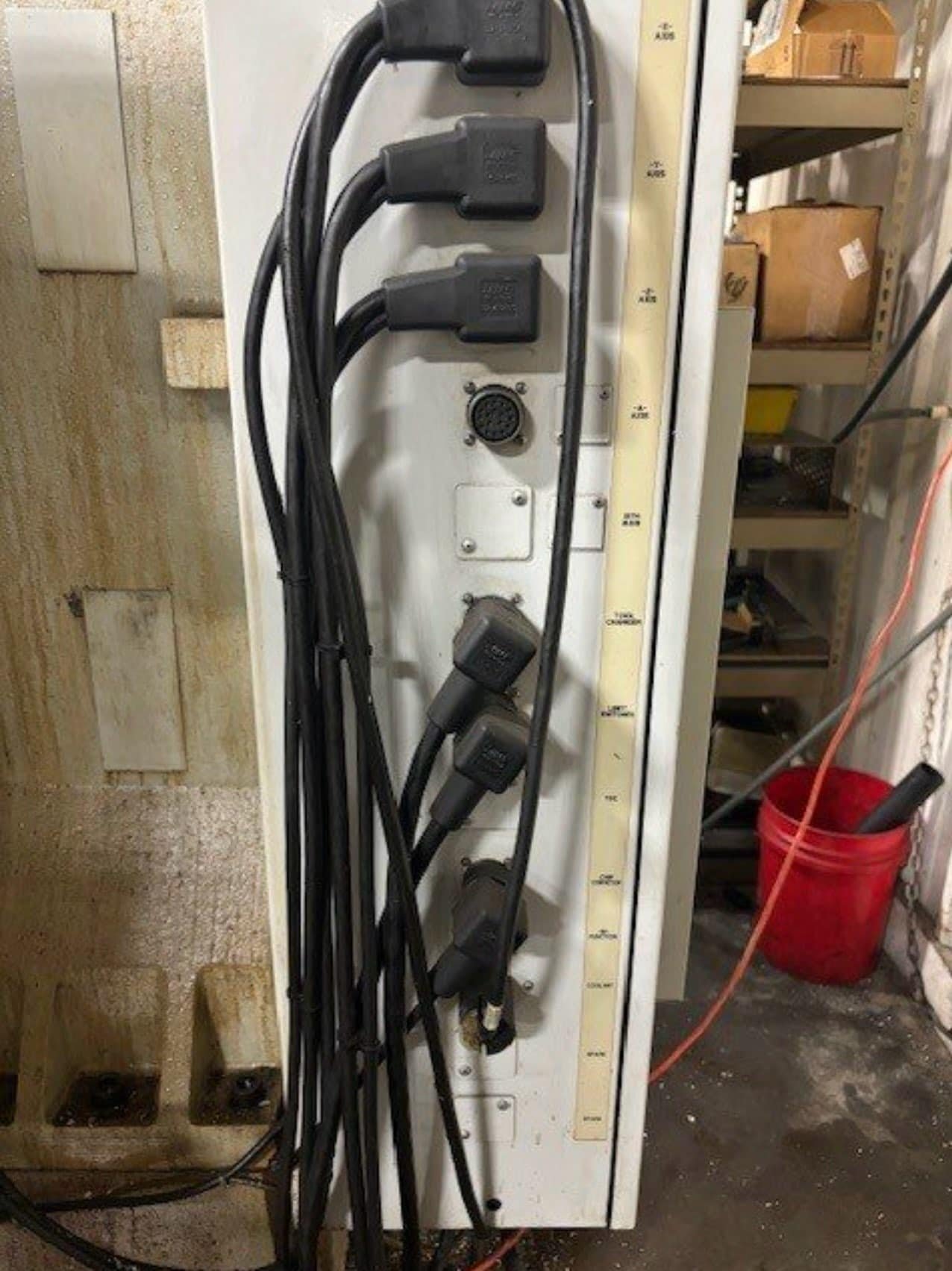

Wired for 4th
