Description
X-Axis Travel: 20.00″
Y-Axis Travel: 16.00″
Z-Axis Travel: 20.00″
Table Size (L × W): 26.00″ × 14.00″
Max Table Load: 3,000 lbs
Spindle Speed: 8,100 RPM
Spindle Power: 30 HP
Spindle Taper: CT40
Spindle Nose to Table (max): 24.0″
Spindle Nose to Table (min): 4.0″
Feedrates & Motion
Max Cutting Feedrate: 650 ipm
Rapid Traverse (X/Y/Z): 1,000 ipm

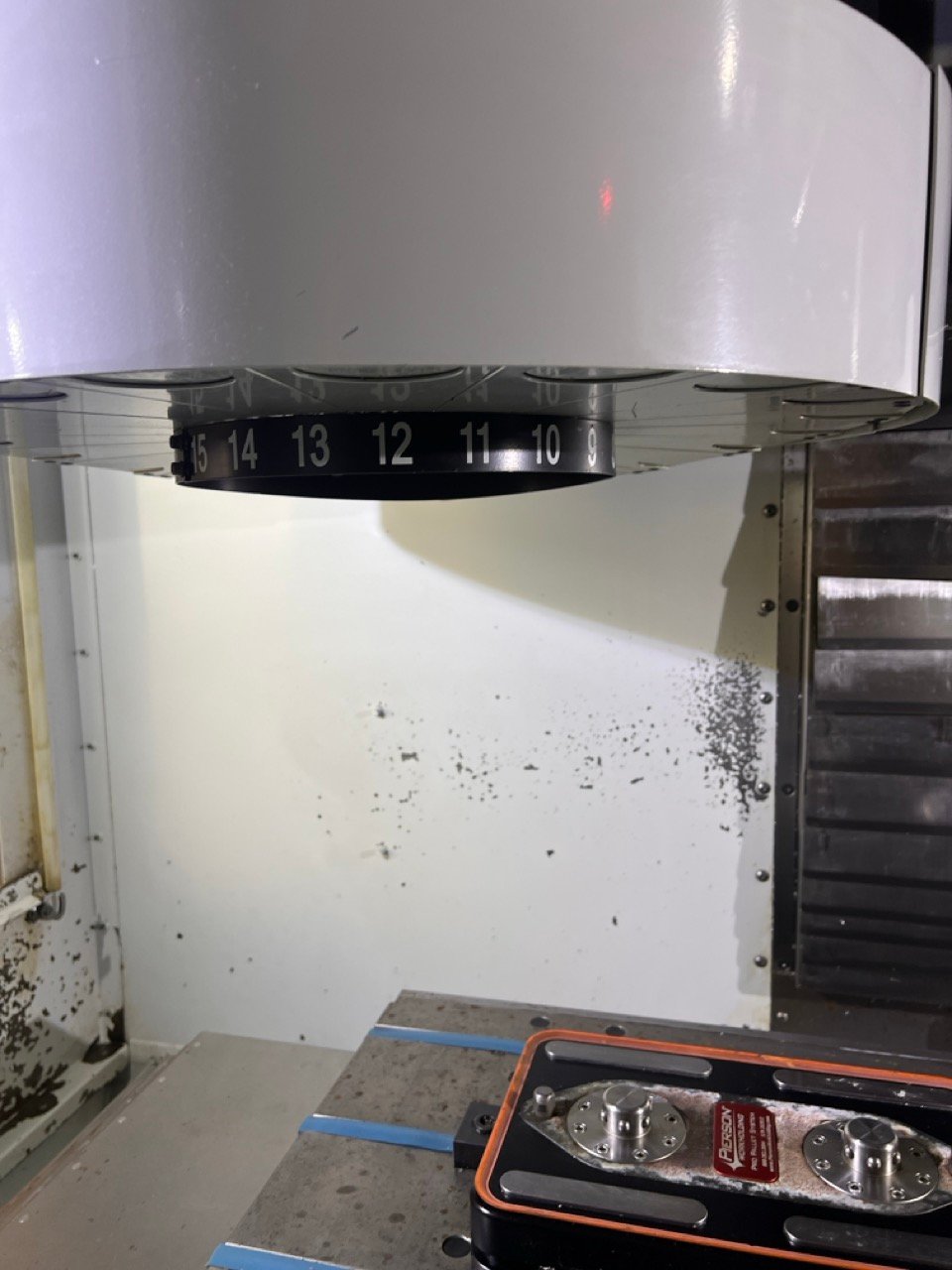

Tool Changer
Type: Carousel
Capacity: 20 tools
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool-to-Tool Time: ~4.2 sec
Chip-to-Chip Time: ~4.5 sec
Equipped With:

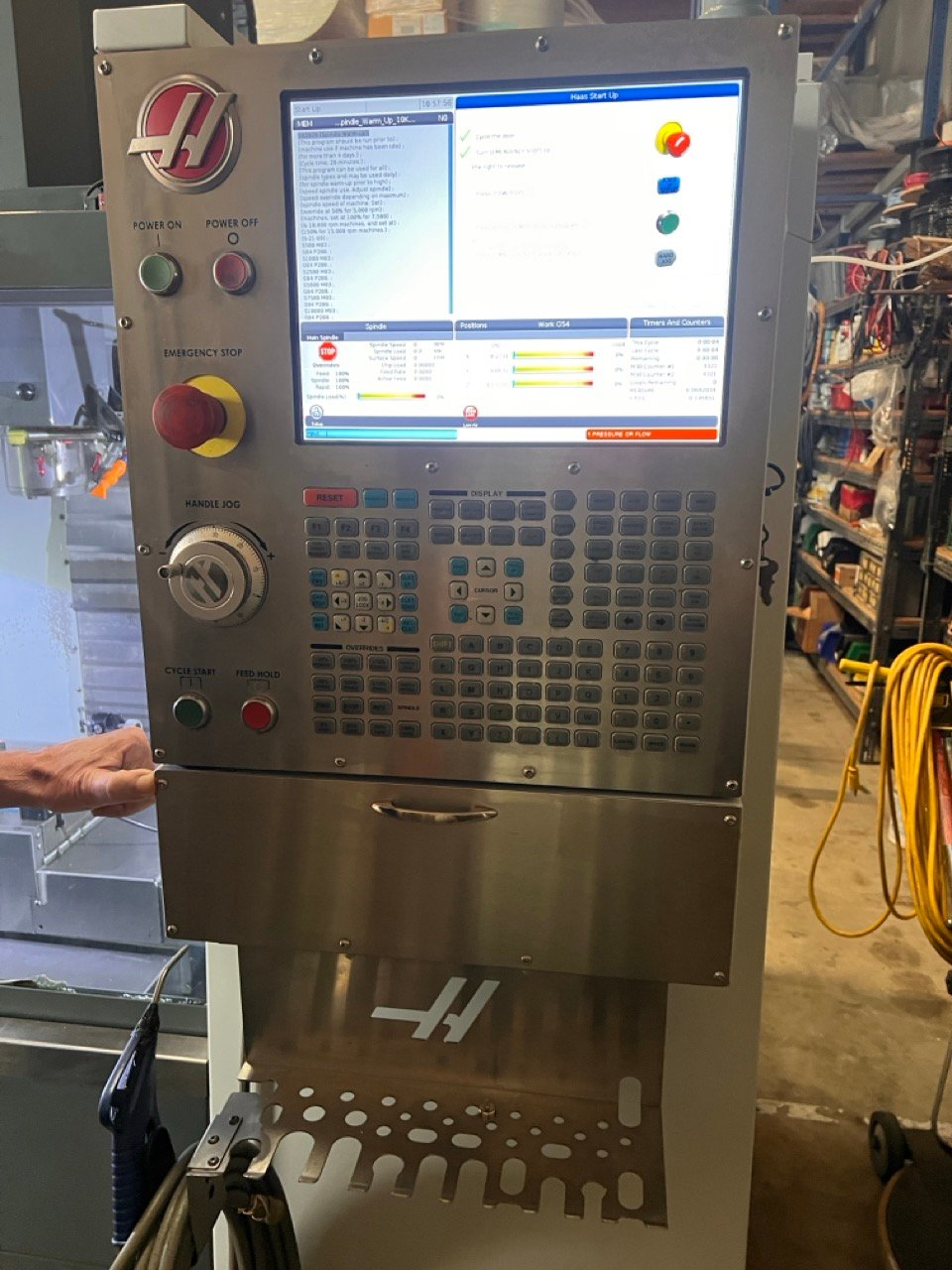

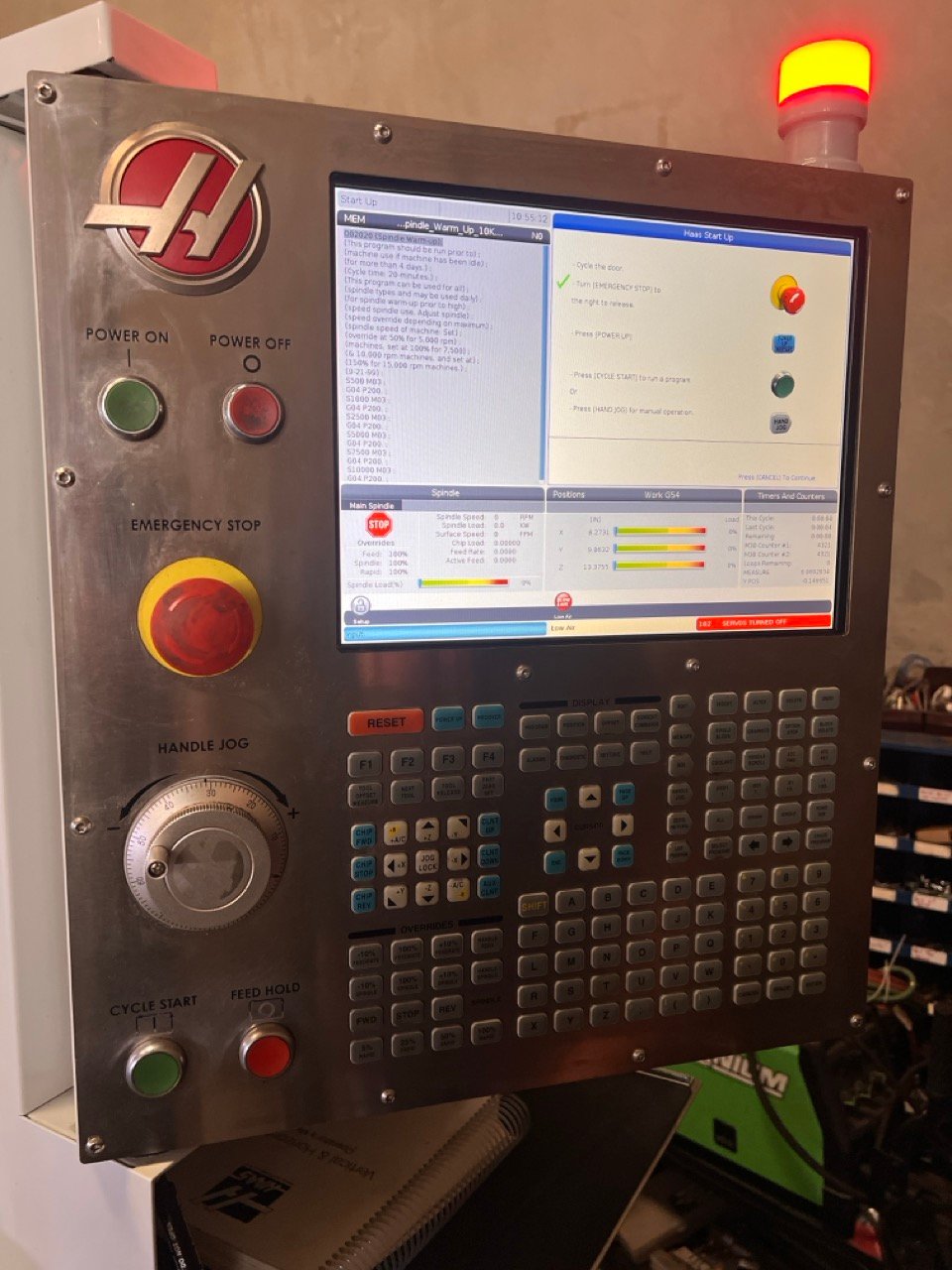

Haas CNC Control

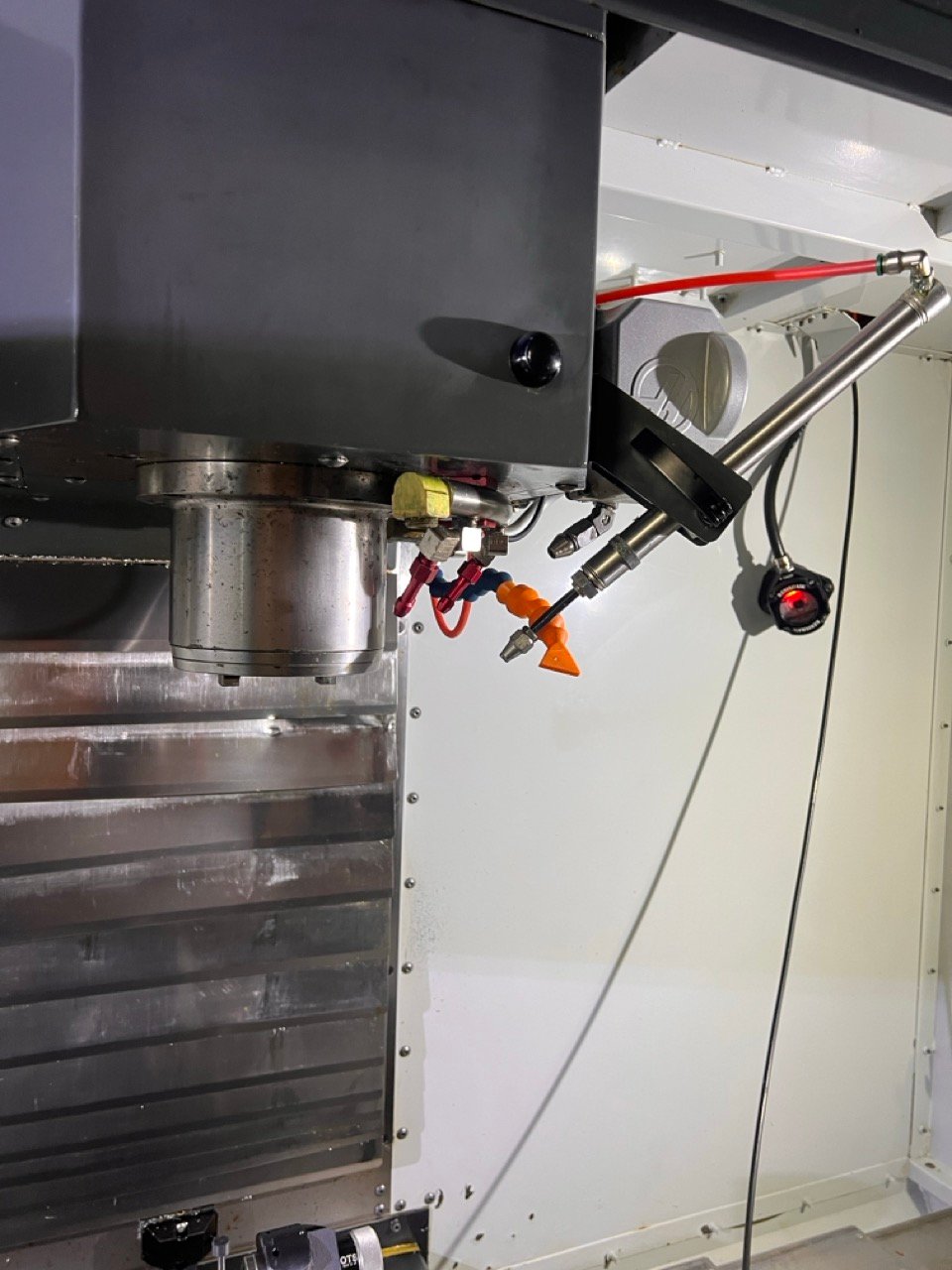

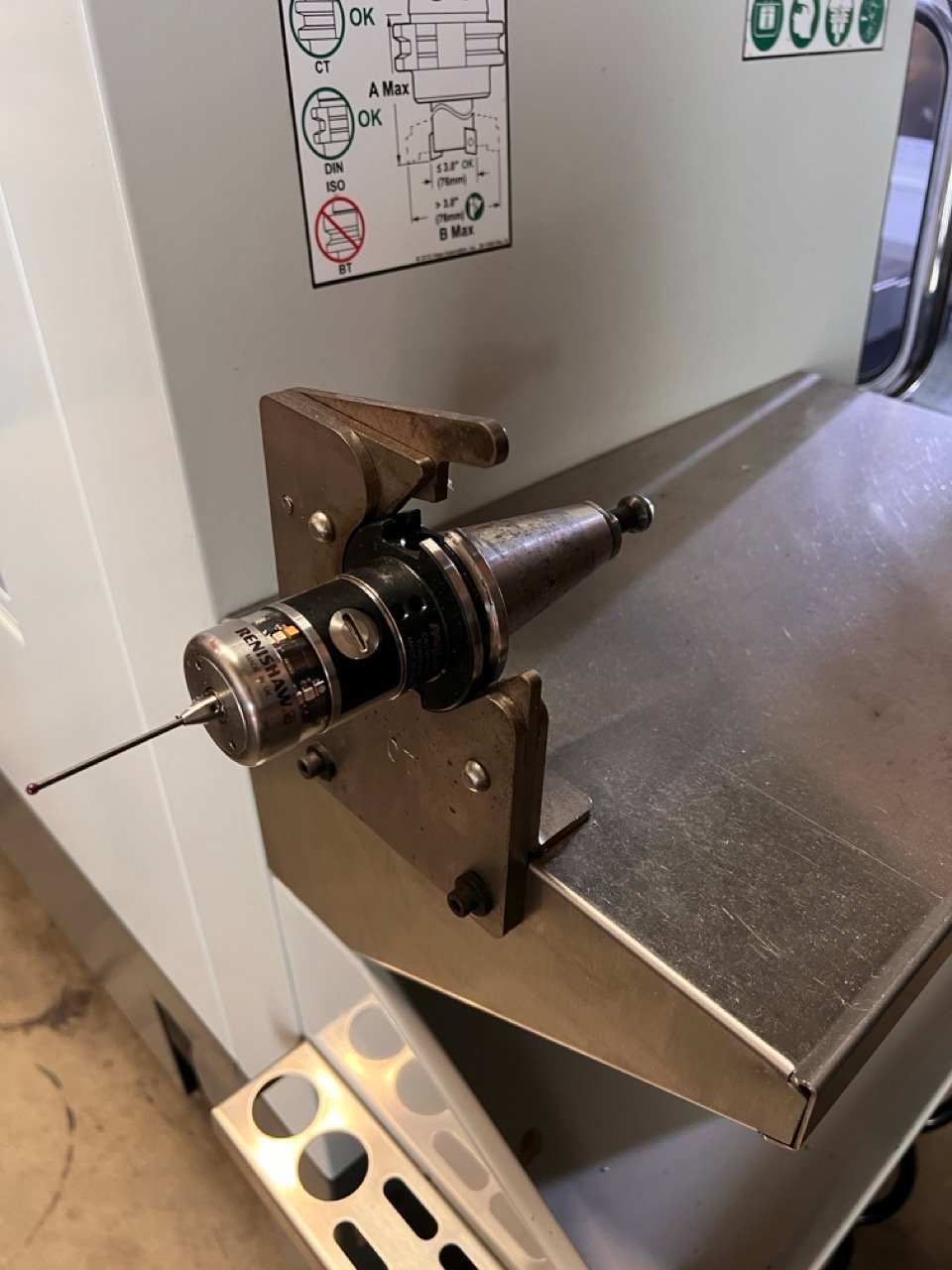

Renishaw Probe

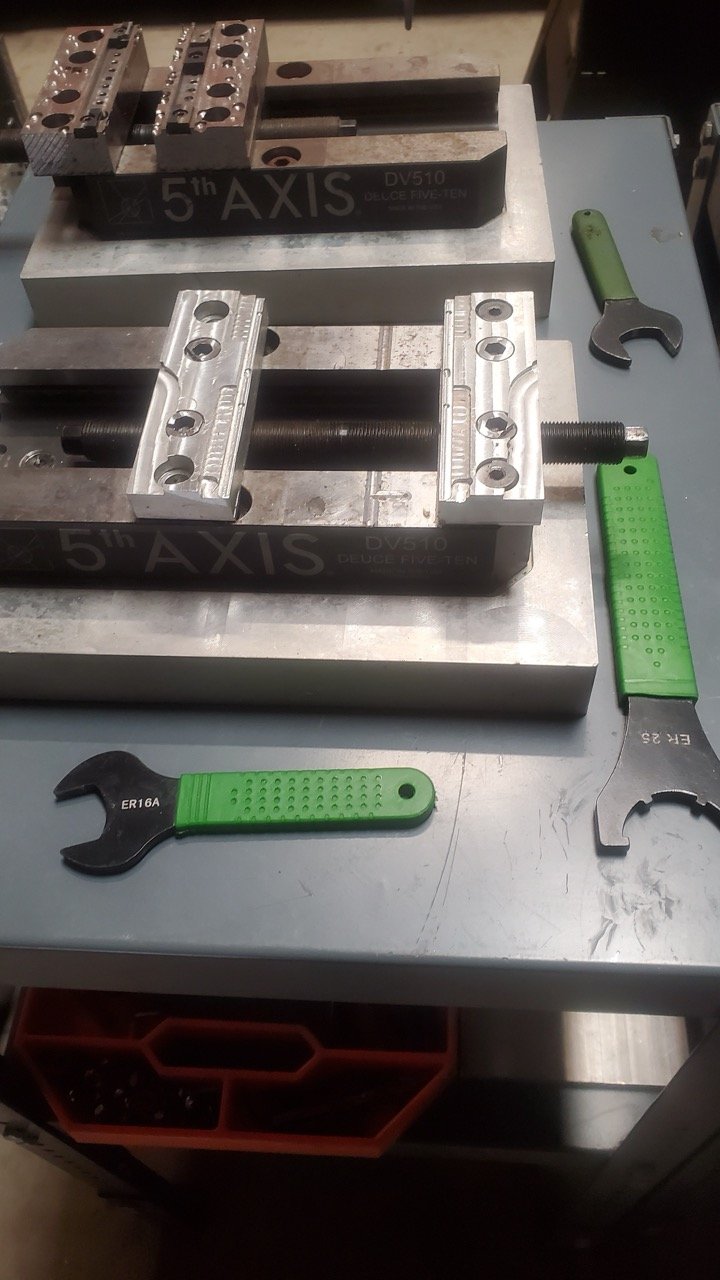

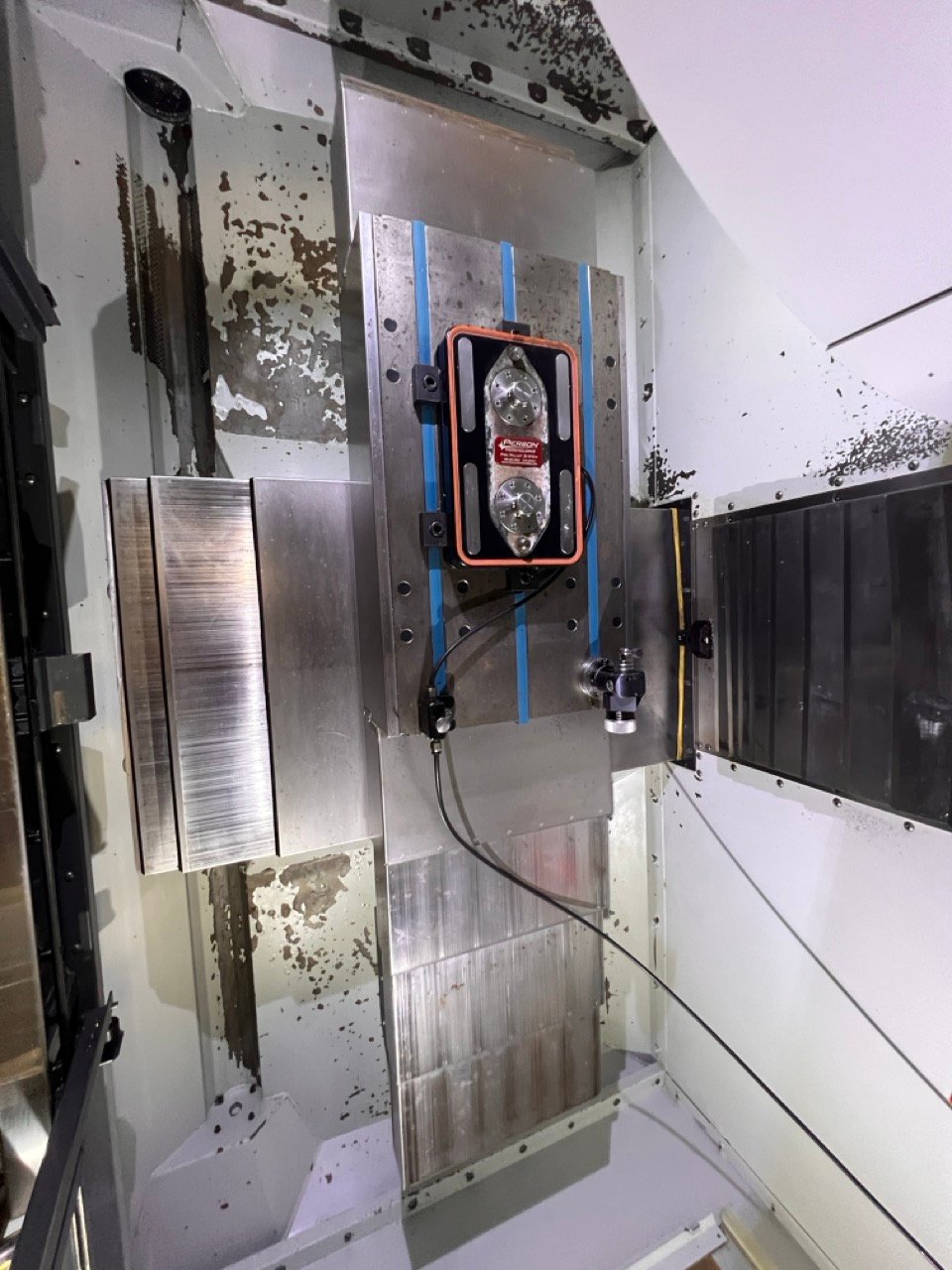

5th Axis Double Station Vice
Rigid Tapping
Ethernet

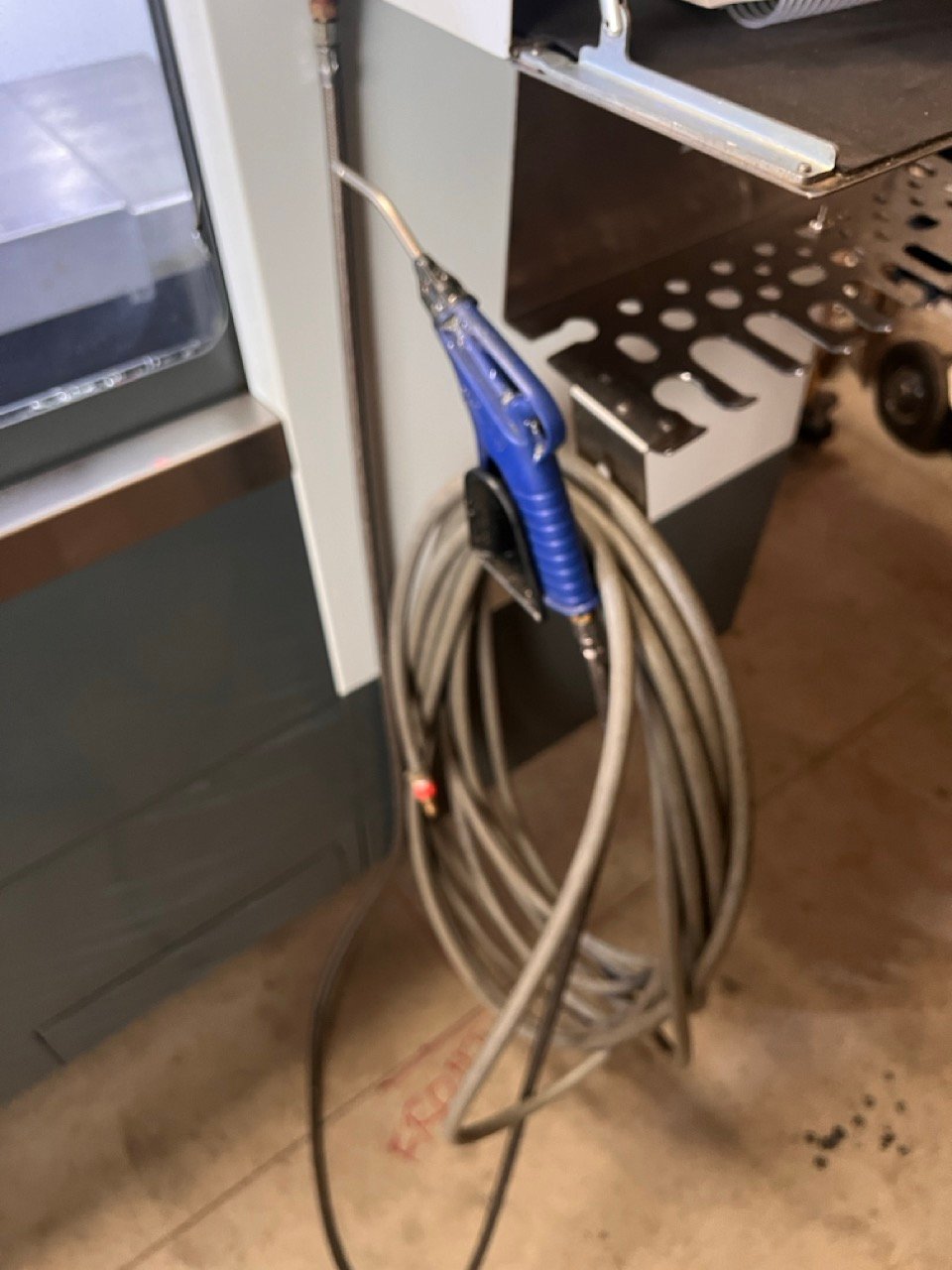

Air Gun
