Description
Table Size: 36″ x 14″
Maximum Table Load: 1,500 lbs
X-Axis Travel: 30″ (762 mm)
Y-Axis Travel: 16″ (406 mm)
Z-Axis Travel: 20″ (508 mm)
Spindle Nose to Table Distance: 4″ – 24″
Spindle Taper: CAT 40
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Rapid Traverse Rates (X/Y/Z): 1,400 IPM
Tool Changer Capacity: 20
Power Requirements: 195-260 V; 3 Ph; 50/60 Hz
Approx. Machine Weight: 8,000 lbs
Approx. Machine Dimensions: 102″×99″×102″
Equipped With:

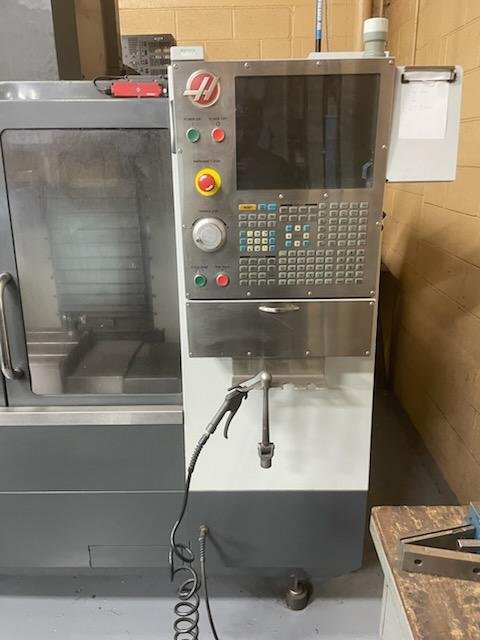

Haas CNC Control
4th & 5th Axis Drive & Wiring
Probing Enabled
24 Position Side Mount Tool Changer
*No trunnion included
