Description
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Maximum Weight on Table: 3500 lbs (1588 kg)
Spindle Nose to Table Surface: 4″ – 24″
X/Y-Axis Rapid Traverse Rates: 1,000 IPM (25.4 m/min)
Z-Axis Rapid Traverse Rates: 800 IPM (20.3 m/min)
Spindle Speed: 30,000 RPM
Spindle Motor: 30 hp (22.4 kW)
Spindle Taper: CAT 30
Equipped With:

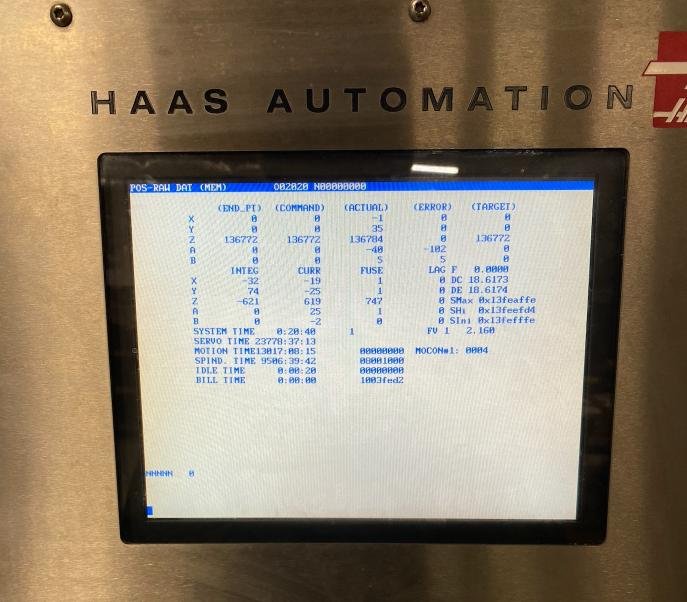

Haas CNC Control
30K RPM Vector Drive Spindle

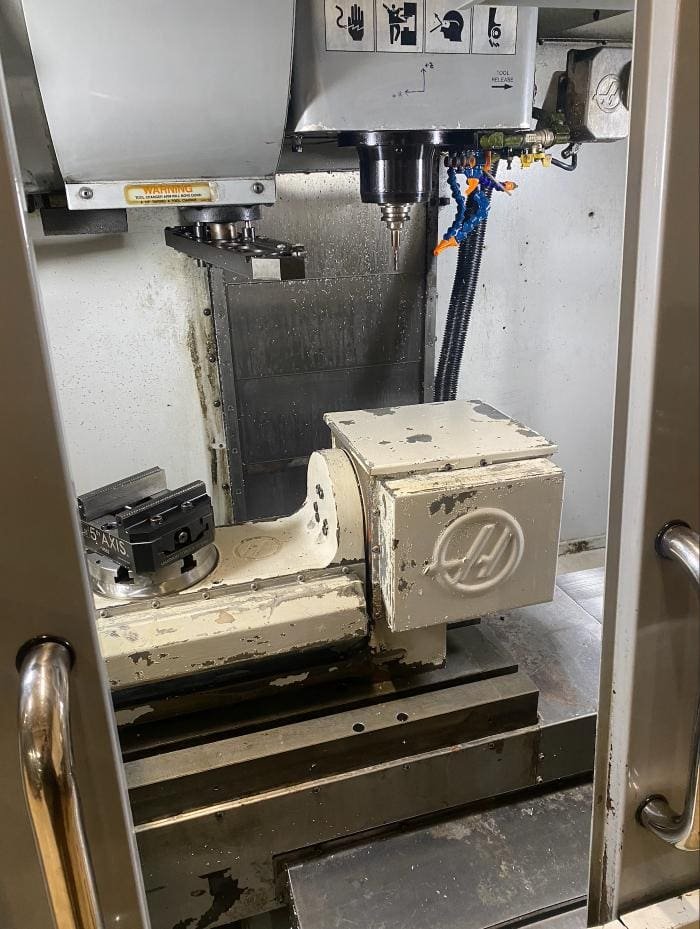

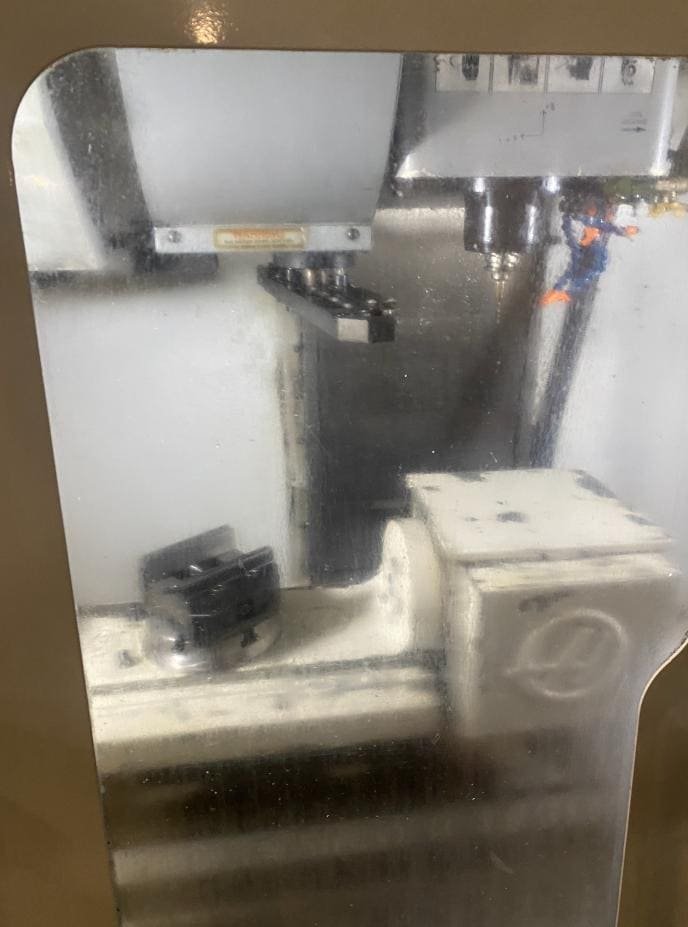

5th Axis Trunnion Rotary Table
Renishaw Probing Kit
Chiller Unit
55 Gallon Coolant Tank & Pump
Chip Auger & Chute
Available Cat 30 Tool Holders
