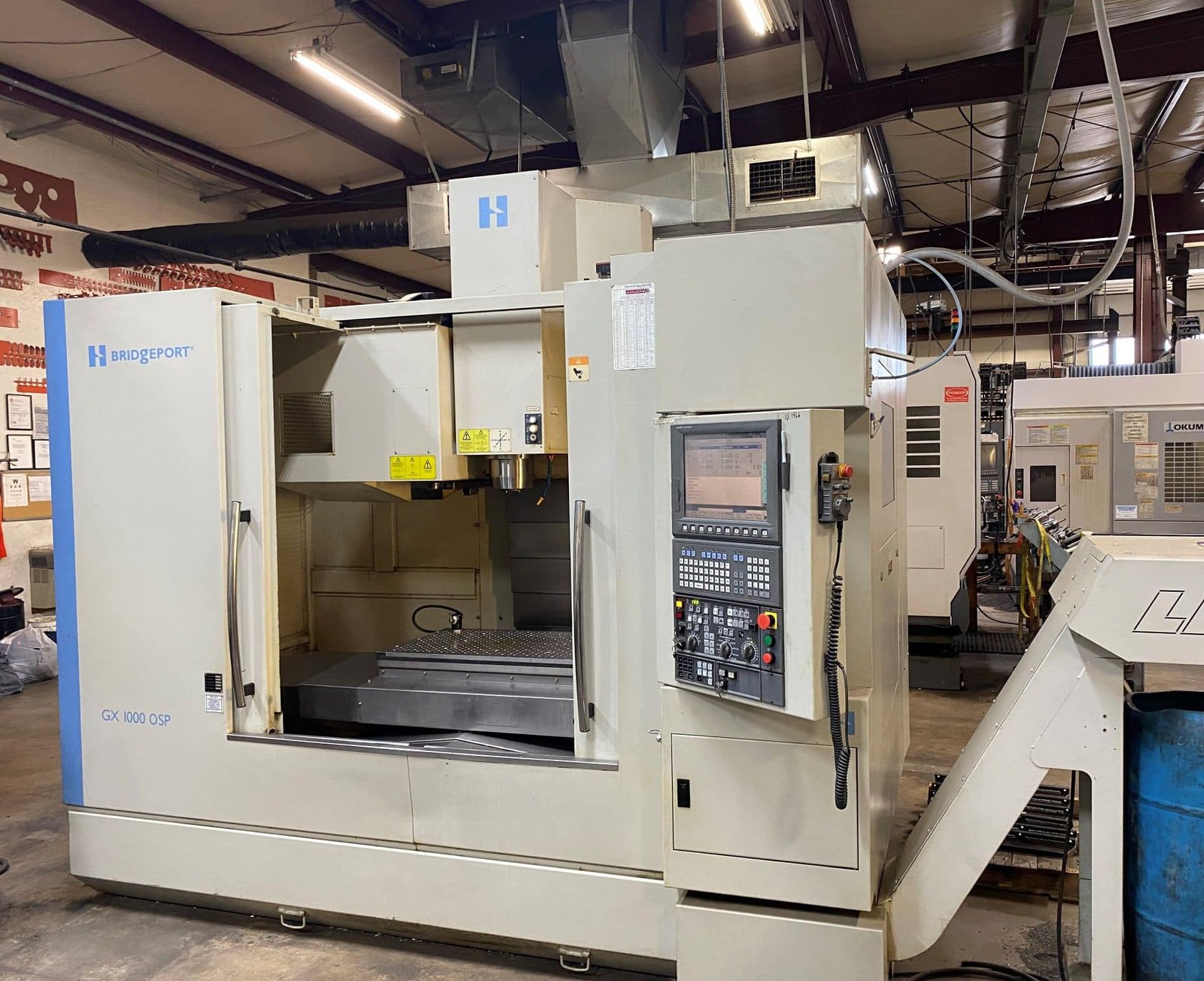

Description
Axis Travels:
Table (X axis): 40.16 in.
Saddle (Y axis): 21.25 in.
Head (Z axis): 21.25 in.

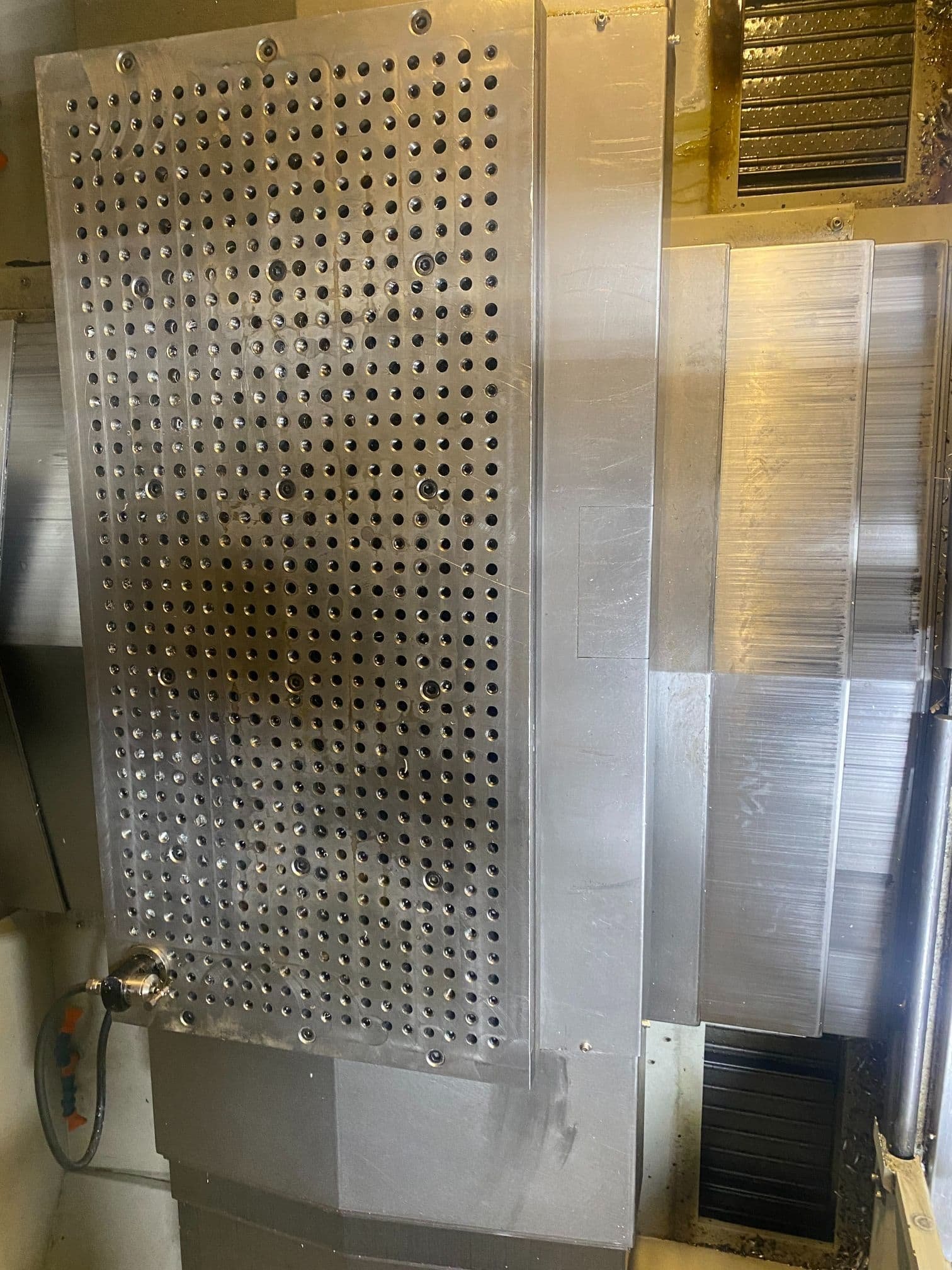

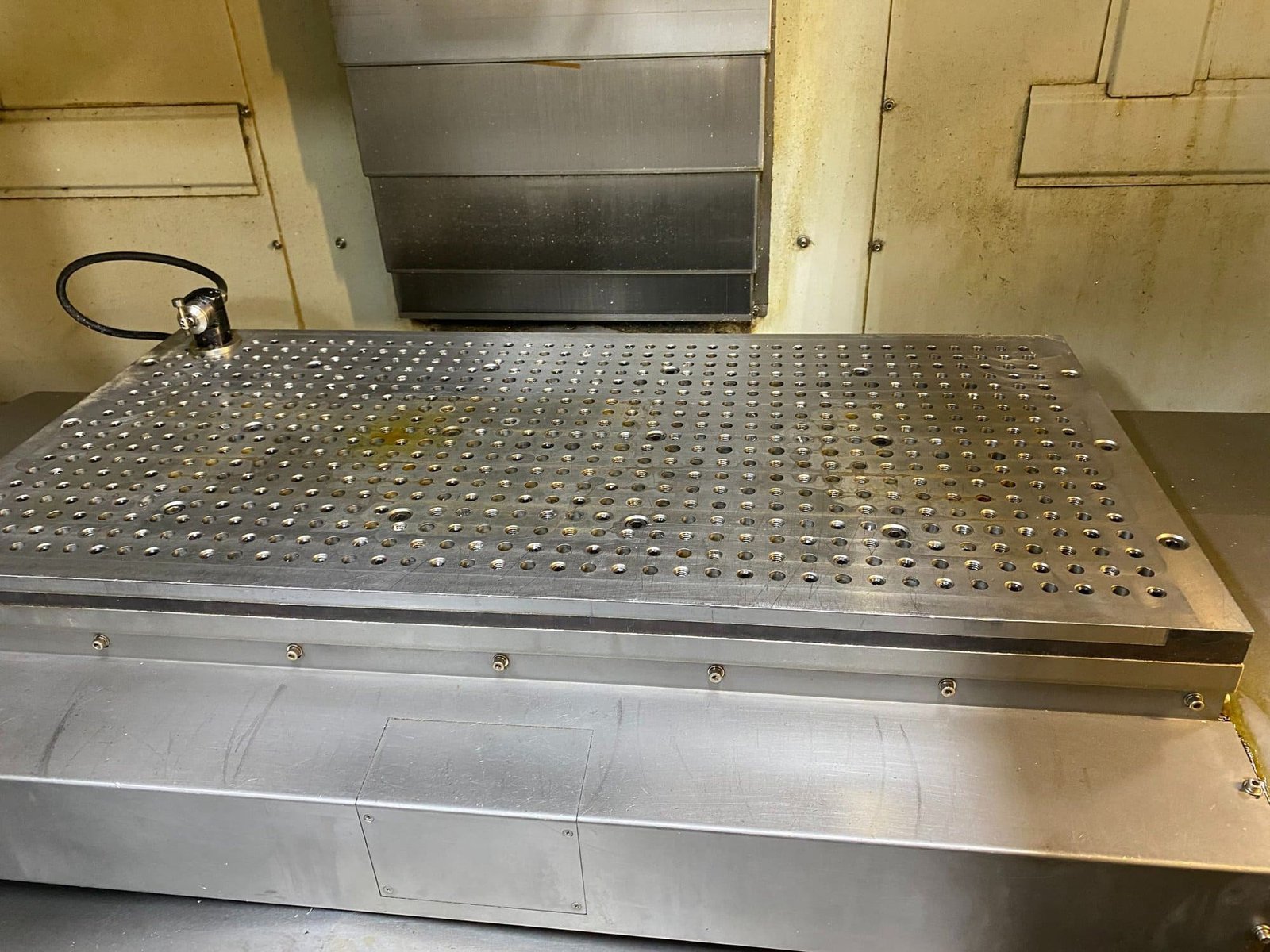

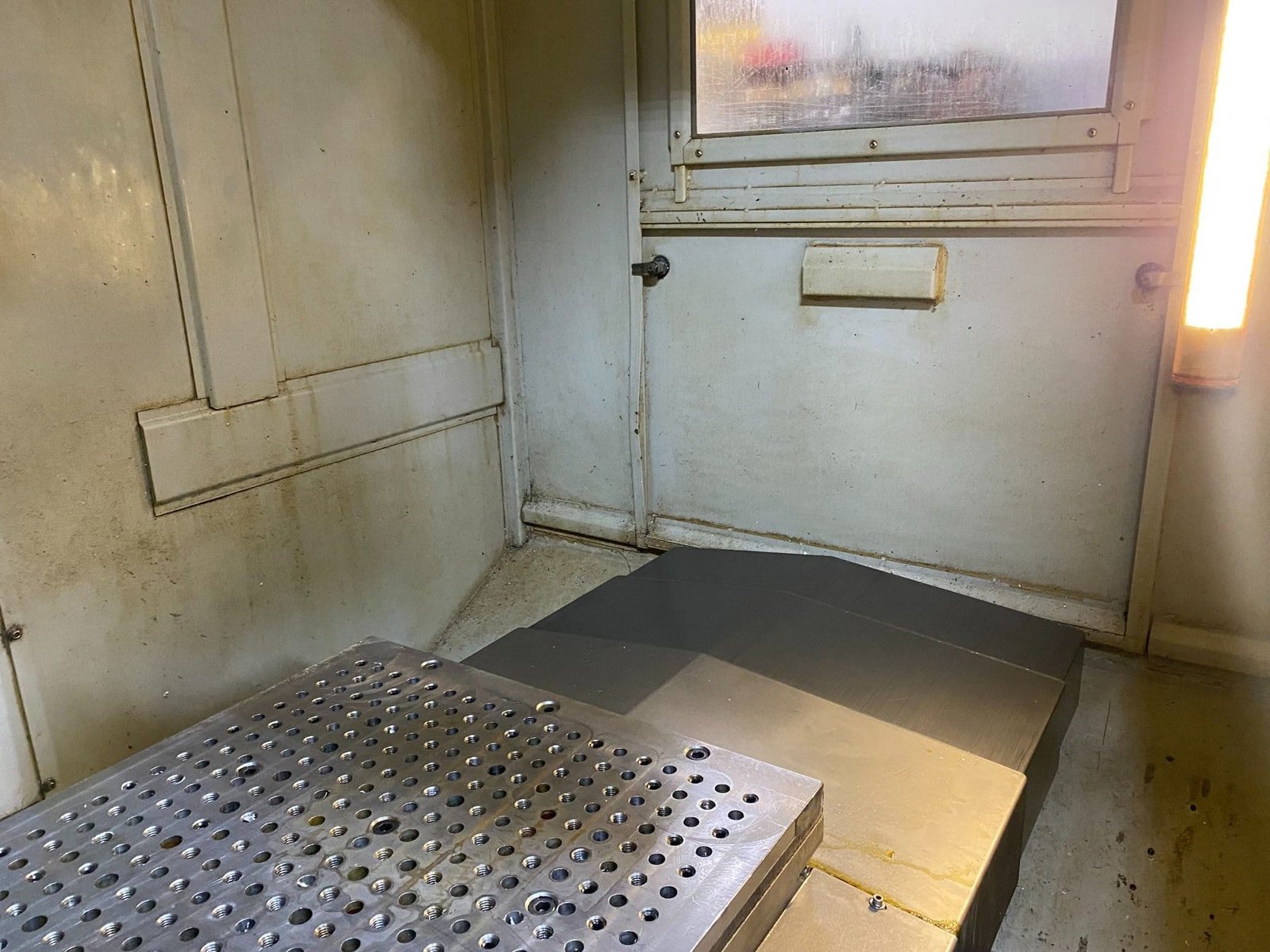

Working surface: 44.16 in. X 21.25 in.
Table Load: 1760lbs.
Number of T-Slots: 3 on 6.3” centers
T-Slot Size: 0.708” (18 mm)
Positioning
Auto Mode (X and Y axes): 1,417 in./min
Auto Mode (Z axis): 1,417 in./min.

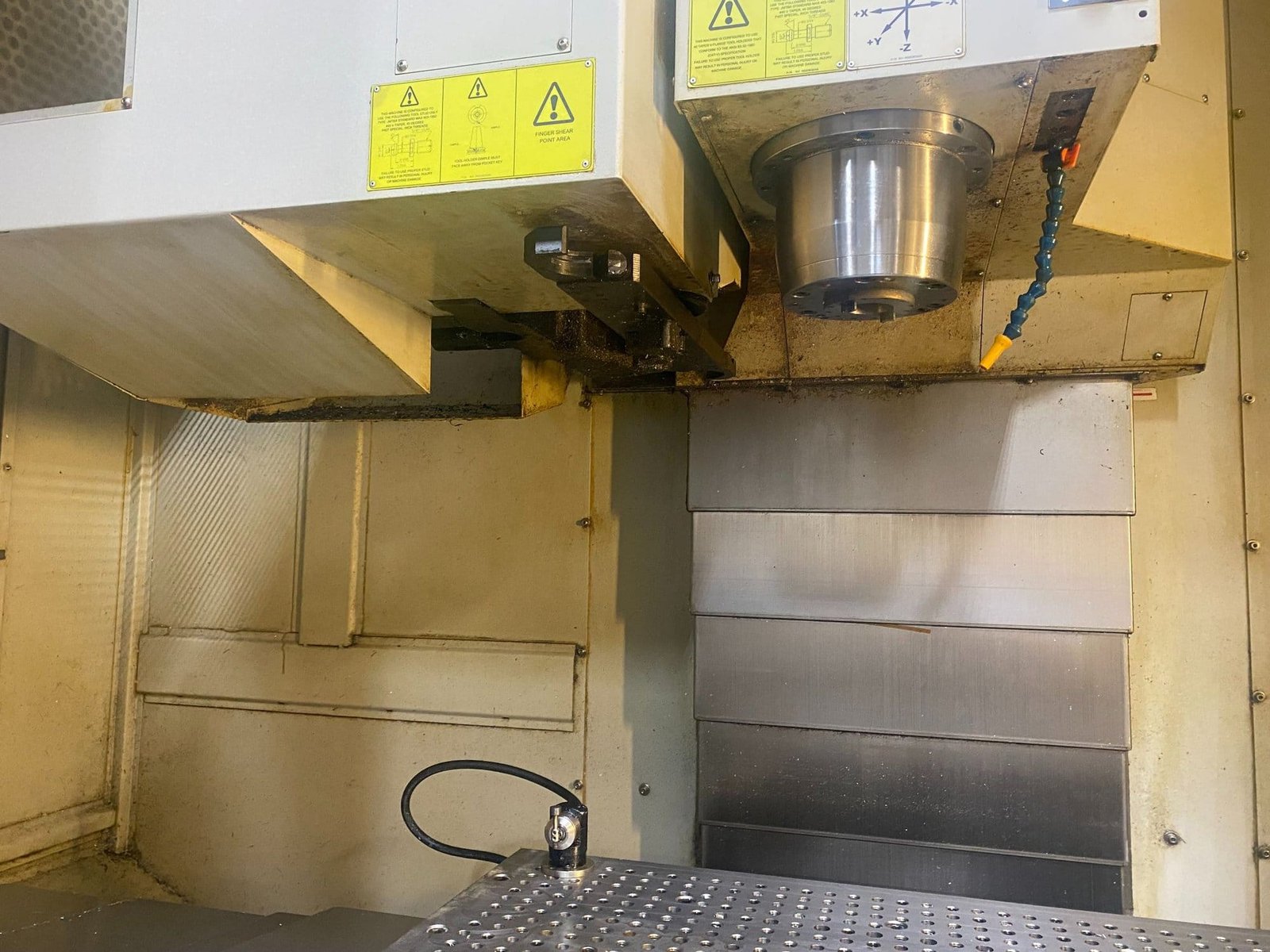

Spindle Taper: No. 40
Tool Holder: CT40 or BT40

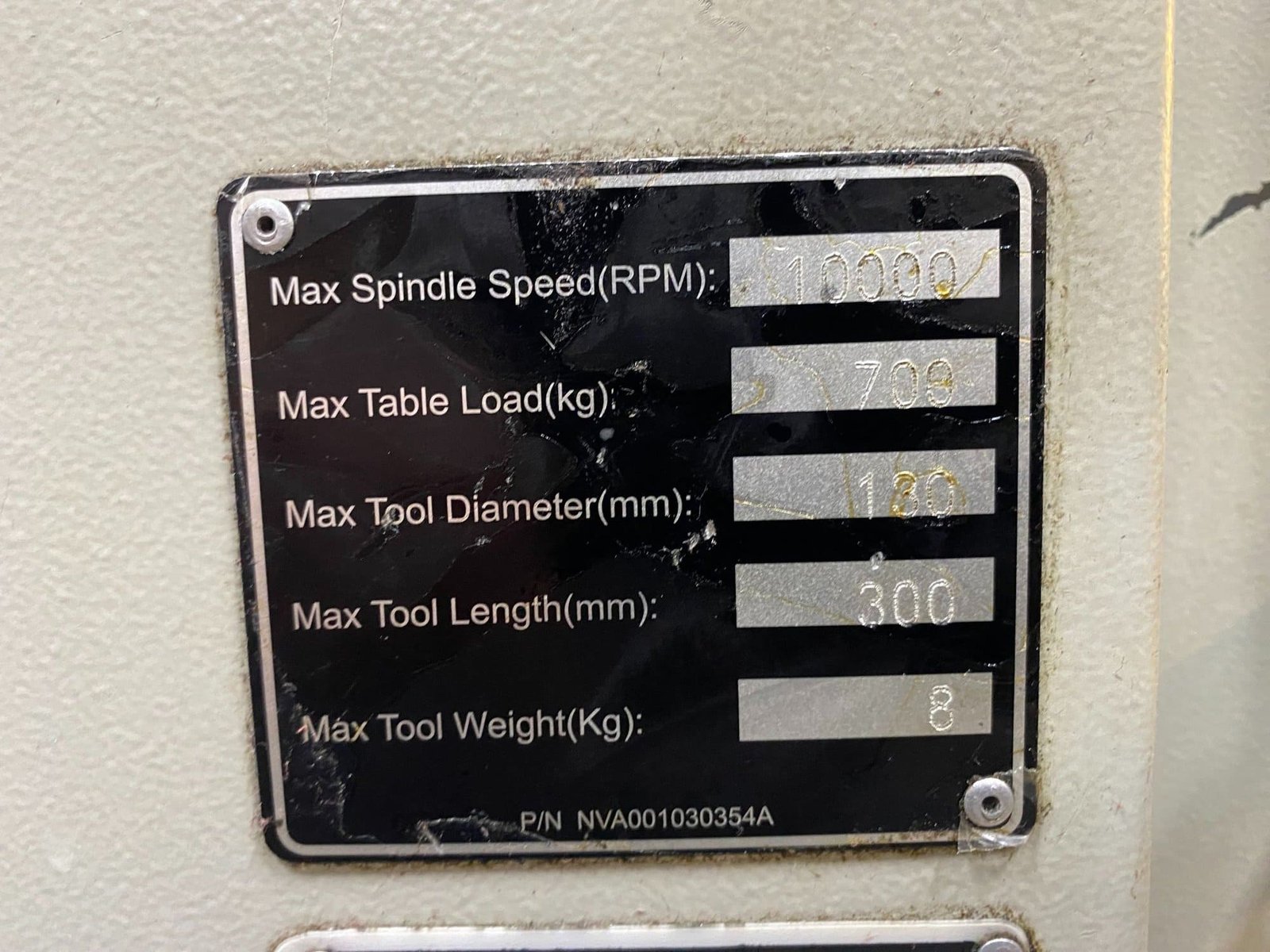

Max Spindle Speed: 10,000 RPM
Spindle Motor HP: 15/20/34.8 hp
Maximum Tool Weight 17.6 lbs.
Maximum Tool Length 13.7”
Dimensions: 117″ x 85″ x 107″ H (Approx.)
Weight: 13,000 lbs (Approx.)
Power: 220 Volt / 3-phase 60 Hz
Equipped with:
Okuma OSP-P200 Control
Hardinge Deluxe Software – By Okuma
Swing Arm ATC: 30 Tools CAT-40
Chip flush System
Coolant Wash Down-Manual
Coolant tank capacity 95 US gallons (360L)
Rigid Tapping

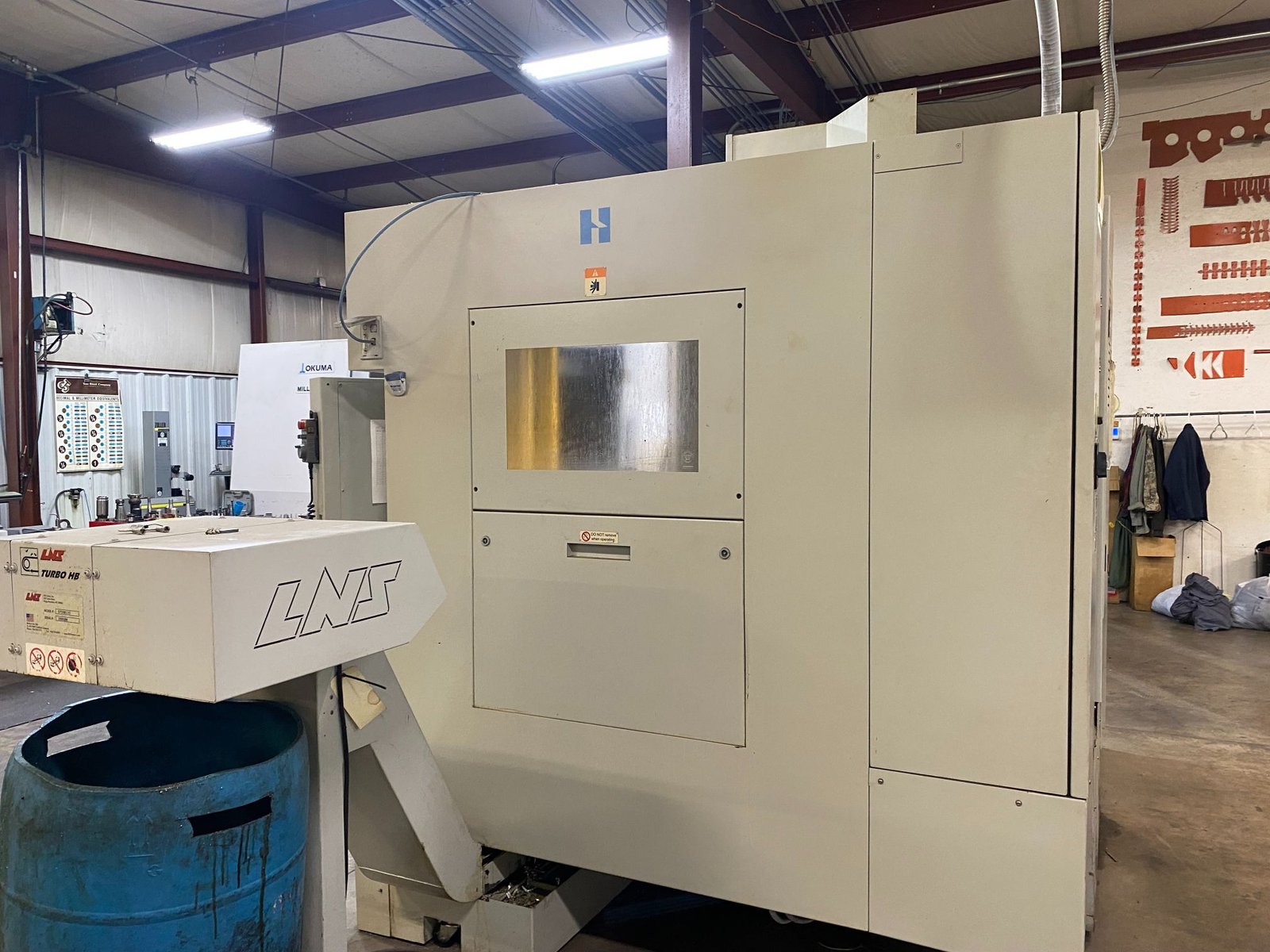

LNS Turbo HB Chip Conveyor
Air Blast for Dry Cutting

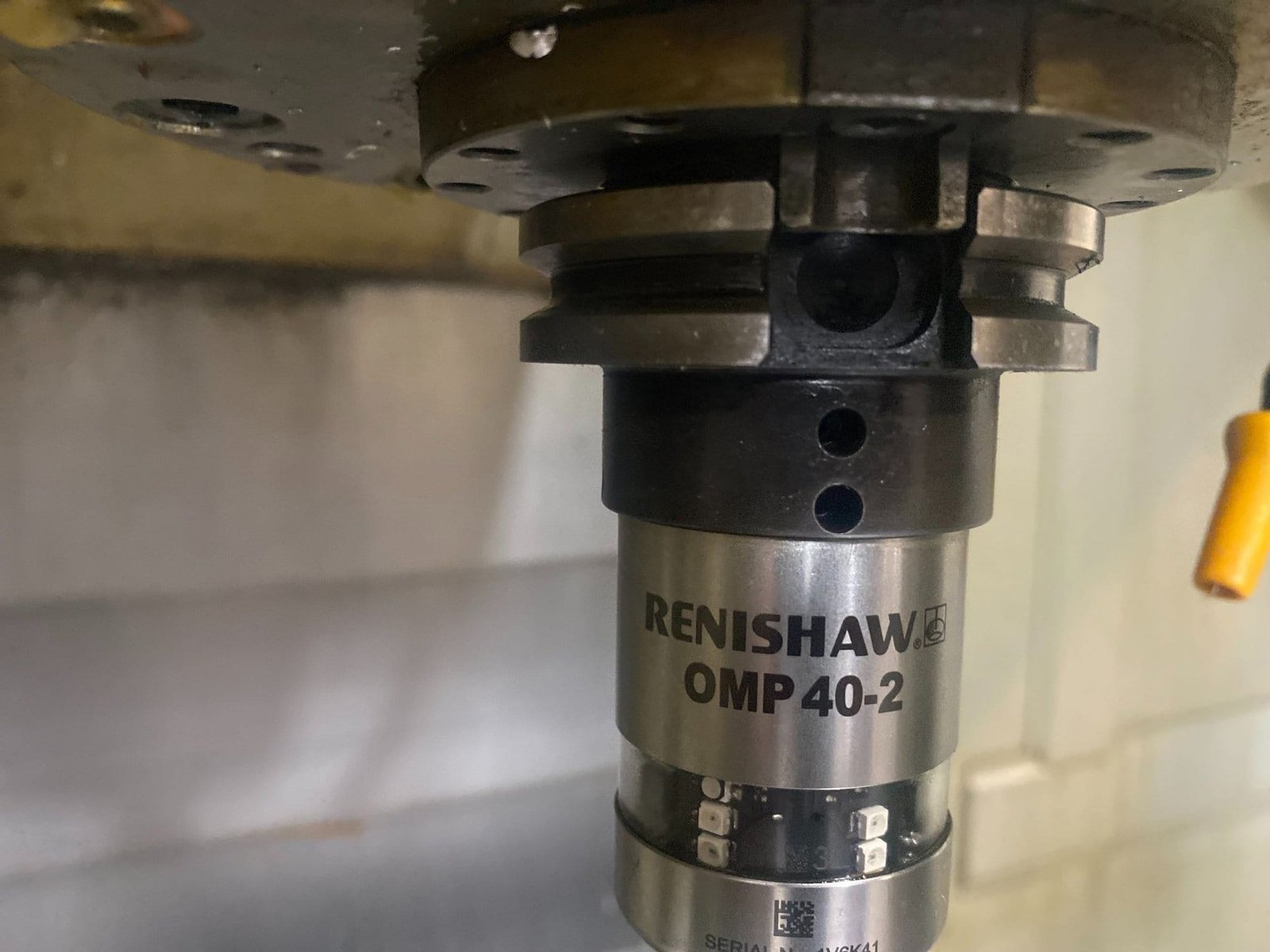

OMP40 Spindle Probe & TS27R Tool Setting Probe Kit
*MP System 1000psi TSC COOLANT (*MP unit does not go with machine, interface & spindle are capable of using MP unit)

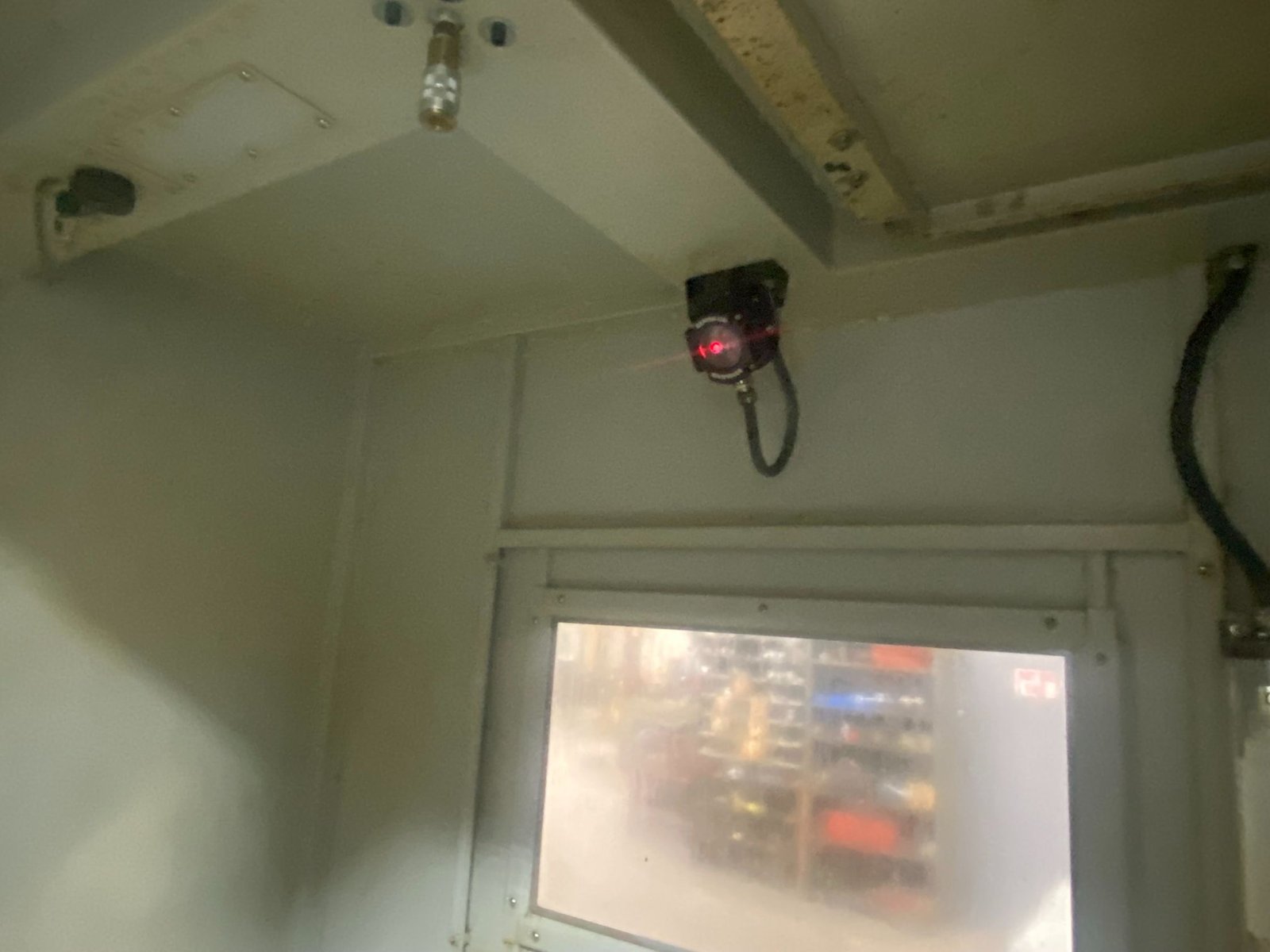

Tool Setter
