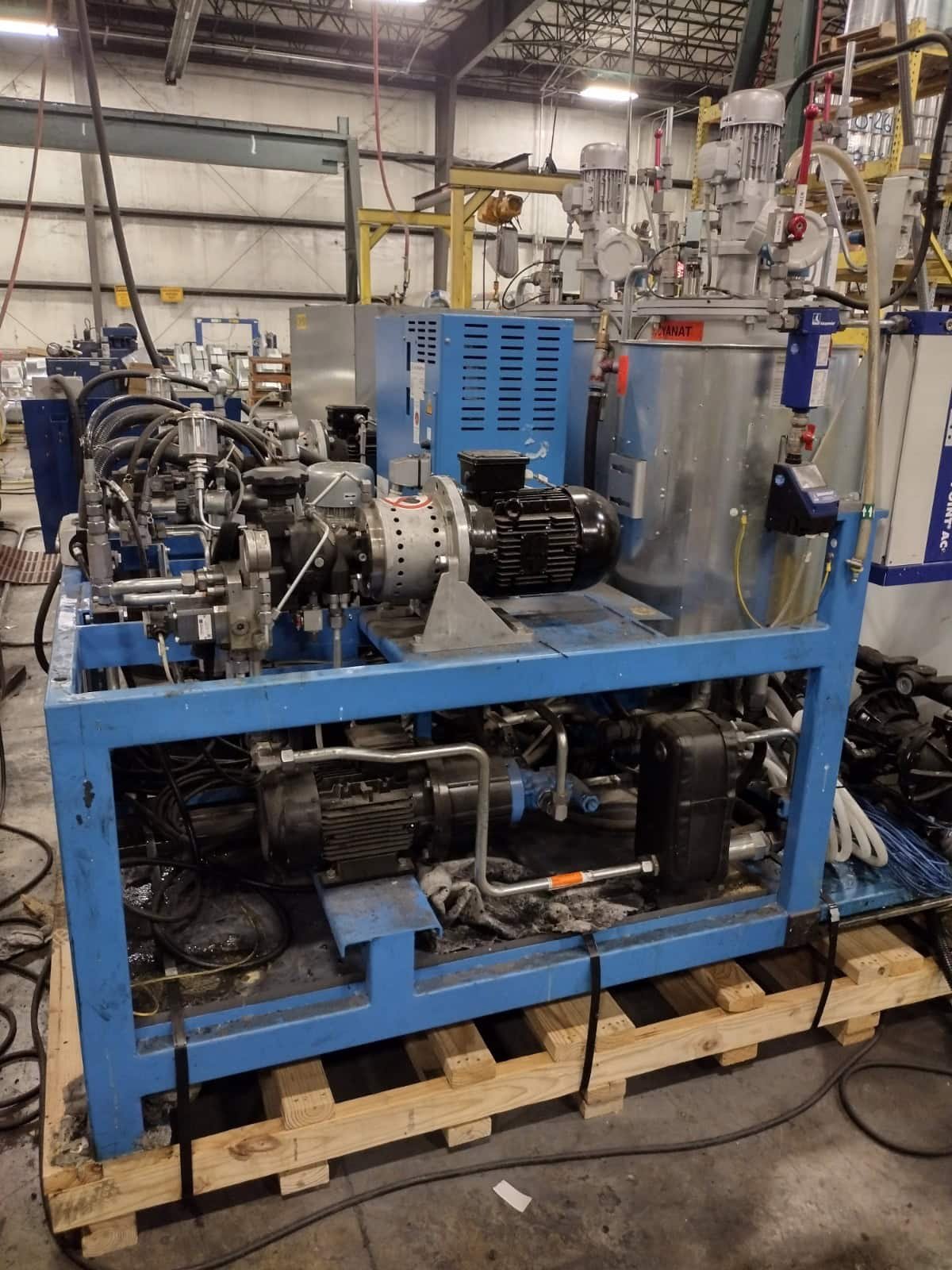

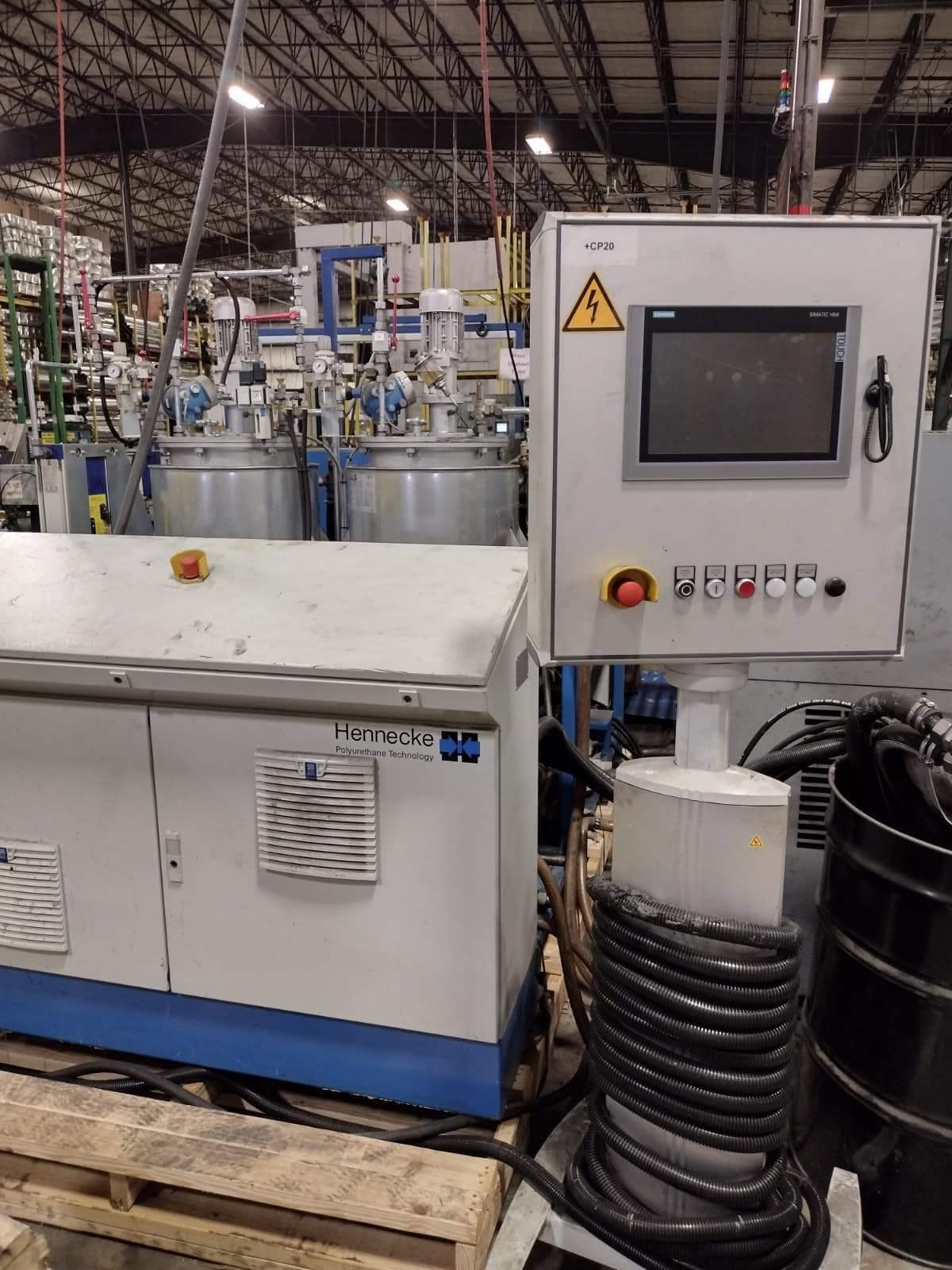

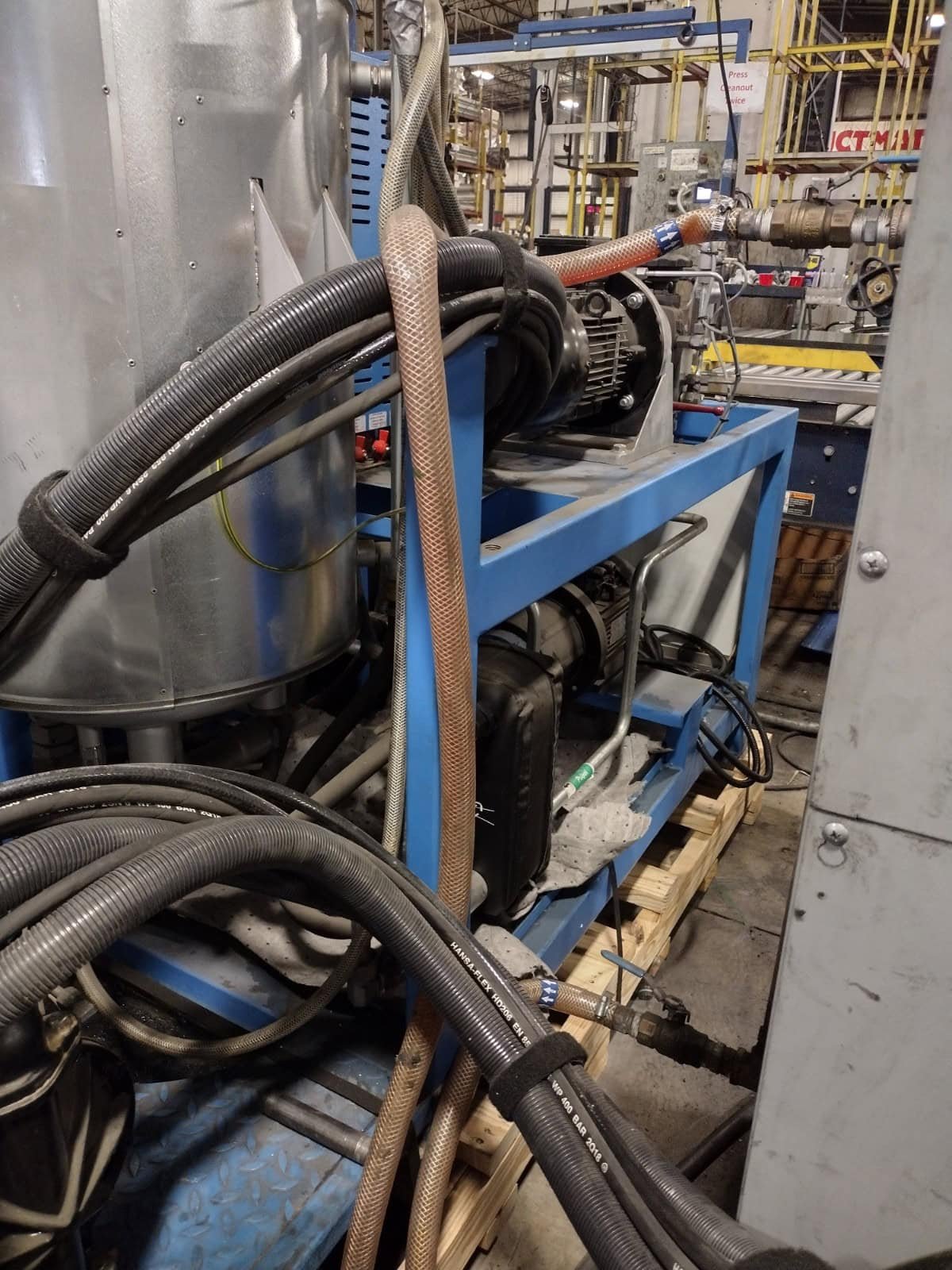

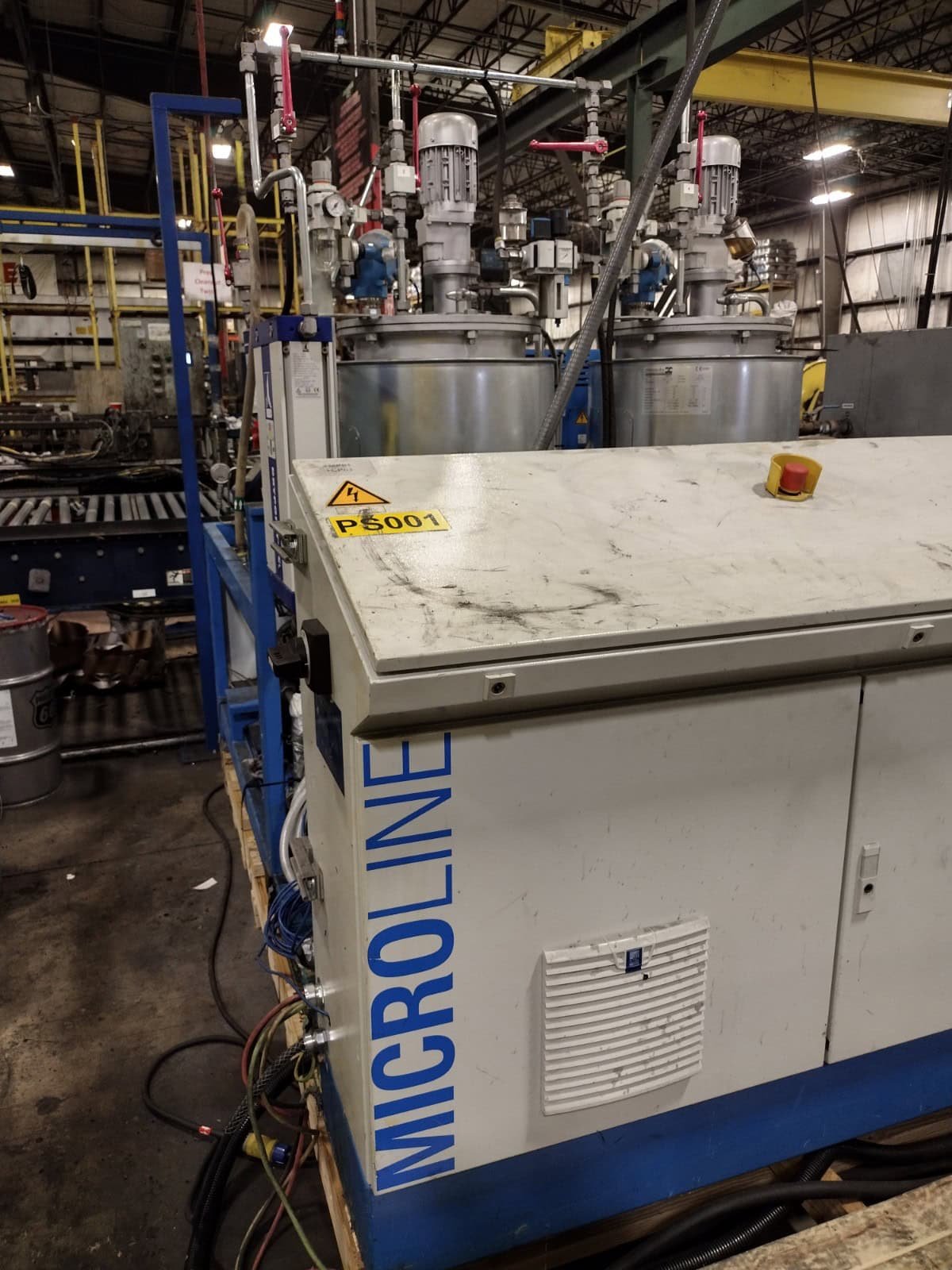

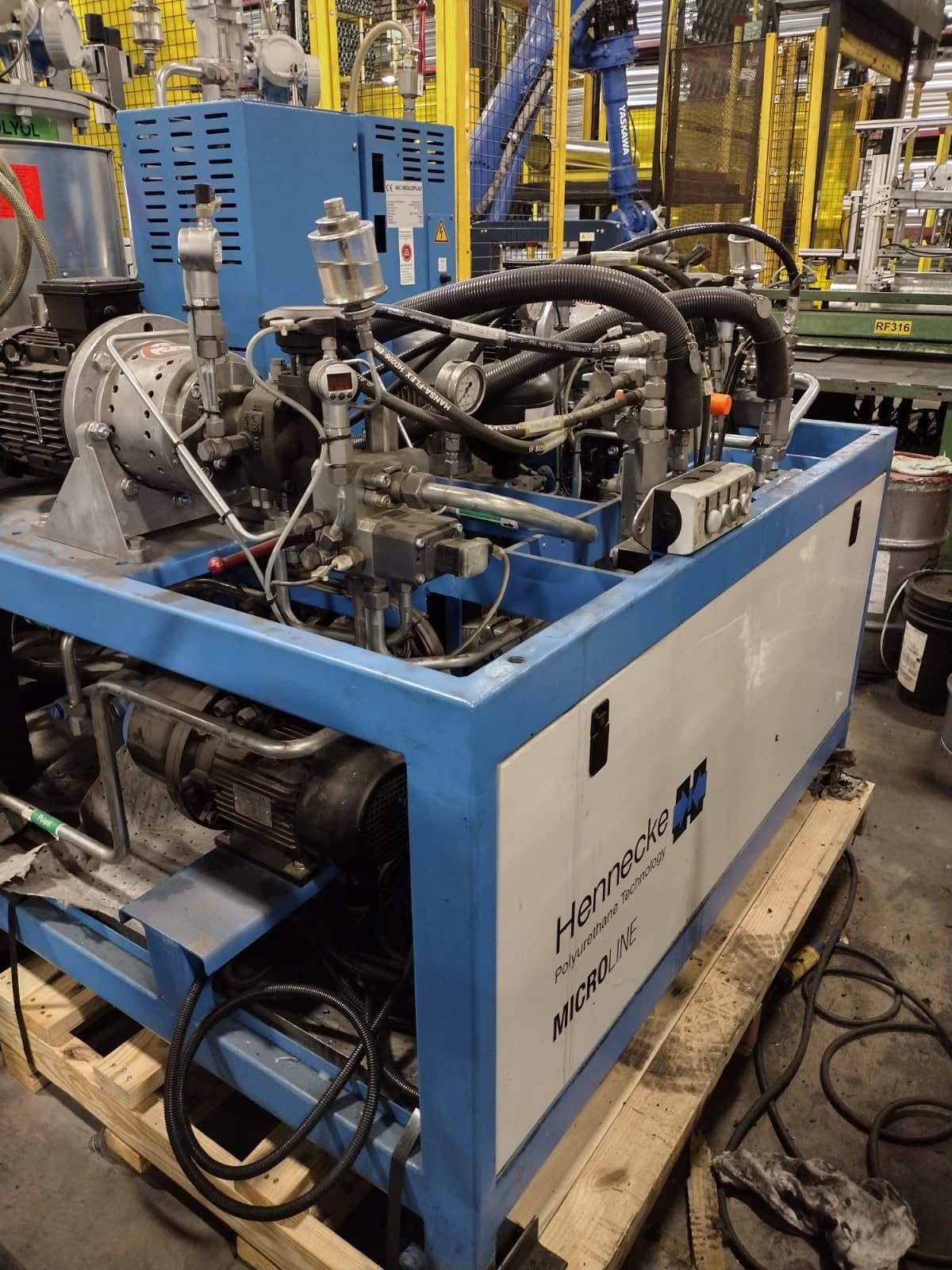

Description
1 metering unit for Polyol with an HP 2 metering pump, max. nominal output
approx. 54 cm3 /sec at 2.6 kW/1800 min-1
1 metering unit for Isocyanate with an HP 2 metering pump, max. nominal output
approx. 54 cm3 /sec at 2.6 kW/1800 min-1
2 set of safety valves, electronic pressure indicators, on delivery and suction side;
line system
1 machine support frame with integrated, removable collection troughs
1 hydraulic unit including pressure accumulator, valves and accessories
2 low-pressure recirculation via frequency converter
1 MT-3, mixhead piston-cleaned
6 meters of flexible lines to the mixhead
