Description

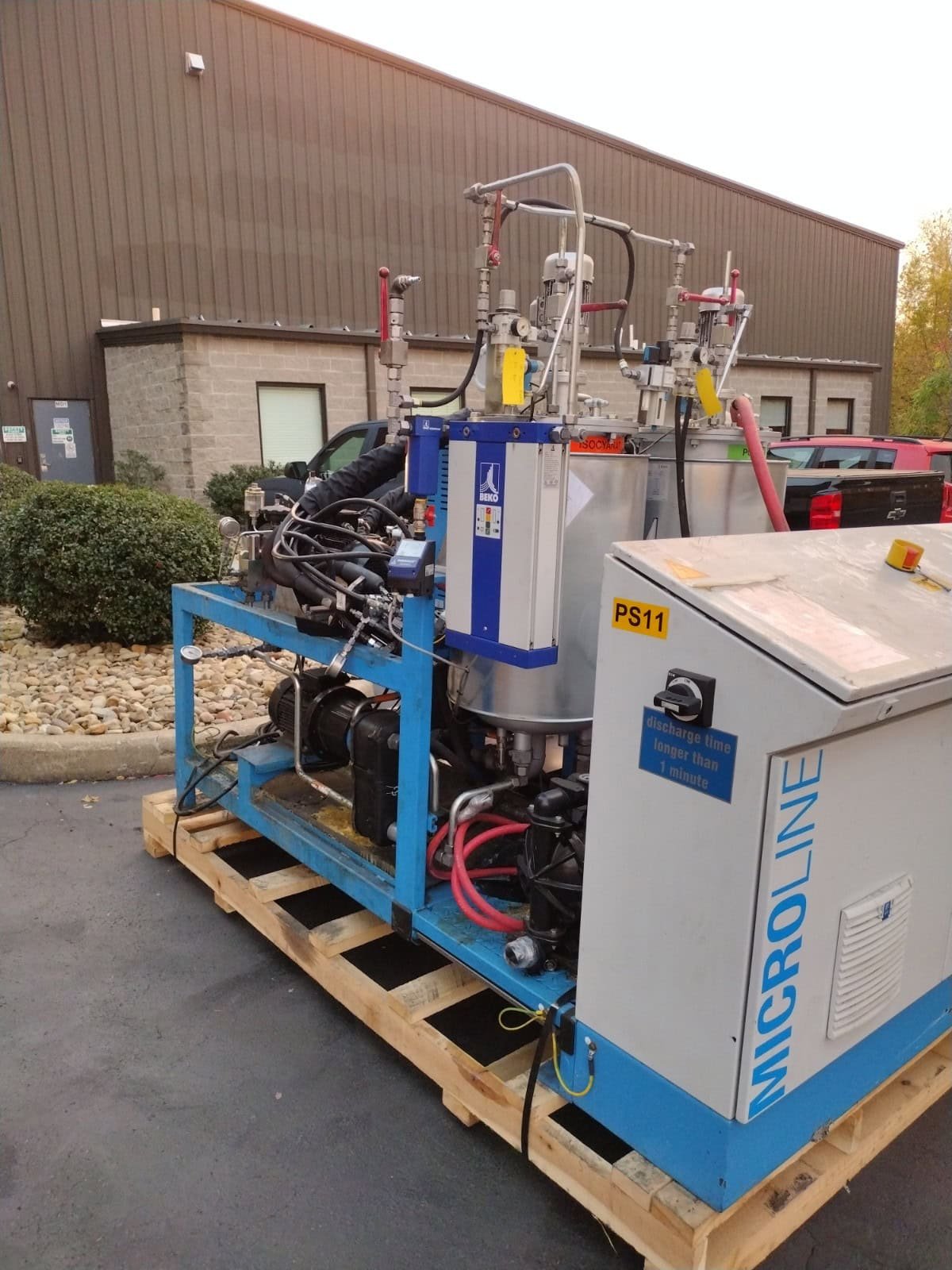

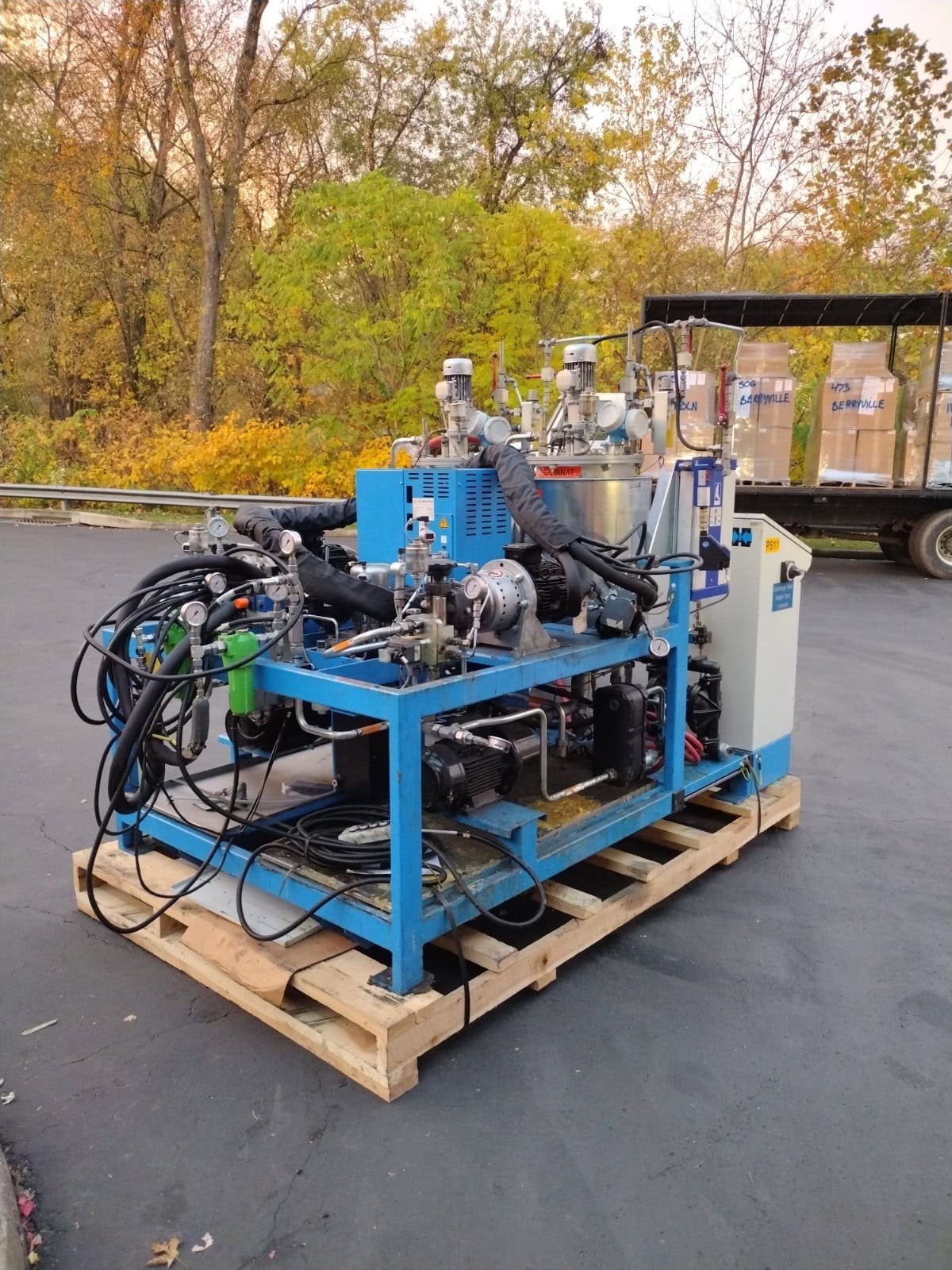

The Hennecke MicroLine series is designed for high-pressure metering of polyurethane (PU) components, particularly where small outputs and high precision are required. The MicroLine 45 R/MT is tailored for applications needing low shot weights

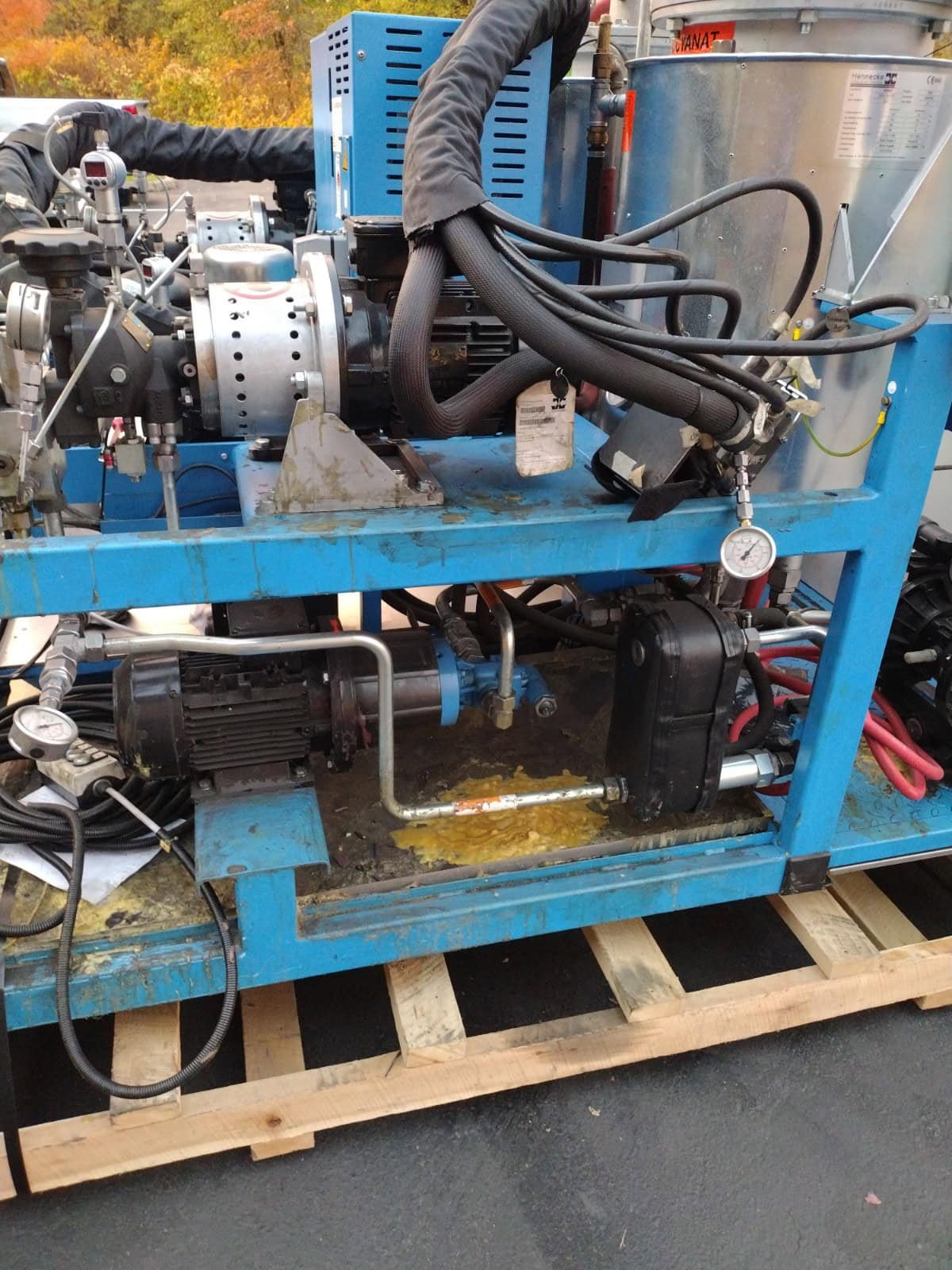

1 metering unit for Polyol with an HP 2 metering pump, max. nominal output
approx. 54 cm3 /sec at 2.6 kW/1800 min-1
1 metering unit for Isocyanate with an HP 2 metering pump, max. nominal output
approx. 54 cm3 /sec at 2.6 kW/1800 min-1
2 set of safety valves, electronic pressure indicators, on delivery and suction side;
line system
1 machine support frame with integrated, removable collection troughs
1 hydraulic unit including pressure accumulator, valves and accessories
(in compliance with European Pressure Equipment Directive)
2 low-pressure recirculation via frequency converter
1 MT-6, mixhead piston-cleaned
6 m of flexible lines to the mixhead
