Description

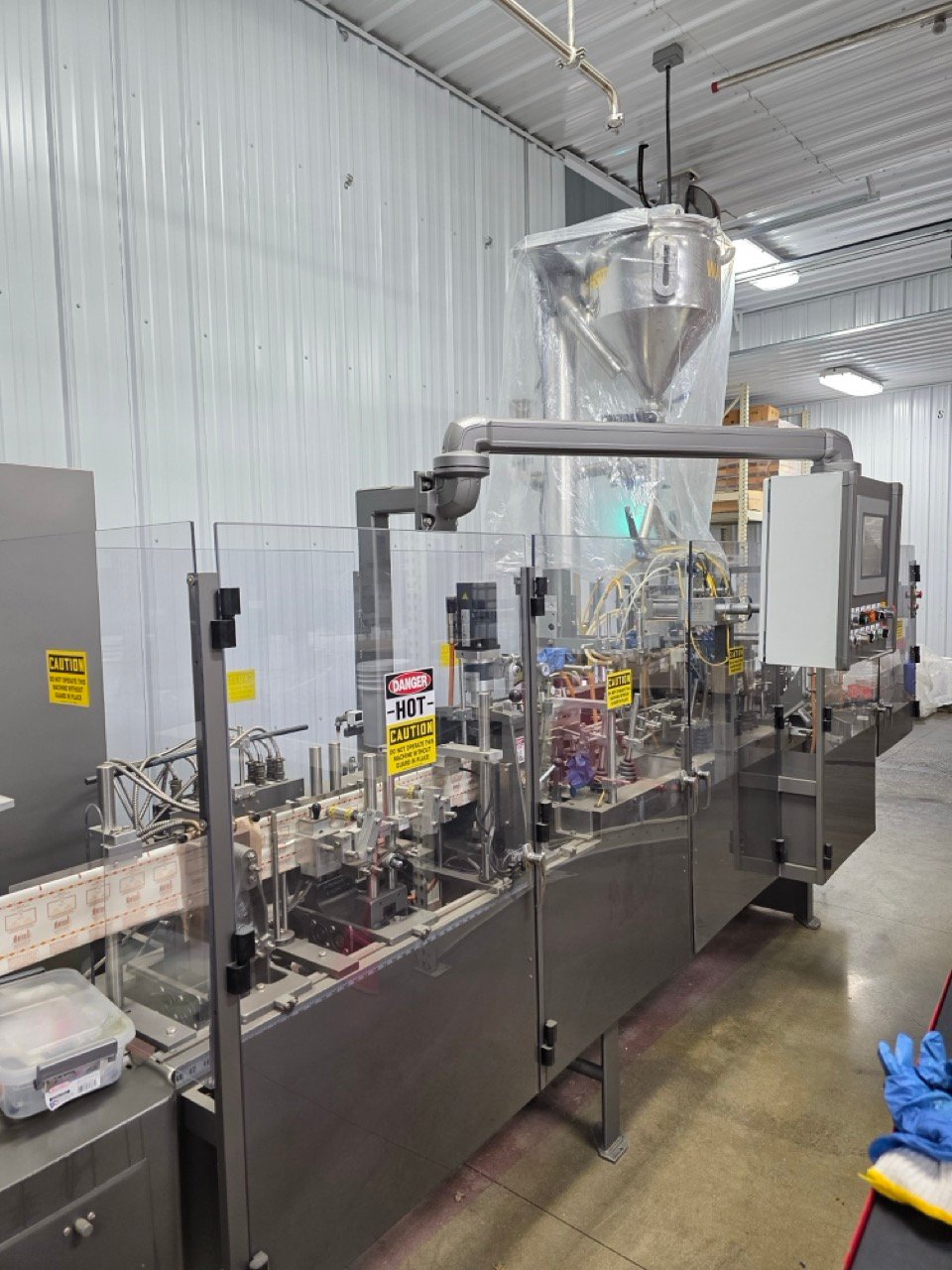

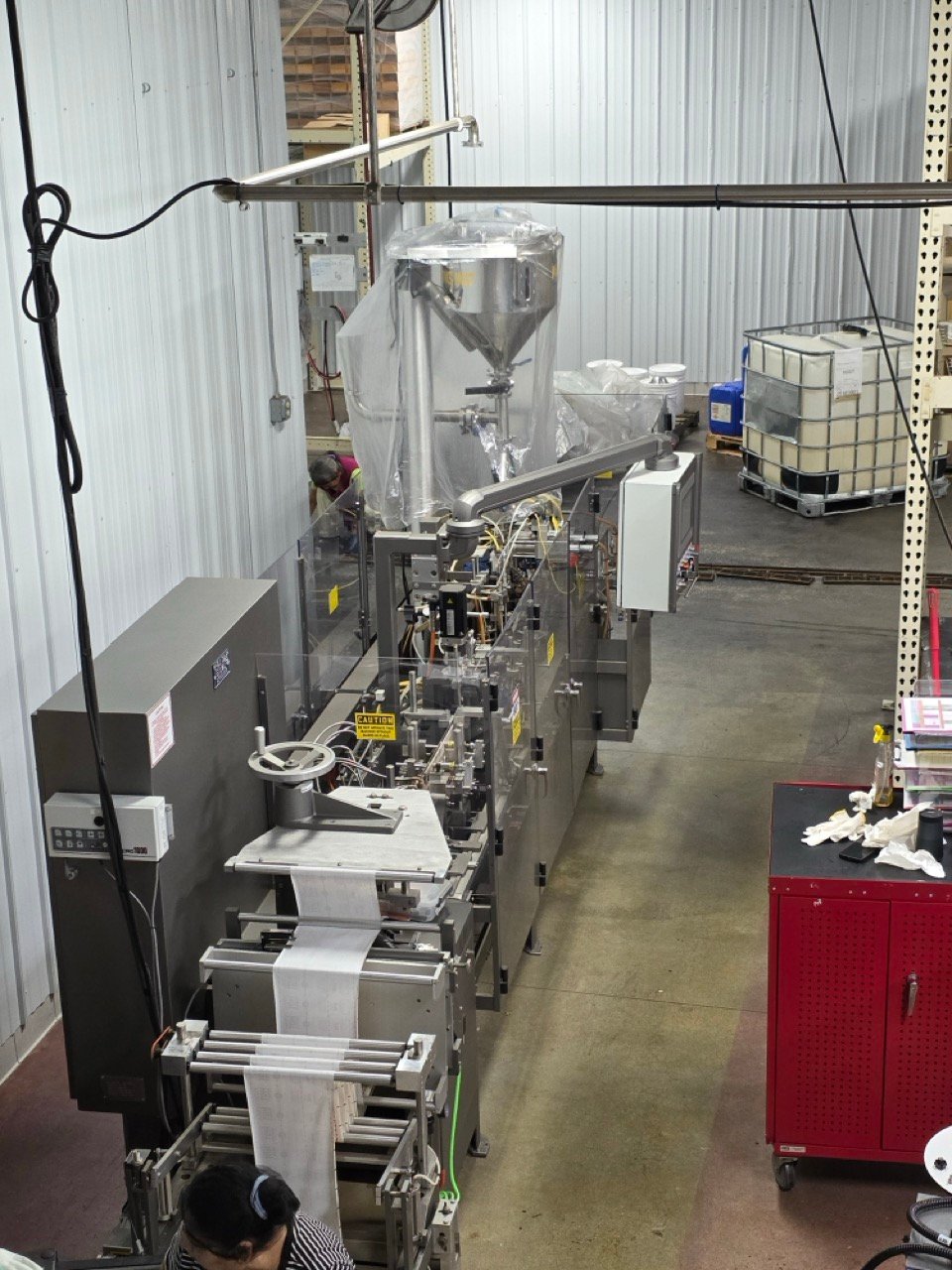

Used HMC Pouchmaster Packager IM 7-12 HFFS for Liquid Packaging in 1-up or 2-up Configuration for sale:
This horizontal form fill and seal machine was previously used to package a viscous condiment into sachets
– Minimum pouch size: 4 x 4
– Maximum pouch size: 9 3/4″ x 13 1/2″
– Maximum gusset size: 3″
– Electrical requirements: 480V, 60Hz, 50 Amp
– Air requirements: 35 CFM, 80 PSI (Minimum), 3/4″ line minimum feed
– Designed to form, fill and seal a variety of products into a pouch made of laminated materials, it can also handle most thermo-sealing web materials

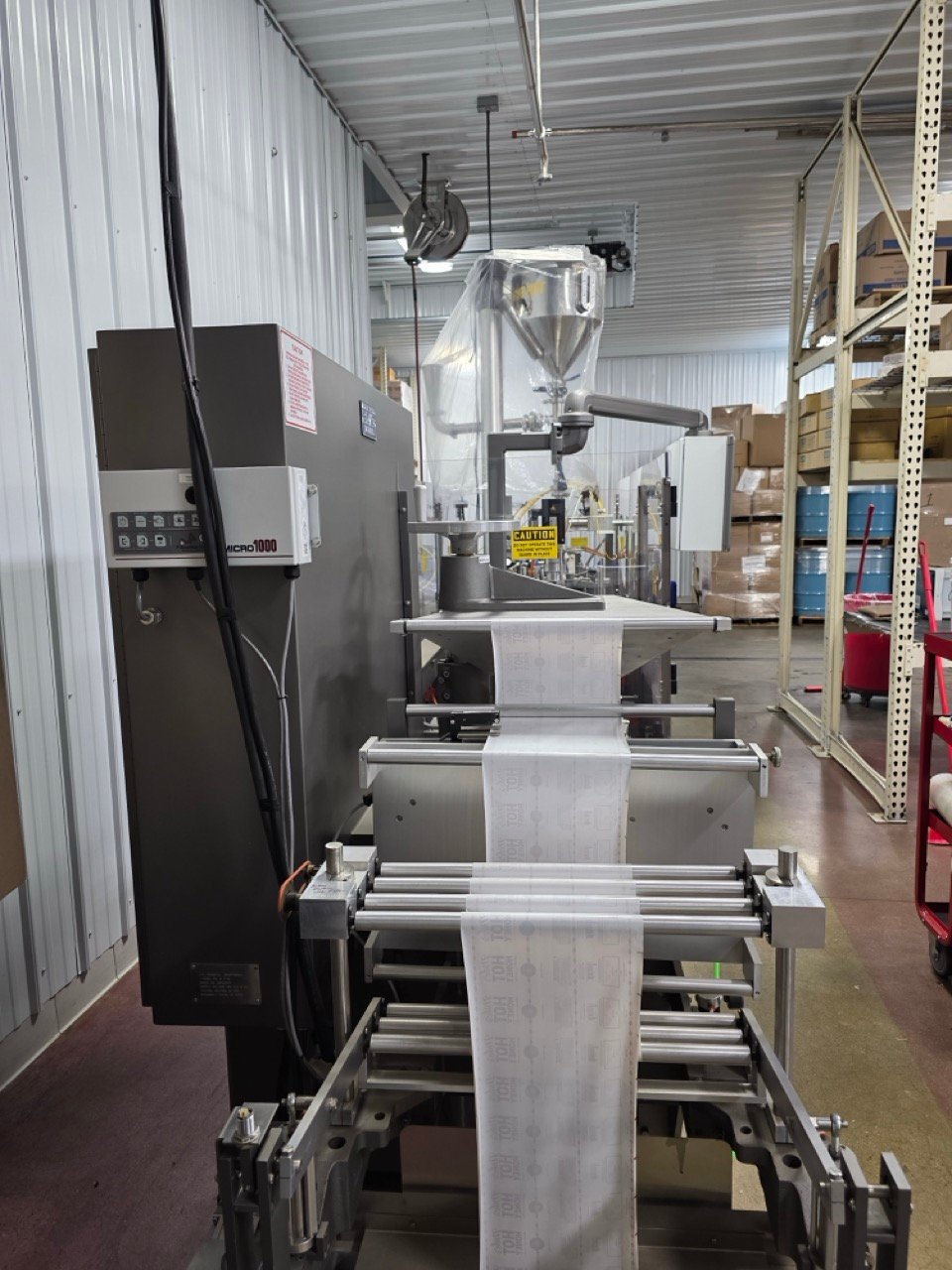

– Maximum web roll diameter: 18″
– Specifically configured to package liquid in a 1-up or 2-up configuration
– Runs up to 60 indexes / 120 pouches per minute 2-up (speeds dependent on filling variables)
– Variable speed AC servo drive
– Stainless steel ways

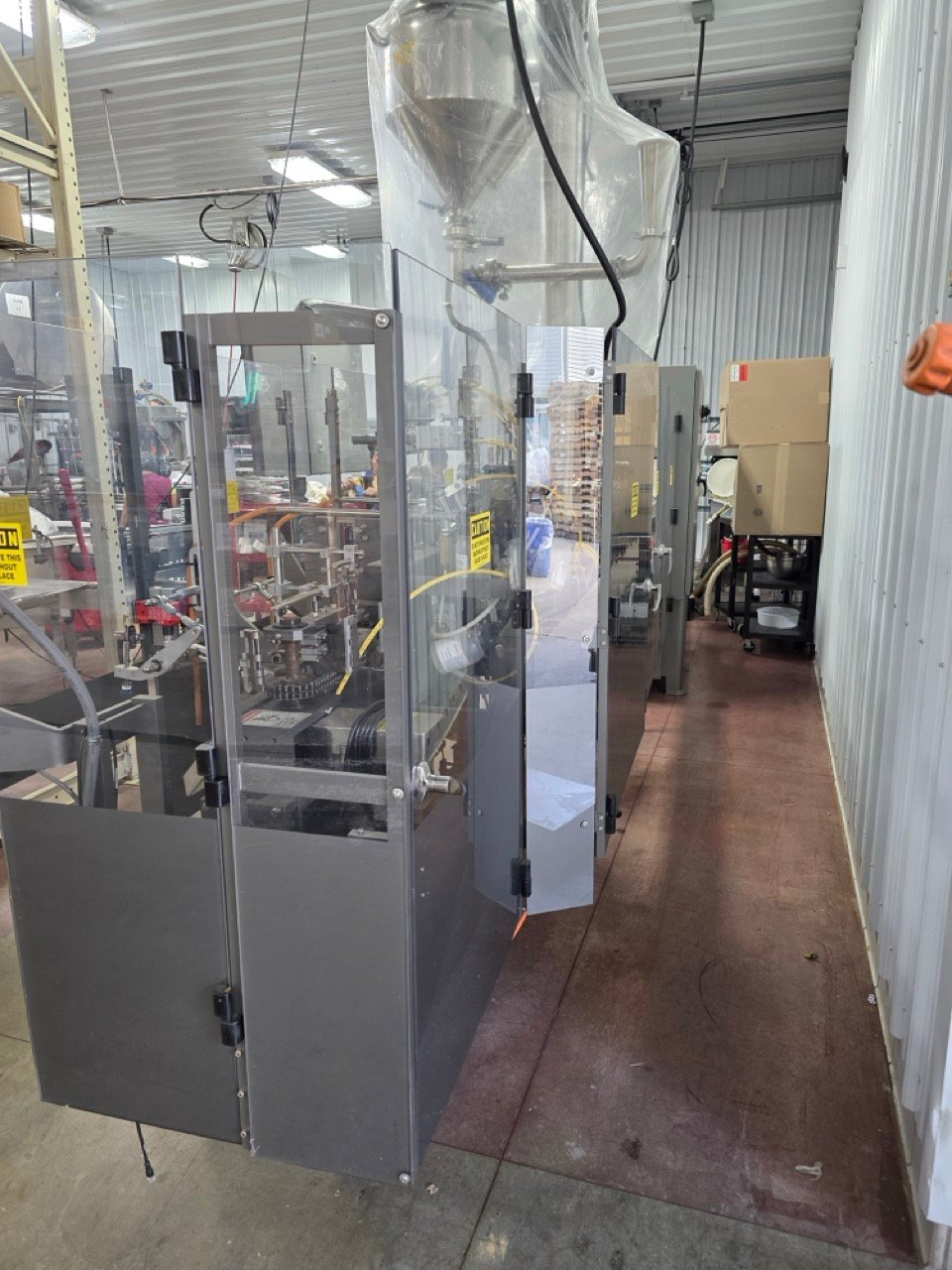

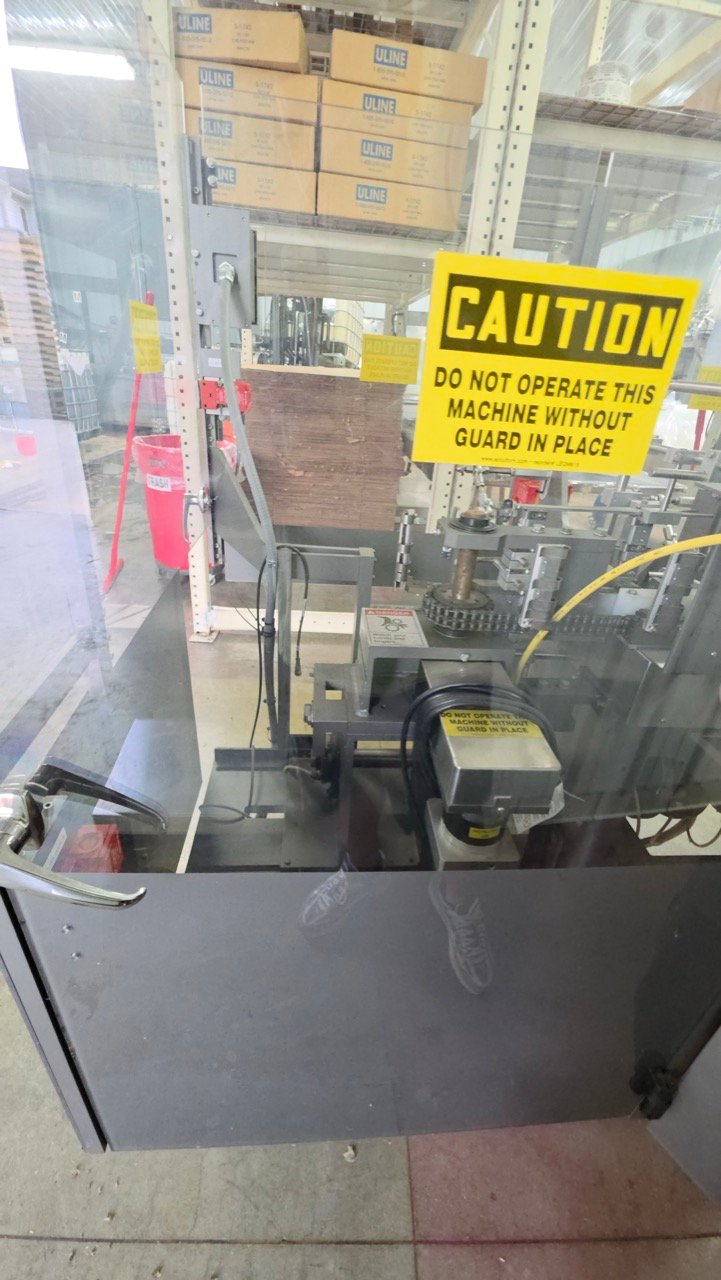

– Operator safety guards with machine electrical interlock, front rear, and discharge end
– Single point plow adjustment
– Servo driven feed rolls
– Registration

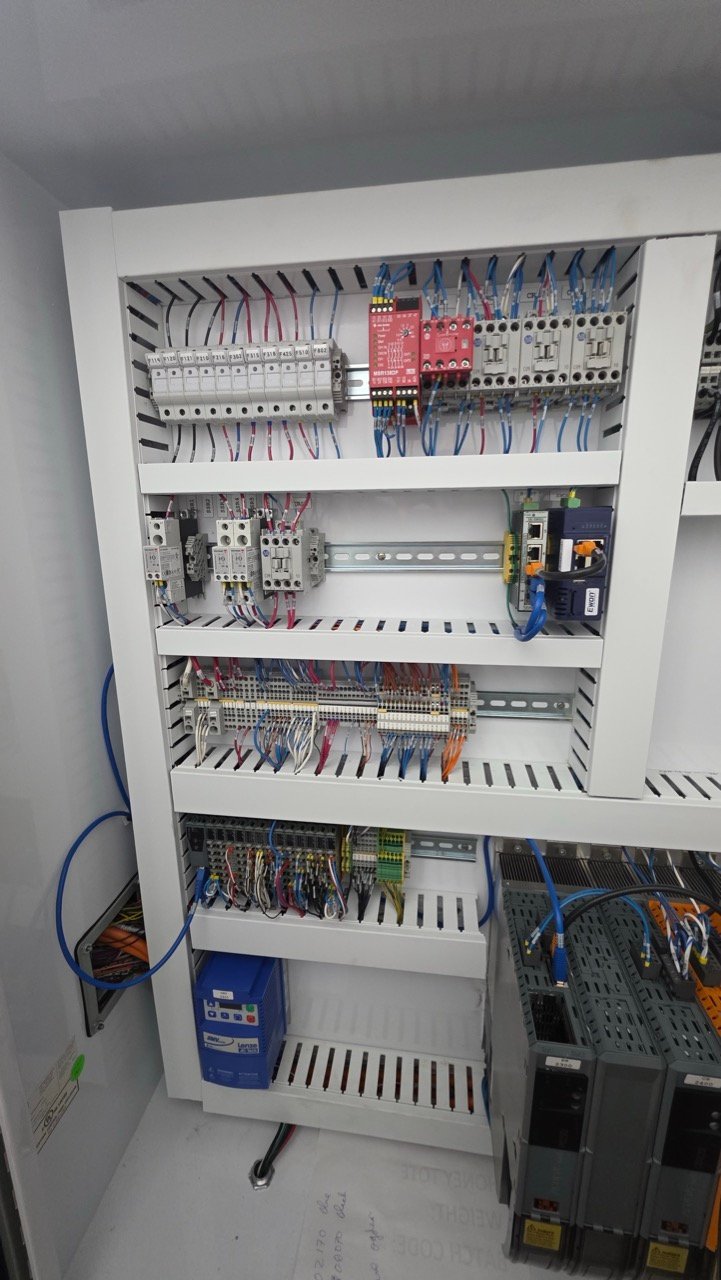

– B&R controls

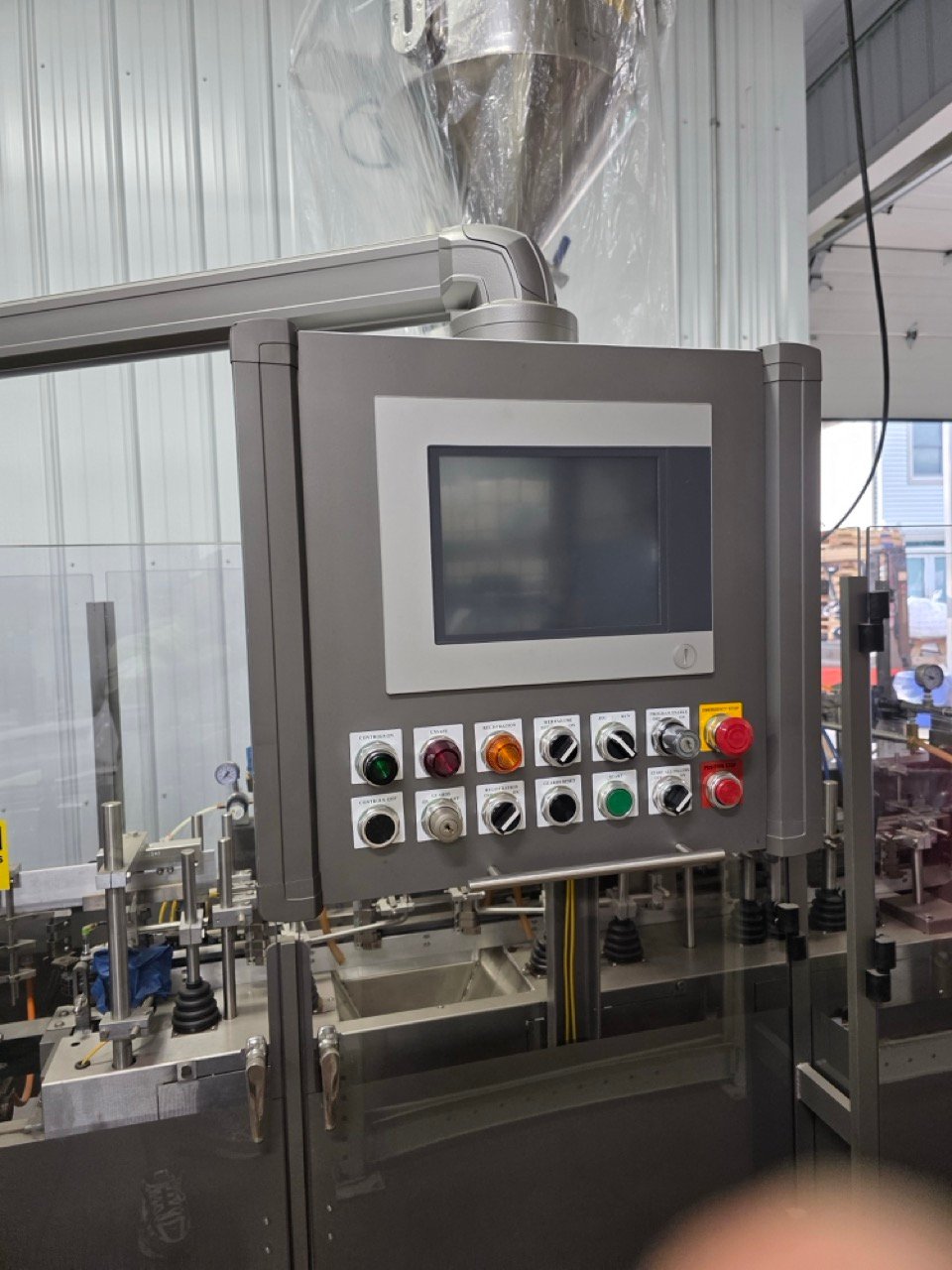

– Two (2) normal and two (2) emergency stop switches
– Machine “JOG” capability
– Web fail and web jam shutdown

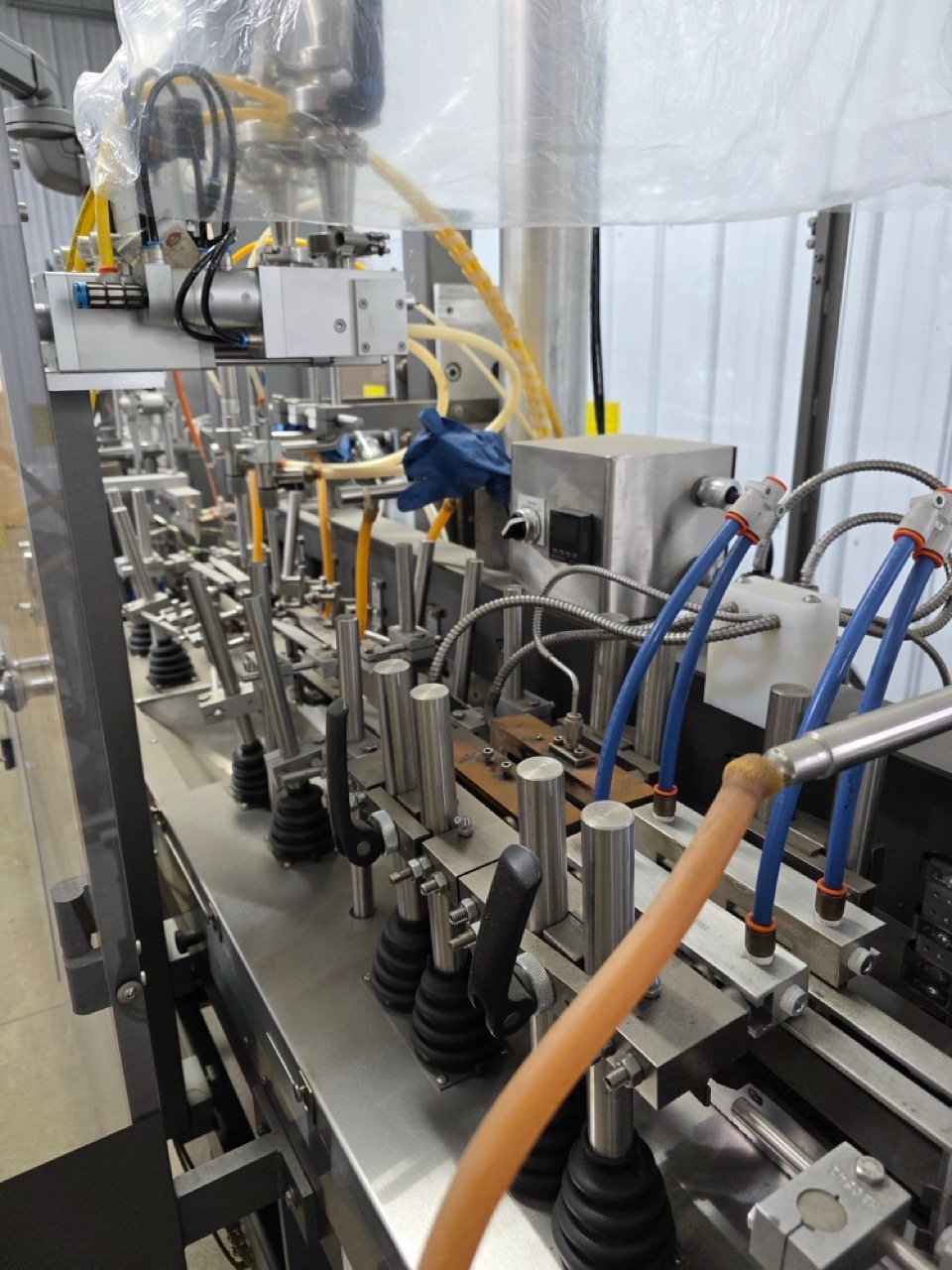

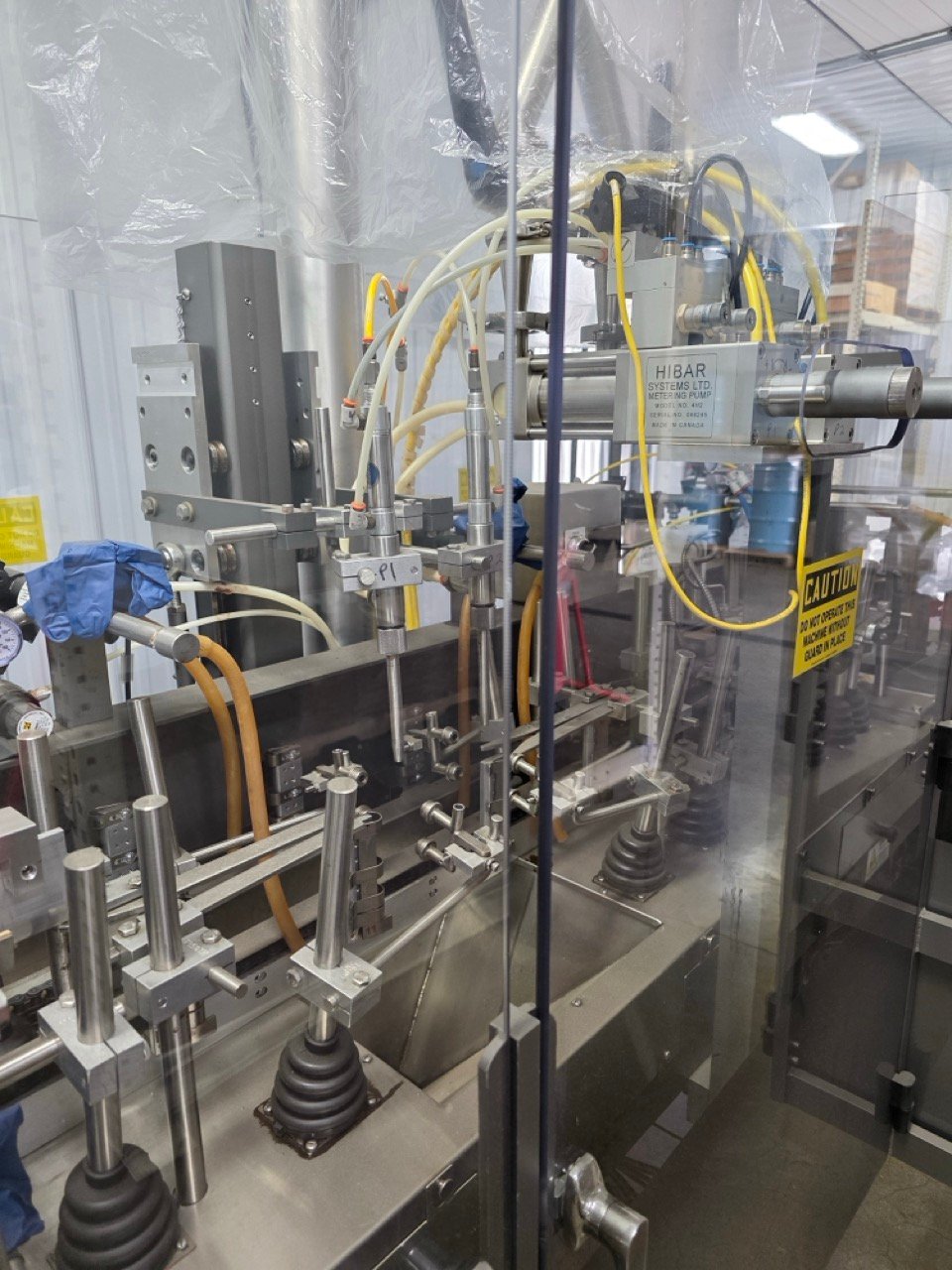

– Vacuum opening at fill stations, with vacuum detect
– Blow back at all vacuum stations
– Servo torque limiter on the conveyor drive
– Online slitter, 2-up
– Bag reject for no vacuum/no fill
– Offline indexing pouch counting conveyor
– Low air pressure shutdown
