Description

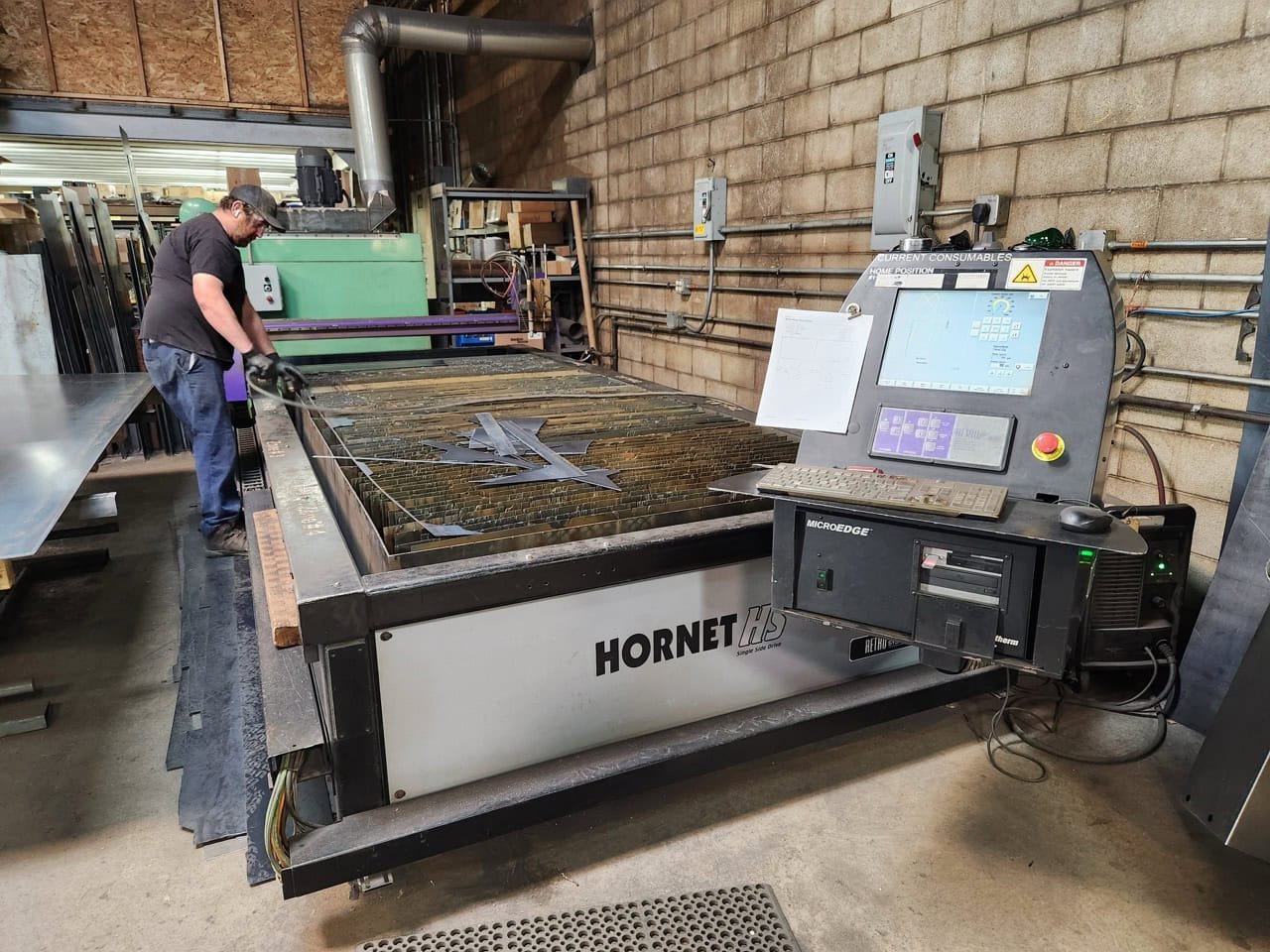

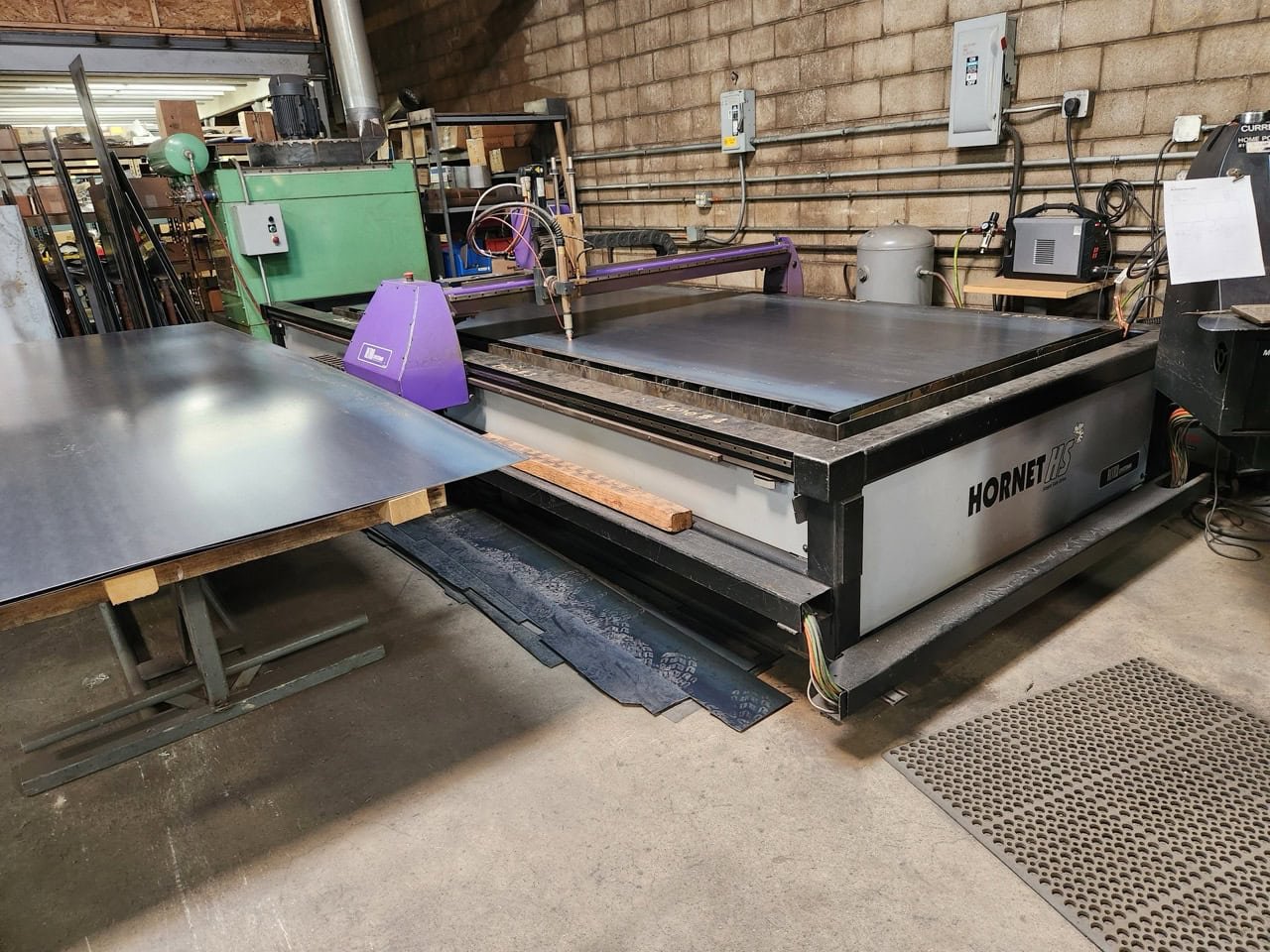

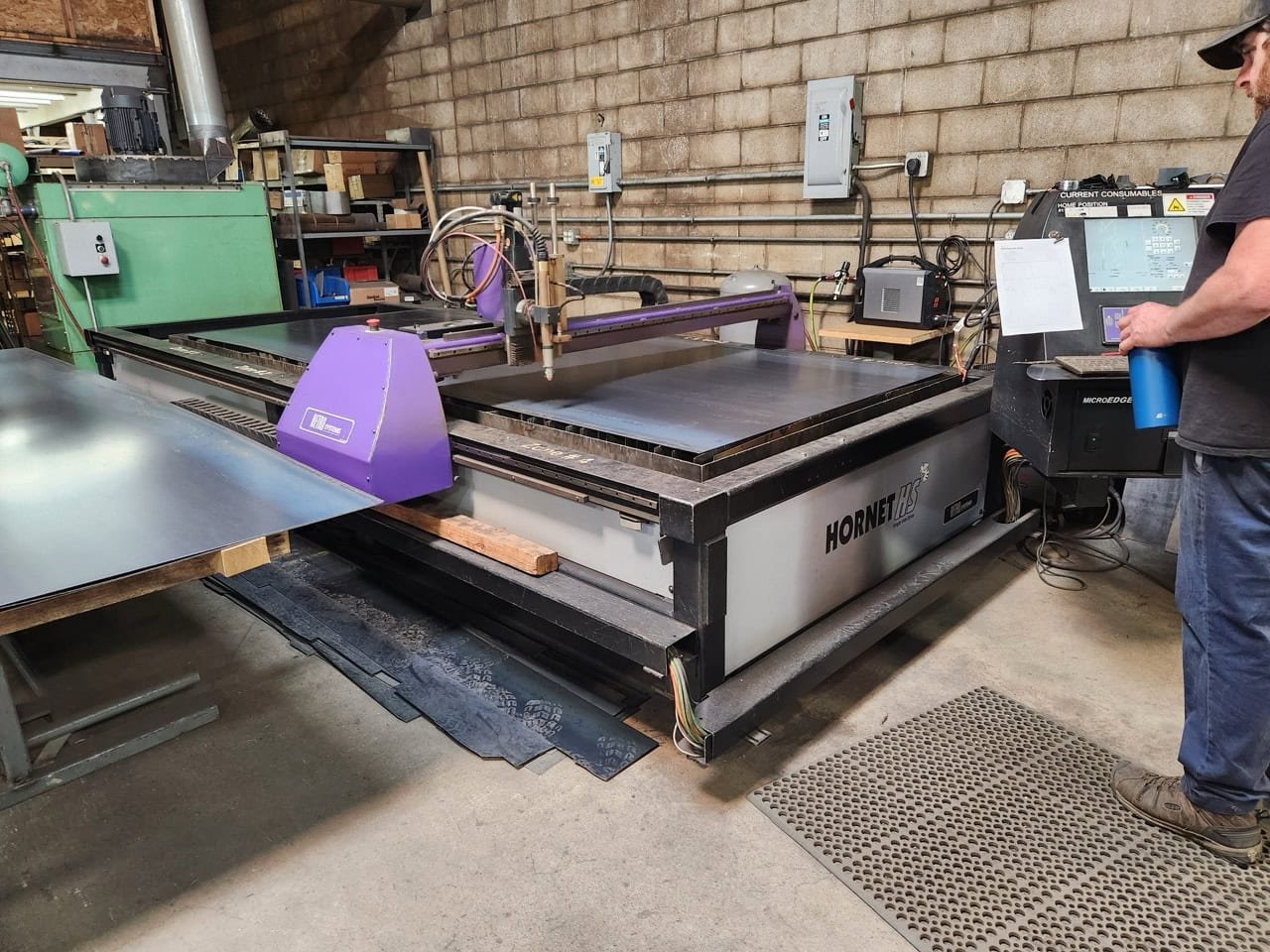

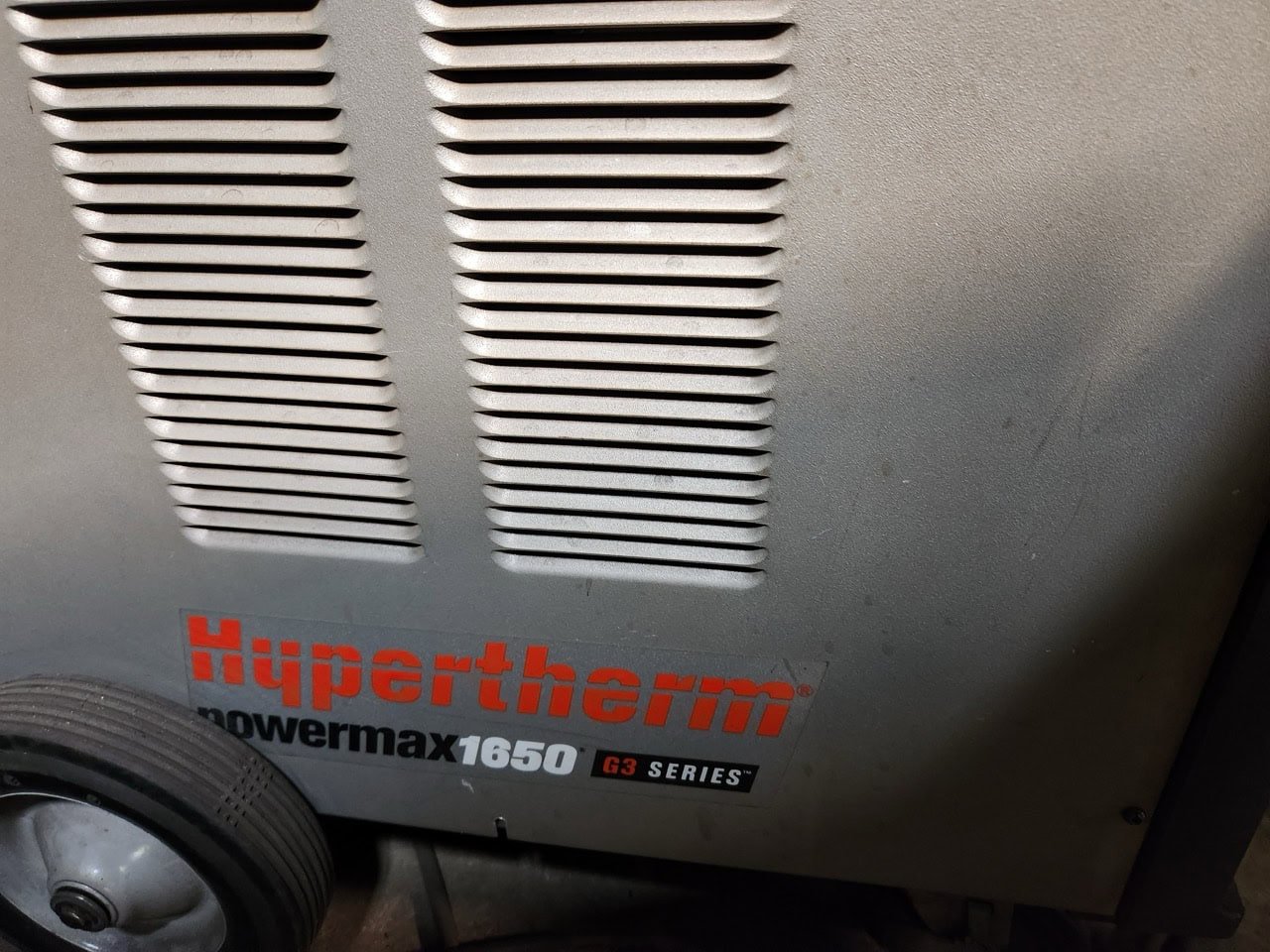

Hornet RetroSystems Plasma Hyperthem 1650 G3 Series
Year: 2010
Table: 5′ x 12′

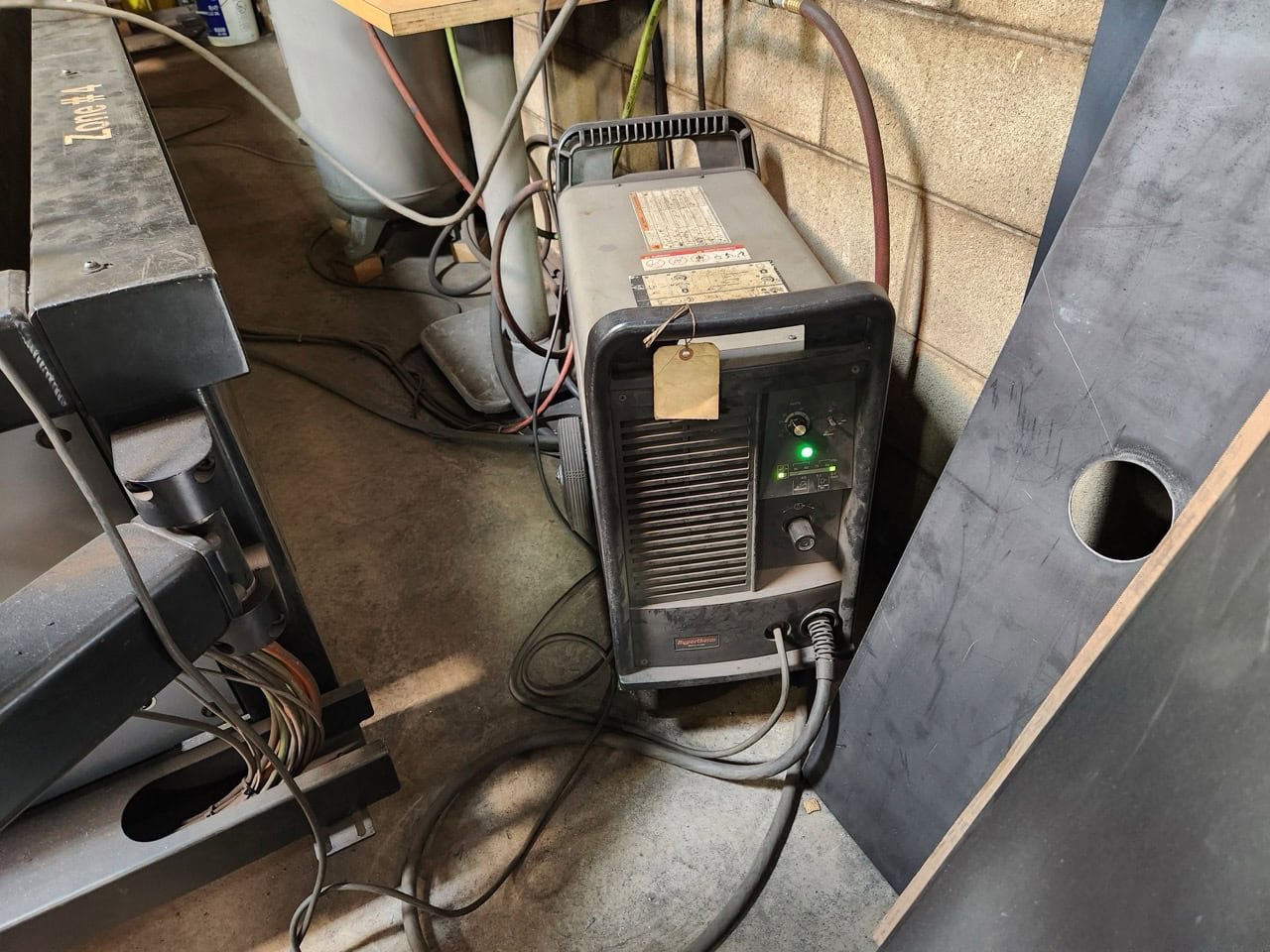

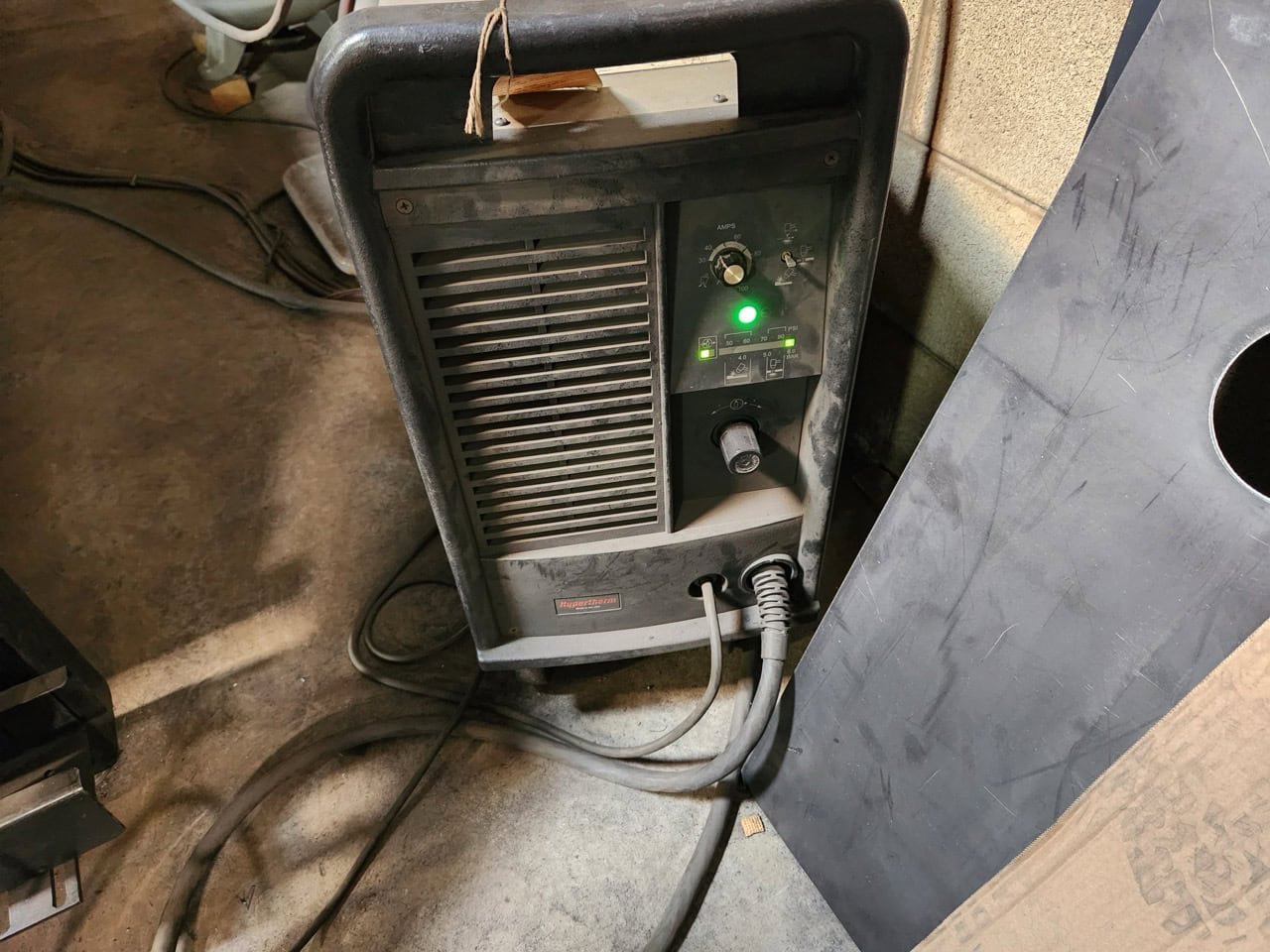

Hypertherm Info:
Output Current: 30–100 A
Input Voltage: 200–600 V, 3-phase, 50/60 Hz
Duty Cycle: 60% @ 100 A (200–208 V input)
Dimensions (L × W × H): 26.4″ × 16.8″ × 25.8″ (671 mm × 427 mm × 655 mm)
Weight: 124 lbs (56.2 kg)
Recommended Cut: Up to 1¼” (32 mm) at 19 ipm (483 mm/min)
Maximum Cut: Up to 1½” (38 mm) at 11 ipm (279 mm/min)
Severance Cut: Up to 1¾” (44 mm) at slower speeds
