Description

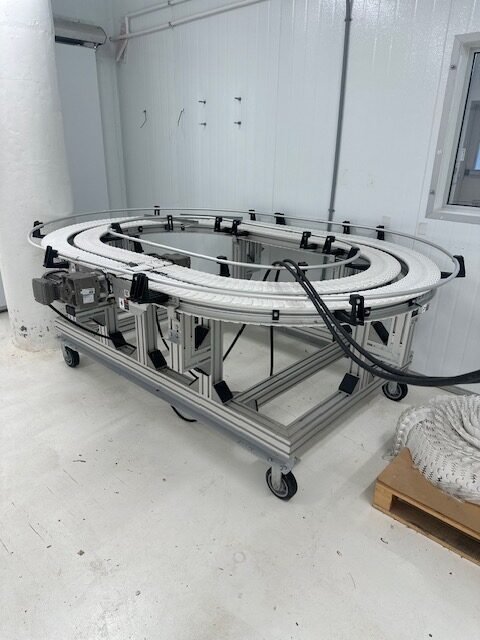

Hytrol COMPCNX Conveyor, Connex Double (Continuous) Loop with 5.75″ Wide Conveyor, 2020:
– 6 Foot x 8 Foot footprint
– 1/2 HP drive motors, 230V/3ph/60hz
– ALT1000 connect double loop
Conveyor consists of:
(1) S140 conveyor outside loop, starting at infeed
– Idler section cut to 275mm, with roller transition assembly and mounting bracketed and hardware located at infeed end
– 180 degree LH curve section, less tangents, 750mm centerline radius
– 750mm long line
– 180 degree LH curve section, less tangents, 750mm centerline radius
– Drive section, RH, cut to 425mm
(1) S140 conveyor inside loop, starting at infeed
– Idler section cut to 275mm, with roller transition assembly and mounting brackets and hardware located at infeed end
– 180 degree LH curve section, less tangents, 575mm centerline radius
– 750mm long line
– 180 degree LH curve section, less tangents, 575mm
– 180 degree LH curve section, less tangents, 575mm centerline radius
– Drive section, LH, cut to 425mm
Year is approximate
