Description

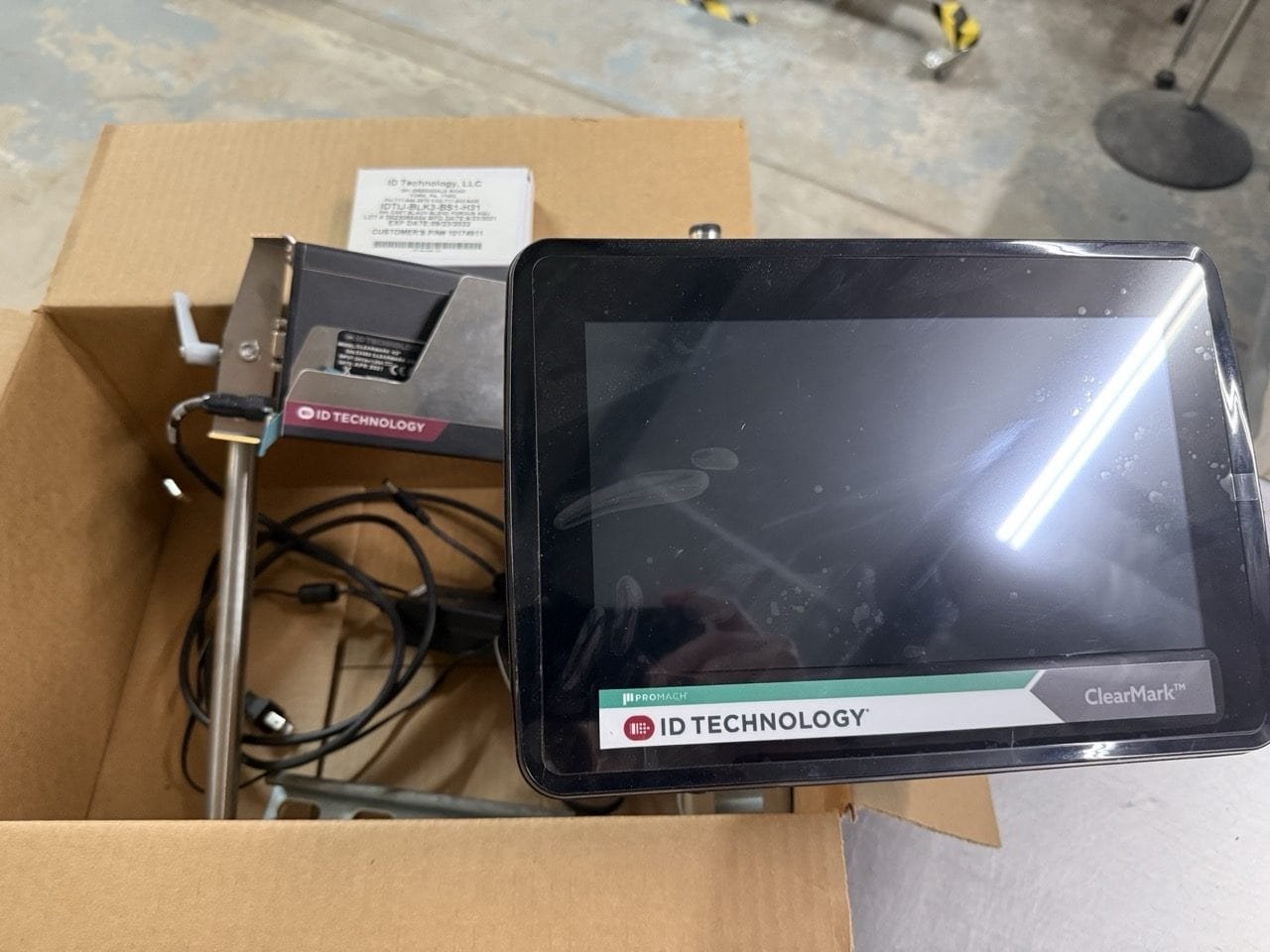

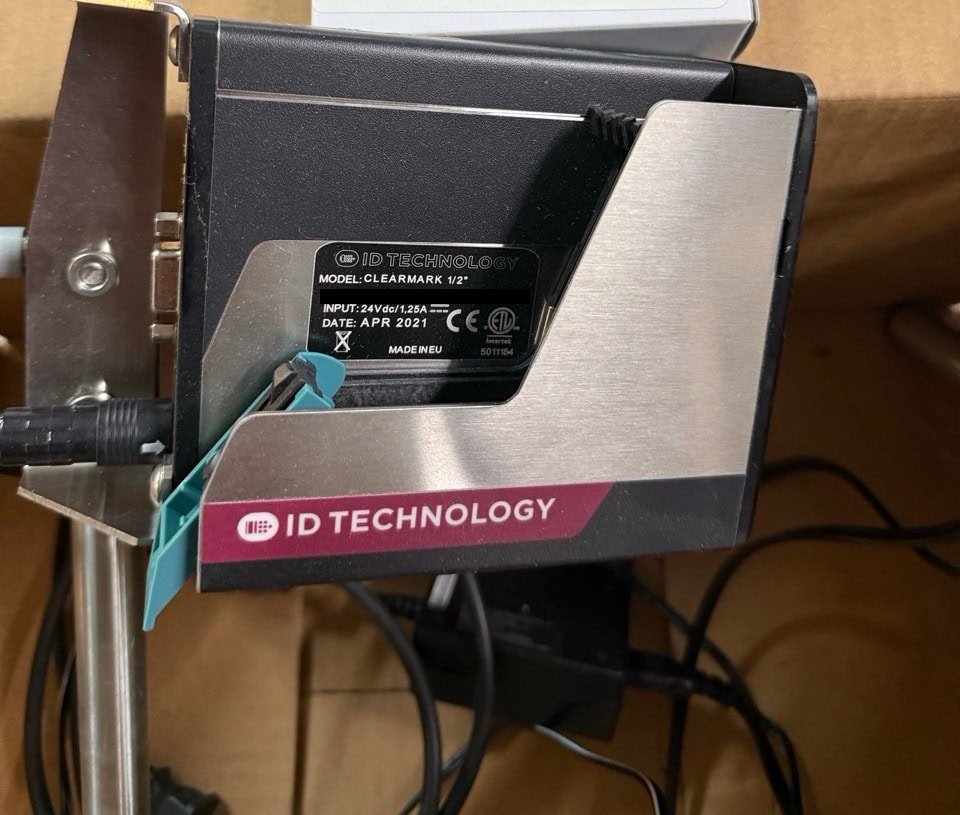

ID Technology ClearMark 1/2″ CPQ-Inkjet TIJ Thermal Ink Jet Printer – Never used, still in Original Packaging, 2021:
Dimensions: 2.2”(55.5mm) W x 4.4”(110.5mm) H x 5.5”(138.5mm) L
Features Compact, robust metal designed smart print head.
Multiple user interfaces for operation:
– Common function buttons directly on the smart head.
– New easy to use 10” HMI.
– PC software design and control.
Applications: Coding and identification directly on products, packaging and cases.
Print Specifications
– Print height: ½ inch / 12.5mm.
– Maximum print length: unlimited.
– Nozzle distance to Surface: 0.5 – 5 mm.
– Max print speed @ 300 dpi – 200ft/min -(61m/min) – other speeds and resolutions available.
– Inputs available for selecting messages from PLC.
– Internal photocells and auto speed detection – External encoder and photocell.
– Printing direction: Left -> Right-Right -> Left according to settings or input.
Message Capabilities:
– Full WYSIWYG drag and drop touchscreen to easily manage message editing.
– Message creation wizard for easy composition.
– Unlimited fields for Counters, Time, Date, Barcodes, Logos and Graphics.
– Live feedback for count values, prints/cartridge remaining, line speed and production.
– Storage: virtually unlimited – defined by SD storage.
– True Type fonts.
Connections:
– USB pen drive.
– Ethernet.
– External encoder/photocell input.
– I/O – 5 inputs and 1 output.
Environmental Conditions Temperature:
– From 32 ºF (0 ºC) to 113 ºF (45 ºC).
– Relative humidity: up to 90%.
Electrical Requirements: 95 – 250 VAC, 50/60 Hz.
Substrates / Ink Types: Wide range of inks for porous and non-porous substrates. Inks packaged in 42ml cartridges.
