Description
Maximum Hold Size: 1-1/2″ x 3-1/2″ obround
Stud and Track Kit Sizes: 3-5/8″, 6″, 8″
Gauge: 26-14 steel
Shear Type: Hydraulic
Length: 245″
Width: 44″
Height” 65″
Weight: 5900 lbs
Power Requirements: 380/460V, 3ph/50/60Hz, 30 Amp
Main Servo Drive: 203.5 in lbs/23.0 NM continuous torque (x3 peak)
Punch Servo Drive: 70:8 in lbs/8.0 NM continuous torque (x3 peak)

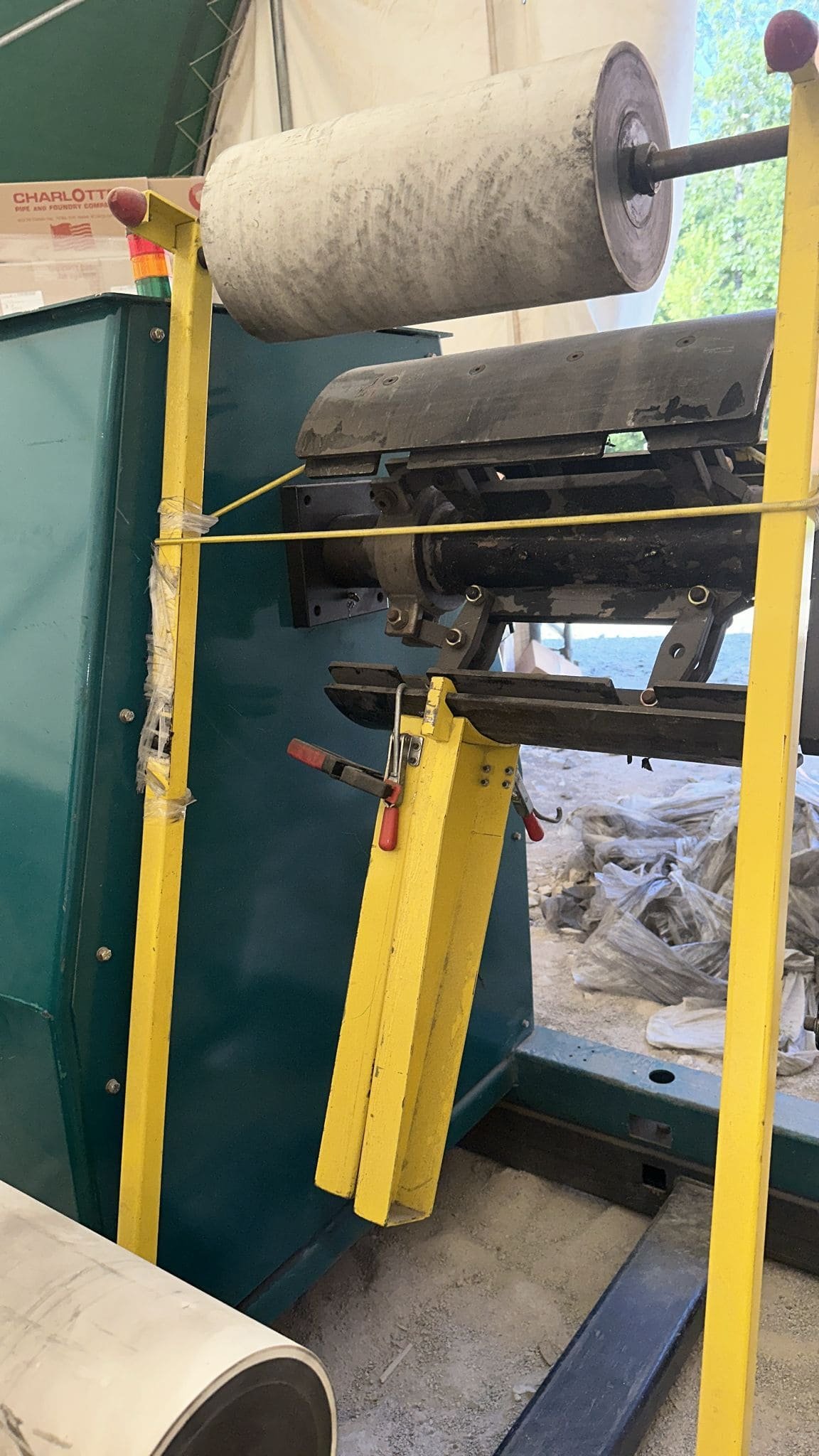

De-Coiler Capacity: 17″ – 24″, 6000 lb
Equipped With:
– Bosch Rex Roth Touch Screen Control
– Bosch Rex Roth servo motor main drive
– Sliding Safety Covers
– Emergency Stop Switches
– Ion Nitrided 4130 Hardened Rollers
– Material oiler/mister
