Description
Axis: 5
X Axis Travel: 60″
Y Axis Travel: 30″
Z Axis Travel: 30″
R Rotary Table: ∞°
T Tilt Table: -5° to +125°
X,Y,Z Velocity: 200 IPM
R Axis Velocity: 5 RPM
T Tilt Table Velocity: 2 RPM
Positioner Capacity: 1500 LBS
6″ max from face plate, 6″ max eccentricity
Weight: 14,000 LBS
Equipped With:

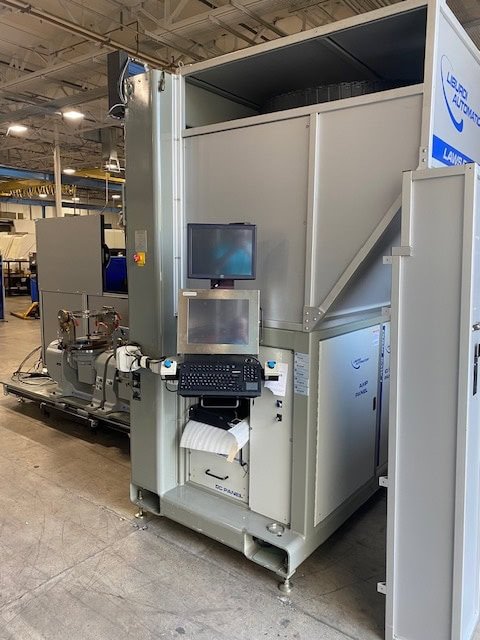

Liburdi Robotic Controller
Vision System
Liburdi Seam Tracker
Panel Enclosure

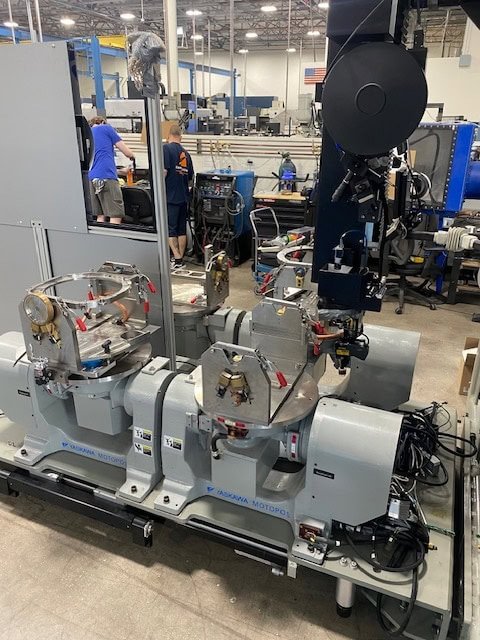

4 Rotary Tables

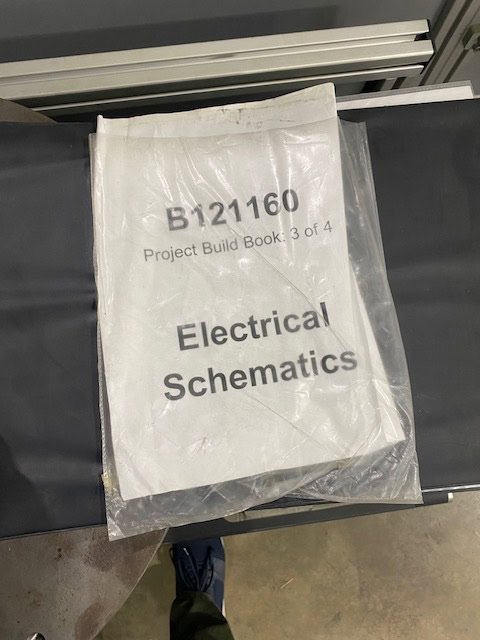

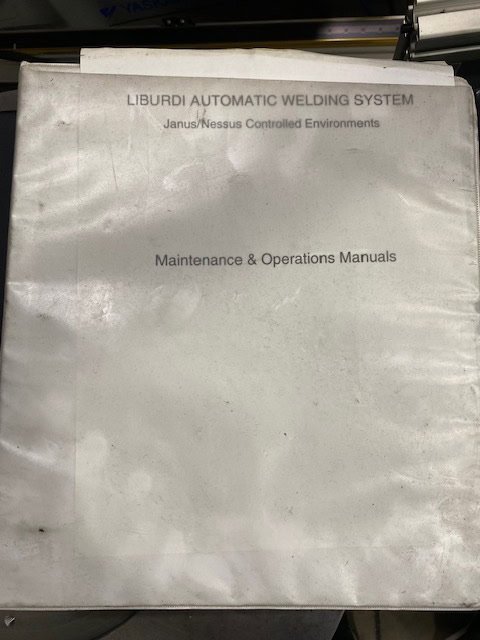

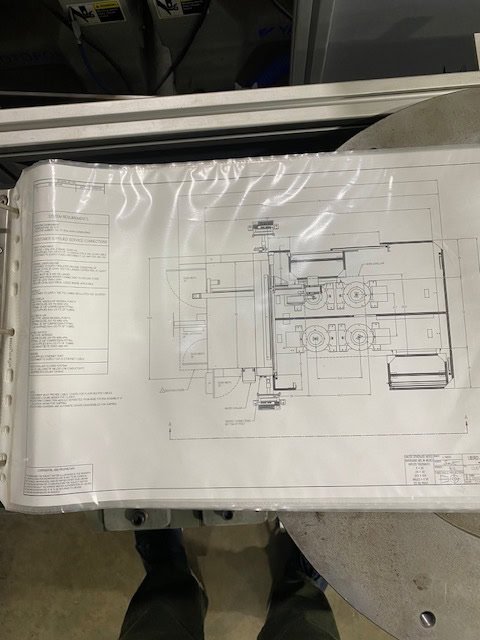

Available Manuals
