Description

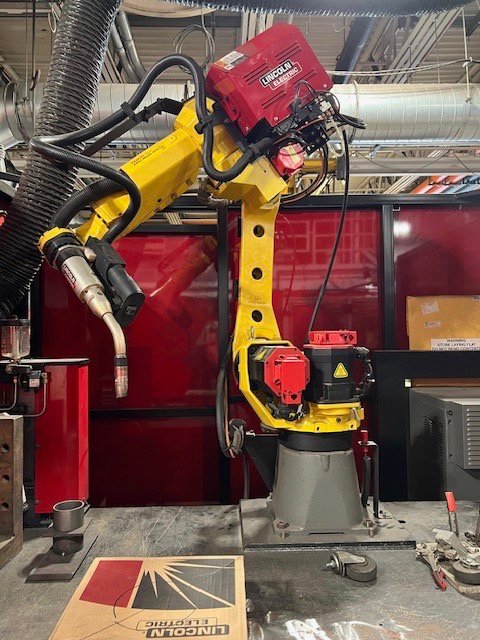

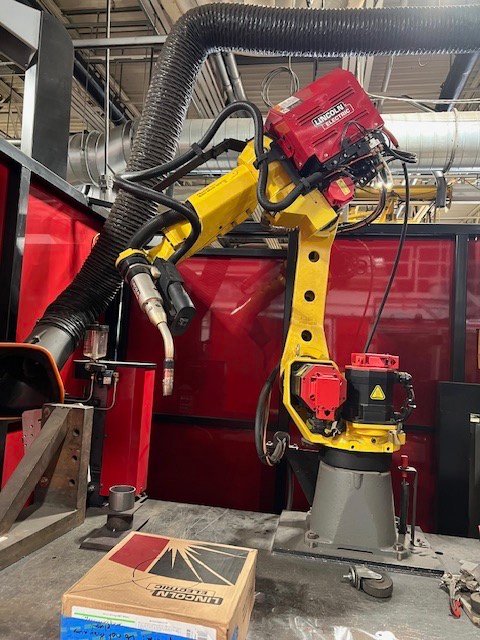

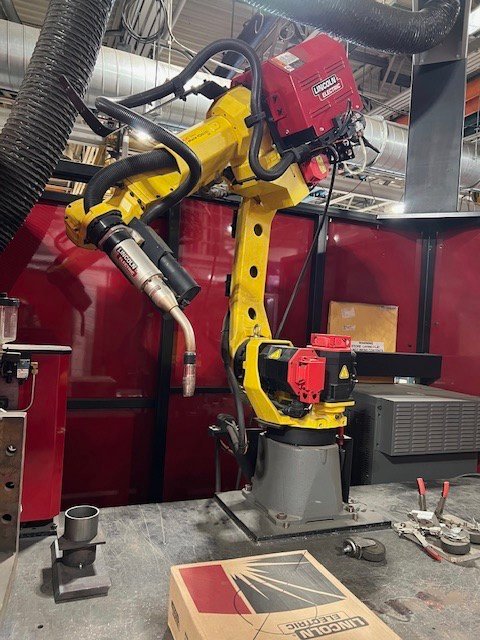

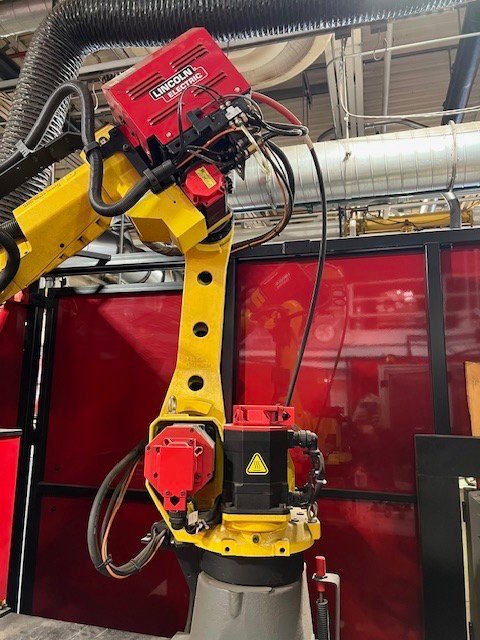

Robot: FANUC AM100iC
Axes: 6
Payload: 22 Lbs (10 Kg)
Reach: 56″

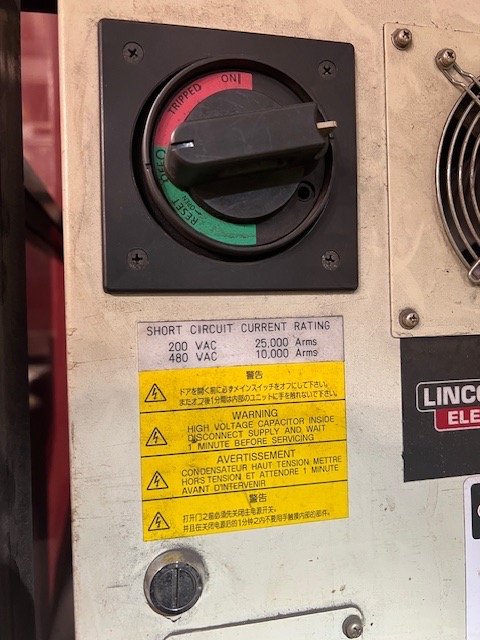

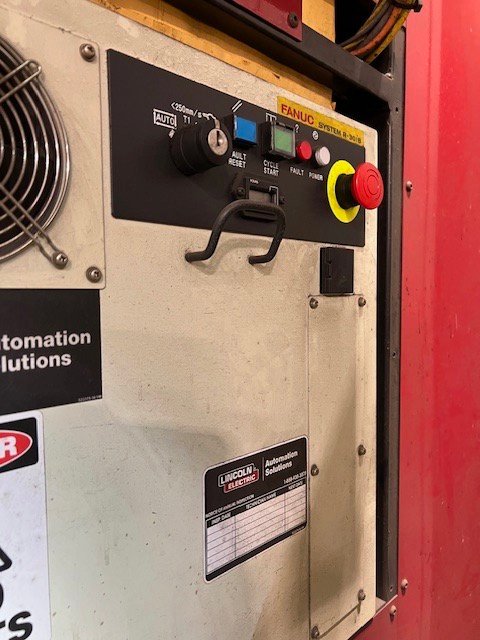

Controller: FANUC R-30iB
Software: ArcTool
Memory: 64 MB DRAM / 64 MB FROM / 3 MB SRAM

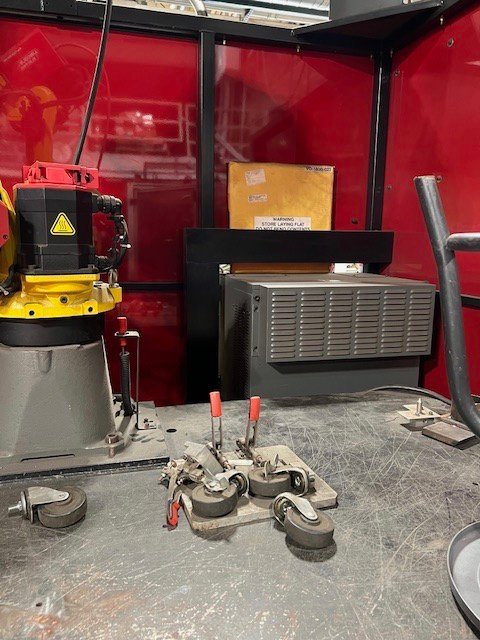

Worktable Size: 70″ × 24″
Worktable Capacity: 2,500 Lbs
System Dimensions: 96″ × 70″
Input Power Requirement: 440–575 V / 3 Phase / 60 Hz
Equipped With:
Lincoln R350 Welding Power Supply
4R100 Wire Drive Unit With 4 Powered Rolls (Up To .045″ Solid Or Cored Wire)
ENet Cable Assembly 25′
Quick Mounting Bracket Kit

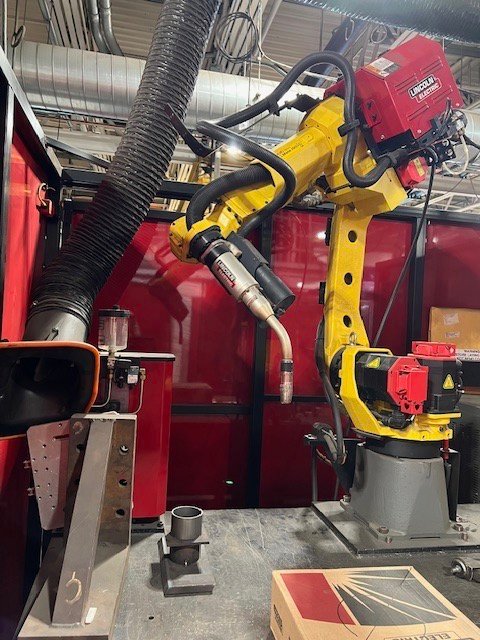

AD1121-257 Torch Package (LEA500AC 3.5′ 22D, .035″–.045″ OiB)
KP1505-035S Drive Roll Kit (.035″)
S23214-13 Model A 16 Outputs Relay
S23214-18 Model A 16 Inputs Positive 24VDC
AD1312-23 ArcLink XT 25′ Cable Kit
AD1253-254 PMC Robot Software (Programmable Machine Controller, Ladder Logic)
AD1253-77 CheckPoint Cloud-Based Production Monitoring
AD1253-37-FI Torch Guard Software (Collision Guard, TorchMate 3, Payload ID)
AD1253-90 TouchSense & TAST Bundle (TouchSense, Thru-Arc Seam Tracking)

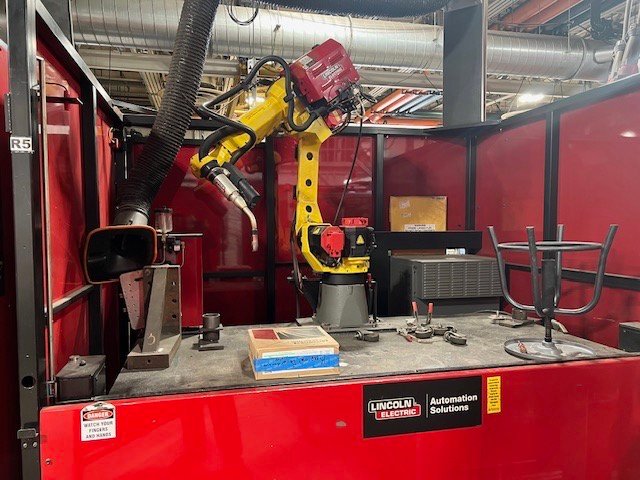

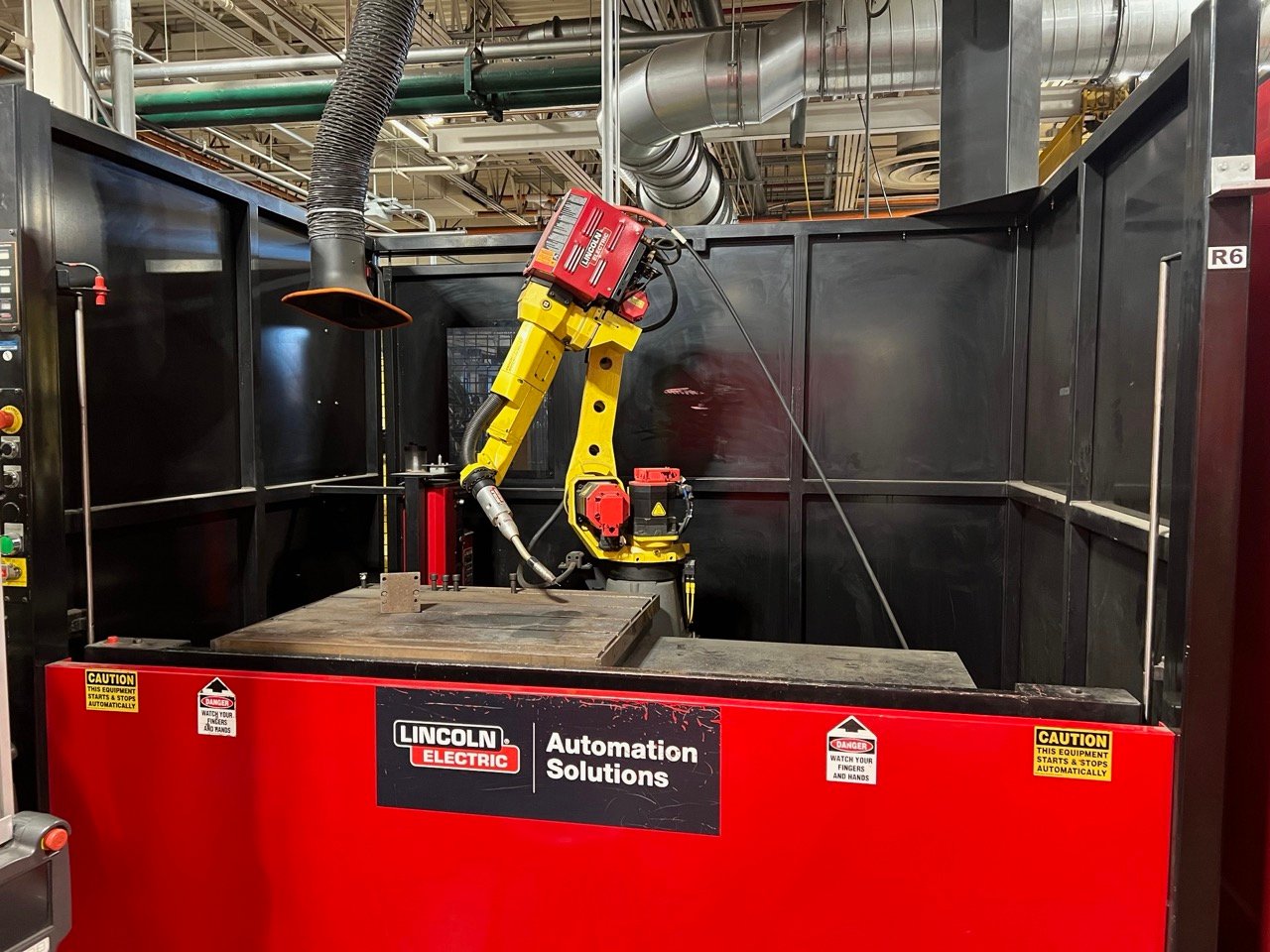

AD1564-1 System 5 Workcell With Palletized Base & Surround Enclosure
Pneumatic Pop-Up Curtain For Arc-Flash Protection
Operator Palm Station With Cycle Start, Reset, And E-Stop
