Description

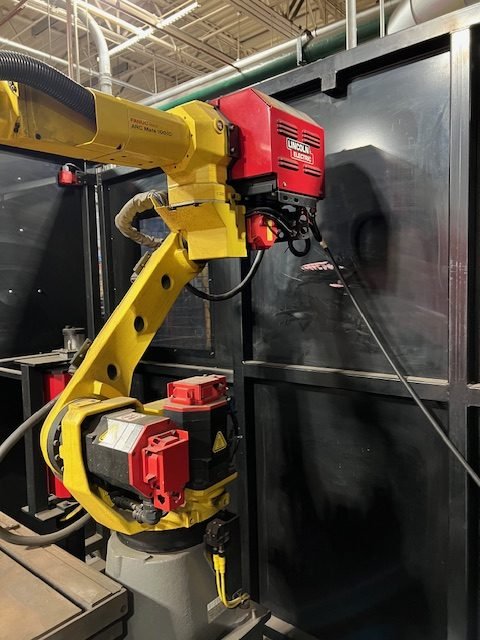

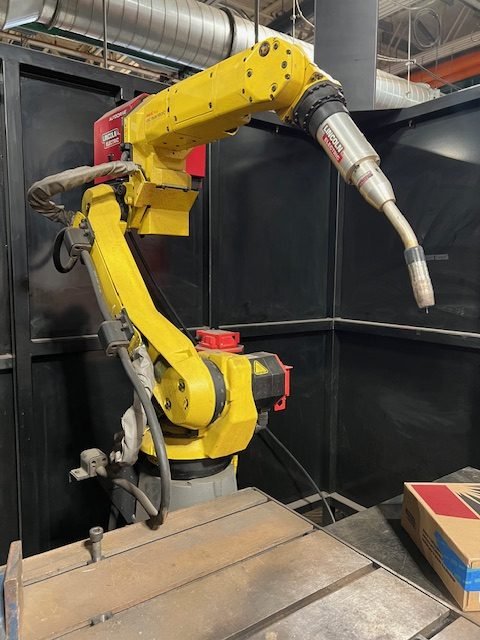

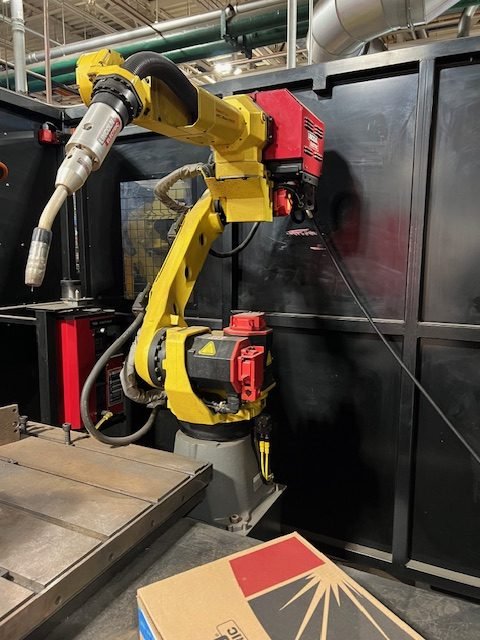

Robot Arm: FANUC AM100iC
Axes: 6
Payload: 22 Lbs (10 Kg)
Reach: 56″
Controller: FANUC R-30iB
Memory: 64 MB DRAM, 64 MB FROM, 3 MB SRAM
Welding Power Supply: Lincoln R350
Wire Feeder: 4R100 Wire Drive (4 Powered Drive Rolls, Up To .045″ Solid Or Cored Wire)

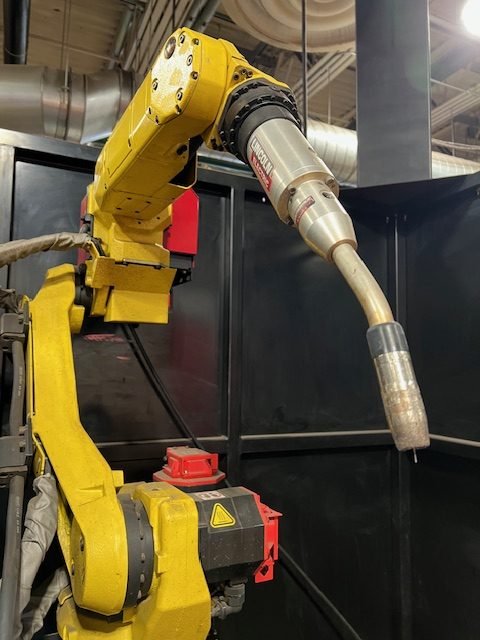

Torch Package: AD1121-257 With LEA500AC, 3.5′ 22D, .035″–.045″ OiB
Drive Roll Kit: KP1505-035S (.035″)
Outputs: Model A 16 Outputs Relay (S23214-13)
Inputs: Model A 16 Inputs Positive 24VDC (S23214-18)
ArcLink XT Cables: AD1312-23 Kit (25 Ft)
Worktable Size: 70″ × 24″
Worktable Capacity: 2,500 Lbs
System Footprint: 96″ × 70″
Equipped With:
FANUC ArcTool Software
AD1253-254 PMC Robot Software (Programmable Machine Controller, Ladder Logic)
AD1253-77 CheckPoint Cloud Monitoring Software
AD1253-37-FI Torch Guard Software (Collision Guard, TorchMate 3 TCP Adjustment)
AD1253-90 TouchSense & TAST Bundle (TouchSense, Thru-Arc Seam Tracking

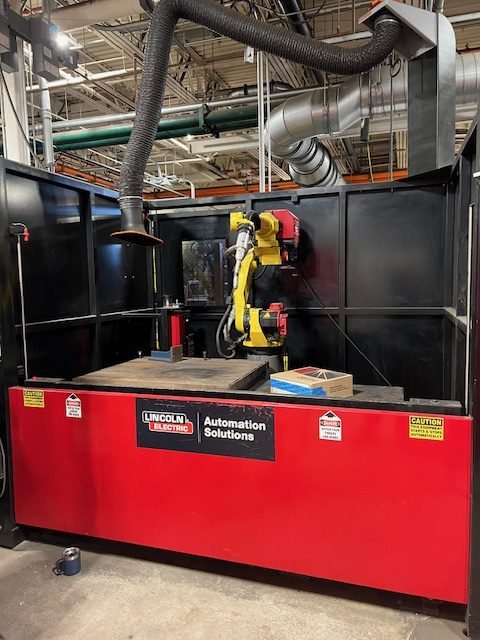

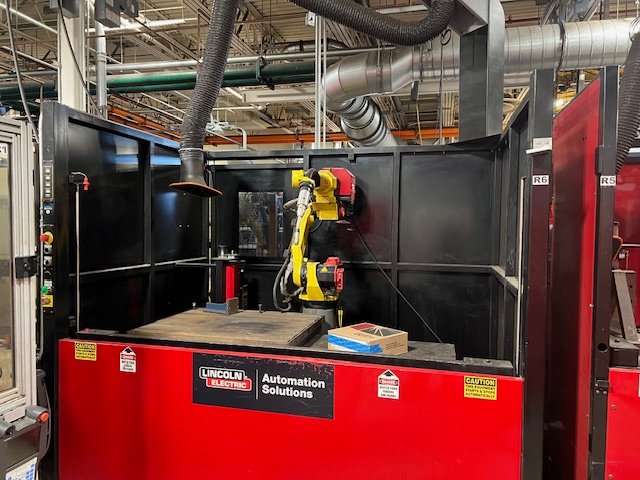

AD1564-1 System 5 Workcell With Palletized Base And Surround Enclosure
Pneumatic Pop-Up Curtain For Arc-Flash Protection
Operator Palm Station With Cycle Start, Fast Reset, And E-Stop

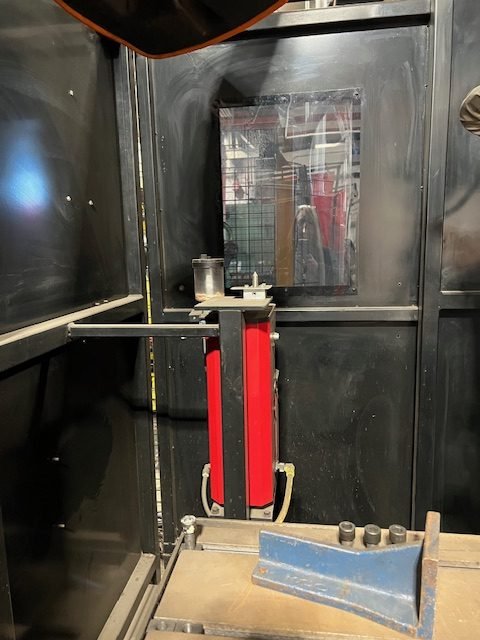

AD2391-1 Power Reamer & Wire Clipper With Anti-Spatter Fluid
Educational 2D iRVision Package With FANUC XC-56 CCD Scan Camera
Banner LED Red Spotlight
