Description
CAPACITY
Maximum workpiece diameter: 24.80 inches
Maximum workpiece height: 35.43 inches
X-axis travel (column right and left): 22.05 inches
Y-axis travel (spindle up and down): 25.20 inches
Z-axis travel (table back and forth): 25.20 inches
SPINDLE (standard)
Spindle taper hole: 7/24 taper, No. 40 (standard)
Spindle speed maximum: 18,000 min⁻¹

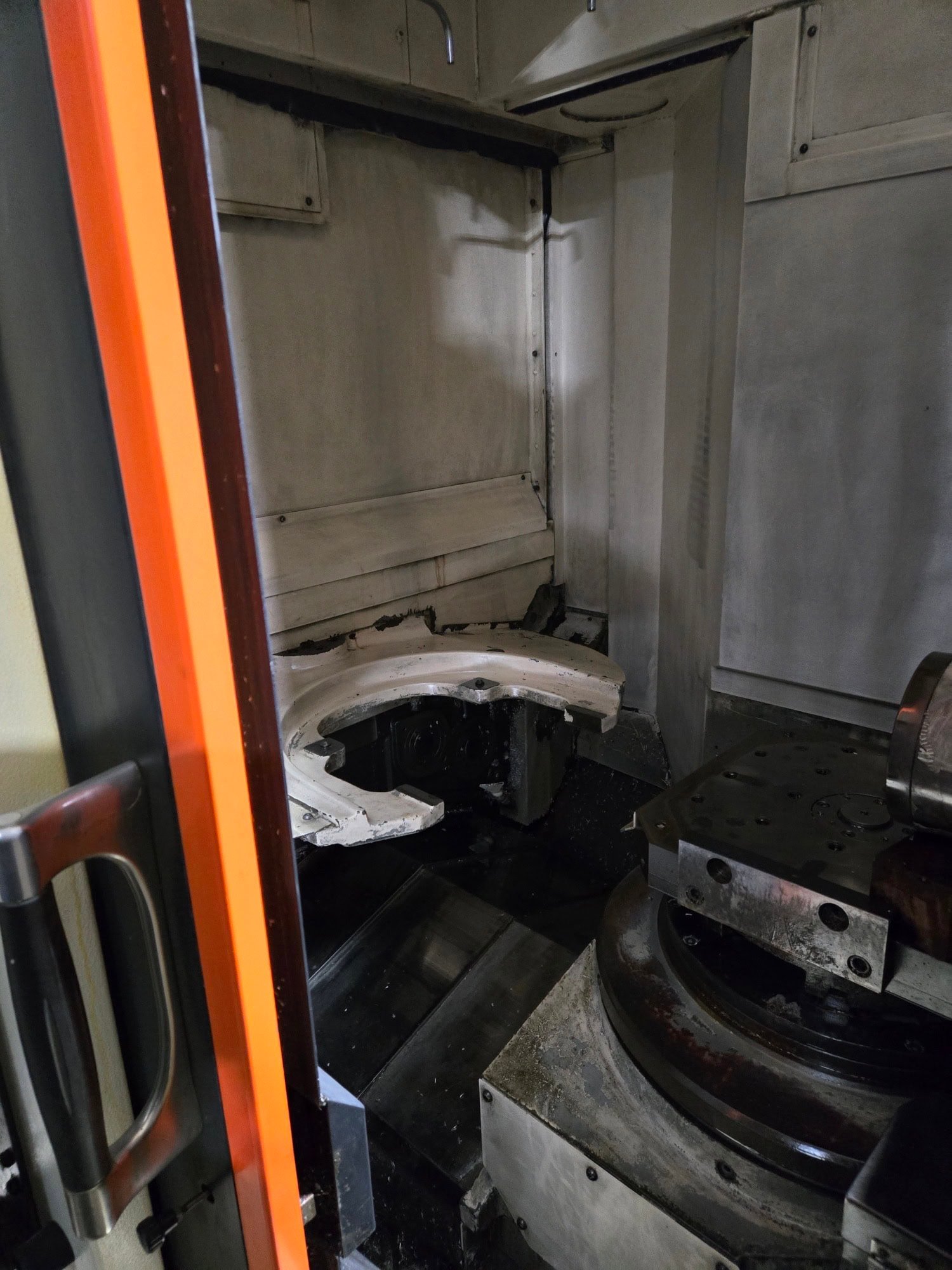

TABLE & PALLET
Pallet width: 15.75 inches
Pallet length: 15.75 inches
ATC TOOL MAGAZINE
No. of tool pockets (standard): 40
MACHINE SIZE
Width: 87.01 inches
Length: 181.93 inches
Equipped With:

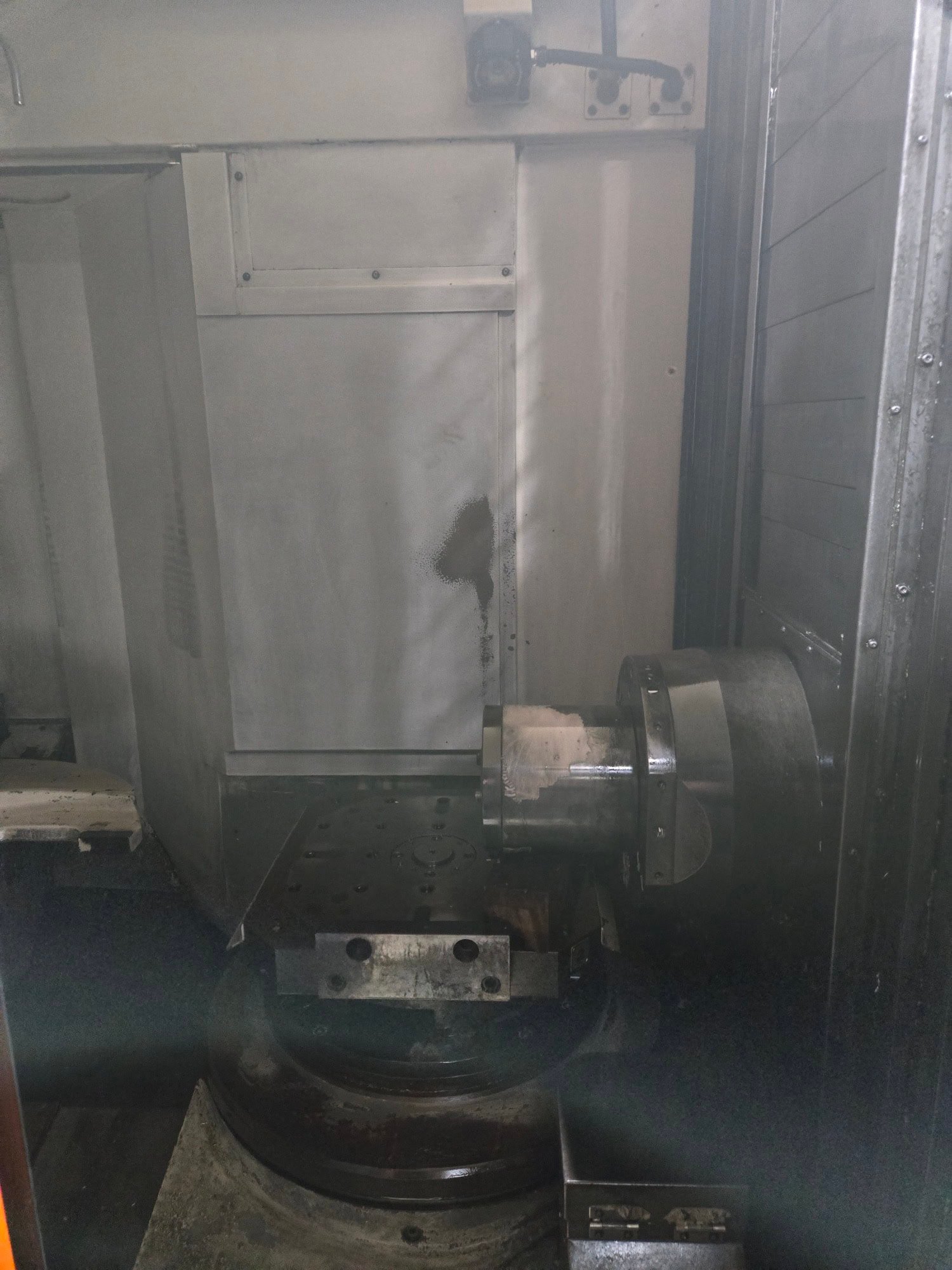

-Full 4th Axis
-CAT 40 Taper
-Chip Conveyor
-Probing
-80 Tools
