Description
X-Axis Travel: 12.20″
Z-Axis Travel: 23.82″
X2 Axis Travel: 12.20″
Z2 Axis Travel: 23.82″
Distance Between Centers: 57″
Max Swing Over Bed: 16.93″
Max Turning / Cutting Length: 56.00″
Max Cutting / Turning Diameter: 16.39″
Bar Capacity: 4.00″
Chuck Type: Collet
Chuck Description: Production Dynamic Collet
Spindle Bore: 4.40″
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
Sub-Spindle Bar Capacity: 4.00″
Second Chuck Spindle Speed: 4,000 RPM
Second Spindle Motor: 30 HP
Turret: 12 Tool Positions
Twin Turret: Equipped With
Second Turret: 12 Positions
EQUIPPED WITH:
Control: Mazatrol 640T CNC Control
Sub-Spindle
Twin Turret
C-Axis Equipped
Y-Axis Equipped
Live Tooling / Milling Equipped
Tool Presetter
LNS Quick Load Servo S3 Bar Feeder
Barfeed Interface
Auto Partition
Work Unloader

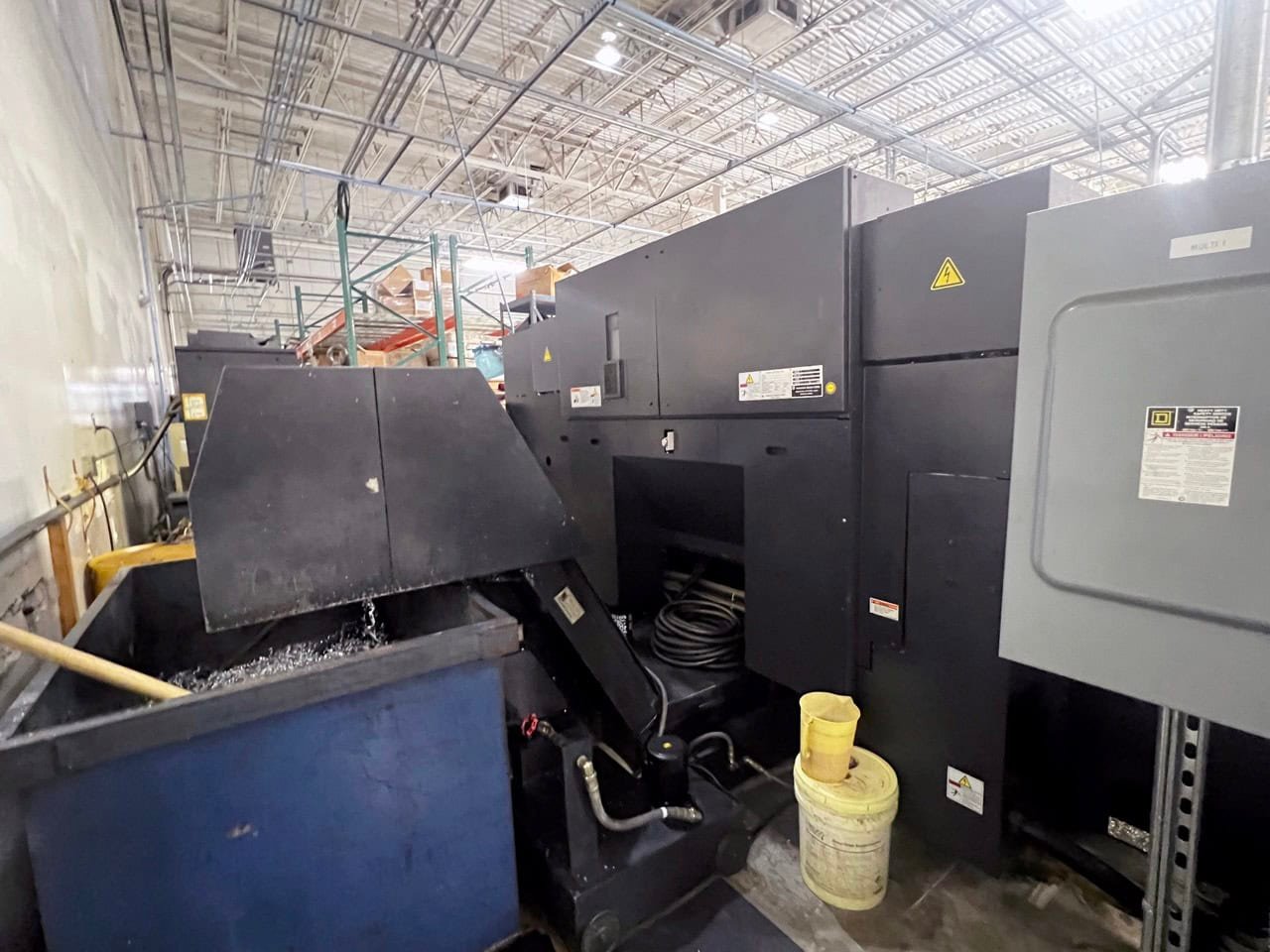

Concep 2000 Chip Conveyor
Parts Conveyor
Tool Holders in Turret Included
Assorted Tooling:
– (16) Spindle Liners
– (5) Barfeeder Push Rods
– (4) Live Tool Holders
– (1) CAT#40 Tool Holder
