Description
X-Axis Travel: 41″
Y-Axis Travel: 20″
Z-Axis Travel: 20″
Rapid Traverse Rates: 1,417 IPM (X, Y, Z)
Cutting Feed Rate: 787 IPM (Approx.)
Table Size: 51.18″ × 21.65″
Table Load Capacity: 2,640 Lbs
Spindle Taper: CAT 50
Spindle Speeds: 6,000 RPM
Spindle Motor: 25 HP
Tool Changer Capacity: 30 Positions (Side-Mount ATC)
Tool Change Time (Chip-to-Chip): 1.3–2.9 Seconds
Max Tool Diameter: 4.9″
Max Tool Length: 13.8″
Max Tool Weight: 17 Lbs
Spindle Nose To Table Top: 5.9″ – 25.98″
Air Requirement: 80 PSI, 4 SCFM
Power Requirement: 220 V, ~35 kVA, 3-Phase
Machine Weight: Approx. 15,200 Lbs
Overall Dimensions (L×W×H): Approx. 113″ × 111″ × 113″
Equipped With:

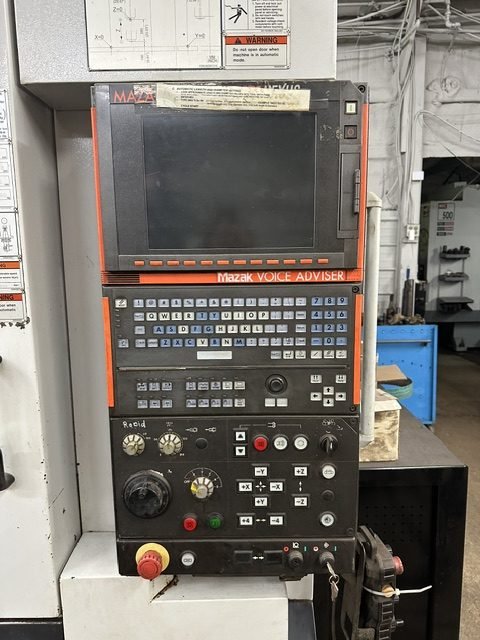

Mazatrol Matrix CNC Control
Tool Probe
Chip Conveyor
Hand Pendant
