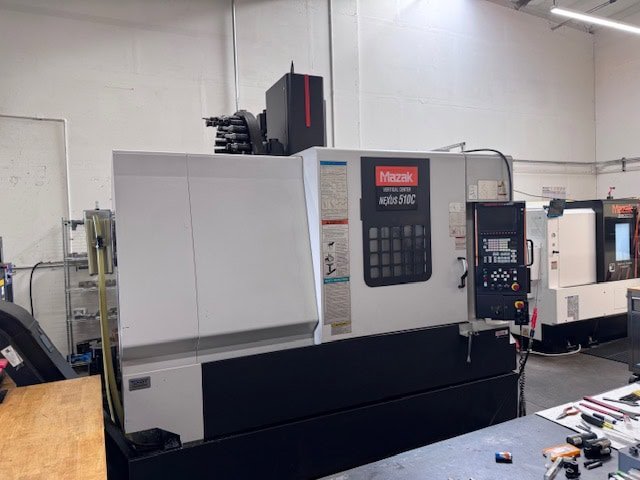

Description
X-Axis: 41.3”
Y-Axis: 20.0”
Z-Axis: 20.0”

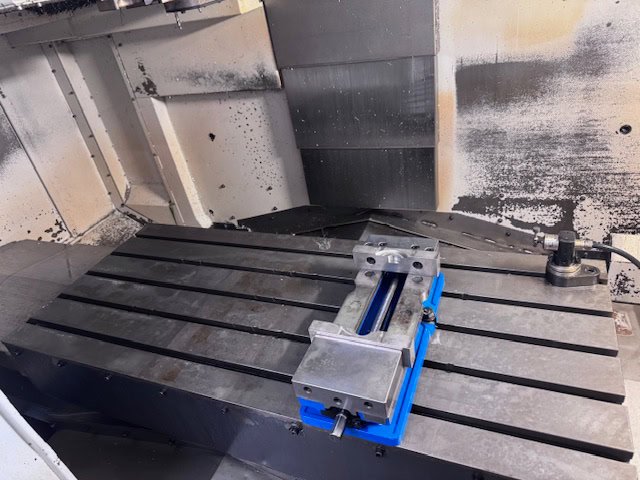

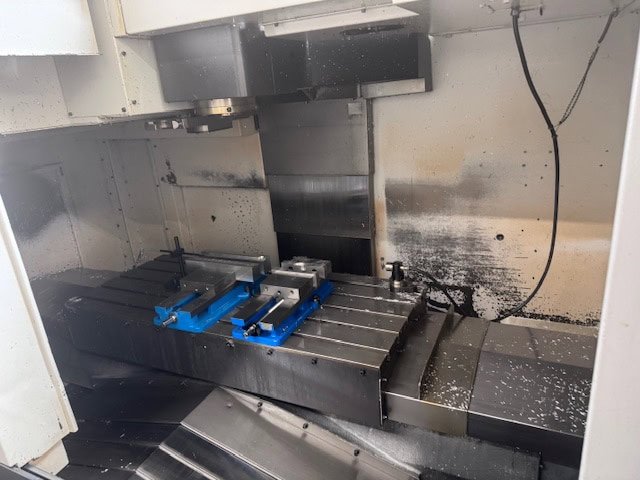

Table & Work Area
Table Size: 51.2″ × 21.6″
Max Table Load: 2,646 lbs
Spindle Nose to Table: 5.9″ – 25.98″
T-Slots: 5 slots, 5/8″ wide
Spindle
Taper: CAT 40
Speed: 12,000 RPM (Direct Drive)
Power: 25 HP

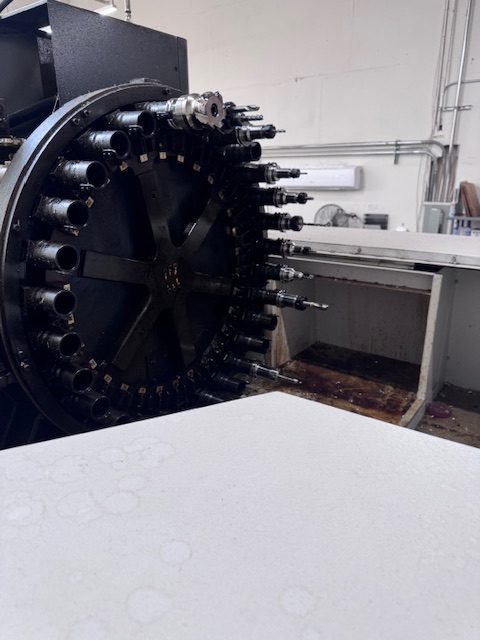

Tool Changer
Capacity: 30 tools
Max Tool Diameter: 3.15″
Max Tool Length: 13.8″
Max Tool Weight: 13.78 lbs
Tool Change Time: 1.3 seconds
Feedrates
Rapid Traverse (X/Y/Z): 1,417 IPM
Cutting Feed Rate: 787 IPM
Equipped With:
Mazatrol 640M Nexus Control

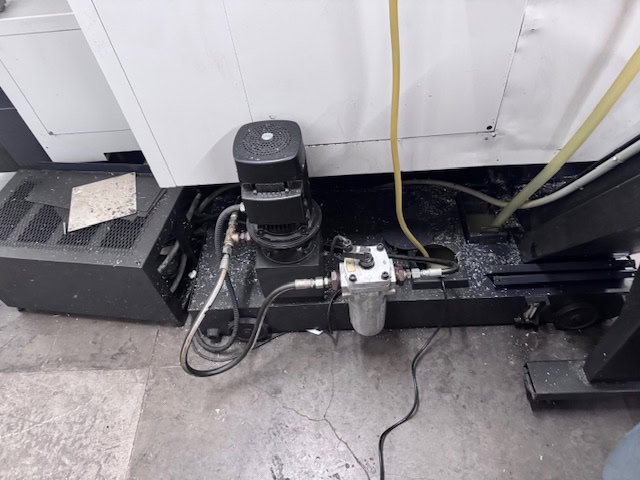

Through Spindle Coolant

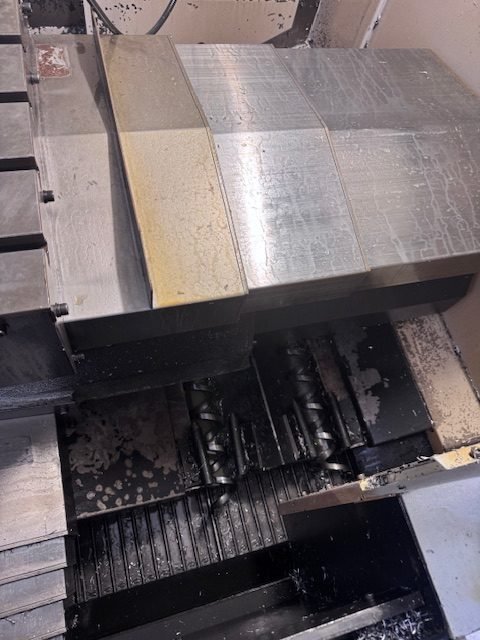

Chip Conveyor
Tool Setter
