Description
Max. Workpiece Dimensions: 41.3″ x 32.3″ x 16.5″

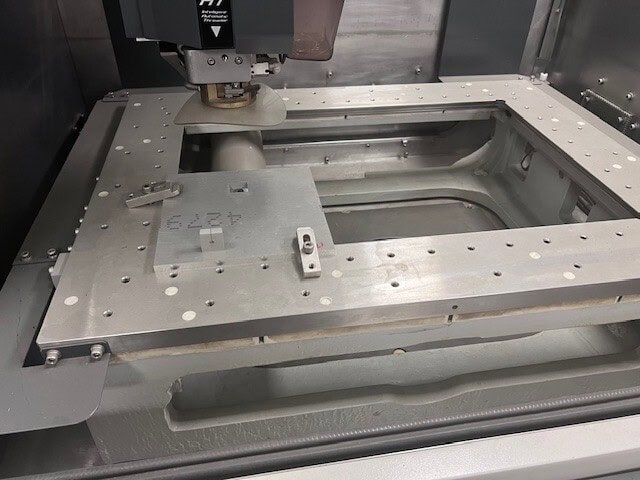

Table Dimensions: 33″ x 25.2″
Machining Range: 23.6″ x 15.7″ x 16.7″
U/V Travel: ±3.0″ x ±3.0″
Resolution (Absolute Scales): .000002 (2 millionths)
Taper Angle: 15° @ 10.25″
Table Rapid Feed: 51.2″
Wire Diameter: 0.004 – 0.012 (0.010 Std)
Minimum Wire Thread Start Hole: 0.020
Maximum Workpiece AT Height: 16.5″
Wire Tension: 50-2500
Wire Spooling Speed: 0~11.8 in/sec

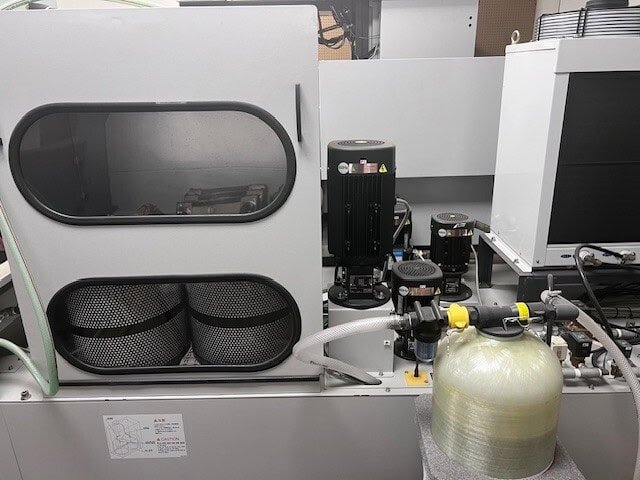

Filter System: Paper Cartridge (2x)
Filter Precision: 5 Micron
Ion-Exchange Resin: 1 ft³ (6.4 gal dry)
Filter Tank Capacity: 260 gal

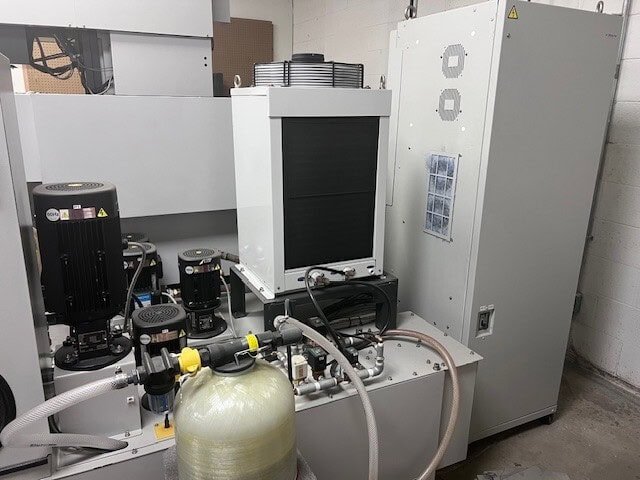

Dielectric System Dimensions: 40.3″ x 90.5″ x 61.7″
Overall Machine Dimensions: 111.7″ x 137.4″ x 93.7″
Approx. Machine Weight: 8,100 lbs
