Description
X Axis Travel: 9.3″
Z Axis Travel: 116″
Rapid Rate Z Axis: 378 IPM
Turret Tools: 10 Station
Rapid Rate X Axis: 189 IPM
Max Turning Dia: 13.8″

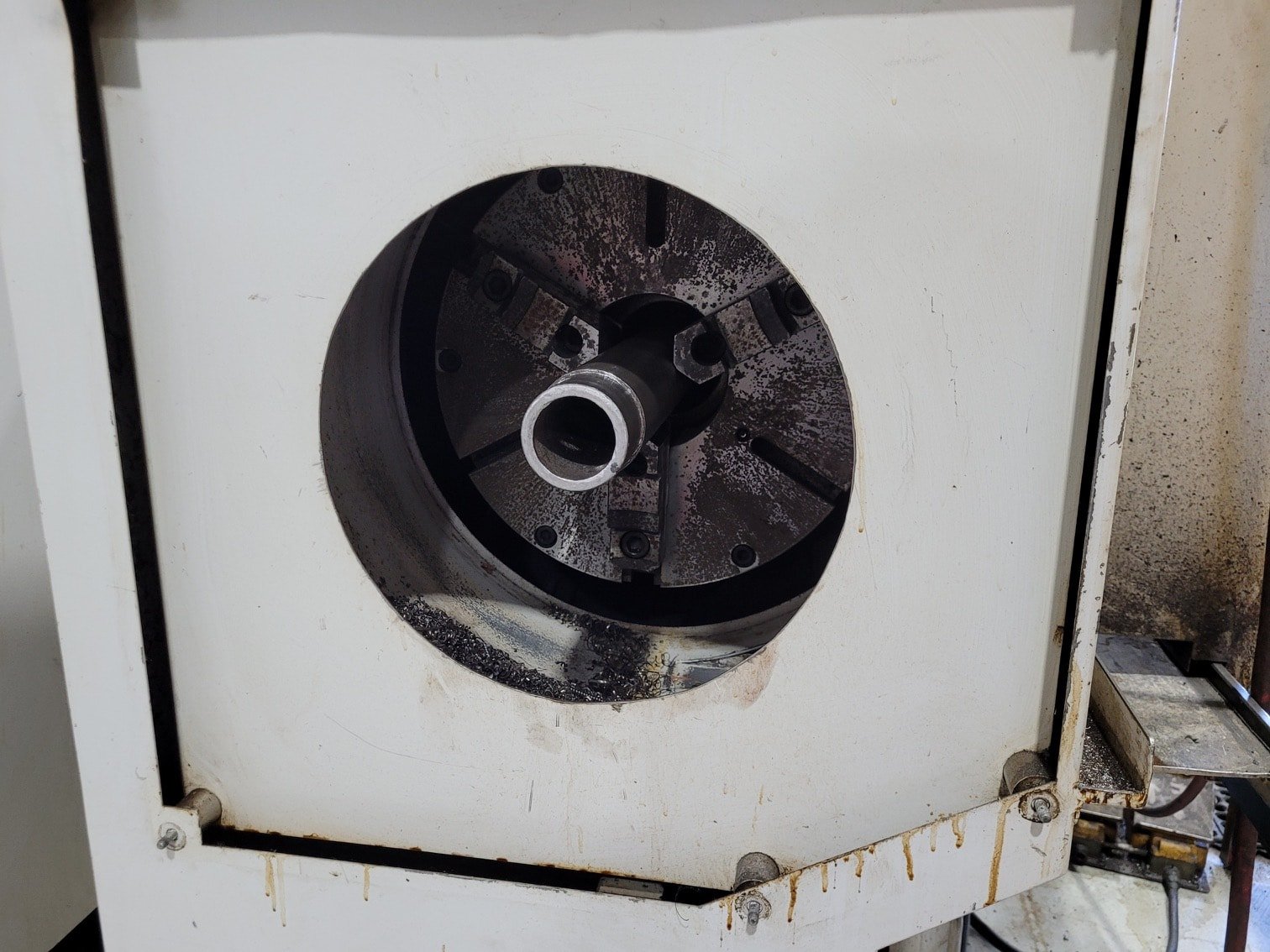

Air Chuck: 18″ (Main)
Manual Scroll Chuck: 18″ (rear)
Manual Hydraulic Tailstock/Rotating Center
Belt Drive: 40HP

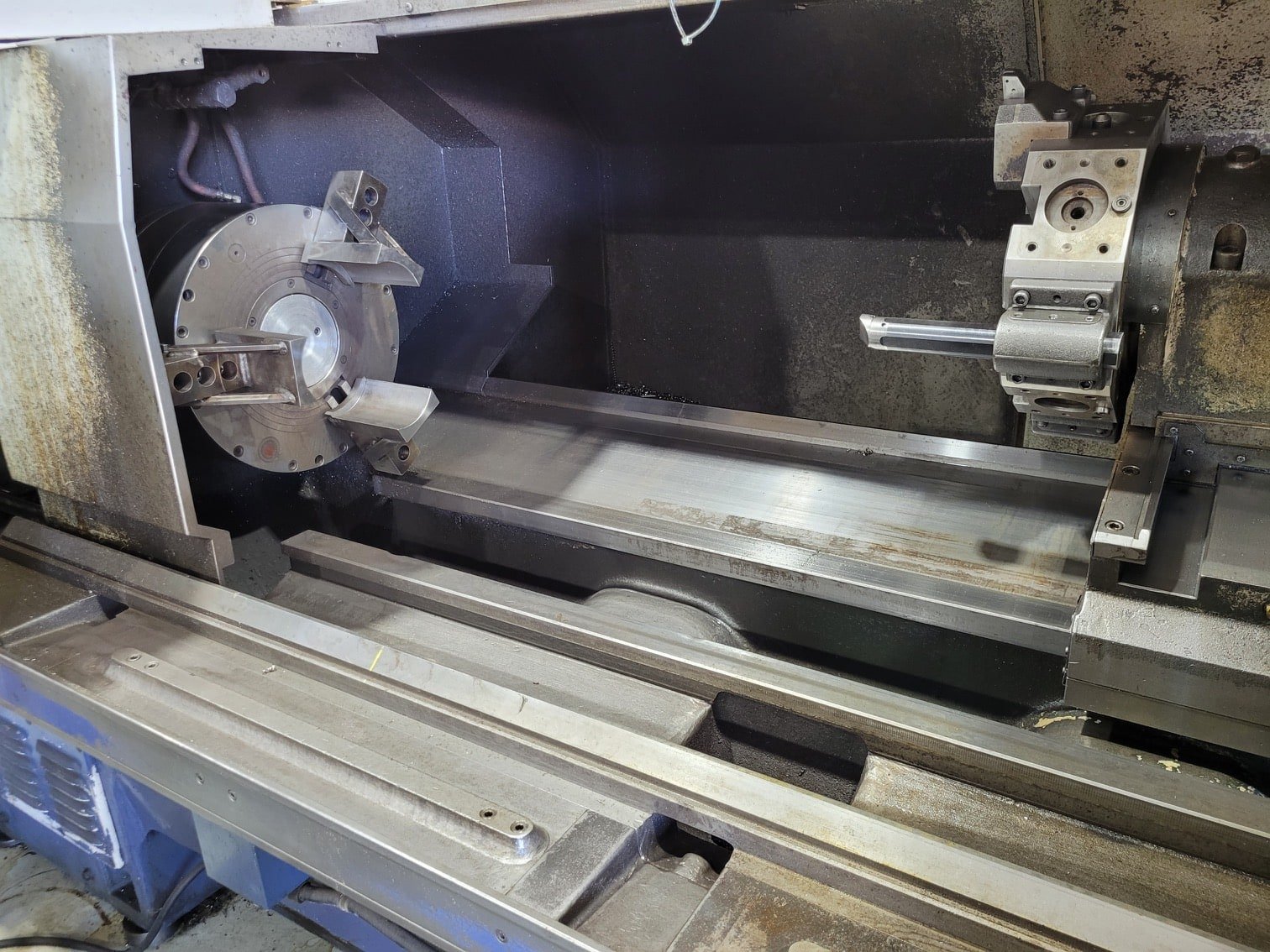

8 Station Multi-Directional Turret
Bar Max Capacity: 4.6″
Diameter: 20″
Length: 60″
2500 Rpm Main Spindle, High and Low Gear Available
Included:
-2 Steady Rests

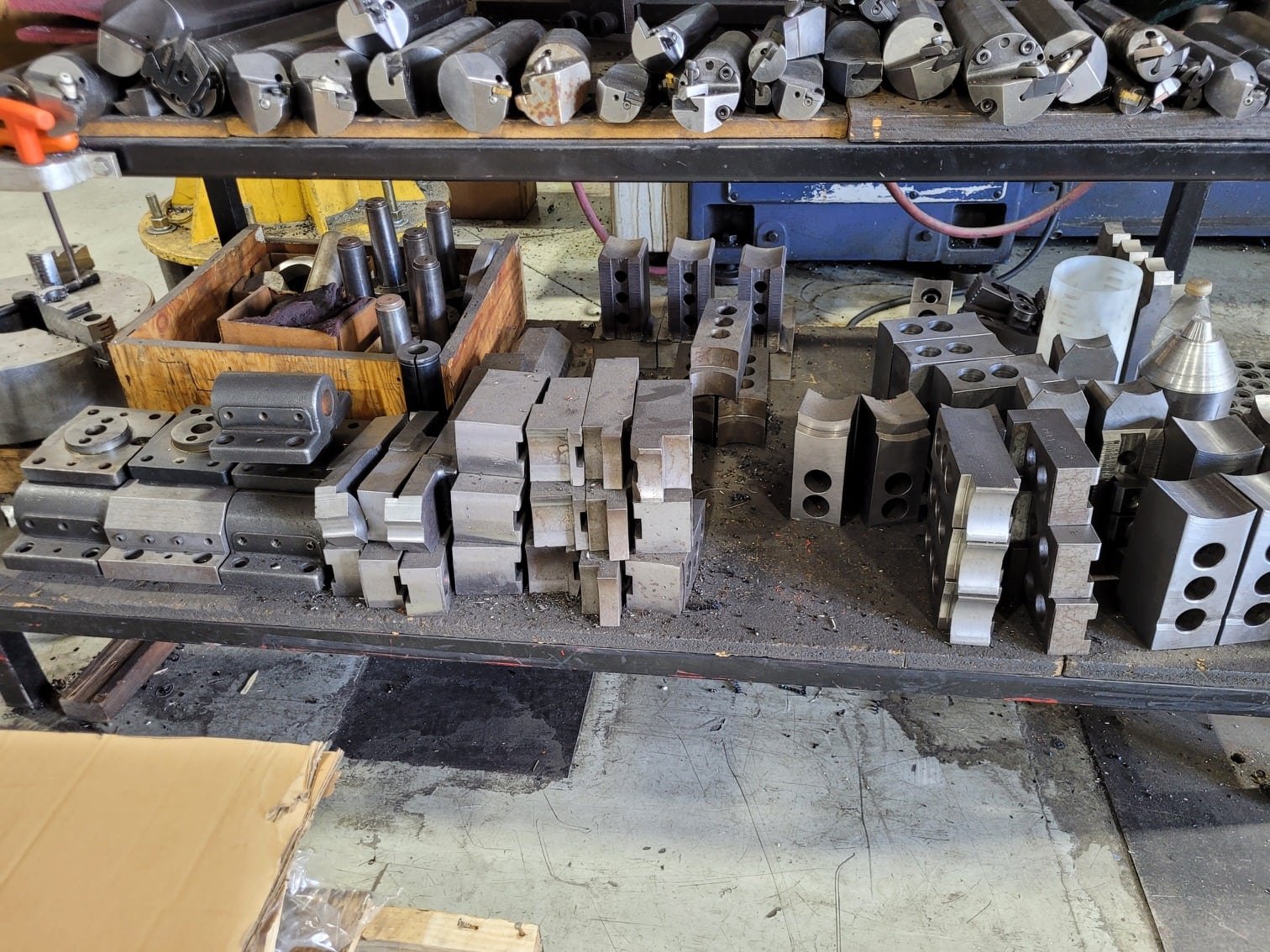

-Numerous Soft Jaws
-1 Set of Hard Jaws

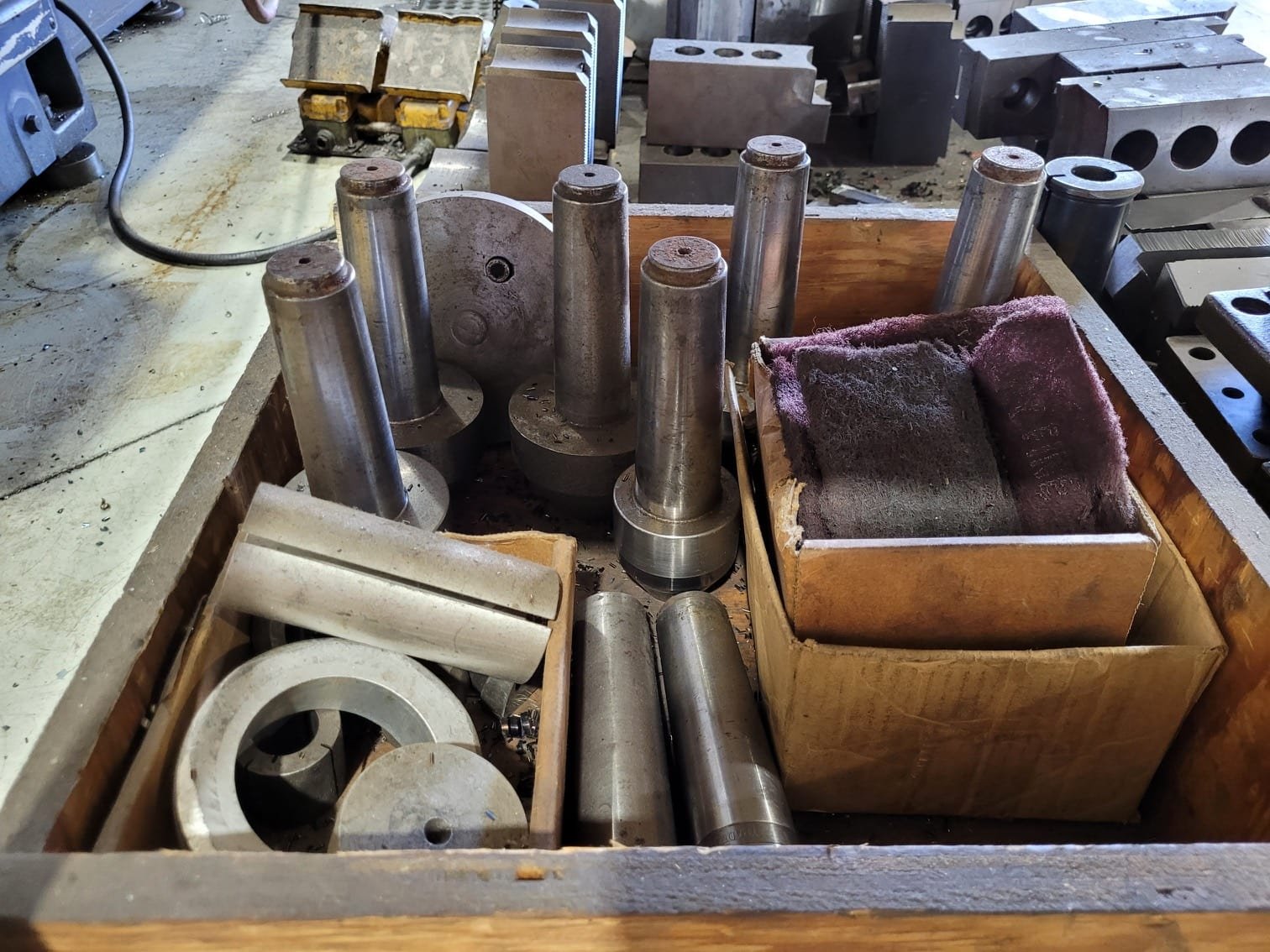

-7 Centers
-Auxiliary High Pressure Coolant Pump

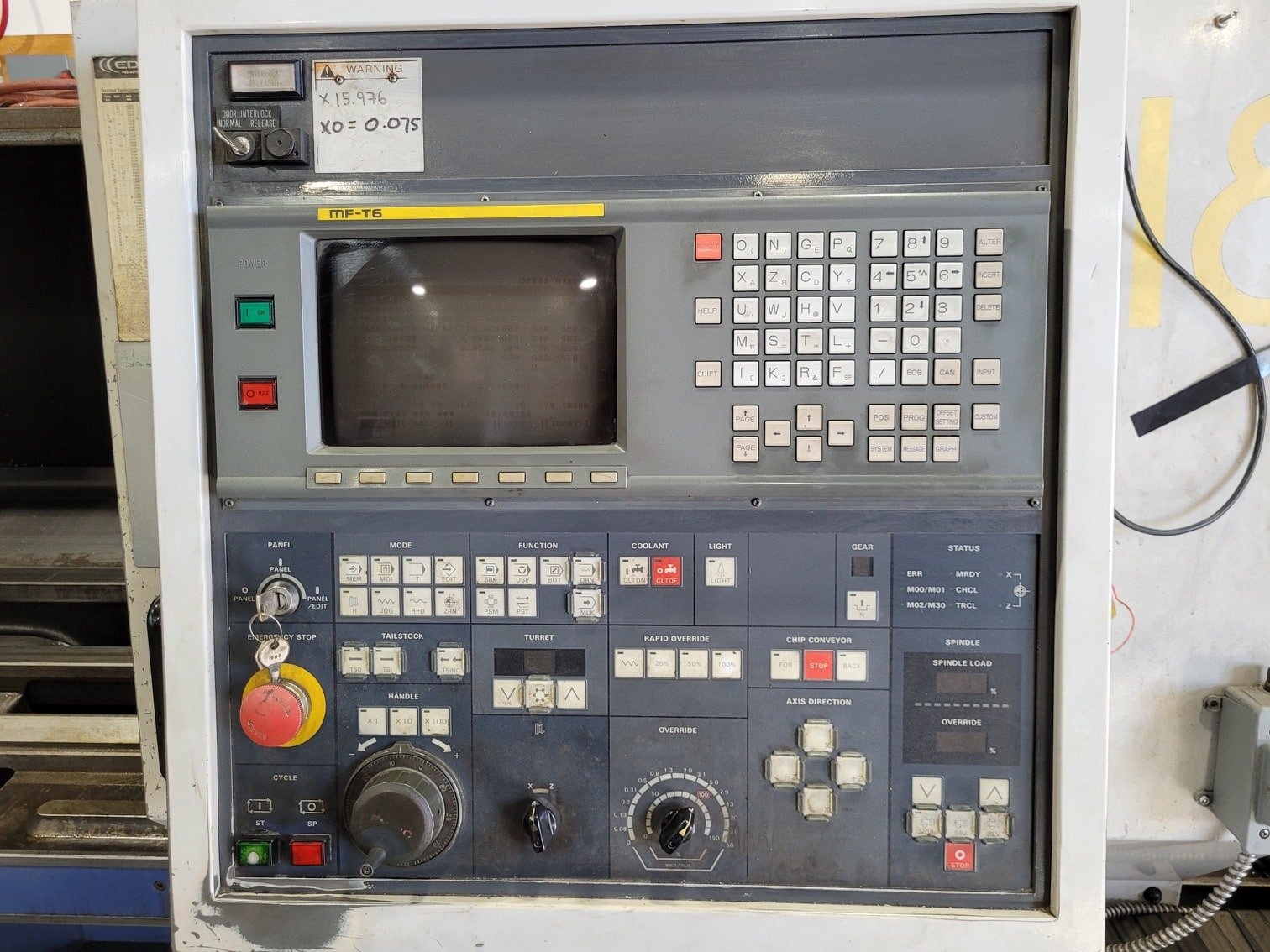

-Fanuc MF-T6 Control
-Chip Conveyor
-Multiple I.D. and O.D. Tool Holders
-2 Face Groove Holders
This machine is in good working order and is currently powered up and available for viewing.
As mentioned, it has never been crashed and is still a very capable heavy turning machine
