Description
Specifications (subject to buyer verification):
Bar Capacity: 3″
Chuck Size: 10″
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11″
Z Axis Travel: 37.8″

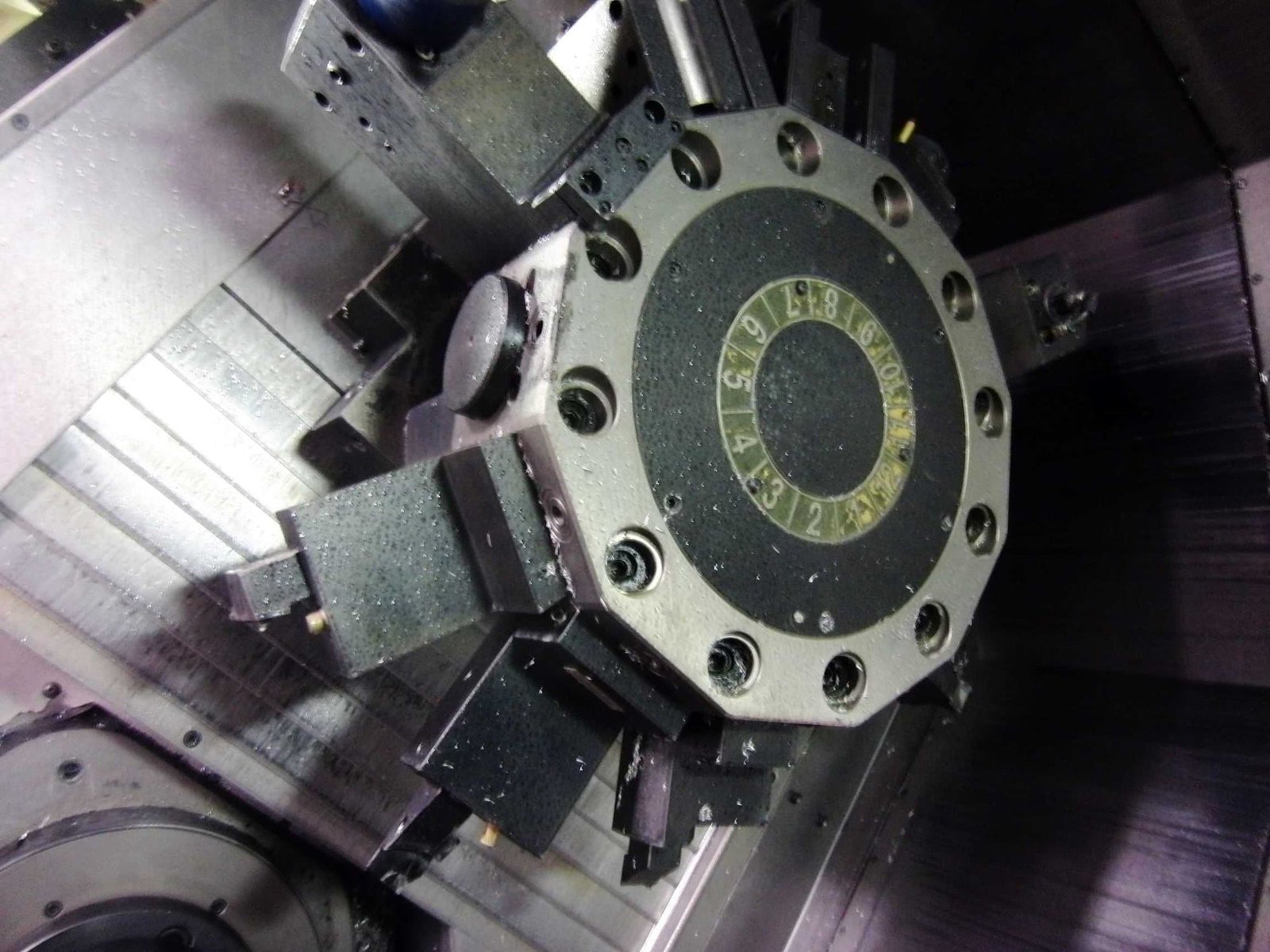

Turret Tools: 12 Station
Max Turning Diameter: 15.3″
Max Turning Length: 13.7″
Max Swing: 26″
Max. Swing Over Bed: 27.7″
Max. Swing Over Cross Slide: 16.5″
Max. Distance Between Centers: 51.2″
Max. Turning Diameter: 14.1″ (Secondary)
C-Axis Indexing: .001°

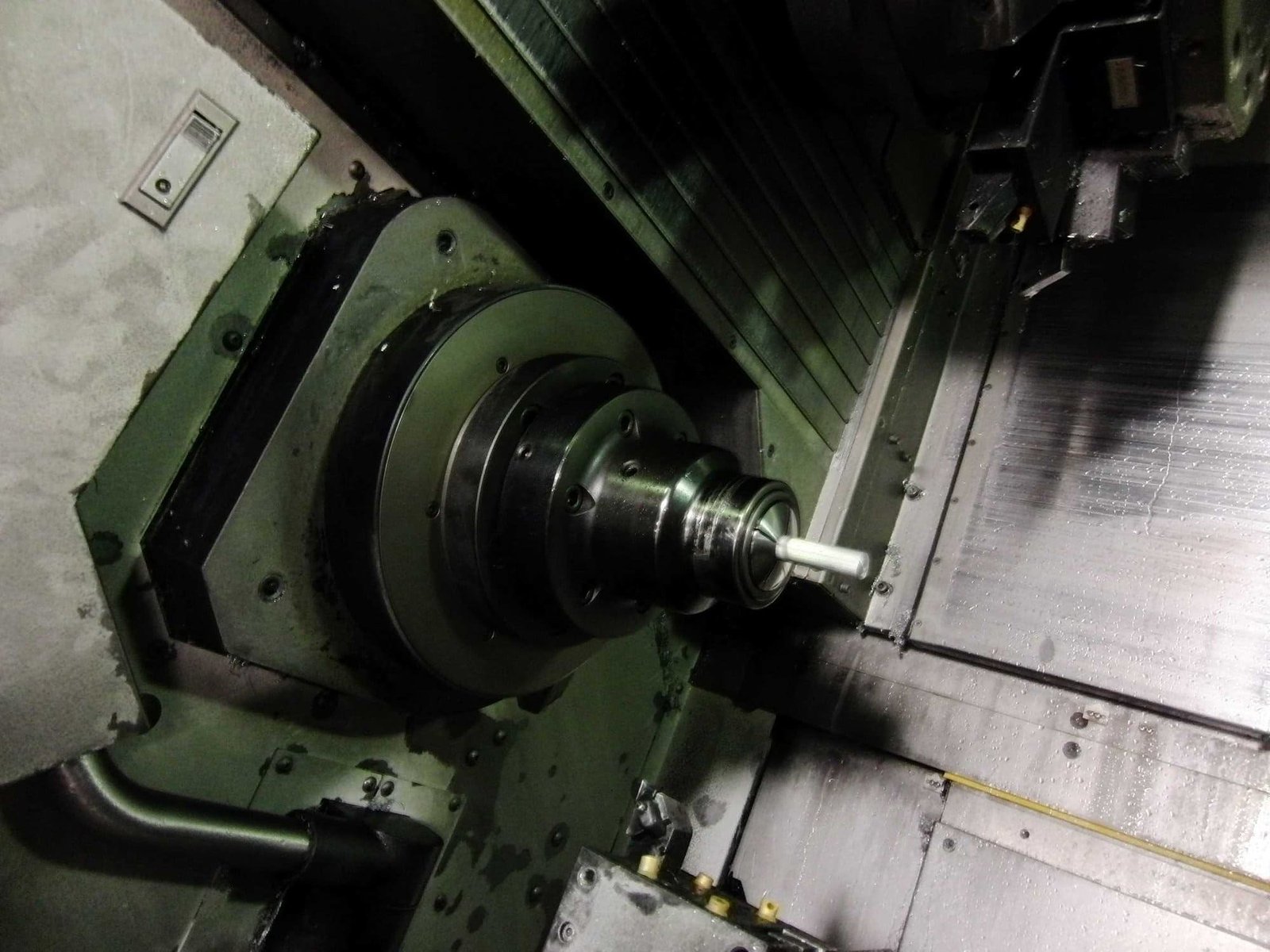

Spindle Bearing Inner Diameter: 5.1″
Rotary Tool Spindle Speed: 4,000 RPM
X-Axis Travel (Turret 2): 7.9″
Y-Axis Travel (Upper Turret Only): +/- 2.8″
Weight: 31,000 LBS
Equipped With:

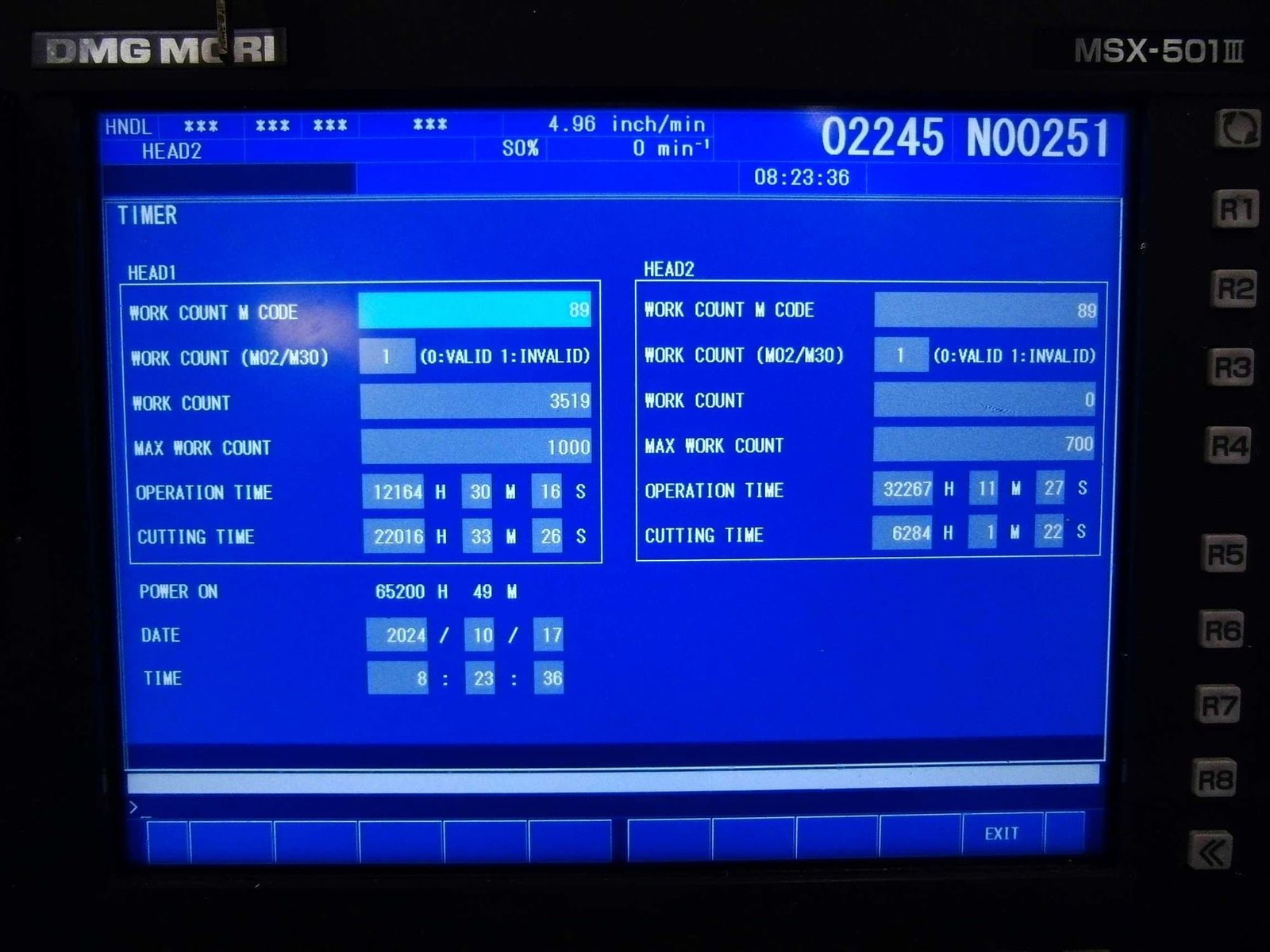

Control: DMG Mori MSX-501 III

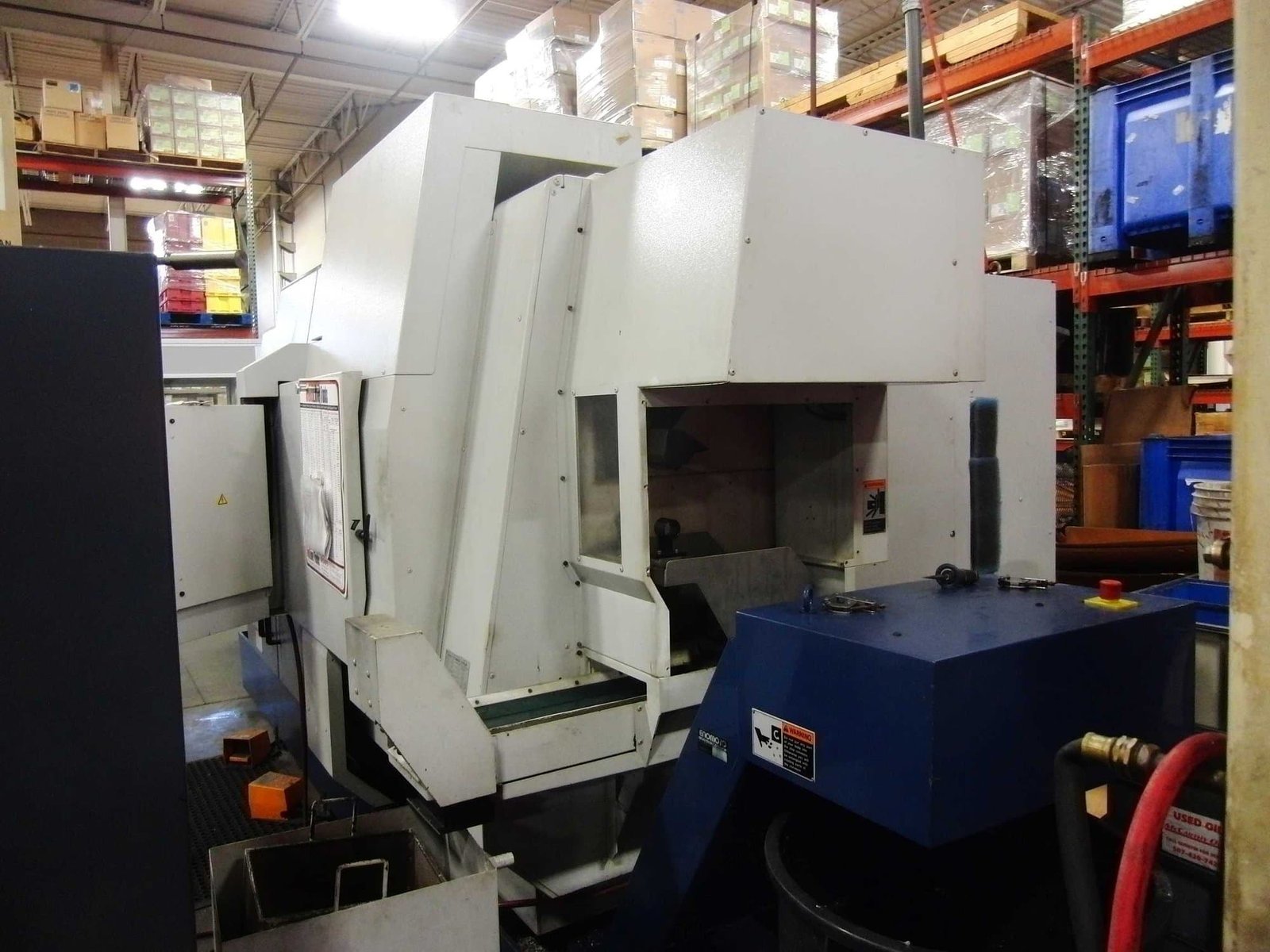

Chip Conveyor
Y-Axis

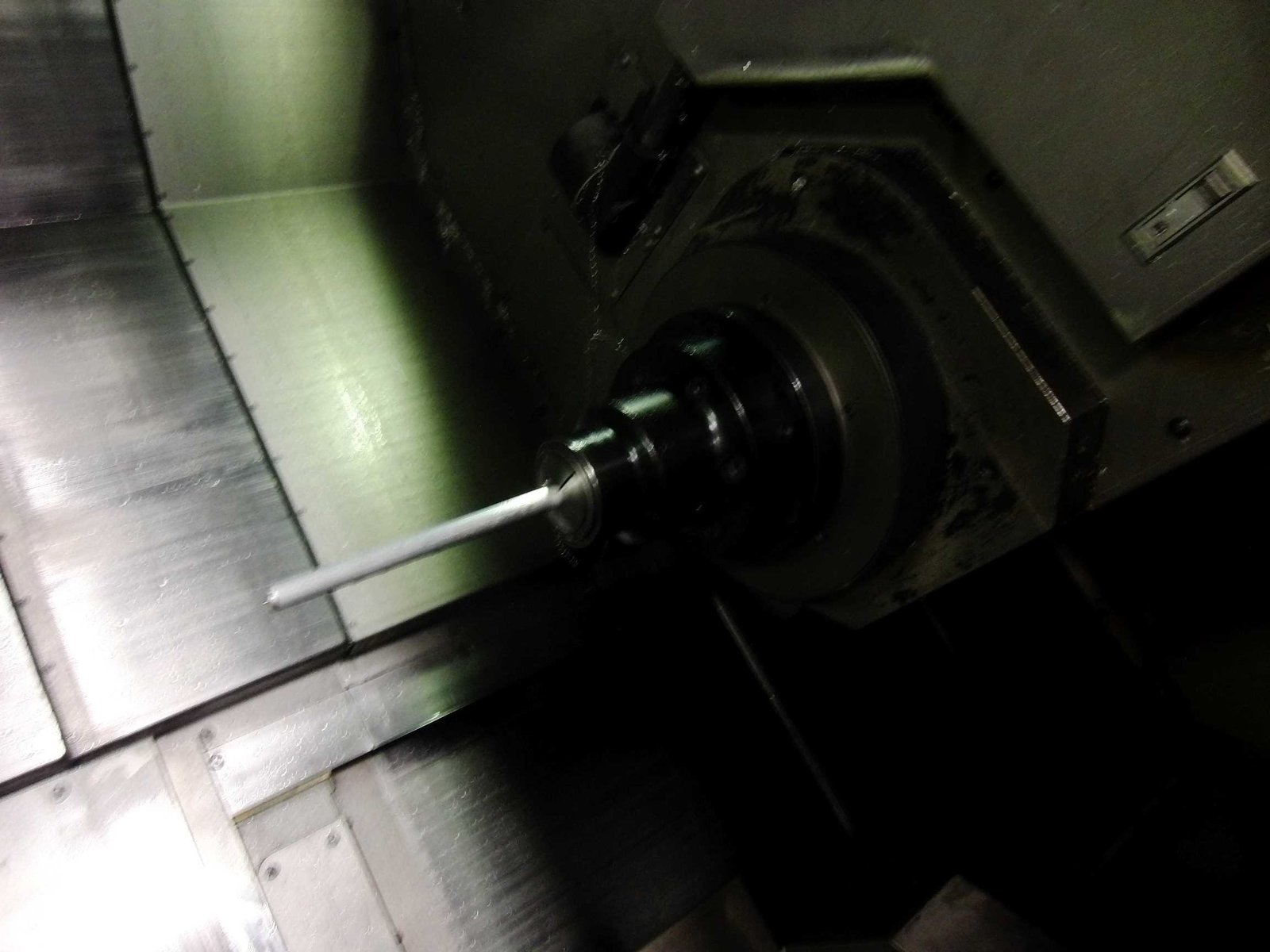

Sub Spindle

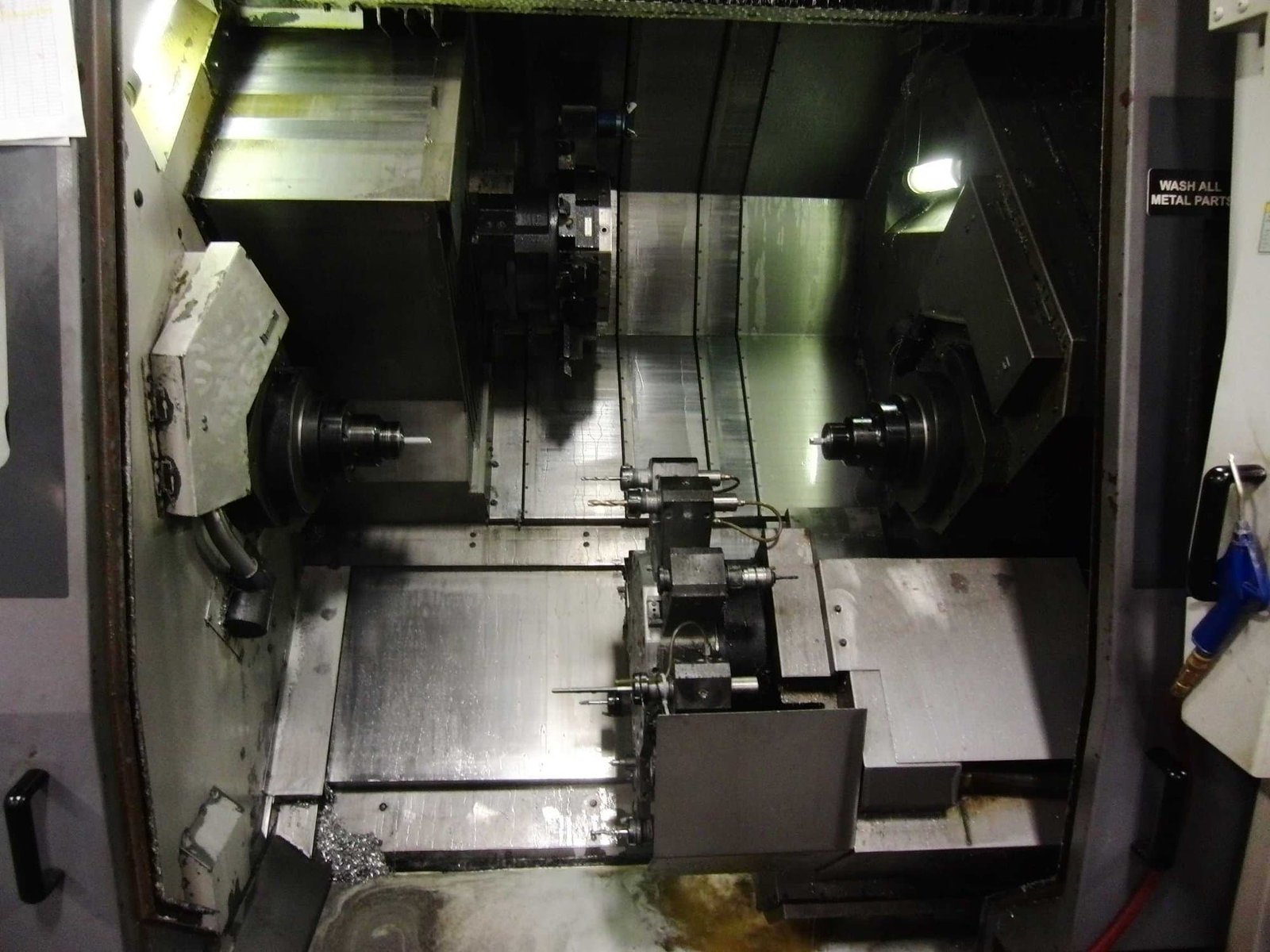

Dual Turret
Live Tooling
