Description
Max Grinding Diameter: 3″
Swing Over Table: 5″
Capacity Between Centers: 12″
Max Table Travels: 13-3/4″
Table Swivels: 10°
Table Travel Per Rev. of Handwheel: 0.44″
Hydraulic Table Traverse: 0 – 120 IPM
Total Travels By Feed Screw: 3-7/8″
Hydraulic Rapid Retraction: 1-1/8″
Infeed Per Rev. of Handwheel: 0.04″
Max. Intermittent Infeed, Coarse: 0.002″
Min. Intermittent Infeed, Fine: 0.00005″
Sparkout: 0 – 50 Seconds

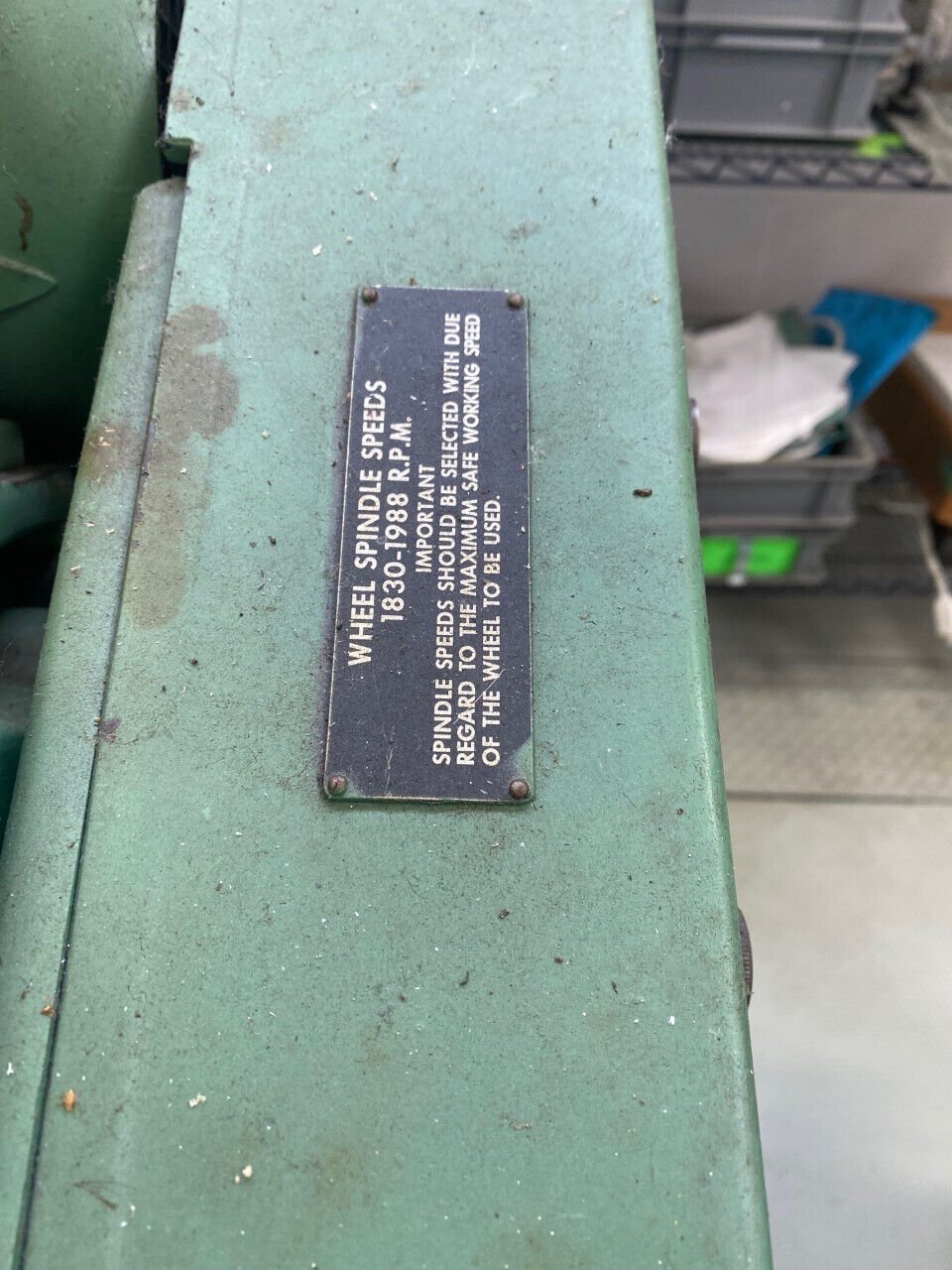

RPM Wheel Speeds (2): 1830 / 1988 RPM
Grinding Wheel: 12″ X 1-1/2″ X 5″
Minimum Wheel Diameter For Zero Work Diameter: 10″
Infinitely Variable Spindle Speeds: 50 – 900 RPM
Capacity Through Standard Draw Tube: 3/4″
Max. Collet Capacity: 3/4″
Machine Weight: 2,226 LBS
