Description
Number of Spindles: 16
Spindle speeds (36): 140 – 2,376 RPM
Spindle Motor: 15 HP
Drilling Capacity: 0.4375″ diameter
Tapping Capacity: 0.375″ diameter
Upper Driver Diameter: 1-1/2″
Head Flange to Table Top (min-max): 13″ – 41″
Drilling Area: 19″ x 32″
Center of Head to Column Ways: 15.5″
Table Area: 40″ X 30″
Vertical Head Stroke: 18″
Vertical Table Adjustment: 10″
Feed rate range: 1 – 20 IPM
Approx Weight: 12,200 lbs
EQUIPPED WITH:
Lube system
Coolant

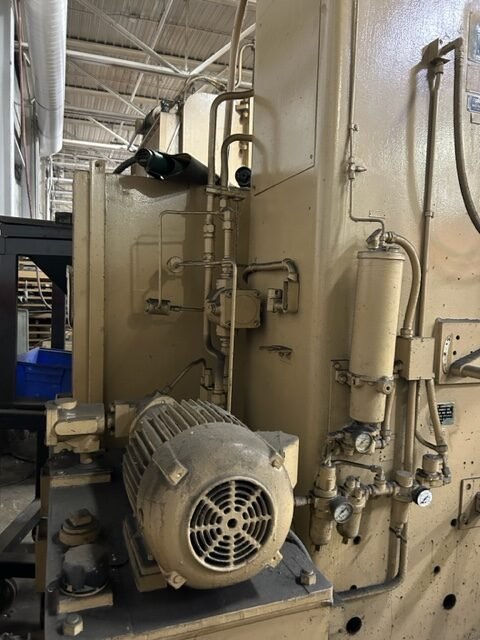

5 HP Hydraulic Unit
