Description

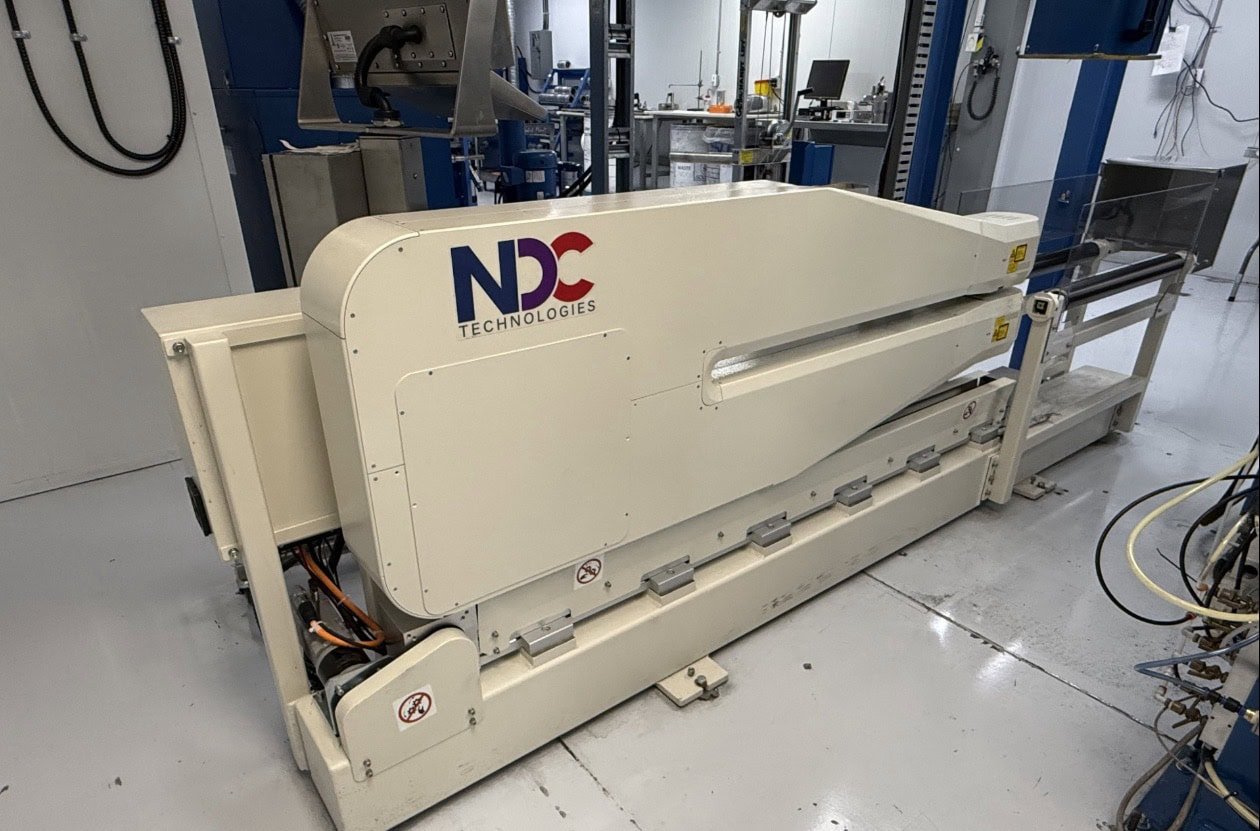

The NDC MicroCaliper Model 8100 is a high-precision thickness measurement system specifically engineered for lithium-ion battery roll press applications, providing real-time thickness monitoring across web widths up to 800mm.

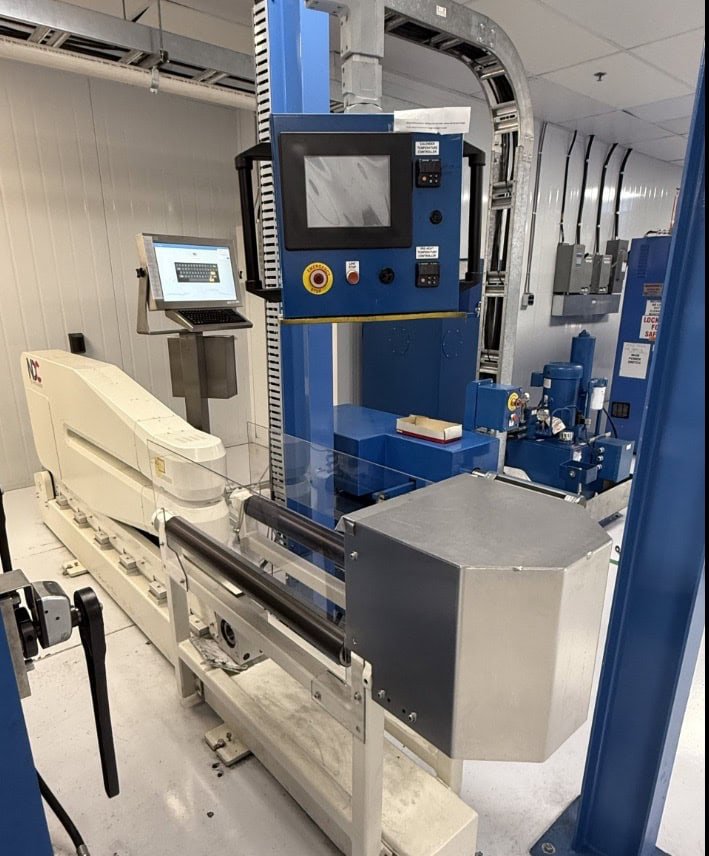

– This thickness measuring system is designed to be part of a calendering line and is intended for use as an integrated system.
– Estimated Hours of Operation: 2,700 hours.
Key Features
Laboratory-certified measurement accuracy and repeatability of ±0.3µm for precise quality control
High-resolution laser measurement capability with spot size of 25 x 1400 µm for detailed profile analysis
Multi-zone roll press control system with automated gap adjustment functionality
Integrated roll bending control system with hydraulic actuation for flatness optimization
Recipe-based delta preset capabilities for automated roll position adjustment between product changeovers
Decoupled control architecture for independent management of average thickness and gap settings
Key Technical Specifications
Model Number 8100
Maximum Web Width 800 mm
Measurement Accuracy ±0.3 µm
Measurement Repeatability ±0.3 µm
Laser Spot Width 25 µm
Laser Spot Length 1400 µm
Minimum Detectable Variation 1 mm
Number of Control Zones 2-3 zones
