Description
Power Consumption by System
per Volume of H2 Gas Produced:
6.2 kWh/Nm3 (16.3 kWh/100 ft3)
Purity (Concentration of Impurities): ISO 14687-1 Type 1 grade C ISO 14687-2 Type 1 grade D
99.9998% [H2O < 2 ppm, -72°C (-98°F) Dew Point, N2 < 2 ppm, O2 < 1 ppm, all others undetectable]
Consumption Rate at Maximum Production: 9 L/h (2.4 gal/h)
Temperature: 41 to 104°F
Pressure: 10 to 60 psig

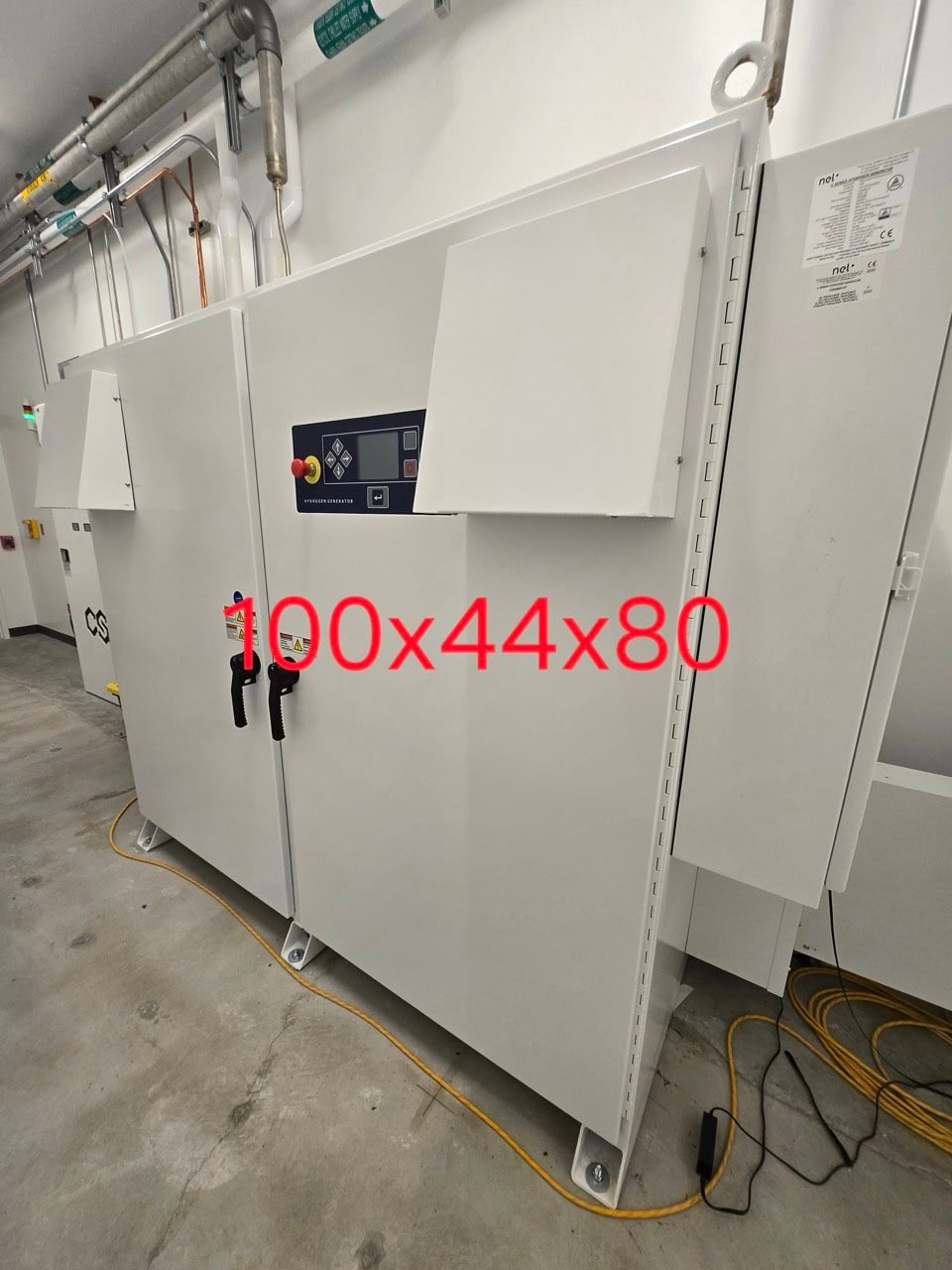

Dimensions: Electrolyzer Enclosure: 99” x 46” x 79”
Power Supply Enclosure: 67” x 41” x 79”
Weight: 6,026 lbs.
480 V / 3 Phase / 150 Amps
