Description
Integrated Electrocoagulation System (EC) and Dissolved Air Floatation (DAF):Dissolved Gas(DGS) System

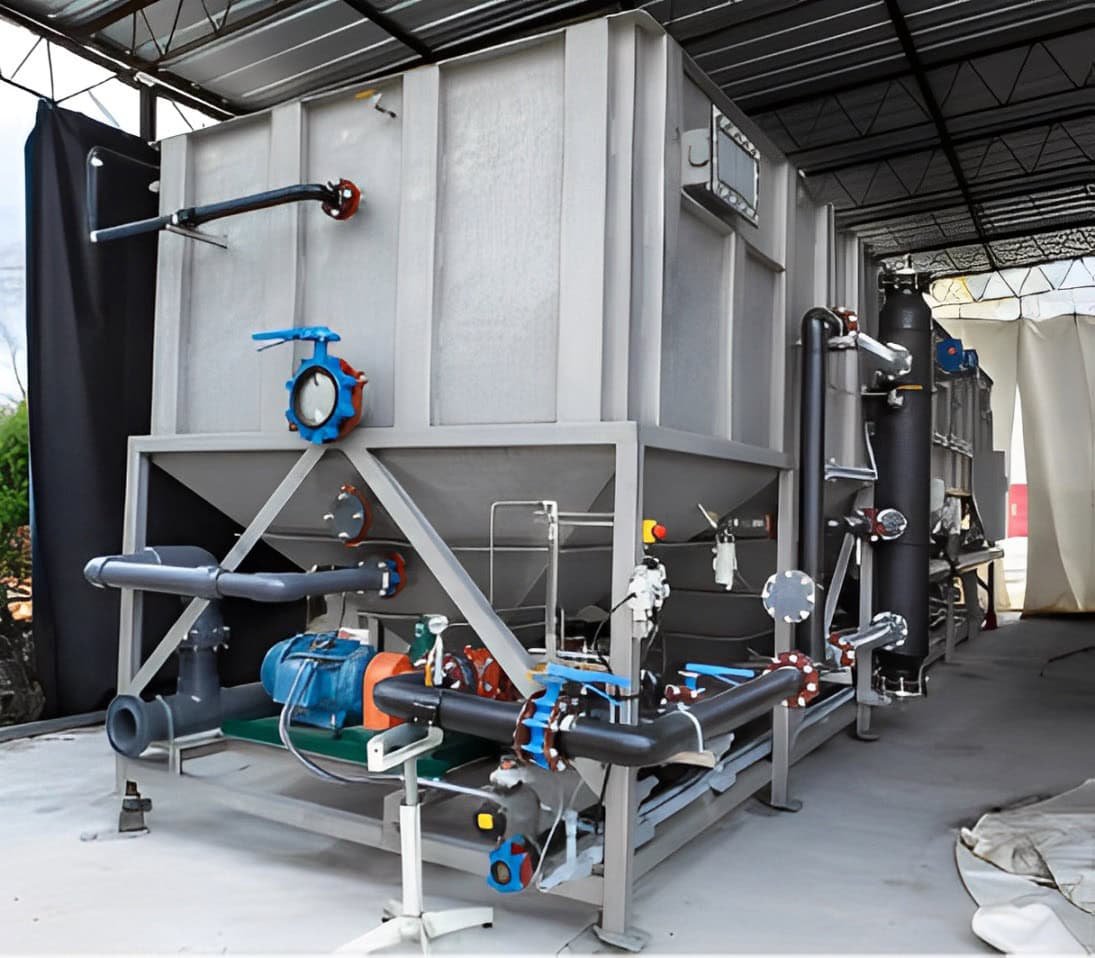

Dissolved Air Floatation System (Qty 1)
-Dimensions 34’ x 11’ x 10’ 6”
-Design Flowrate: 450 GPM
-304 Stainless Steel Vessel
-Covered
-Explosion Proof
-HDPE Piping
-(2) Corrosion Proof Skimmers

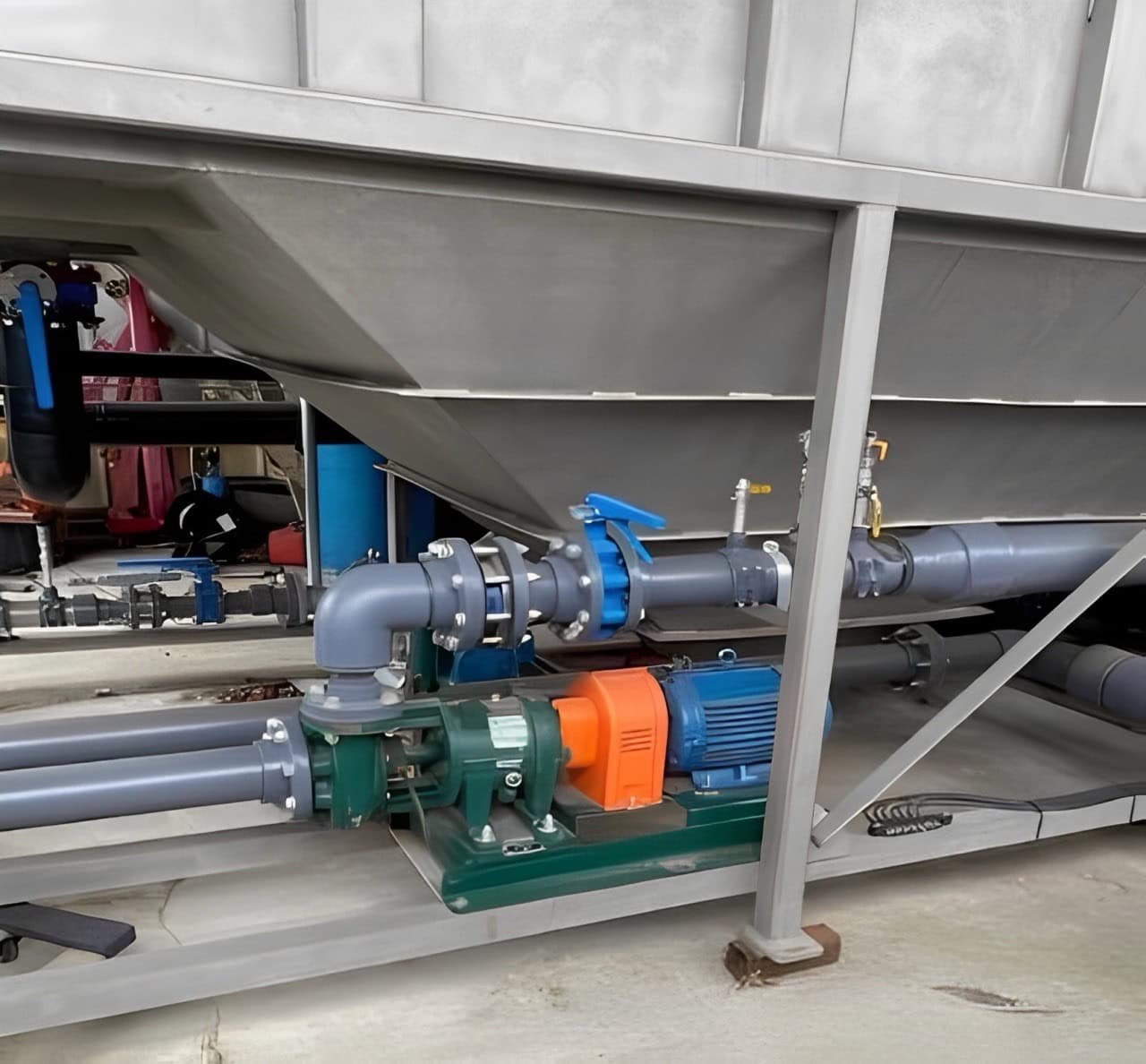

-40 HP Explosion Proof Pump
-3 HP Solids Lobe Pump
-CO2 Blanket System
-Automated Valve Pack

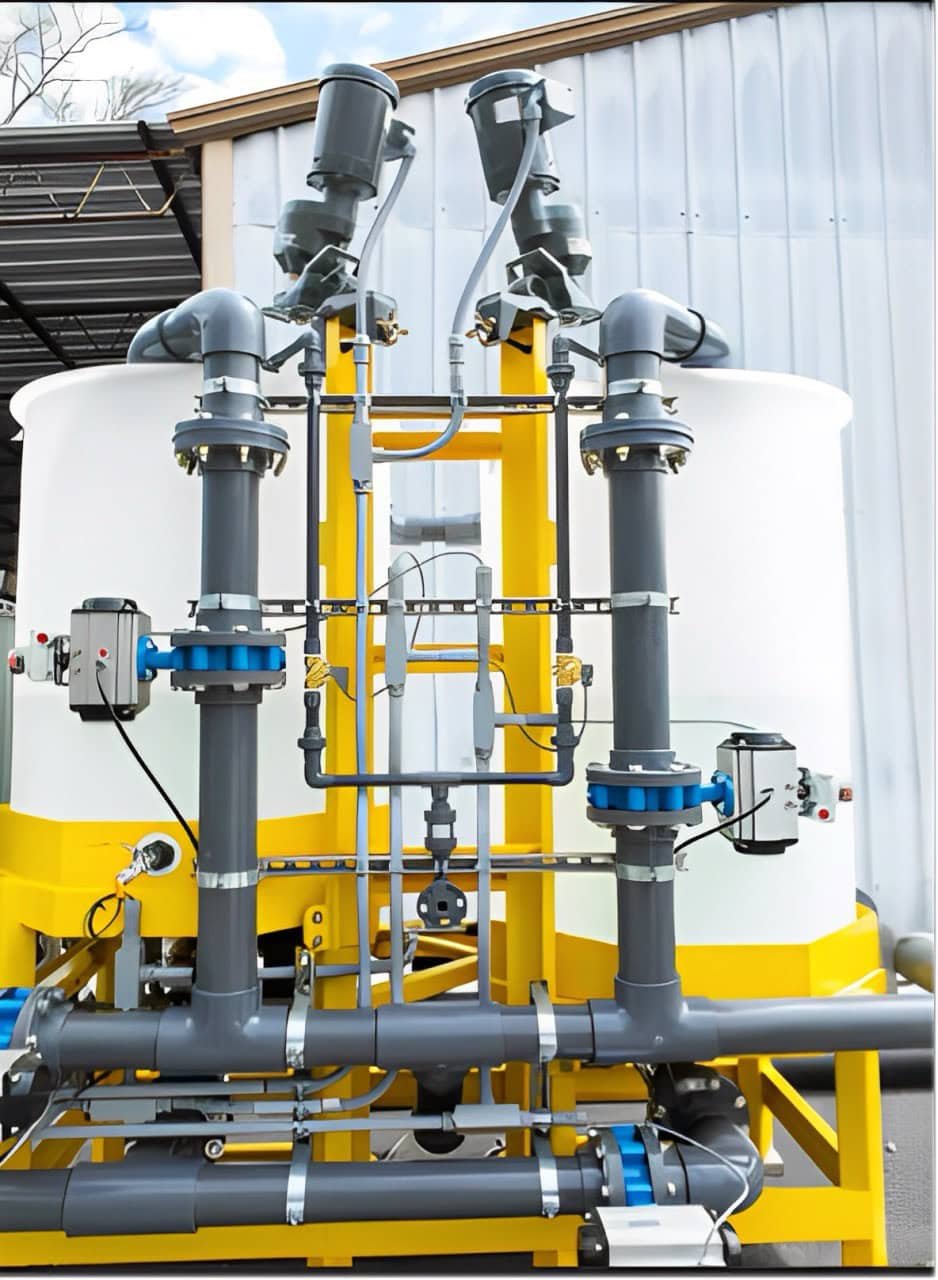

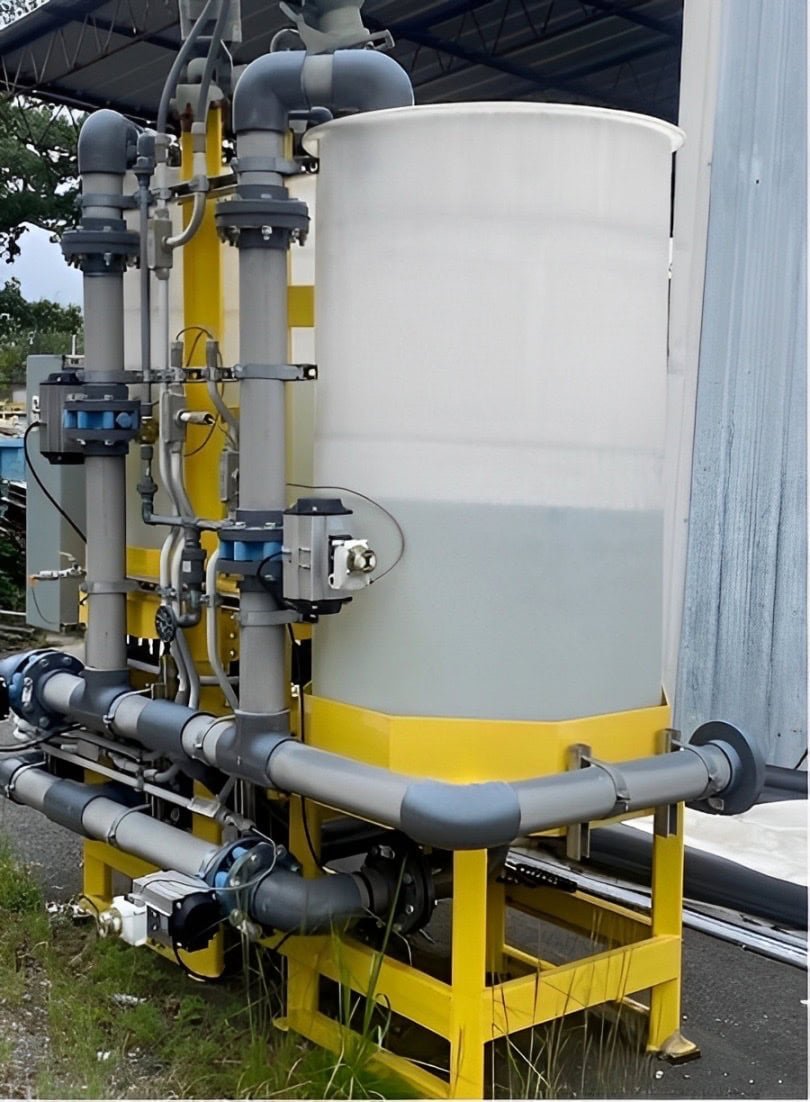

Electrocoagulation System (Qty 2)
-Dimensions : 7’ 9” x 5’ x 5’ 6”
-Design Flowrate: 225 GPM

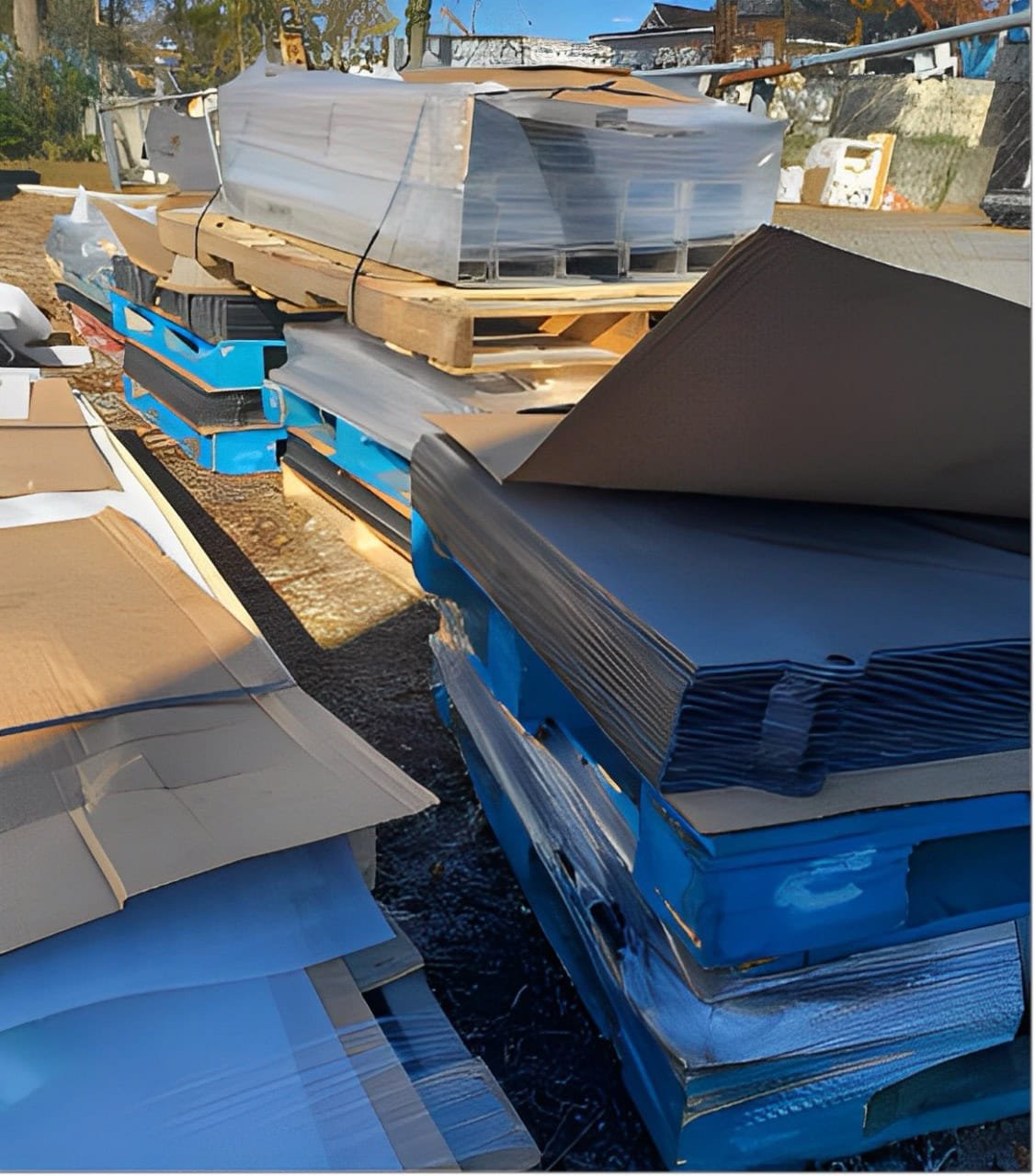

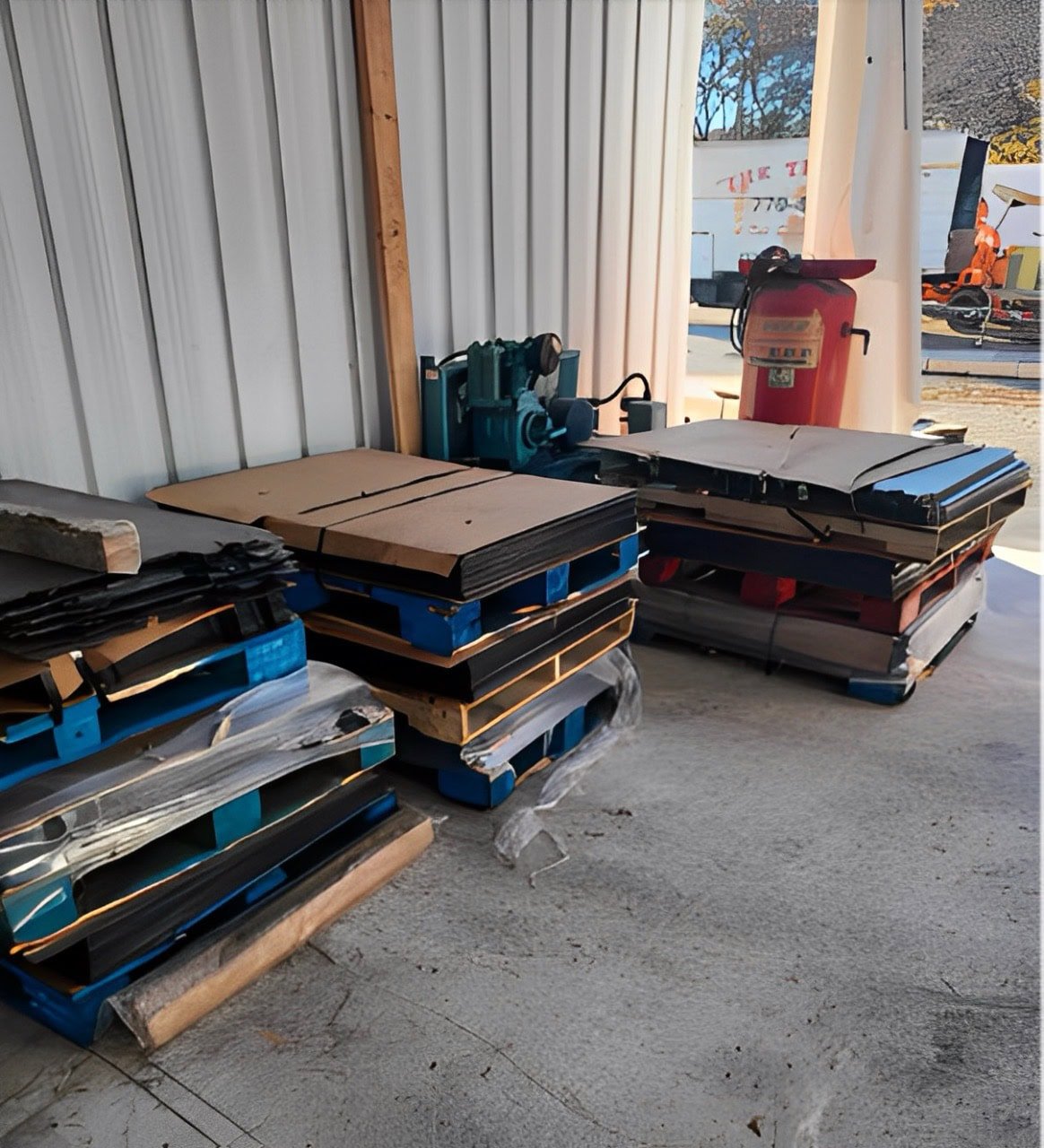

-Number of Electrodes: 217
-Electrodes Materials of Construction: ASTM A36 Carbon Steel
-Electrodes Effective Area: 24” x 36”
-Electrode Thickness: 3/16”
-Electrodes Gap: 3/16”
-Bus Bar Material of Construction: Aluminum

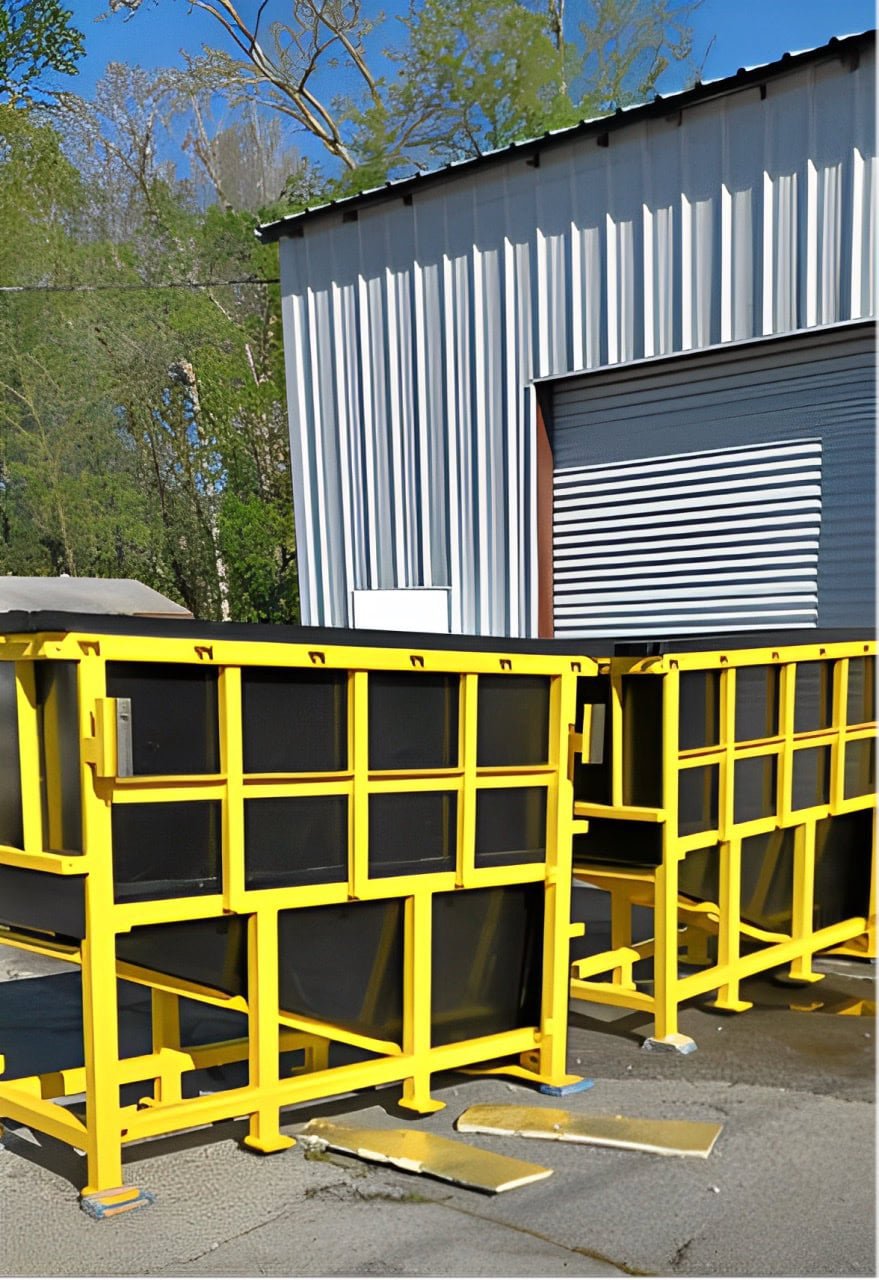

-HDPE Vessel
-Ports for CIP Connection

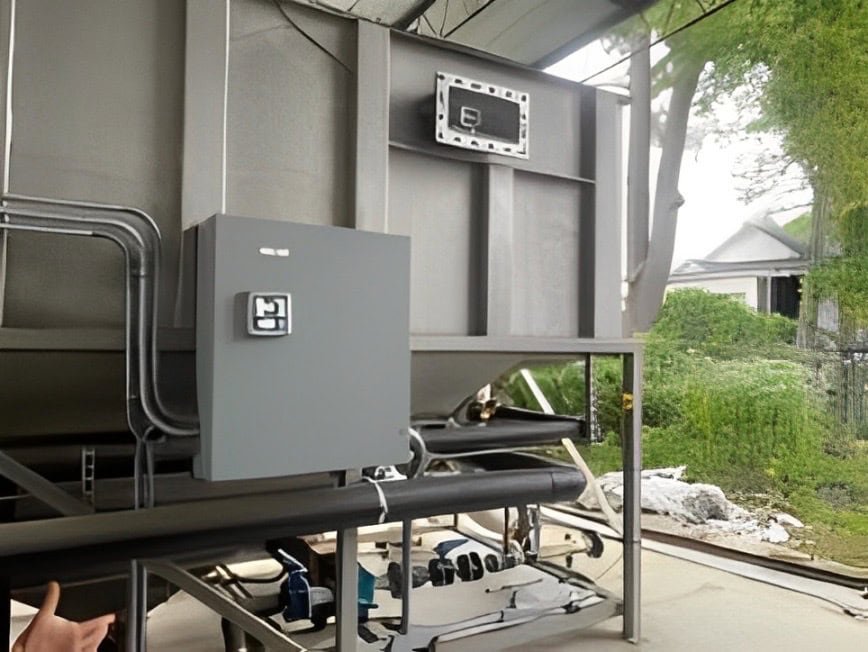

-Power Supply (2)
-High Output from AC to DC Power Supply
-One (1) Independently controlled DC power with pulsing and polarity reversal for each EC chamber. Unit shall be enclosed in a painted cabinet. Incoming AC, 480/3/60, 200A circuit
-Polarity Reversal and Pulsing
-Modbus outputs to the unit mounted controller providing monitoring of volts, current, pulse, polarity reversal, fan status, temperature, and power
-EMC Filter, constant current and voltage control, over current protection, short circuit protection, over temperature monitor, automatic fan control
Clean in Place (CIP) system included
-The automated system allows the unattended cleaning of a single EC while the other EC continues to provide treatment. The CIP utilizes an abrading solution as opposed to harsh chemicals.
