Description

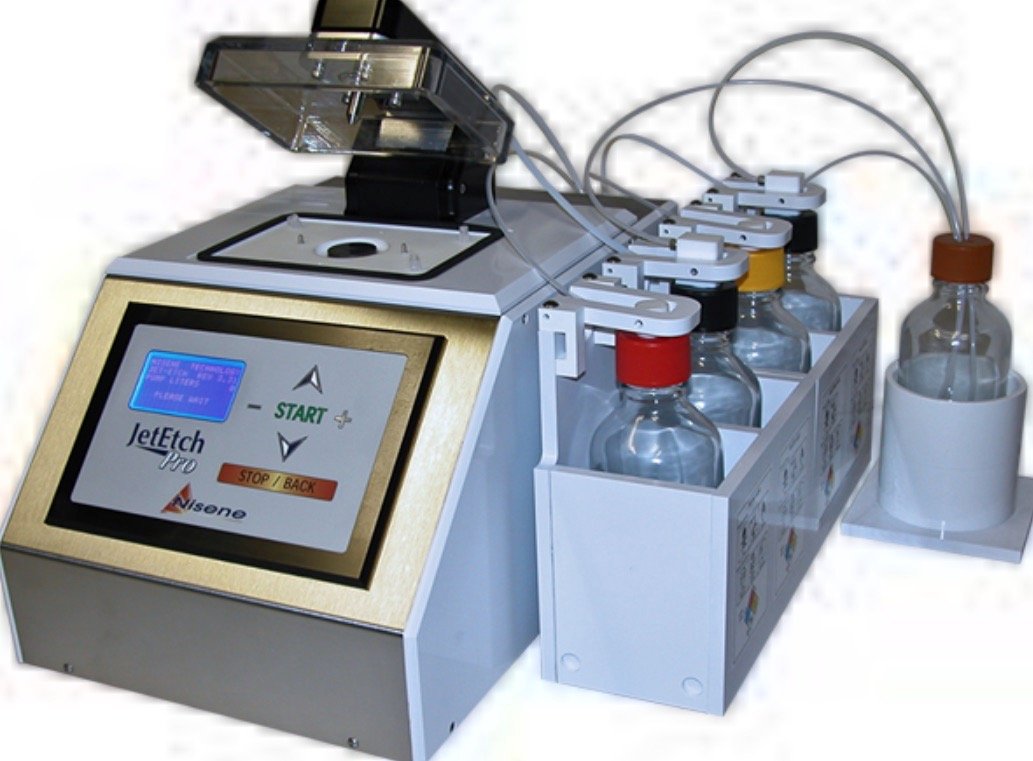

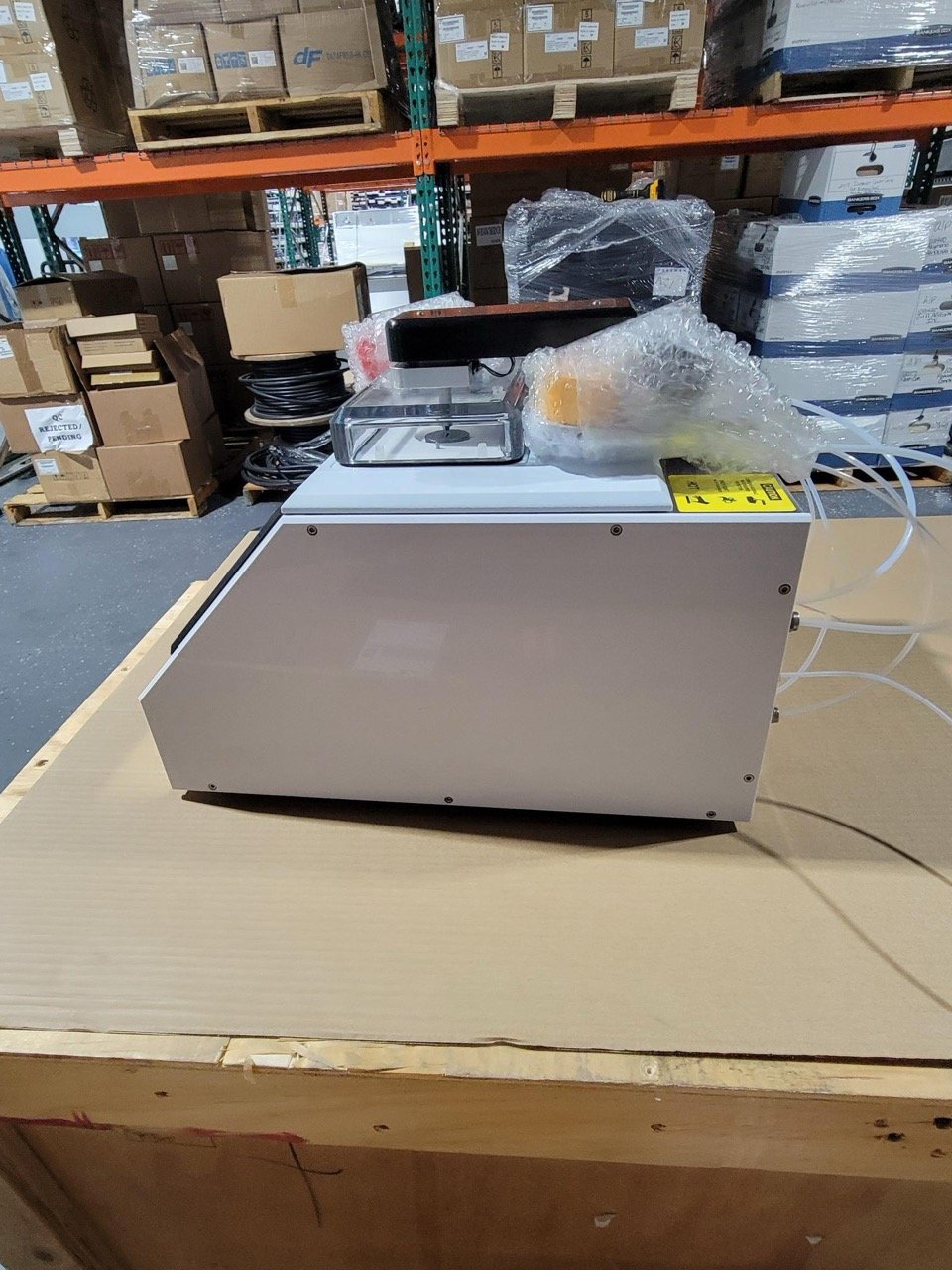

The JetEtch Pro JEP1000 is a precision chemical decapsulation system used for safely etching away IC package molding using acid. Its design includes:
Pneumatic Cover Arm — for safe and automated sealing of the etch chamber, minimizing user exposure to hazardous materials.
hisol.jp
MICL Group
Dual Waste Bottle Setup — includes separation for different acid types, ensuring robust safety and eliminating cross-contamination.
hisol.jp
MICL Group

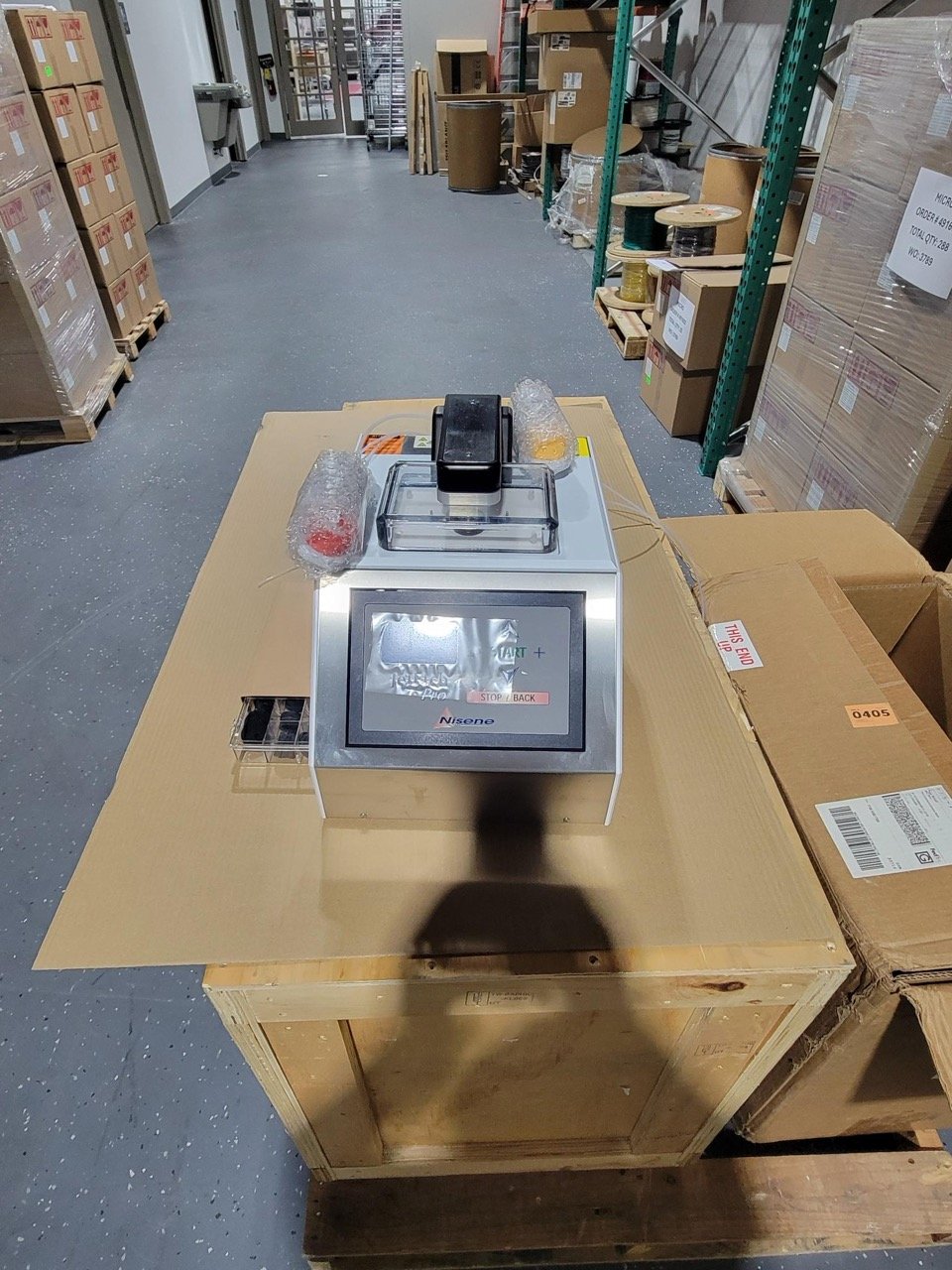

Compact, Integrated Control Panel — features an intuitive interface with programmable menus and user-adjustable settings for time, temperature, and flow.
MICL Group
Uses Sulfuric Acid / Nitric Acid / Mixed Acid

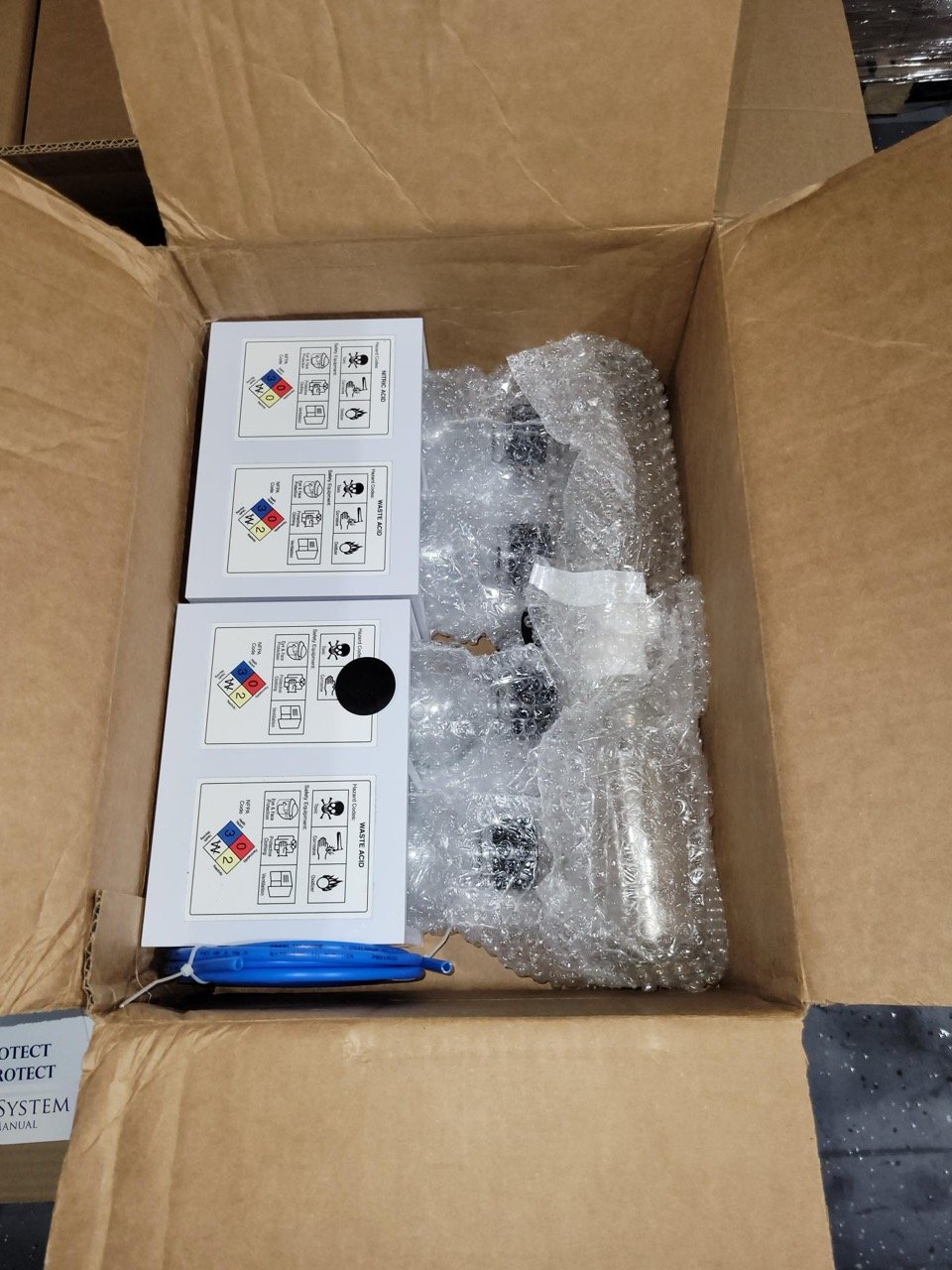

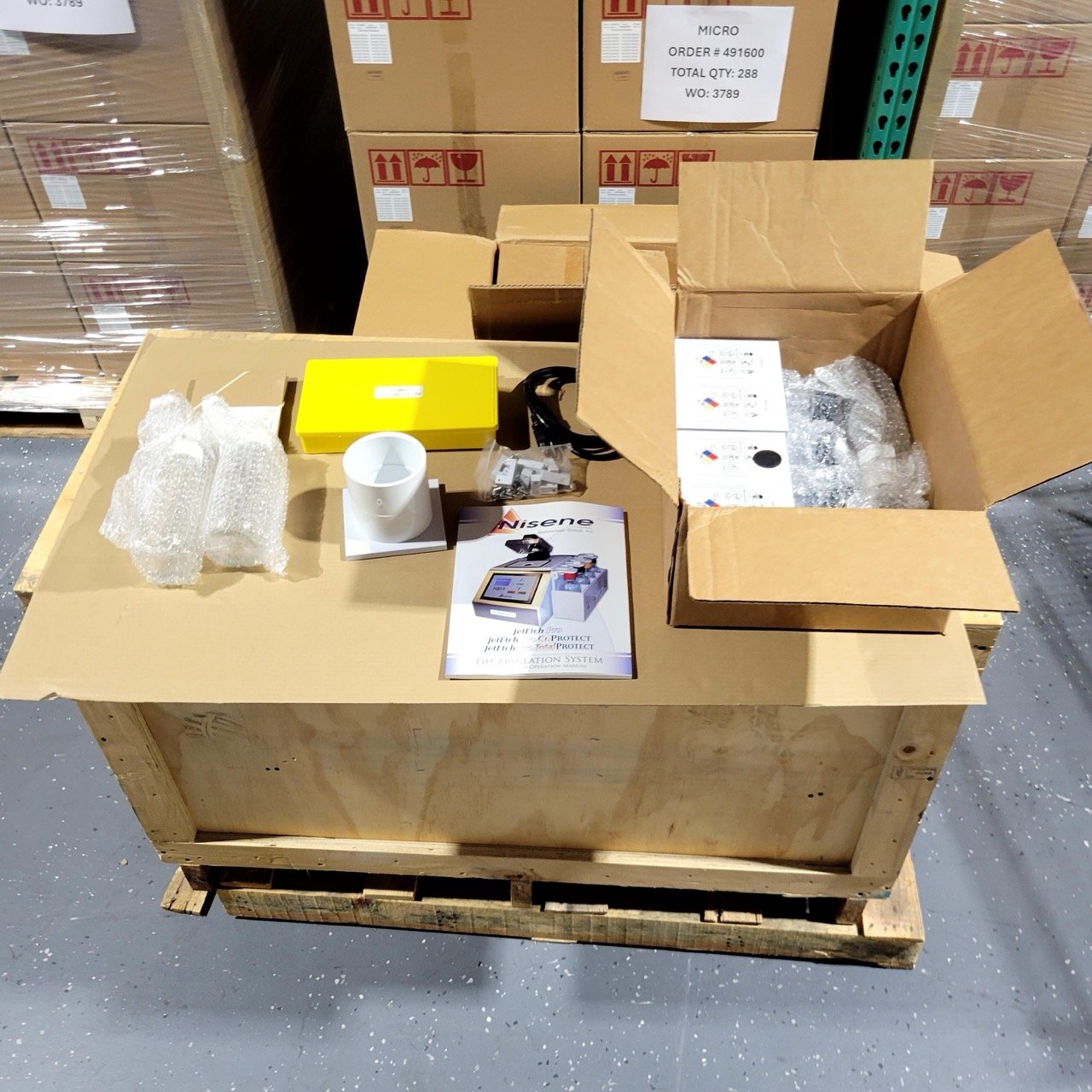

Includes: Etcher-controller unit, patented micro-meeting pump, the industry-leading Fixed Silicon Carbide Etch Head, eight
500 ml bottles, PVC bottle holders, and Basic Accessory Kit (p/n 0300600).
-Dimensions (Unit) 11.4 in × 11.4 in × 16.5 in
-Bottle Holder (each) 9.1 in × 4.3 in × 4.3 in
-Weight ~37.5 lbs
-Power 350 W (95–130 VAC or 210–250 VAC)
-CDA 60–100 psi
-Nitrogen Supply 0.1 cfm
-Flow Rate 0.034–0.34 oz/min
-Etch Time Up to 30 minutes (1 s increments)
-Heating Time Up to 2 minutes
-Temperature Ranges Nitric: 50–194 °F; Sulfuric: 50–302 °F; Mixed: 50–212 °F
-Reservoirs 17 oz or 34 oz bottles (2 acid, 2 waste)
-Cap Sizes ~1.3 in, 1.5 in, 1.6 in, 1.8 in
