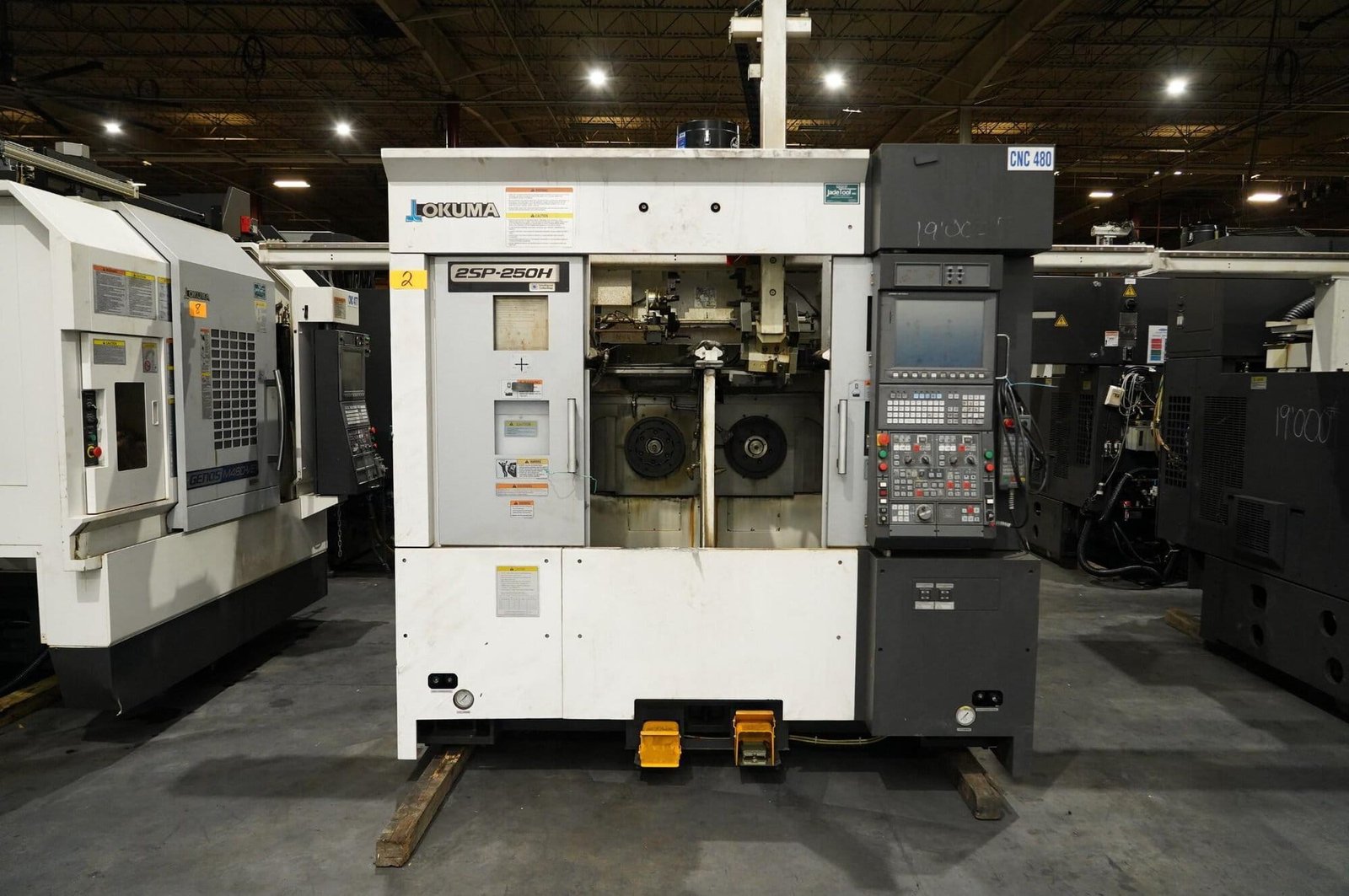

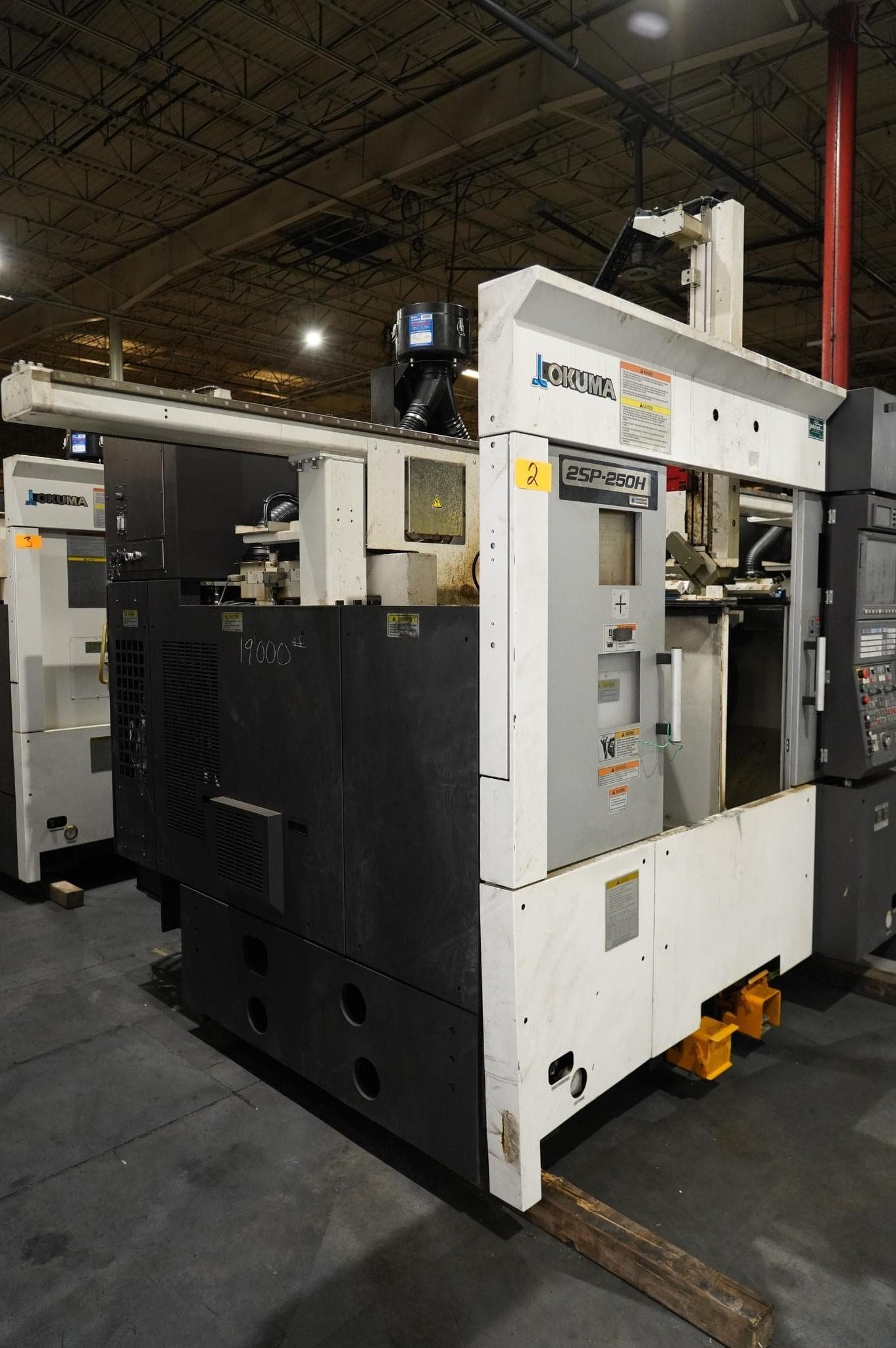

Description
Max Turning Diameter: 8.66″
Max Turning Length: 5.91”
Travel X-Axis: 5.91”
Z-Axis: 6.10”
Speed Range: 50-4500 rpm

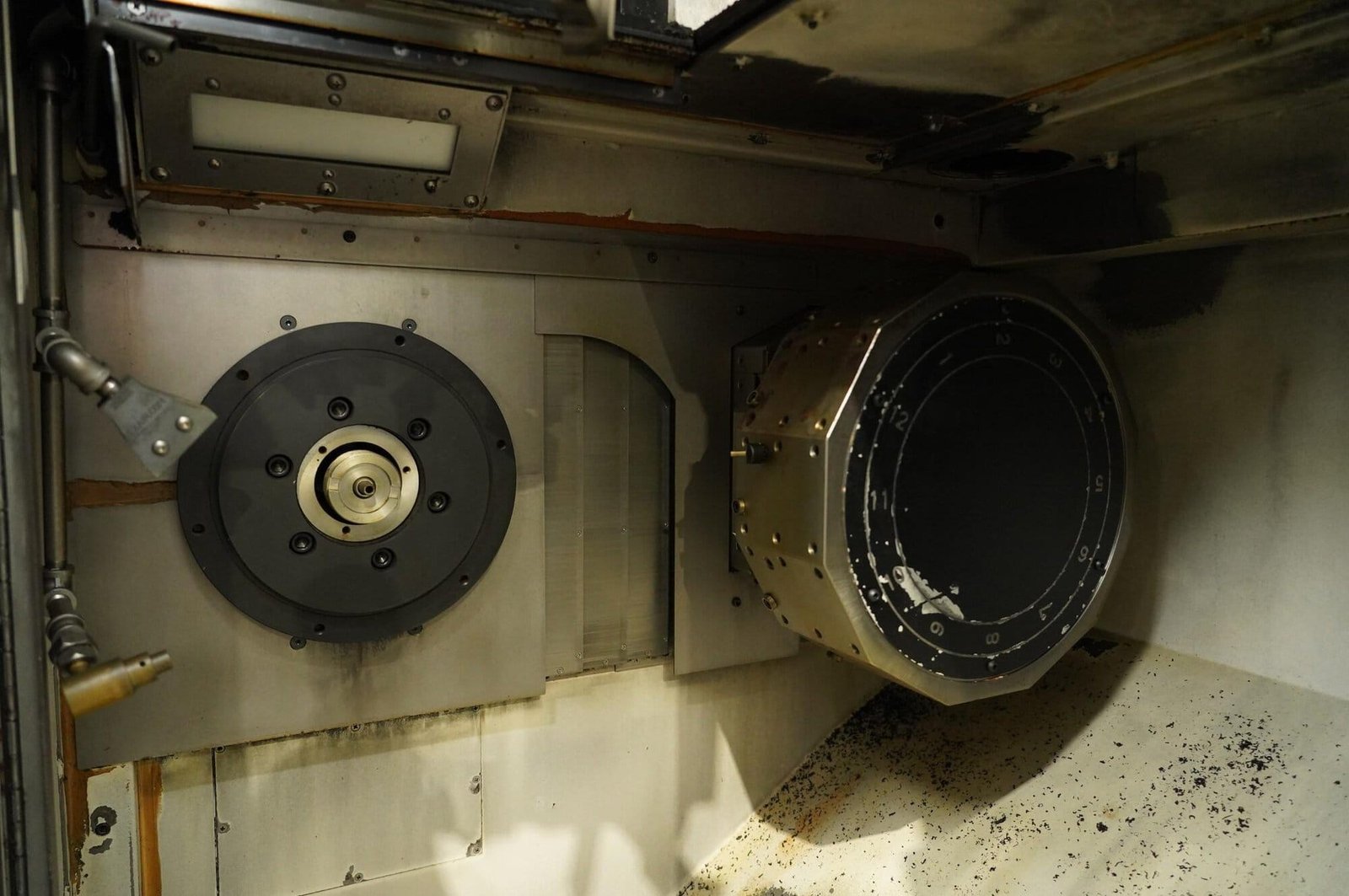

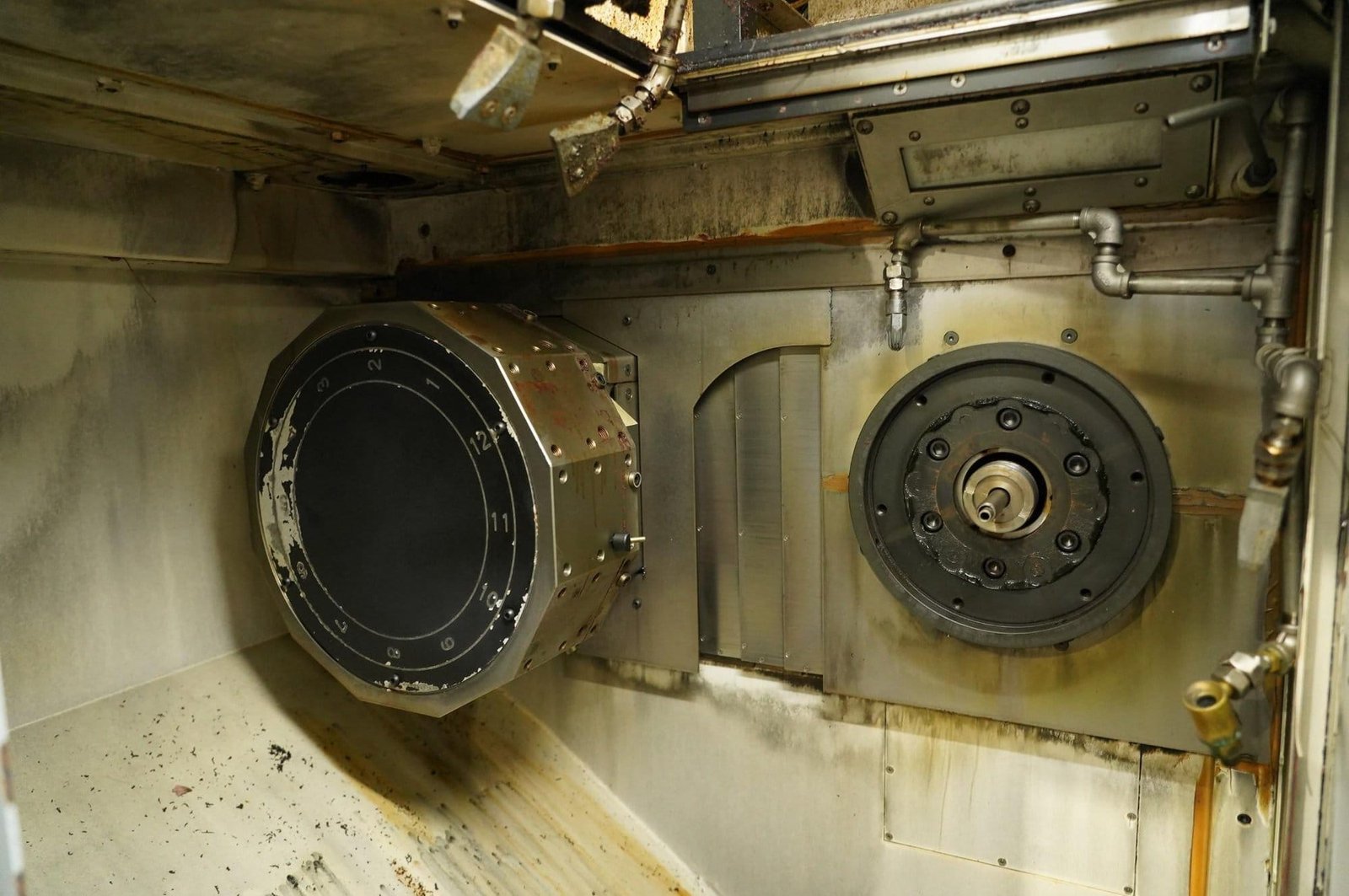

Turret Type: V12 NC
Motor Spindle Drive: 15/10 hp
Equipped With:

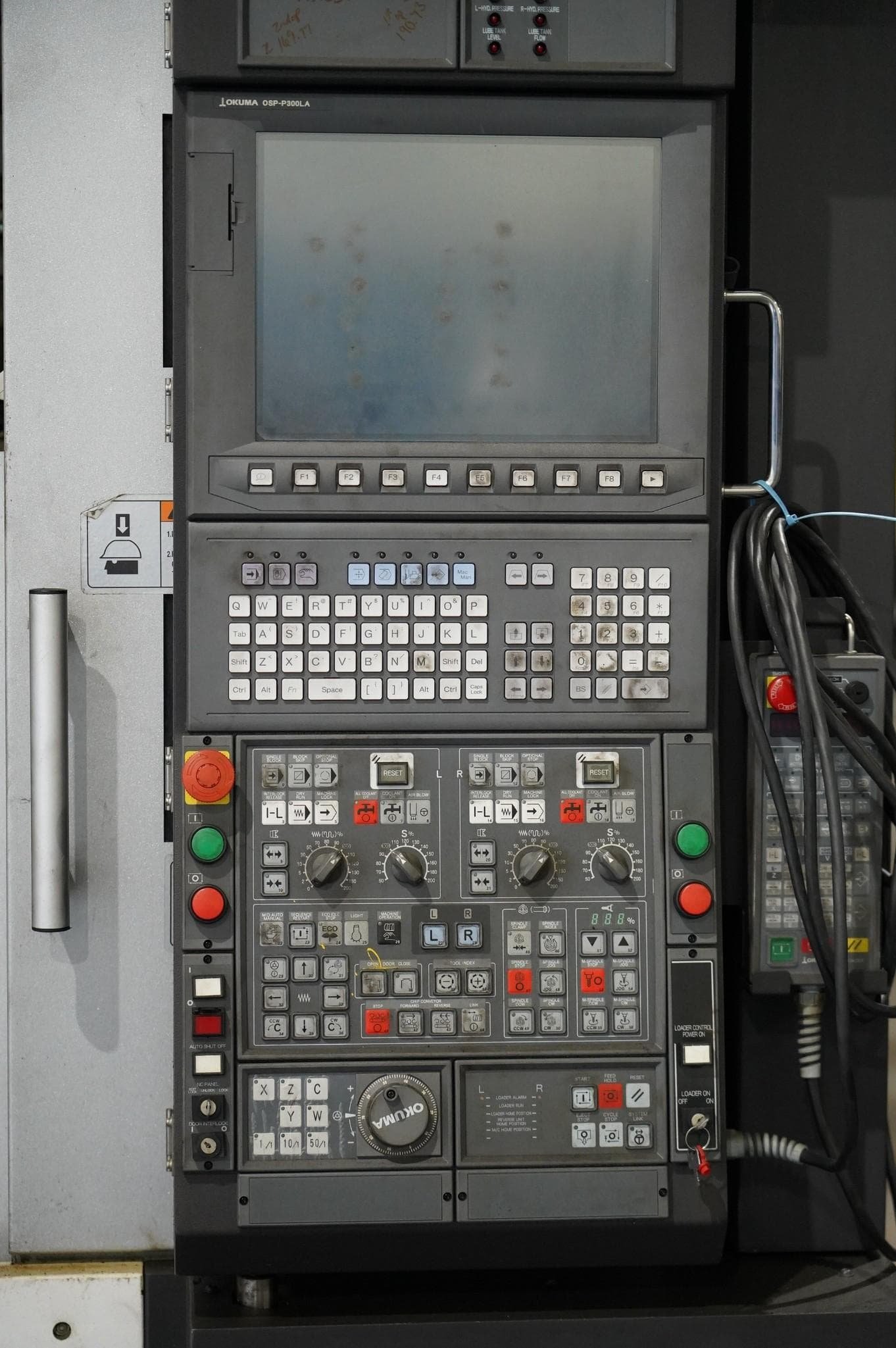

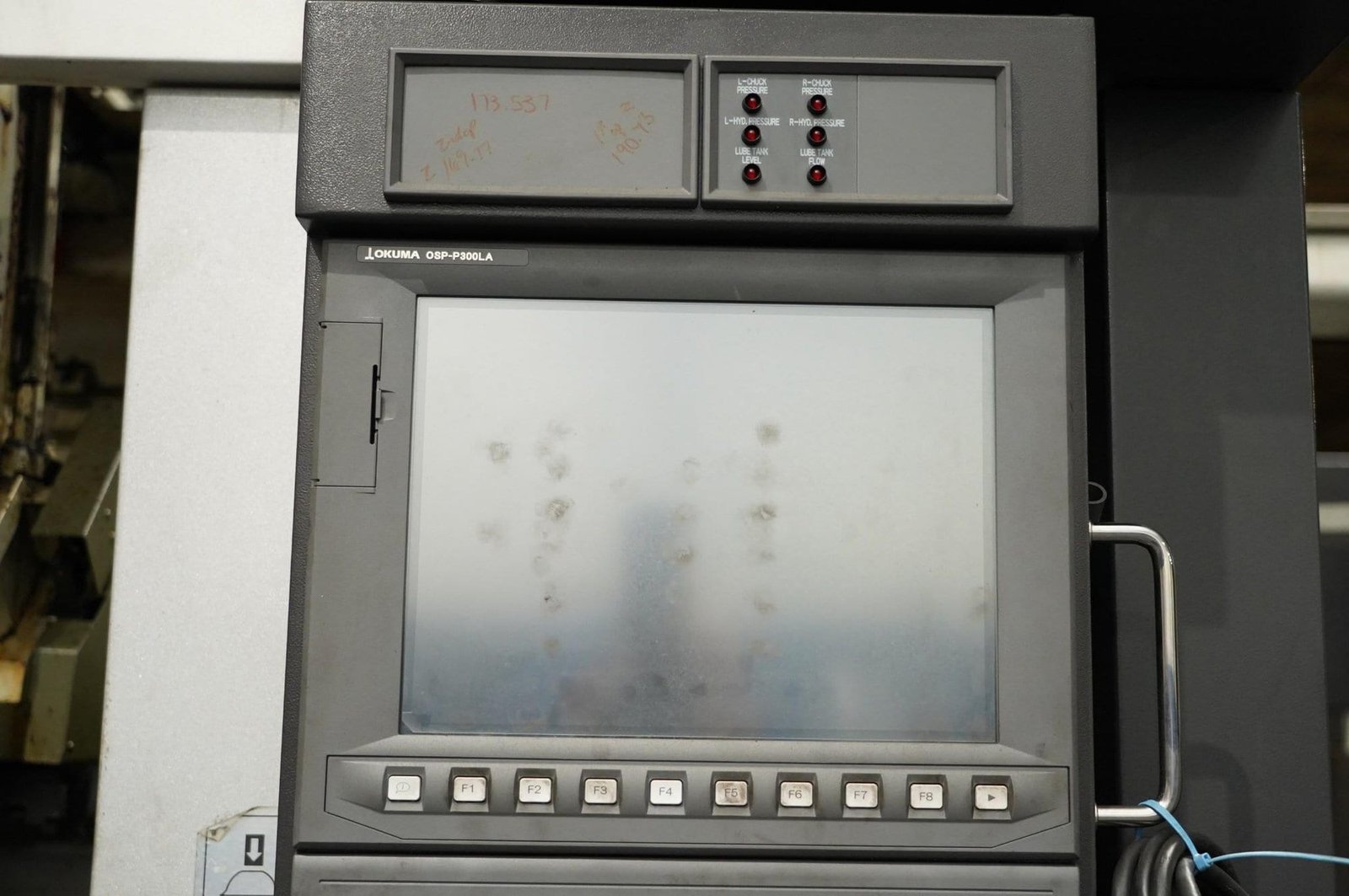

Okuma OSP-P300LA Control

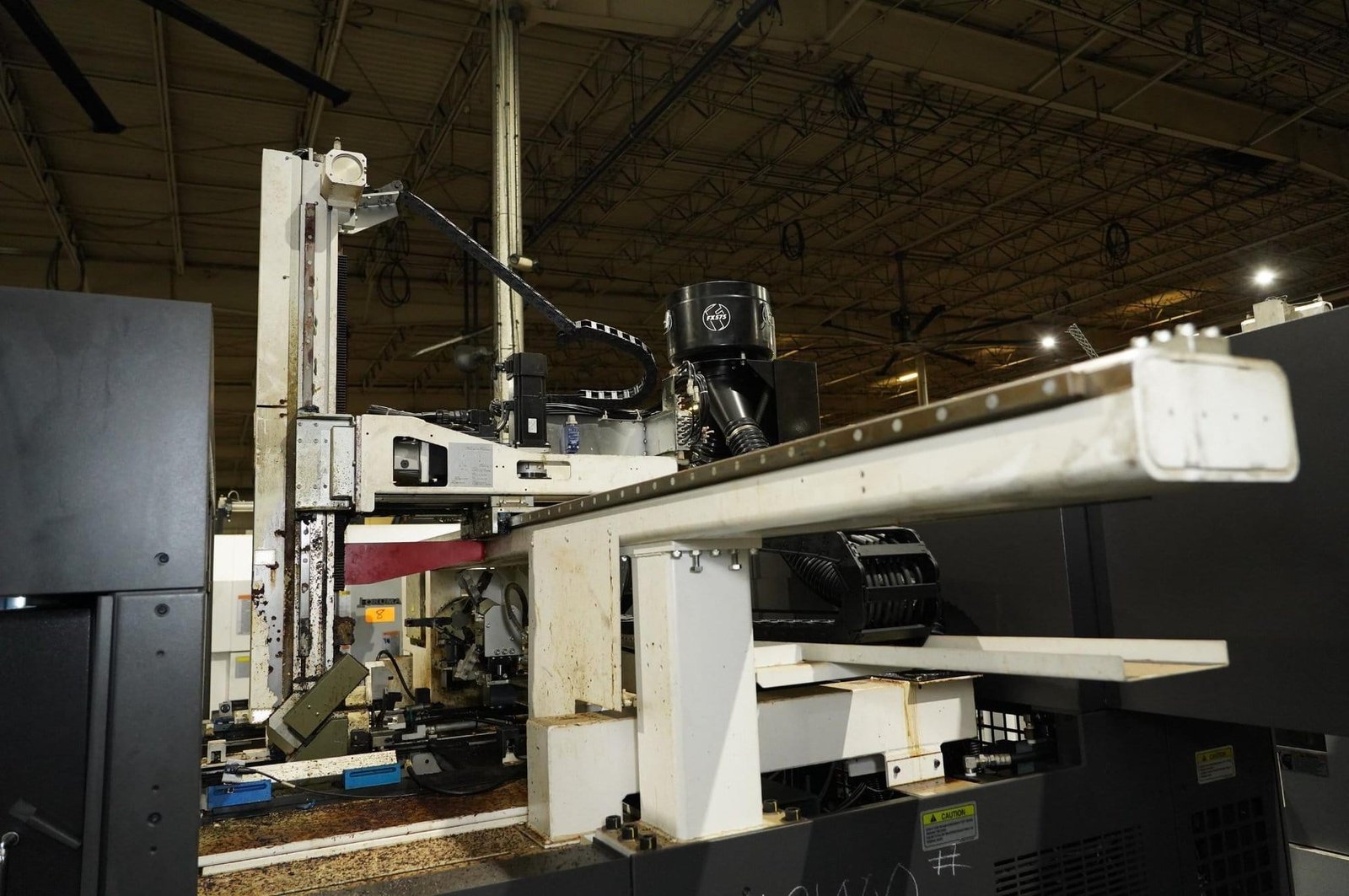

Robot Loader

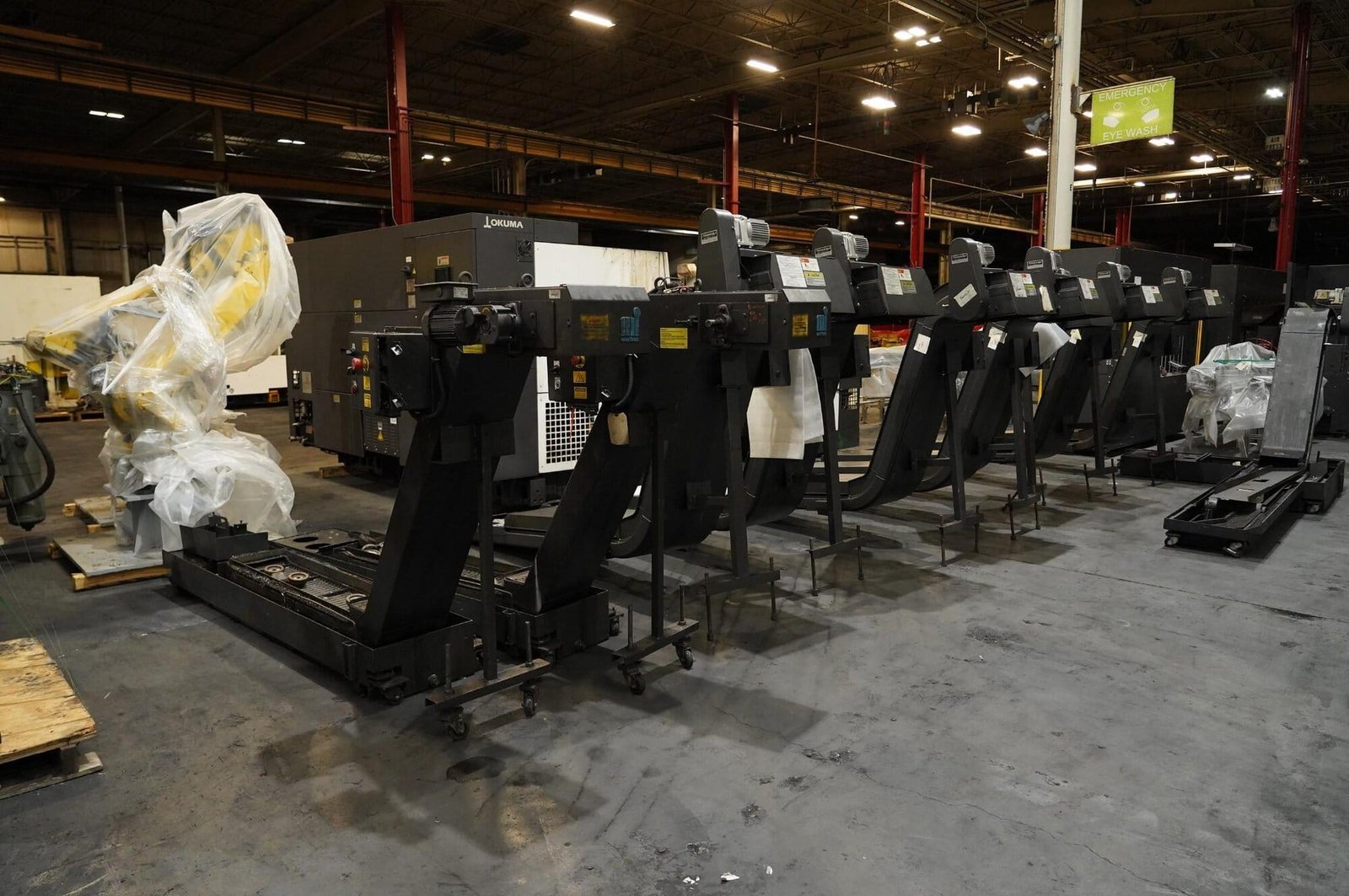

Chip Conveyor

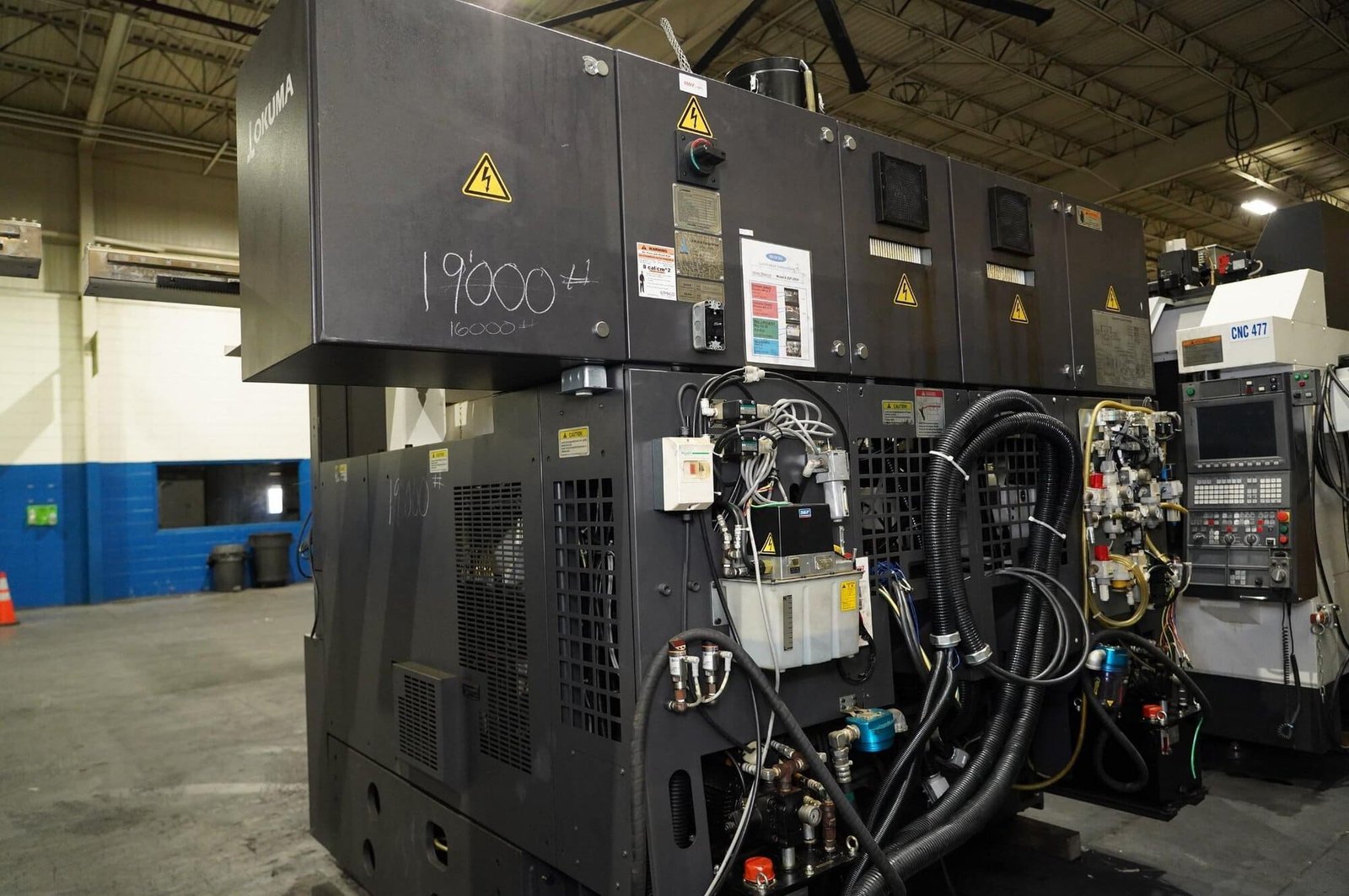

Transformer
220/480, 3 Phase, 60 Hz, 55.1 kVA, Full Load Current 144.7 / 66.3 A, Largest Motor Rating 48 A, Interrupting Capacity 30 / 10 kA, SCCR of Control Panel 10 kA
**Have Inspection Reports from Gosiger**
Machine powered on without any major alarms
Had to set the coolant low input and air PSI input in order to move the axis
Machine had a battery life alarm due to being out of service, backups performed
The machine had a broken load cable track on top and was missing the chucks R-L side
Axis and spindle operate normally
Loader axis operate normally

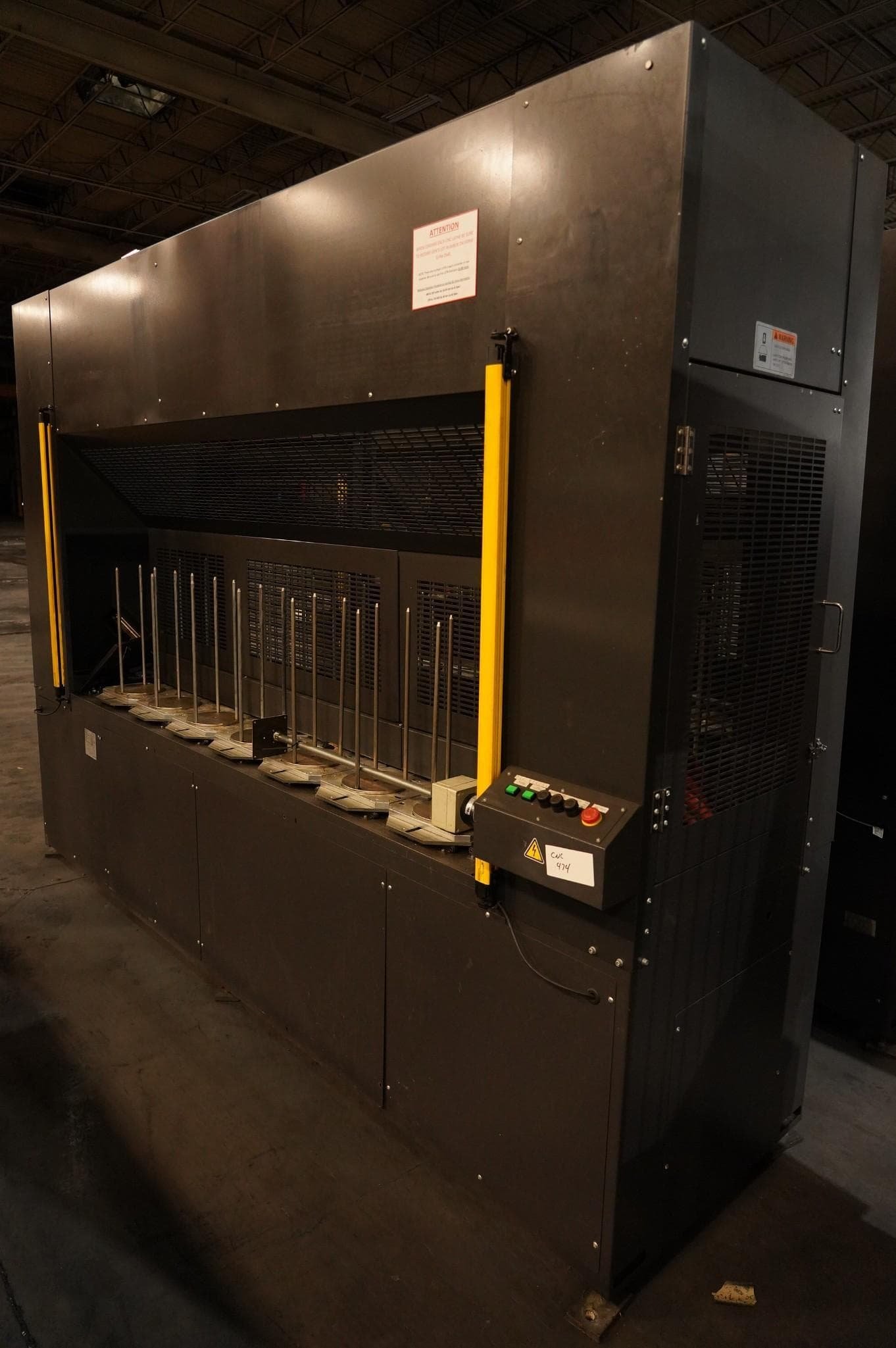

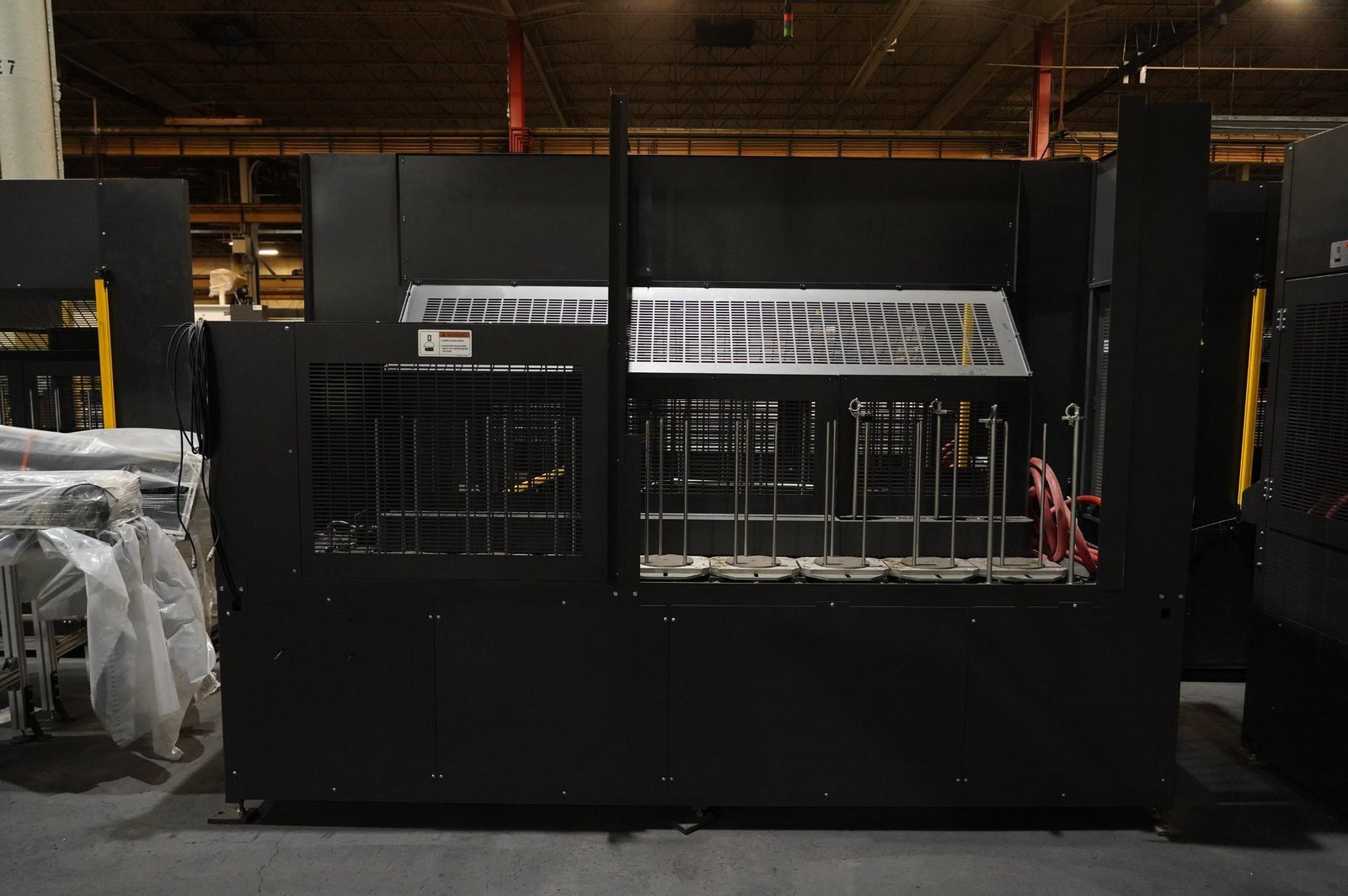

Machine was test without stocker table installed and appears that when it was in operation the parts were placed on a conveyor. inbound outbound.
