Description
Swing Over Bed: 22.83″
Swing Over Saddle: 18.5″
Turning Diameter: 13.39″
Distance Between Spindles: 42.72″
Chuck Size 1,2: 10″, 6″
Bar Capacity 1,2: 3″, 1.7″
X-Axis Travel: 10.24″
Z-Axis Travel: 39.76″
Y-Axis Travel: 4.53″ (+276/-1.77)
C-Axis Indexing 1,2: 0.001, 0.001 Degree
Rapid Traverse (X/Z/Y): 984/1,181/492 IPM
Spindle Nose 1,2: A2-8, JIS Flat Ø140
Spindle Speed 1,2: 6,000, 5,000 RPM
Spindle Power 1,2: 30, 15 HP
Main Spindle Bore Diameter: 3.15″
Sub Spindle Bore Diameter: Ø2.44″
Front Bearing Diameter: 4.72″
Spindle ID Taper: 2 Deg
Tailstock: Yes
Tool Pre-setter: Yes
Dimensions: 134.64″ x 80.35″ x 88.6″
Weight: 15,101 lbs.

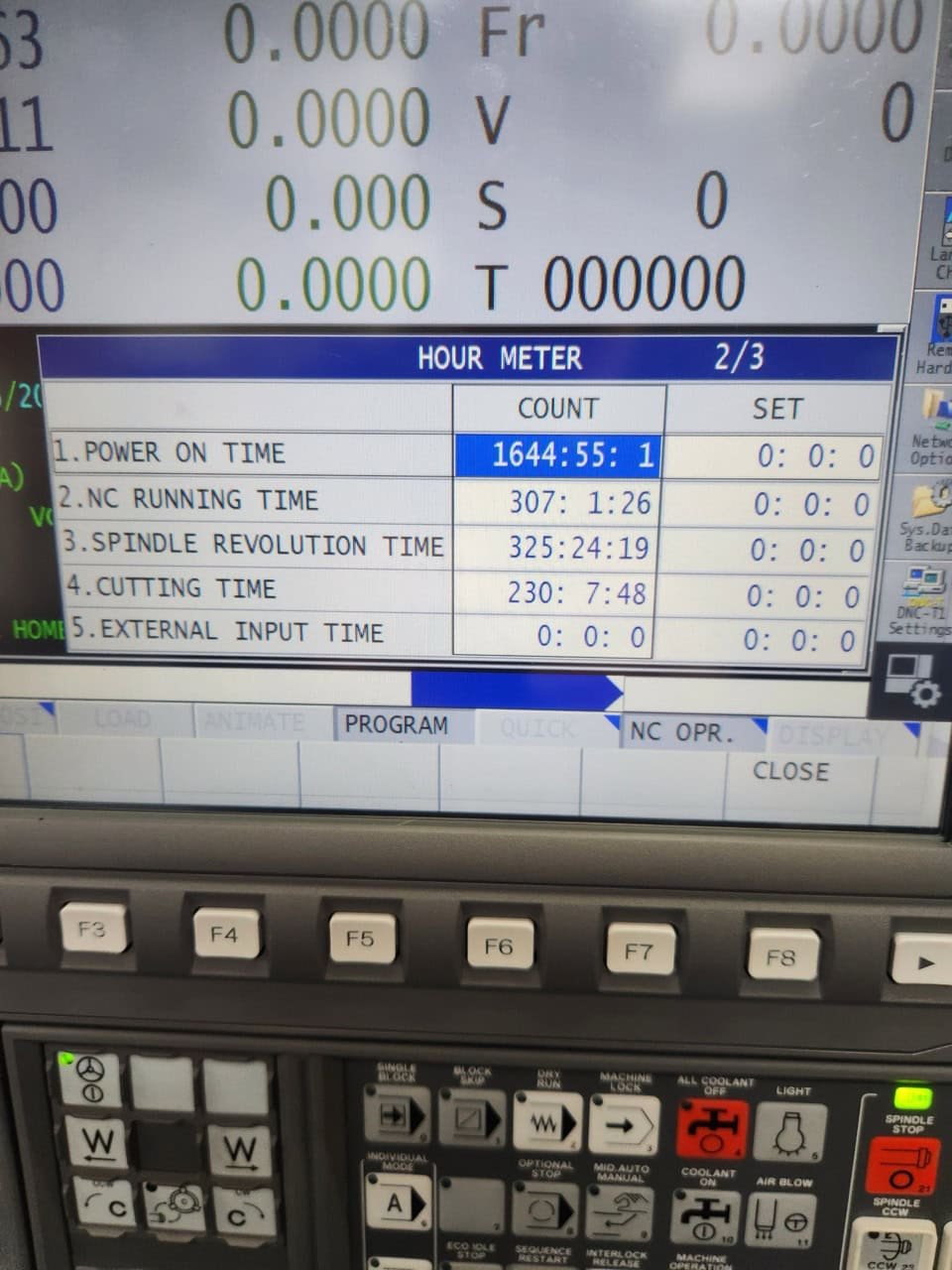

Controller: OSP-P300L
Equipped With:
-BIG BORE SPINDLE, A2-8 w/SR1781 CYLINDER +DRAWTUBE
-40/30 HP 4200 MAX RPM on main spindle/6k on sub spindle
-LNS LOW PROFILE CHIP CONVEYOR
– PARTS CATCHER
-RAPID TRAVERSE OVERRIDE SWITCH

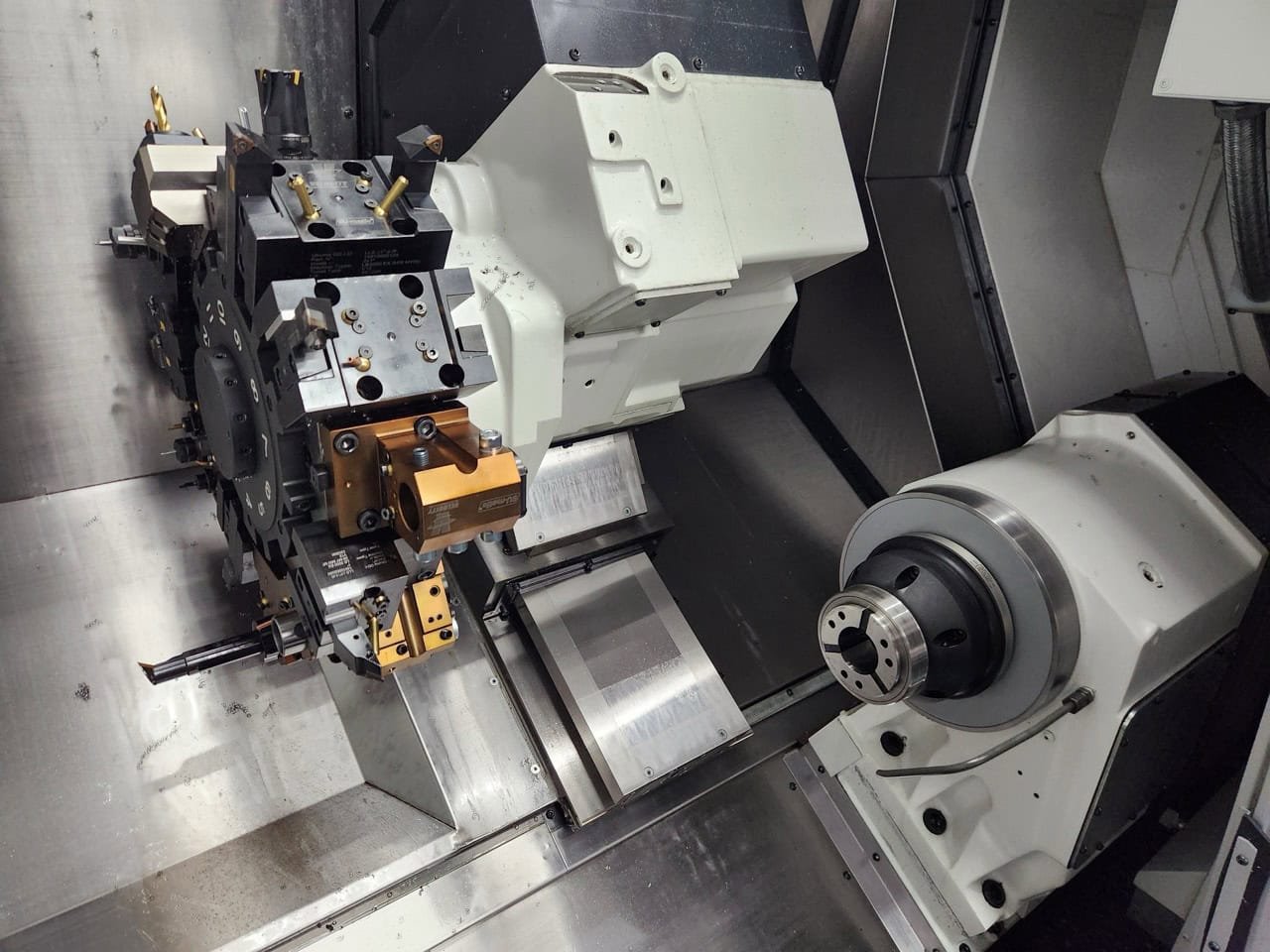

-VELOCITY STATIC TOOLING PACKAGE
o 3x 0D-1-S – 1” MAIN/SUB
o 1x OD-II-S – 1” MAIN/SUB
o 2x ID BORING BAR – 1.5” IC
o 1x ID BORING BAR – 1.5” & 1”
– KITAGAWA B210, 10” 3-JAW CHUCK (MAIN)

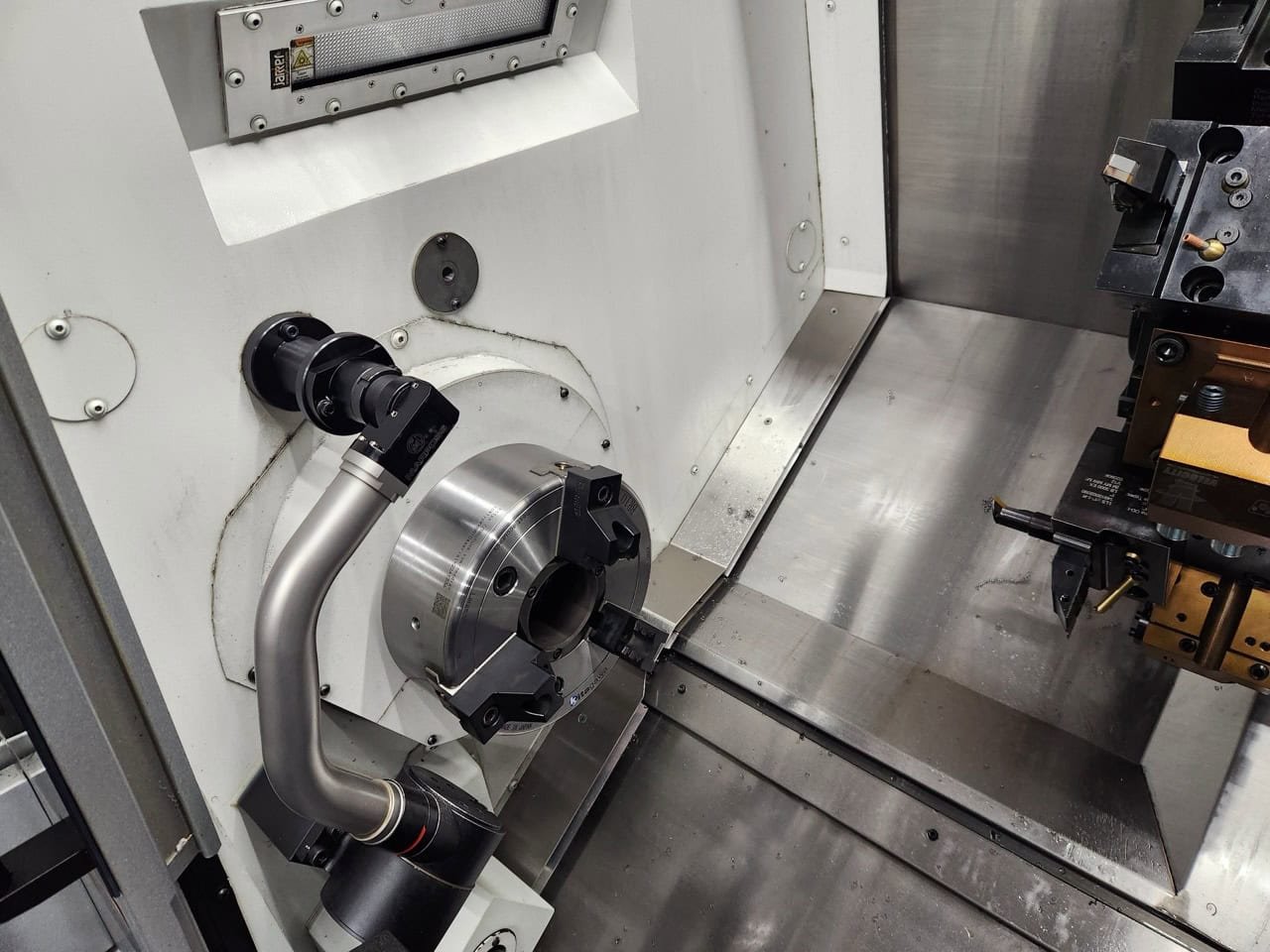

-KITAGAWA B206. 6” 3-JAW CHUCK (SUB)
